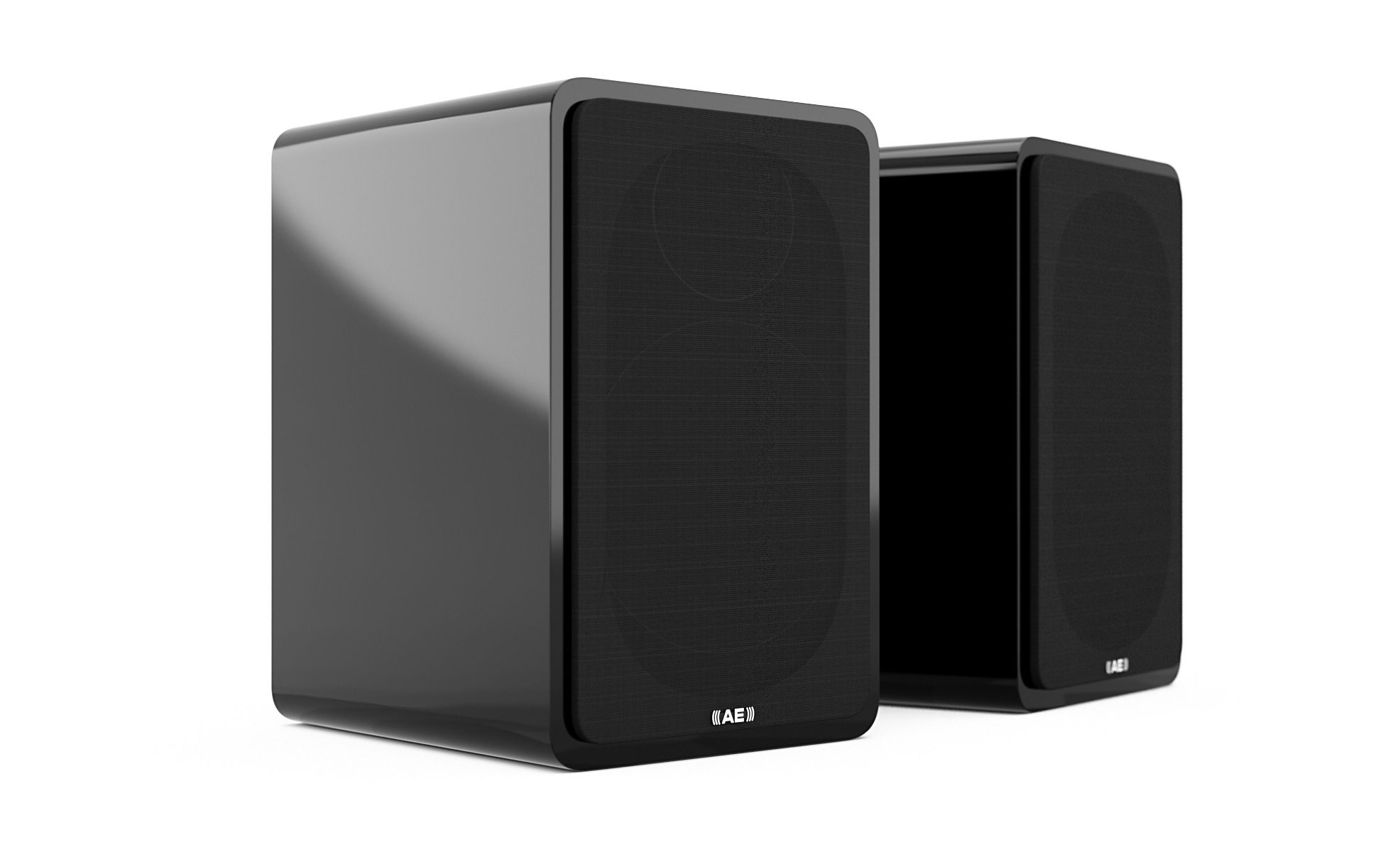

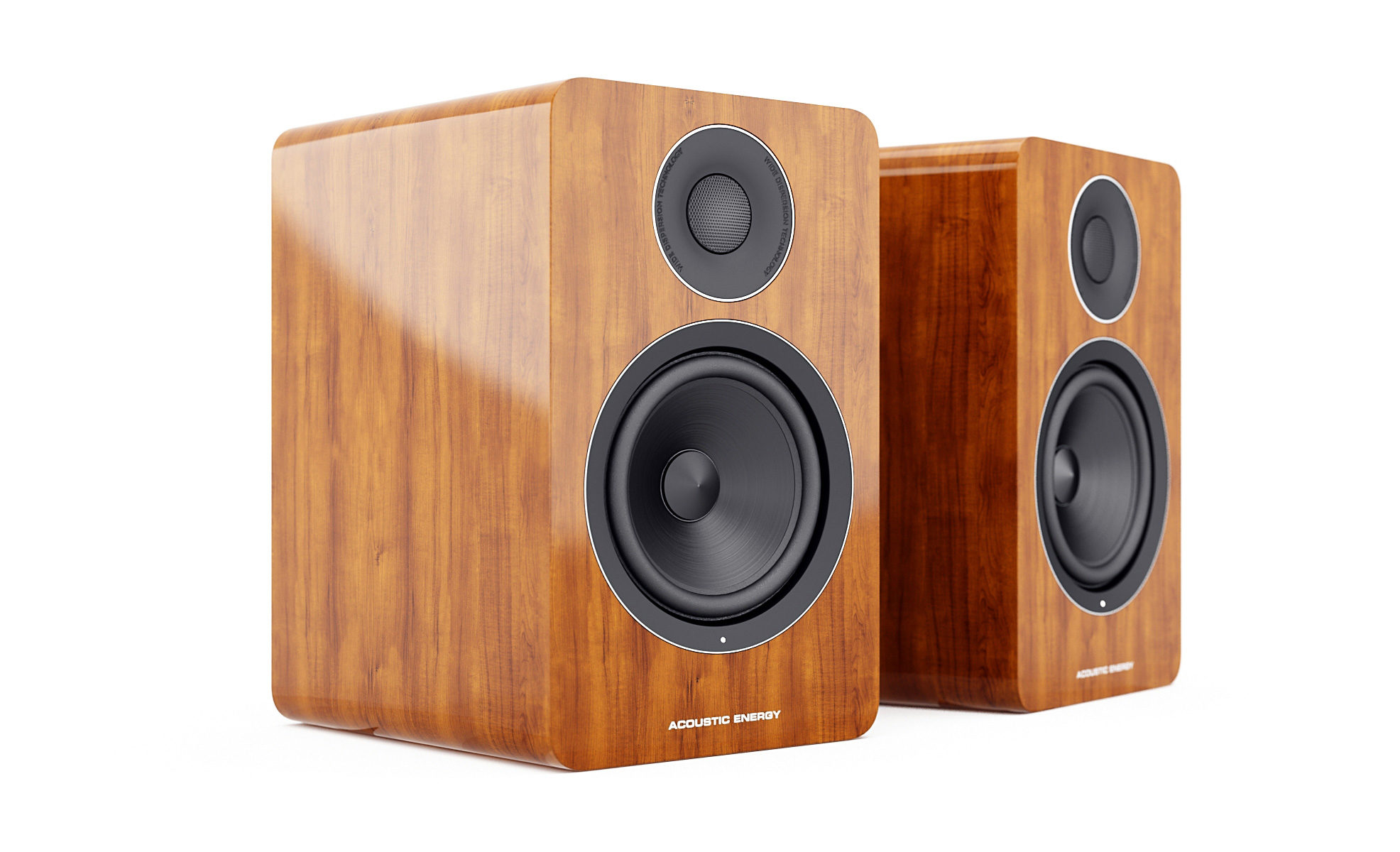

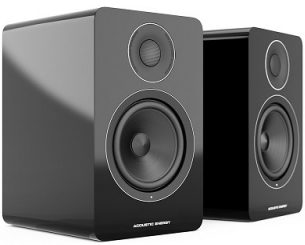

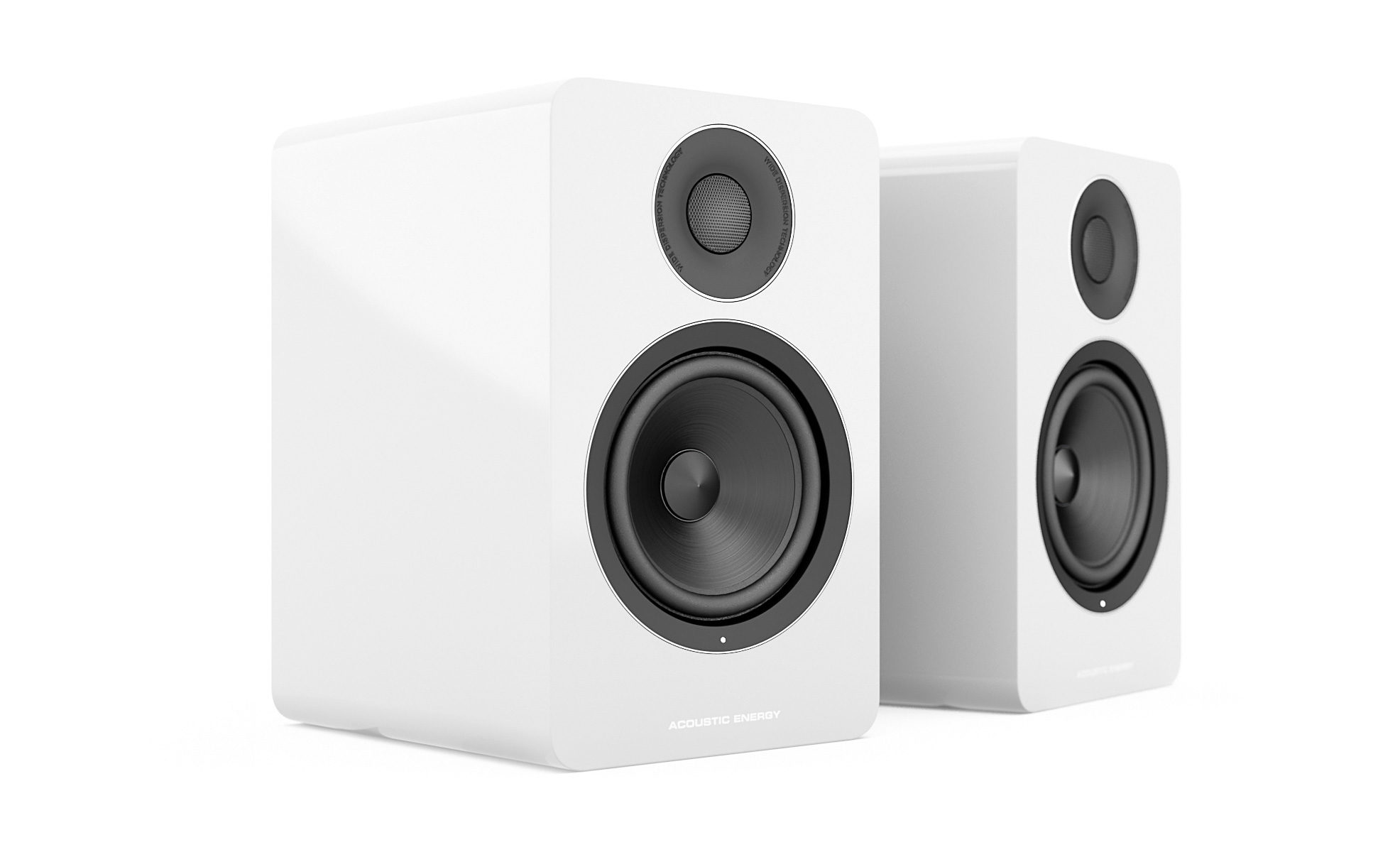

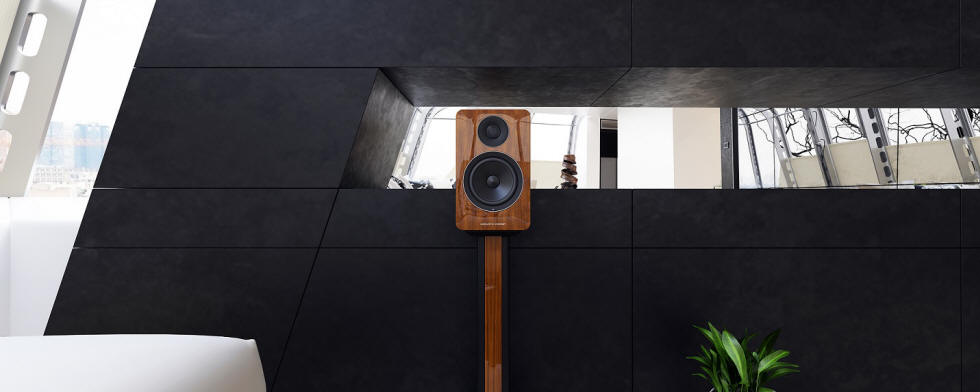

The changing roles
of hifi equipment mean that audio systems themselves are changing shape. The
increasing number of products with integrated pre-amplifiers mean that many
customers are searching for an equally convenient speaker to connect them to.
Taking full advantage of Acoustic Energy’s considerable experience in the field
of active speakers, the AE1 Active is designed to deliver this convenience
without trading performance. The AE1 Active is a two way standmount speaker with
integrated class A/B amplification and fully active filter networks. Featuring
Acoustic Energy’s legendary pure piston ceramic aluminium cone technology, the
AE1 Active has all the refinement and impact you would expect from the original
AE1 housed within a self powered, fully active package. The speakers also
feature Acoustic Energy’s proprietary aluminium dome tweeter with our unique WDT
waveguide for improved coverage and room integration.Ideal for direct connection
to audiophile DAC/Preamps and Hi-Res streamers, the AE1 Active merges three
decades of AE1 refinement with Acoustic Energy’s expertise in the active studio
monitor sector. Fully bi-amped with two 50Watt class A/B amplifiers per speaker,
the design offers unrivalled amplifier speaker integration and class leading
dynamics. The new Active model offers all the musical insight and detail that
has made the AE1 the audiophile’s small speaker of choice for 30 years. Key to
the success of the AE1 Active design is its unique pure piston ceramic aluminium
cone technology. Now in its fifth generation, this 125mm ceramic hard-anodised
spun aluminium cone offers exceptional stiffness at low weight. This negates the
cone flex and break-up nodes at frequencies typical of paper and plastic cone
designs. The tweeter is an all-new AE designed 27mm metal done unit designed to
work in harmony with AE’s Wide Dispersion Technology (WDT) waveguide. The result
is perfect integration with the mid/bass driver, with extremely wide and
spacious imaging. Electronically, the AE1 Active is proudly an all-analogue
design focused on performance without compromise. This includes wired analogue
inputs, both balanced XLR and standard RCA, the highest quality linear power
supplies and two pair-matched, high-performance 50Watt Class A/B amplifiers per
speaker. While the design team experimented with wireless inputs, switch mode
power supplies, Class D amplification and DSP, none delivered the audio
performance befitting of a loudspeaker wearing the legendary AE1 badge.The
active design offers the ability for accurate tuning to the listening room and
placement thanks to defeatable +/- 2dB trims for bass and treble response. Each
speaker features a high quality analogue volume pot for systems without level
control on the source component. Each AE1 Active connects to a mains power
supply using an IEC connector. Externally, the AE1 Active gets a wholly
redesigned cabinet. This features extensively braced heavyweight fibreboard
construction with internal damping panels and the introduction of a slot port to
the AE1 design for the first time. With several AE models already benefiting
from the company’s R&D programme into slot port loading, the AE1 Active’s port
delivers unrivalled cross-sectional area, reduced baffle space and significantly
reduced ‘wind-noise’ at high volumes.
ACUSTIC ENERGY
AE1 ACTIVE
Listino ufficiale
€. 1.400,00
The AE1 Active
maximises all the benefits of active loudspeaker design. These include reducing
crossover losses, eliminating speaker cable influences and delivering unrivalled
dynamic power. The result is a cohesive active loudspeaker with performance
rivalling passive speaker / external amplifier set ups at many times its price.
With a bandwidth from 40Hz to 25kHz, efficiency of 104dB for 1Vrms, and maximum
SPL of 115dB, no other small speaker gets close to the AE1 Active’s performance.
The AE1 Active is equally comfortable in the home or the recording studio. With
the added benefit of adjustable bass and treble and a choice of RCA or balanced
XLR connections, this speaker blends seamlessly into any listening
environment.TWEETER The tweeter is an all-new AE designed 27mm metal done unit
designed to work in harmony with AE’s Wide Dispersion Technology (WDT) waveguide.
The result is perfect integration with the mid/bass driver, with extremely wide
and spacious imaging. DRIVERS Key to the success of the AE1 Active design is its
unique pure piston ceramic aluminium cone technology. Now in its fifth
generation, this 125mm ceramic hard-anodised spun aluminium cone offers
exceptional stiffness at low weight. This negates the cone flex and break-up
nodes at frequencies typical of paper and plastic cone designs. AMPLIFICATION
Electronically, the AE1 Active is proudly an all-analogue design focused on
performance without compromise. This includes wired analogue inputs, both
balanced XLR and standard RCA, the highest quality linear power supplies and two
pair-matched, high-performance 50Watt Class A/B amplifiers per speaker. While
the design team experimented with wireless inputs, switch mode power supplies,
Class D amplification and DSP, none delivered the audio performance befitting of
a loudspeaker wearing the legendary AE1 badge. CABINET The cabinet is an
extensively braced heavyweight fibreboard construction with internal damping
panels and the introduction of a slot port to the AE1 design for the first time.
With several AE models already benefiting from the company’s R&D programme into
slot port loading, the AE1 Active’s port delivers unrivalled cross-sectional
area, reduced baffle space and significantly reduced ‘wind-noise’ at high
volumes.SPECIFICATIONS Drive Unit:125mm ceramic aluminium sandwich cone
Tweeter:25mm aluminium domeFrequency Range:42Hz – 28kHz +/-6dB Input Sensitivity:104dB
for 1VRMS @ 1kHz Peak SBL:115dB Maximum SPL:105dB Amplifier:100w Class A/B with
linear power supply Power: Crossover Frequency: 3.5kHz 4th Order Linkwitz-Riley
Inputs:RCA and Balanced XLR Controls: Volume adjust 0dB to -infHF shelf +/-2dBLF
shelf +/-2dB Power Connection:IEC C13 Voltage:Switchable 110 / 240v Safety
Certificati activeon:CE EN55013/20 Design:2 way Cabinet:18mm MDF with bracing
and damping panels Grilles: Slim, cloth magnetic fit Dimensions (mm):300 x
185 x 250 (HxWxD) Weight:18kg (pair) Finishes:Piano Black, Piano White and Piano
Cherry real wood veneer
Given the
demanding requirements that led to the creation of the original 1 Series, it may
sound surprising that we’ve been able to obtain even higher performance from
more compact enclosures at more affordable prices… the AE100 Series is physical
proof this is possible.The new AE100 Series introduces a number of
improvements and evolutionary changes all focused on refining the listening
experience at the same time as providing a more room friendly loudspeaker. We’ve
introduced our WDT tweeter assembly from the AE1 Active, which creates far
better in-room dispersion, as well as locating our slot ports to the rear for
less midrange colouration and improved bass response. At the same time, the
external design has been improved for a more elegant appearance and smaller
footprint that should work well in a wide variety of surroundings. With higher
quality fit and finish than ever before available from our entry level ranges,
new colour and vinyl options and neat magnetic grilles the visual appeal is
higher than ever.The result is a stylish and more powerful range of speakers
that embodies all of the qualities that Acoustic Energy is renowned for while
taking advantage of everything that we have learned in our continuous process of
development.
ACUSTIC ENERGY
AE100
Offerta
€. 195,00

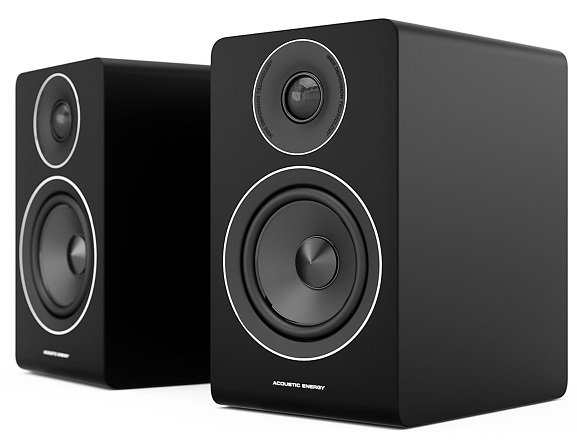

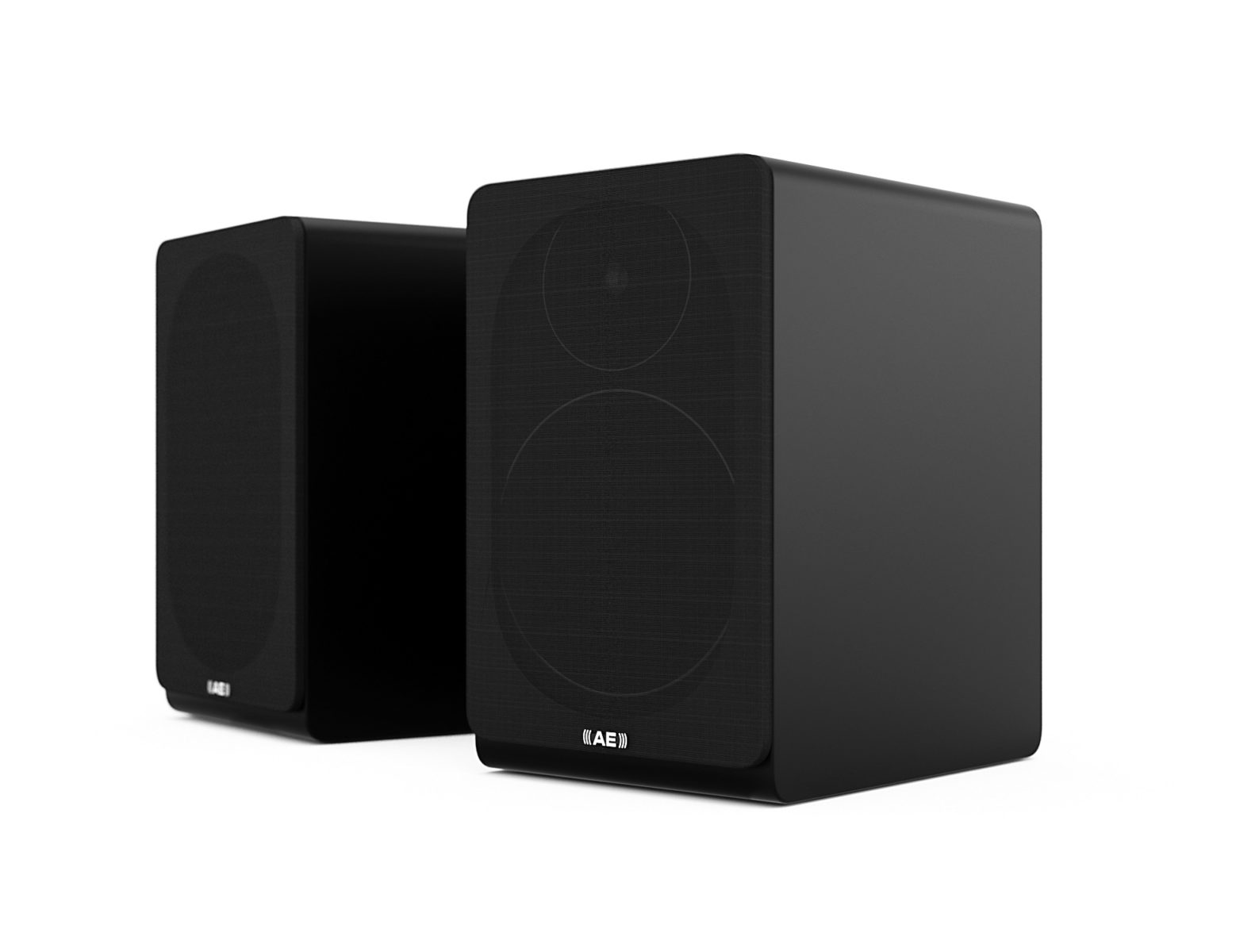

The AE100 is a new compact standmount /
bookshelf loudspeaker that exhibits qualities which perfectly embody those of
Acoustic Energy. The AE100 has been designed with a view to achieving high sound
pressure levels from an extremely small enclosure. This is obtained principally
through the use of a 110mm mid-bass drive unit built around an ultra high force,
long throw motor system. Bass performance is augmented by a slot shaped duct
allowing for a considerable cross sectional area while negating the issues of
air turbulence. A 25mm soft dome tweeter featuring our Wide Dispersion
Technology completes the driver compliment, that’s housed within an 18mm MDF
cabinet. Taking design cues from the award winning Reference Series and finished
in a choice of satin black or walnut vinyl veneer finishes, the AE100 is sure to
look good wherever you choose to place it while delivering a sound that belies
its compact size.TWEETER AE’s bespoke 28mm soft dome tweeter was designed in
tandem with the 100 Series bass driver to offer optimum integration and tonal
matching. Paired with our Wide Dispersion Technology waveguide, the crossover
region between drive units is audibly seamless whilst the high power neodymium
motor assembly ensures reliable, distortion-free high-volume playback.DRIVERS
The 110mm bass/mid driver used in the 100 Series has been developed with a high
power, long excursion motor to provide satisfying volume levels and bass
extension from relatively compact enclosures. The doped paper cone enables a
higher crossover point for smoother mid-range and seamless crossover with the
tweeter, creating extremely high fidelity, detailed and above all musical sound
reproduction.CABINEThe 100 Series uses sturdy 18mm MDF enclosures with carefully
tuned bracing, reducing harmful resonances whilst retaining body and substance
from compact, practical cabinets. The rear slot porting enhances smooth bass
extension with minimal room impact, allowing easy placement. The AE109 and AE120
feature inert mass-loading for additional stability and acoustic damping, all
models come supplied with slim magnetic grilles.
Drive Unit:110mm
paper cone Tweeter:25mm
domeFrequency Range:45Hz
– 35kHzSensitivity:87dBPeak
SBL:110dB
Power Handling:75w
Crossover Frequency:3.6kHz
Impedance:4ohms
Design:2
way Grilles:Slim,
cloth magnetic Dimensions
(mm):270 x 160 x 240 (HxWxD)
Weight:8kg
(pair) Finishes:Satin
Black, Satin White and Walnut vinyl veneer
ACUSTIC ENERGY
AE109
Offerta
€. 425,00
Specifiche: Tipo: due
vie e 1/2, da pavimento, reflex Altoparlanti: 2 mid-woofer da 10 cm, 1 tweeter
dome 28 mm WDT Freq. di crossover: 2,3k Hz Risposta in frequenza: 40÷35.000 Hz
Sensibilità: 89 dB Impedenza nominale: 4 Ohm Max SPL: 113dB Dimensioni (LxAxP):
160 x 800 x 240 mm

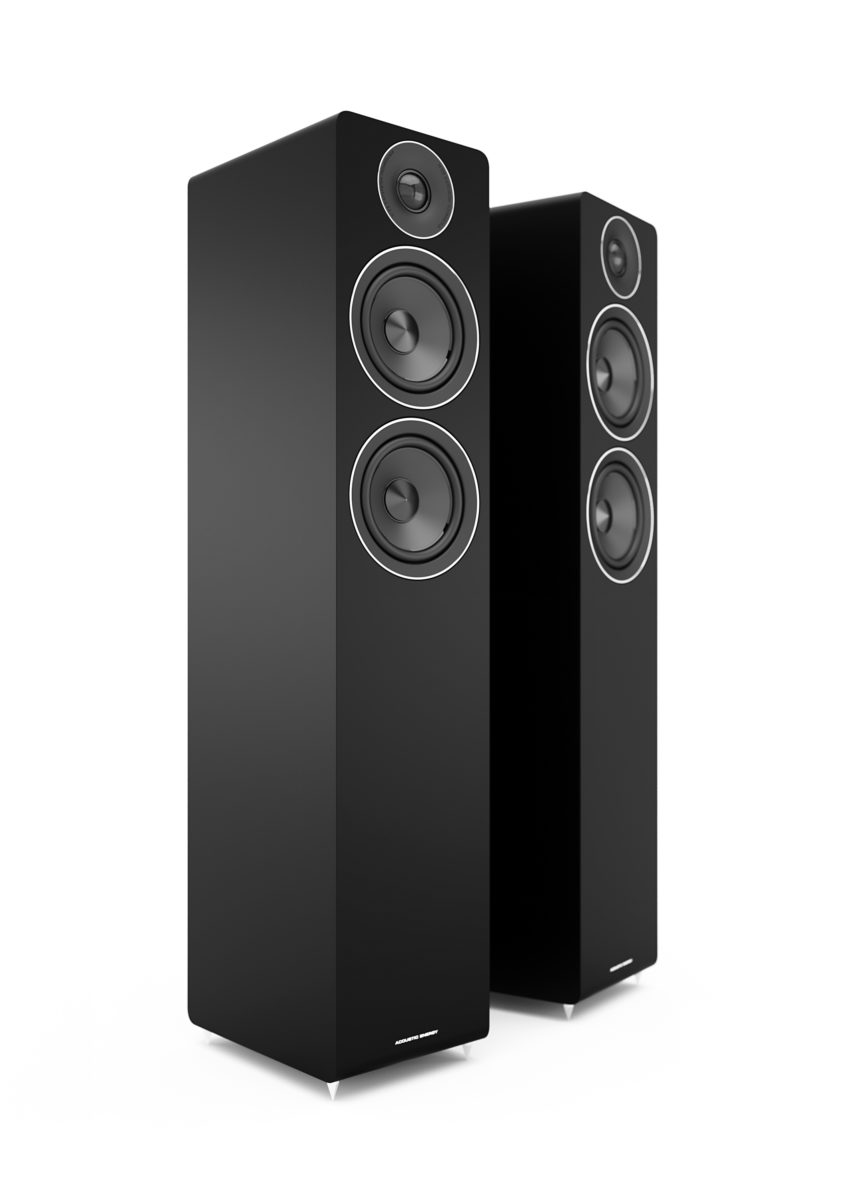

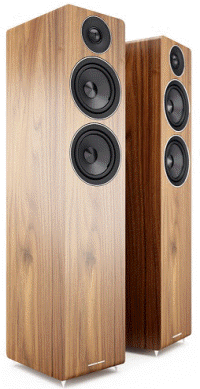

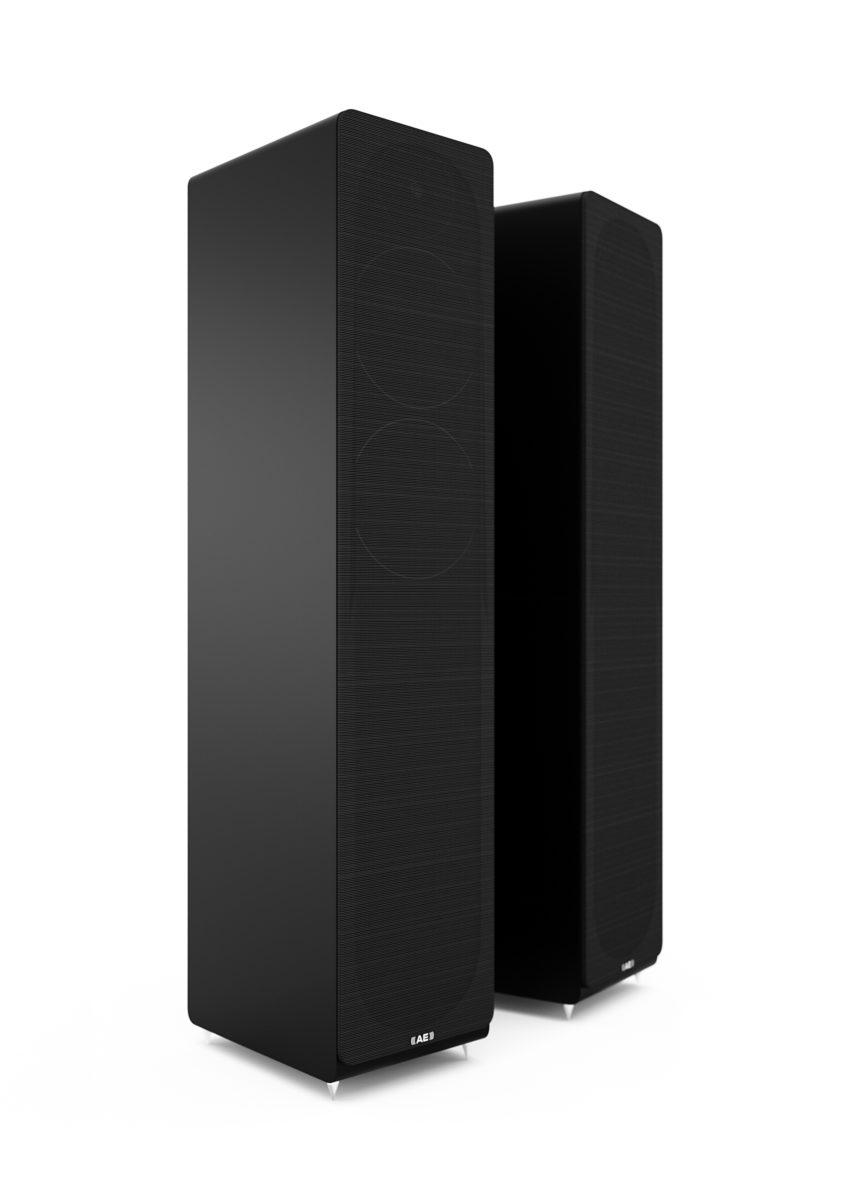

The new AE109 is
designed to offer effortless, room filling performance from a slimline
floorstanding loudspeaker in much the same way the world acclaimed original
AE109 did 20 years ago. To do this, two 110mm paper drivers utilising an ultra
high force motor system are used in partnership with a 25mm soft dome tweeter.
The 2.5 way crossover features a unique topology allowing integration and power
handling previously un-achievable from this type of speaker. Particular
attention has been paid to the phase and time alignment for the most cohesive
performance possible. Like the AE100 standmount speaker, the driver and
crossover are housed within a substantial 18mm MDF cabinet that takes styling
cues from the award winning Reference Series. The result is an audio product
with clean and uncluttered lines that can still deliver the thrilling and
powerful presentation that Acoustic Energy owners have come to expect. Satin
black and walnut vinyl veneer finishes are available. TWEETER AE’s bespoke 28mm
soft dome tweeter was designed in tandem with the 100 Series bass driver to
offer optimum integration and tonal matching. Paired with our Wide Dispersion
Technology waveguide, the crossover region between drive units is audibly
seamless whilst the high power neodymium motor assembly ensures reliable,
distortion-free high-volume playback.DRIVERS The 110mm bass/mid driver used in
the 100 Series has been developed with a high power, long excursion motor to
provide satisfying volume levels and bass extension from relatively compact
enclosures. The doped paper cone enables a higher crossover point for smoother
mid-range and seamless crossover with the tweeter, creating extremely high
fidelity, detailed and above all musical sound reproduction.CABINEThe 100 Series
uses sturdy 18mm MDF enclosures with carefully tuned bracing, reducing harmful
resonances whilst retaining body and substance from compact, practical cabinets.
The rear slot porting enhances smooth bass extension with minimal room impact,
allowing easy placement. The AE109 and AE120 feature inert mass-loading for
additional stability and acoustic damping, all models come supplied with slim
magnetic grilles. Drive Unit:110mm
paper Tweeter:25mm
domeFrequency Range:40Hz
– 35kHzSensitivity:89dBPeak
SBL:113dB
Power Handling:150w
Crossover Frequency:2.3kHz
Impedance:4ohms
Design:2.5
way Grilles:Slim,
cloth magnetic fit Dimensions
(mm):800 x 160 x 240 (HxWxD)
Weight:17.5kg
(each) Finishes:Satin
Black, Satin White and Walnut vinyl veneer
ACUSTIC ENERGY
AE120
Offerta
€. 615,00
Specifiche: Tipo: due vie, da supporto, reflex
Altoparlanti: 1 mid-woofer da 10 cm, 1 tweeter dome 28 mm WDT Freq. di
crossover: 2,3k Hz Risposta in frequenza: 45÷35.000 Hz Sensibilità: 87 dB
Impedenza nominale: 4 Ohm Max SPL: 110dB Dimensioni (LxAxP): 160 x 270 x 240 mm

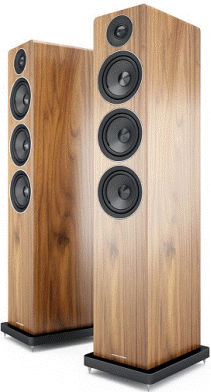

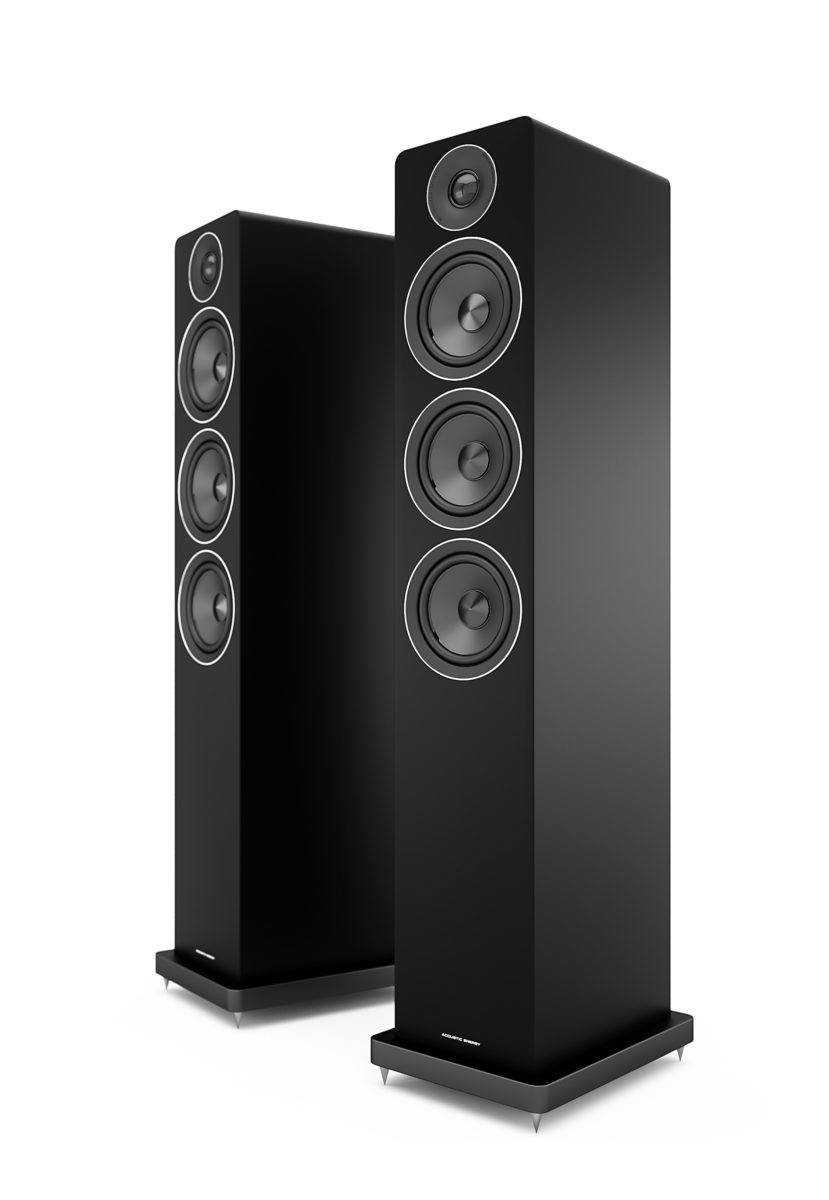

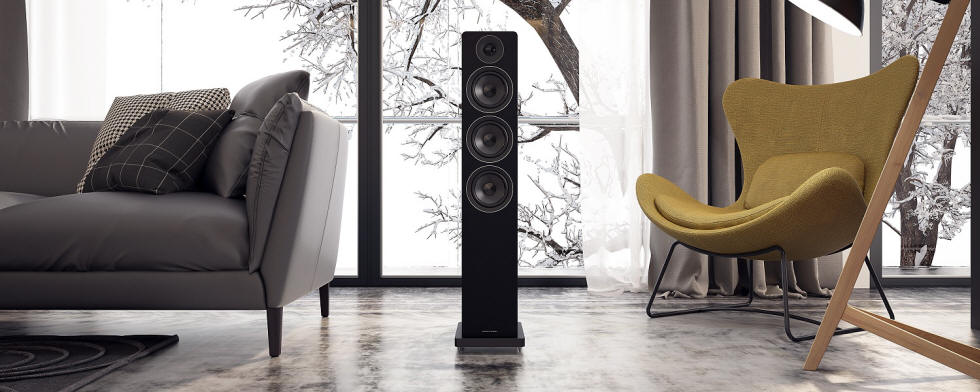

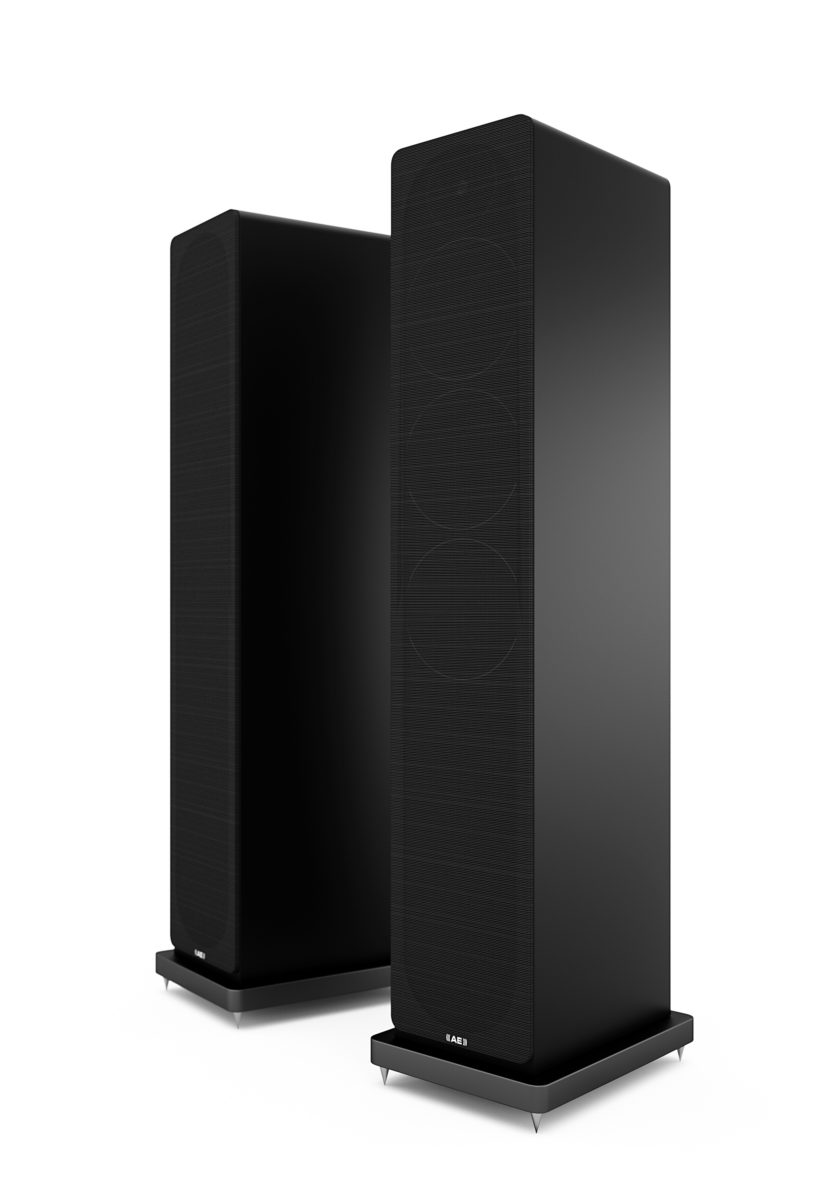

As a flagship, the new AE120 is the largest
model in the 100 series range and a true 3-way design. The speaker offers a big
sound from a slimline enclosure, tastefully styled to blend into a wide range of
domestic environments. Twin bass drive units underpin the room filling
performance with a dedicated mid-range driver housed in its own enclosure,
carefully designed to mitigate the harmful effects of rear wave reflections.
Integrated within the perfectly matched Wide Dispersion Technology (WDT)
waveguide, AE’s 25mm soft dome tweeter manages the high frequencies with
controlled dispersion, high sensitivity and low distortion. The 3-way crossover
is impedance compensated to avoid the resonance issues which would otherwise
slow bass delivery and colour mid-range performance. Particular attention has
also been paid to the phase and time alignment for optimum integration and
soundstage. The result is a loudspeaker offering smooth, wide dispersion high
frequencies with a clean mid-range and lightning fast bass. The inert cabinet
enclosure is constructed from 18mm MDF and like it’s smaller AE109 brother,
supplied mass loaded to help dampen cabinet vibrations. The internal bracing
system has been carefully tuned to reduce cabinet resonances and mid-range
colouration, whilst the new AE120 benefits from a subtlety styled, discrete
satin black plinth to aide stability, further improving dynamics and stereo
focus. TWEETER AE’s bespoke 28mm soft dome tweeter was designed in tandem with
the 100 Series bass driver to offer optimum integration and tonal matching.
Paired with our Wide Dispersion Technology waveguide, the crossover region
between drive units is audibly seamless whilst the high power neodymium motor
assembly ensures reliable, distortion-free high-volume playback.DRIVERS The
110mm bass/mid driver used in the 100 Series has been developed with a high
power, long excursion motor to provide satisfying volume levels and bass
extension from relatively compact enclosures. The doped paper cone enables a
higher crossover point for smoother mid-range and seamless crossover with the
tweeter, creating extremely high fidelity, detailed and above all musical sound
reproduction.CABINEThe 100 Series uses sturdy 18mm MDF enclosures with carefully
tuned bracing, reducing harmful resonances whilst retaining body and substance
from compact, practical cabinets. The rear slot porting enhances smooth bass
extension with minimal room impact, allowing easy placement. The AE109 and AE120
feature inert mass-loading for additional stability and acoustic damping, all
models come supplied with slim magnetic grilles.Drive
Unit:110mm paper conesTweeter:25mm
dome Frequency Range:40Hz
– 35kHz Sensitivity:90dB
Peak SBL:114dB
Power Handling:200w
Crossover Frequency:2.4kHz
Impedance:6ohms
Design:3
way Grilles:Slim,
cloth magnetic fit Dimensions
(mm):900 x 200 x 300 (HxWxD, inc.
plinth) Weight:19kg
(each) Finishes:Satin
Black, Satin White and Walnut vinyl veneer
ACUSTIC ENERGY
AE107
Offerta
€. 330,00

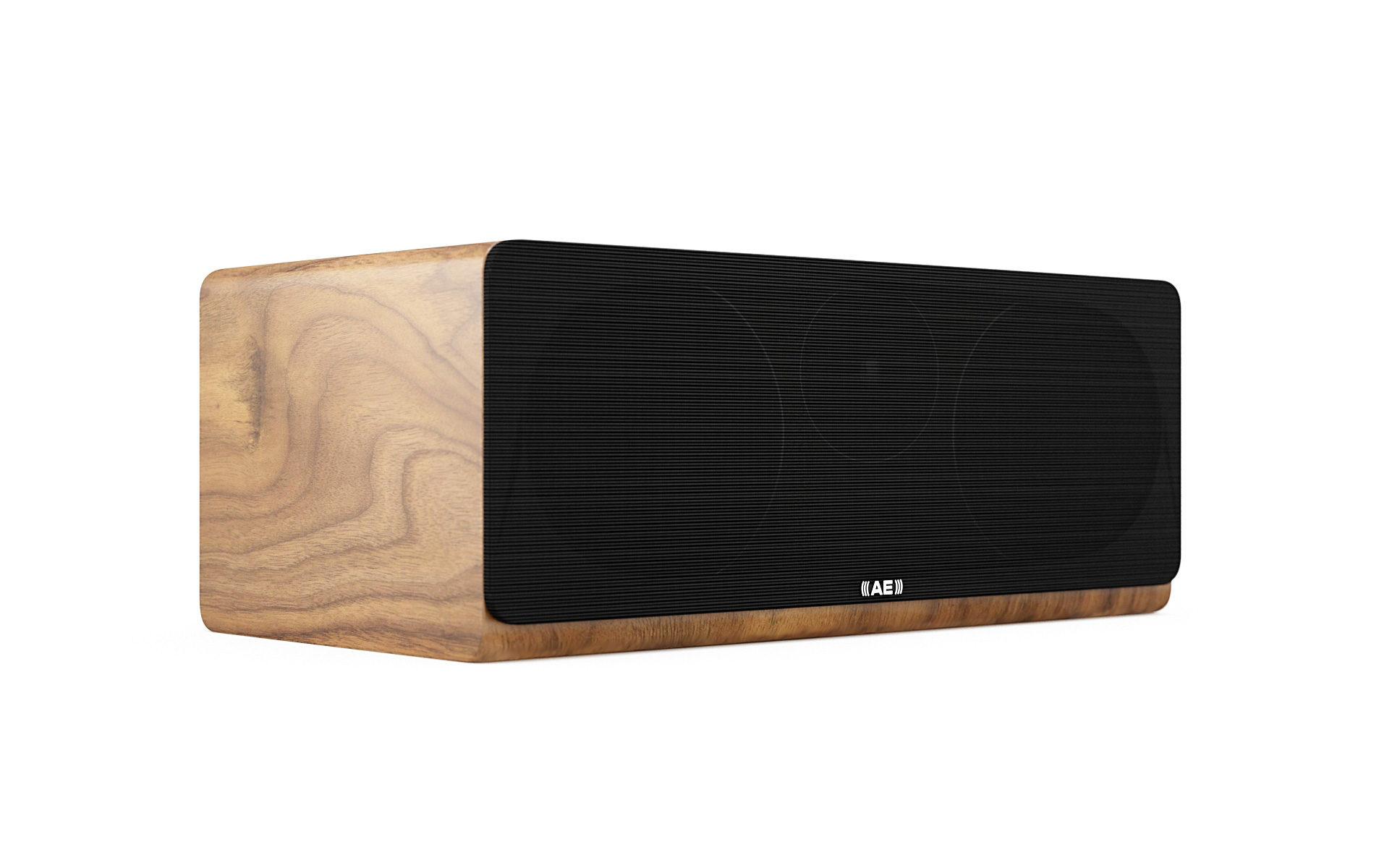

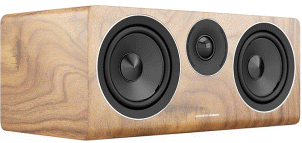

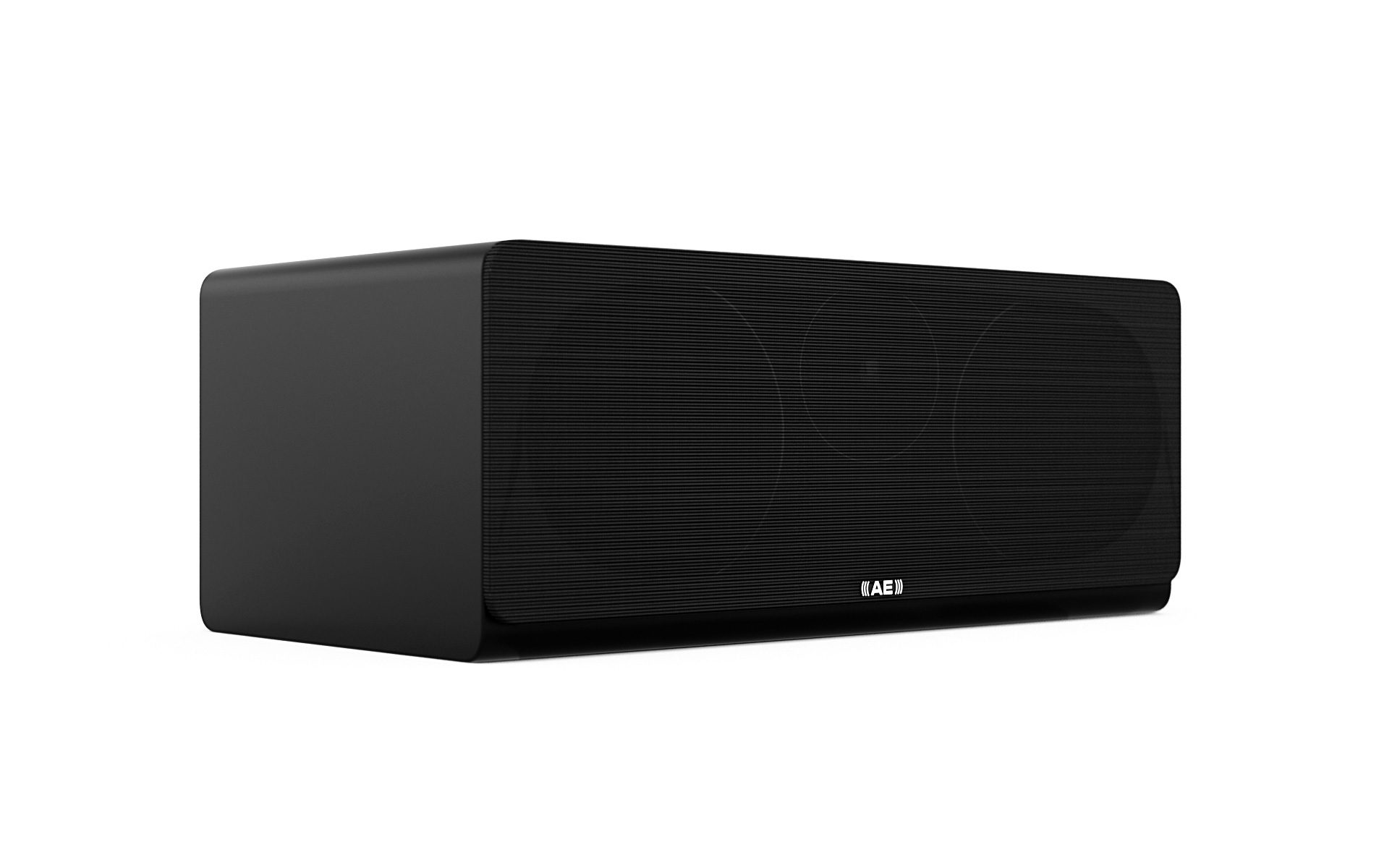

For home cinema and
multi-channel music systems, the new AE107 is a two way horizontal mount
loudspeaker designed for centre channel applications. The AE107 delivers
exceptional articulation and detail throughout the vocal range, augmented by
powerful bass performance from the reflex loaded rear slot port. The compact
centre speaker can be sited within a cabinet, shelf or wall mounted. TWEETER
AE’s bespoke 28mm soft dome tweeter was designed in tandem with the 100 Series
bass driver to offer optimum integration and tonal matching. Paired with our
Wide Dispersion Technology waveguide, the crossover region between drive units
is audibly seamless whilst the high power neodymium motor assembly ensures
reliable, distortion-free high-volume playback.DRIVERS The 110mm bass/mid driver
used in the 100 Series has been developed with a high power, long excursion
motor to provide satisfying volume levels and bass extension from relatively
compact enclosures. The doped paper cone enables a higher crossover point for
smoother mid-range and seamless crossover with the tweeter, creating extremely
high fidelity, detailed and above all musical sound reproduction.CABINEThe 100
Series uses sturdy 18mm MDF enclosures with carefully tuned bracing, reducing
harmful resonances whilst retaining body and substance from compact, practical
cabinets. The rear slot porting enhances smooth bass extension with minimal room
impact, allowing easy placement. The AE109 and AE120 feature inert mass-loading
for additional stability and acoustic damping, all models come supplied with
slim magnetic grilles.Drive Unit:110mm
paper cone Tweeter: 25mm dome Frequency Range:45Hz – 35kHz Sensitivity:90dB Peak
SBL:113dB Power Handling:150w Crossover Frequency:2kHz Impedance:4ohms Design:2
way Grilles:Slim, cloth magnetic fit Dimensions (mm):165 x 370 x 240 (HxWxD)
Weight:6kg (each) Finishes:Satin Black and Walnut vinyl veneer
ACUSTIC ENERGY
AE108
Offerta
€. 660,00

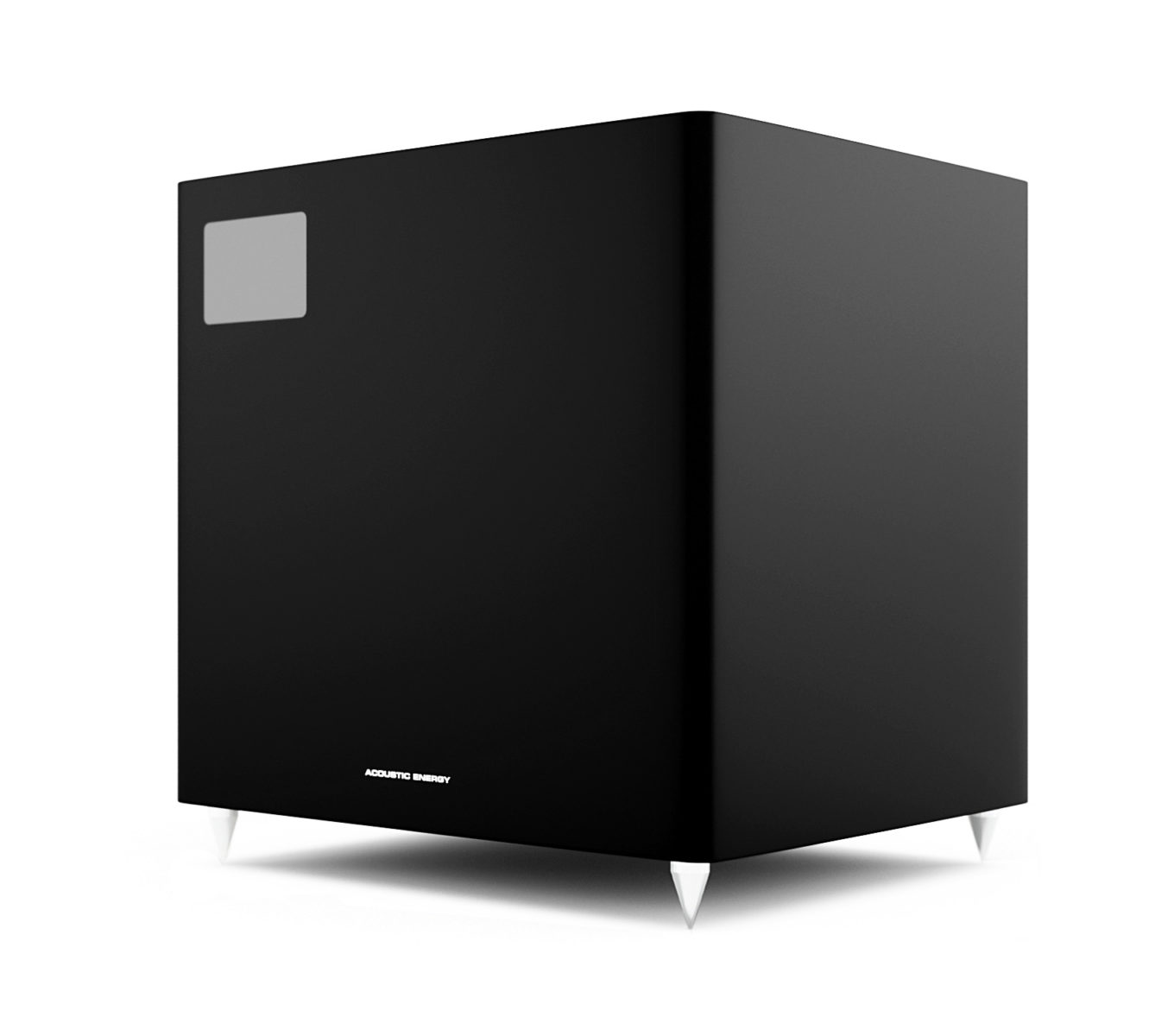

AE108 The AE108 is a new, compact, yet
extremely powerful active subwoofer with remote control for easy set-up and
adjustability. Designed to work seamlessly as part of a multi channel system
including the new AE100’s, AE109’s and AE107, the AE108 is ideal for the modern
home where controlled bass performance is required without compromising the
living space. At less than one cubic foot in size, the AE108 can be positioned
discretely and adjusted with the supplied remote control to achieve the ideal
audio balance from the listening position. Finished in a choice of satin black
or walnut vinyl veneer finishes, the AE108 delivers a bass punch that belies its
compact size.Drive Unit:200mm
paper cone Frequency Range:30Hz
– 110Hz Sensitivity:108dB
Power Handling:150w
Crossover Frequency:40
– 110Hz Impedance:adjustable
Weight:7.5kg
(each) Finishes:Satin
Black, Satin White and Walnut vinyl veneer
Dimensions (mm):

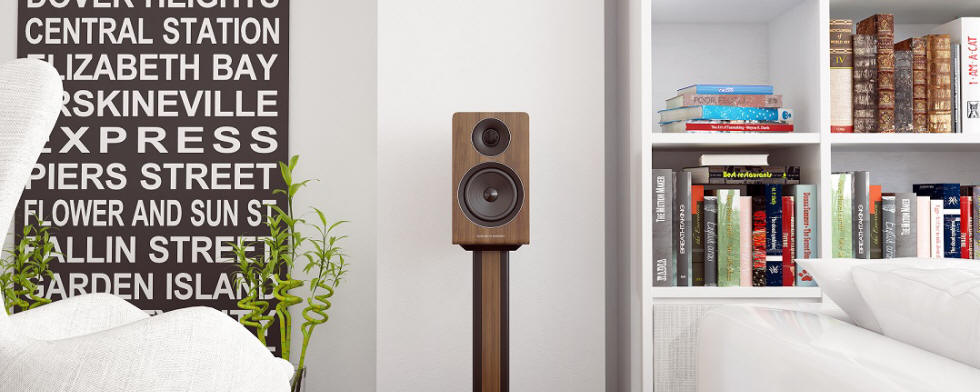

Building on the hugely popular and universally
acclaimed 100 Series, the 300 Series raises the performance bar further still…
The new 300 Series features multiple upgrades over the entry-level 100 Series,
all designed to improve both audio performance and aesthetics, befitting of its
more premium status. Bespoke new drive units have been designed in tandem to
offer seamless tonal integration in addition to low distortion and high power
handling benefits. The 28mm aluminium dome tweeter also features our WDT Wide
Dispersion Technology™ and a re-designed 130mm aluminium mid-bass driver uses a
ceramic aluminium sandwich cone and long throw motor system. The seamless
cabinet enclosures boast an inert 18mm high density MDF material with
proprietary internal bracing technology to reduce cabinet colouration. They’re
finished in attractive real open grain walnut wood veneer, piano grade high
gloss black or white lacquer options. The result is a premium-finished package
which offers a refined, accurate and above all, enjoyable musical experience.
Embodying all the qualities Acoustic Energy are famous for… and designed for the
love of music.
ACUSTIC ENERGY
AE300
Offerta
€. 440,00

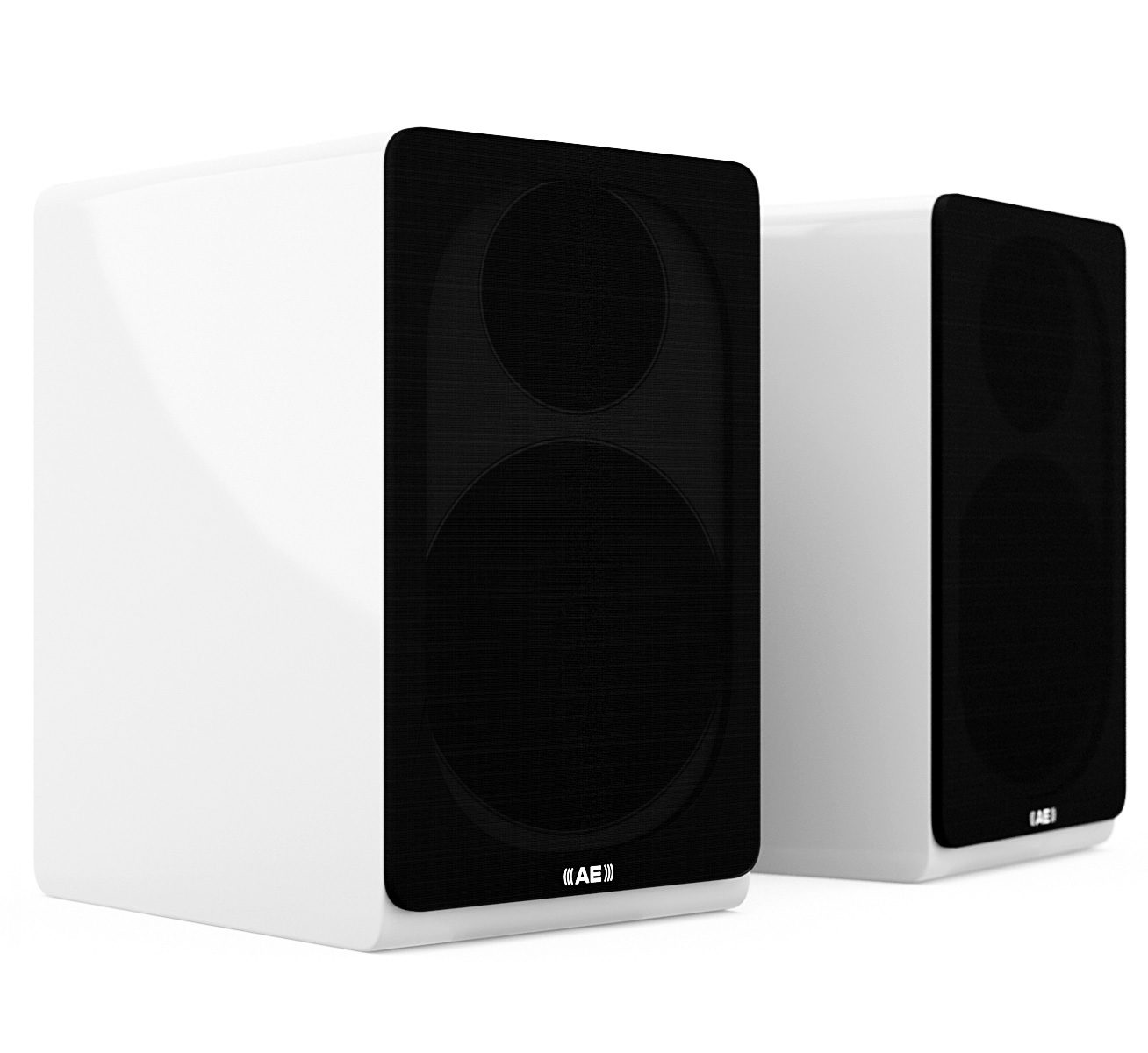

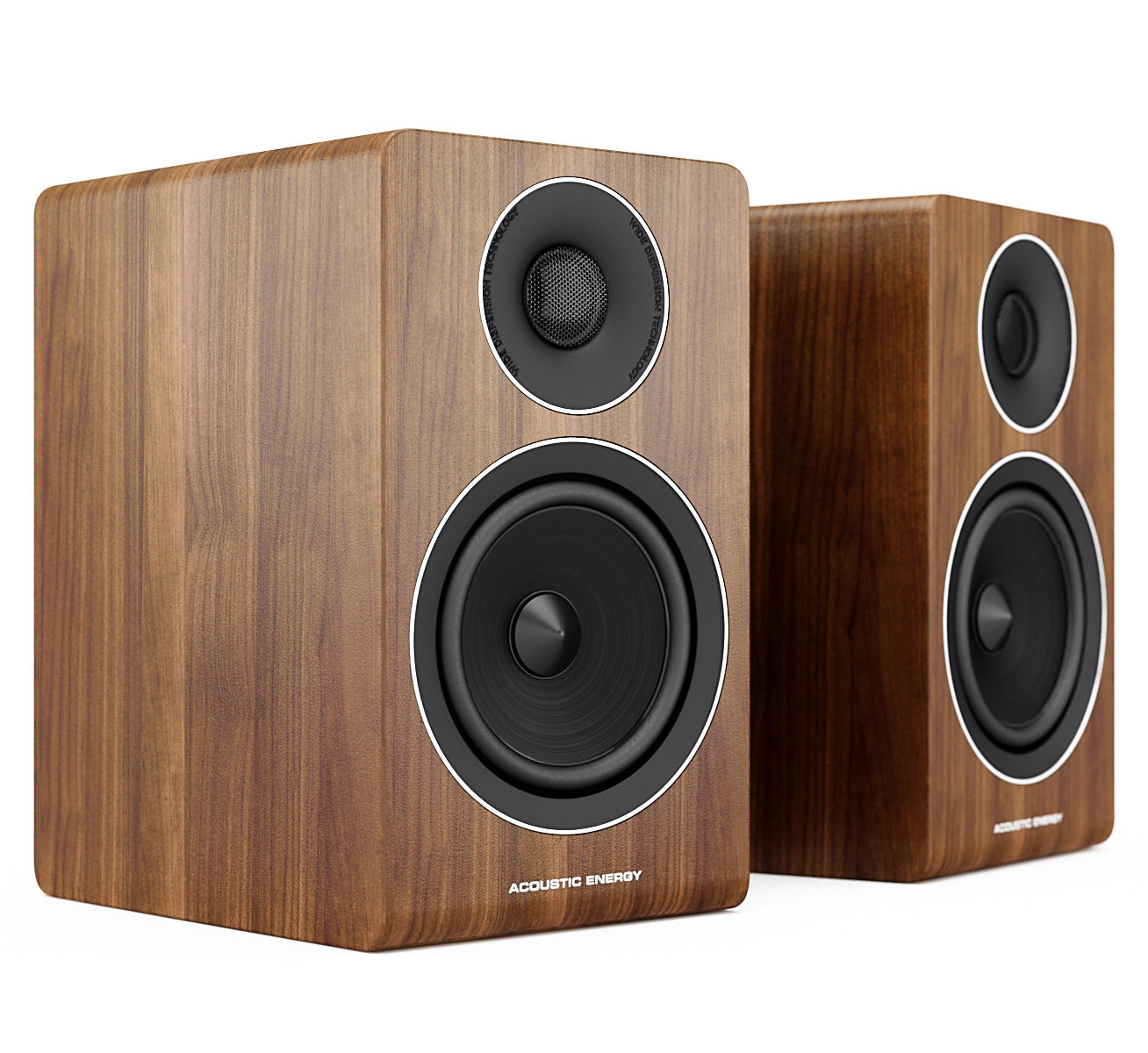

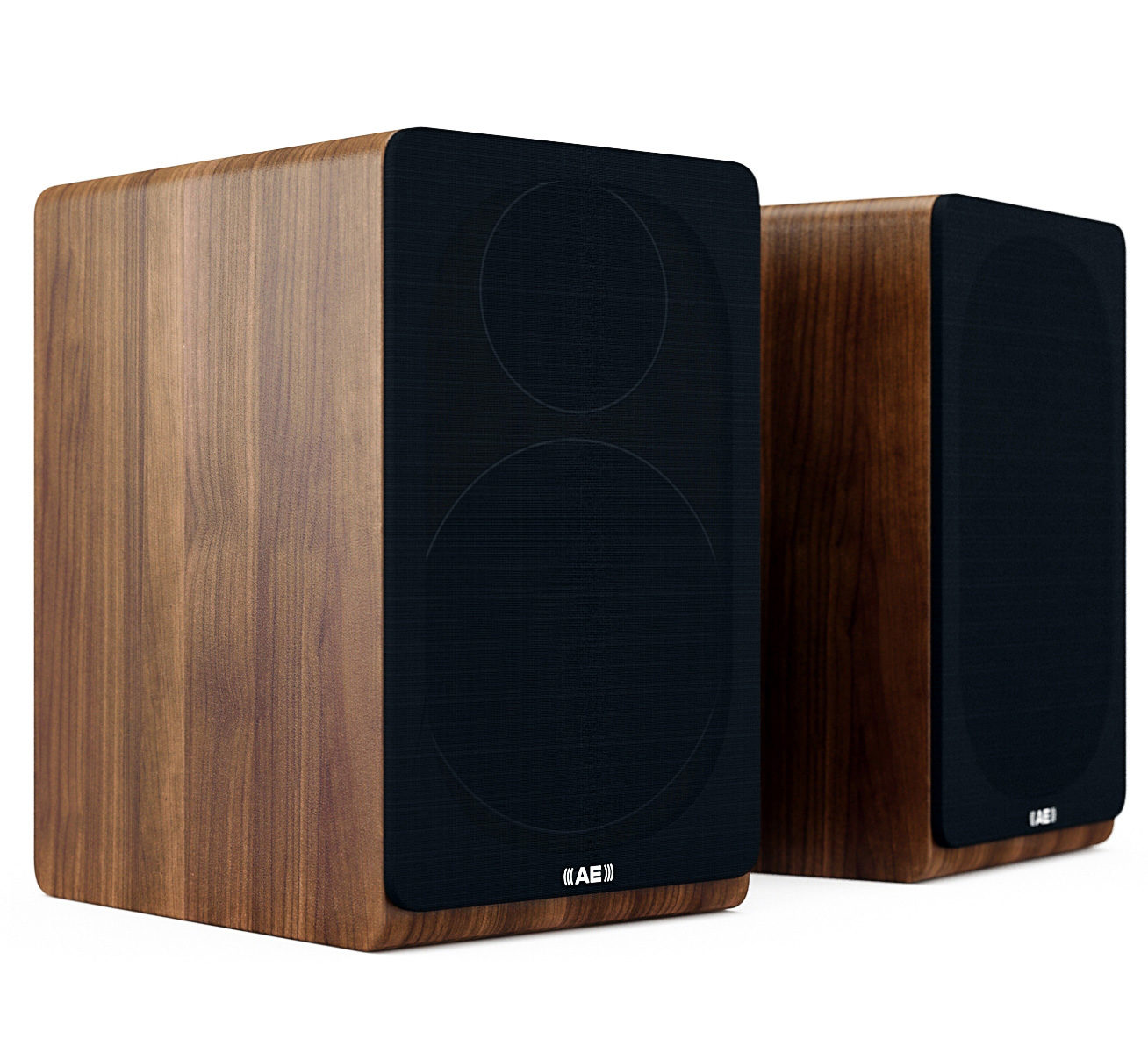

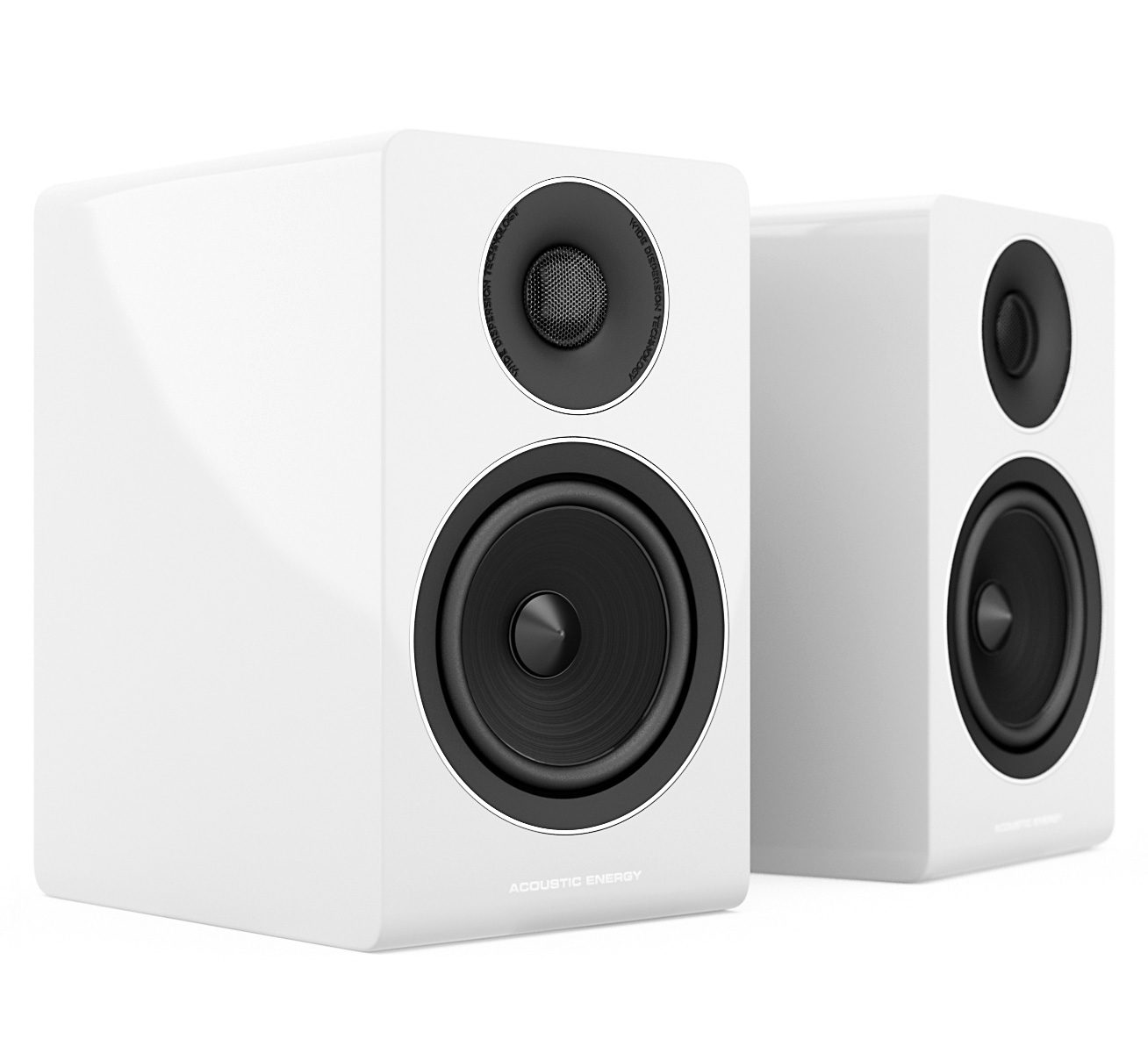

The AE300 is a new compact stand-mount
loudspeaker suitable for small to medium sized rooms. Following on from the
award winning AE100, it offers a significant step up in both audio quality,
materials, and cabinet finish.Tracing its lineage back to the original AE1, the
AE300 uses the latest generation of our 130mm mid-bass drive unit. Featuring a
brand new ceramic aluminium sandwich cone with an ultra-shallow profile and
ultra-high force, long throw motor system, this new driver boasts improved
dispersion, extended bass slam and overall power handling. A new 25mm aluminium
tweeter has been developed for the 300 Series which offers high power handling
and a low fundamental resonance to reduce distortion. However, the main benefit
to this new design is the excellent dispersion characteristics thanks to our
Wide Dispersion Technology waveguides. The waveguides shape the acoustic output
of the tweeter to match the woofer and provide a wider sweet-spot in your
listening environment. The inert 18mm high density MDF cabinet utilises
proprietary bracing technology derived from the award-winning Reference Series,
to reduce cabinet colouration and allow the new transducers to breath freely
within the listening environment. The slot shaped duct port on the rear of the
speaker augments the bass output and has been carefully developed to reduce the
effect of air turbulence with a clean undistorted bass performance.The result is
an audio product with clean, uncluttered lines delivering a thrilling and
powerful presentation discerning Acoustic Energy owners have come to expect for
over 30 years.Finished in a choice of Piano gloss black, white or satin real
walnut wood veneer finishes, the AE300 will easily integrate within any home
décor placed on speaker stands or bookshelves.TWEETER A new 28mm
aluminium tweeter has been developed for the 300 Series which offers high power
handling and a low fundamental resonance to reduce distortion. However, the main
benefit to this new design is the excellent dispersion characteristics thanks to
our Wide Dispersion Technology waveguides. The waveguides shape the acoustic
output of the tweeter to match the woofer and provide a wider sweet-spot in your
listening environment. DRIVERS Tracing its lineage back to the original
AE1, the AE300 uses the latest generation of our 130mm mid-bass drive unit.
Featuring a brand new shallow profile aluminium sandwich cone with an ultra-high
force, long throw motor system. This new driver boasts improved dispersion,
extended bass slam and overall power handling. CABINET The inert 18mm
high density MDF cabinet utilises proprietary bracing technology derived from
the award-winning Reference Series, to reduce cabinet colouration and allow the
new transducers to breath freely within the listening environment. The slot
shaped duct port on the rear of the speaker augments the bass output and has
been carefully developed to reduce the effect of air turbulence with a clean
undistorted bass performance.Drive Unit:125mm
ceramic Tweeter:25mm domeFrequency Range:45Hz – 30kHzSensitivity:86dBPeak
SBL:112dBPower Handling:100wCrossover Frequency:2.8kHz
Impedance:6ohms Design:2 way Grilles:Slim, cloth magnetic fitDimensions
(mm): Weight:6.5kg (each) Finishes:Black
and Real Walnut wood veneer
ACUSTIC ENERGY
AE309
Offerta
€. 760,00

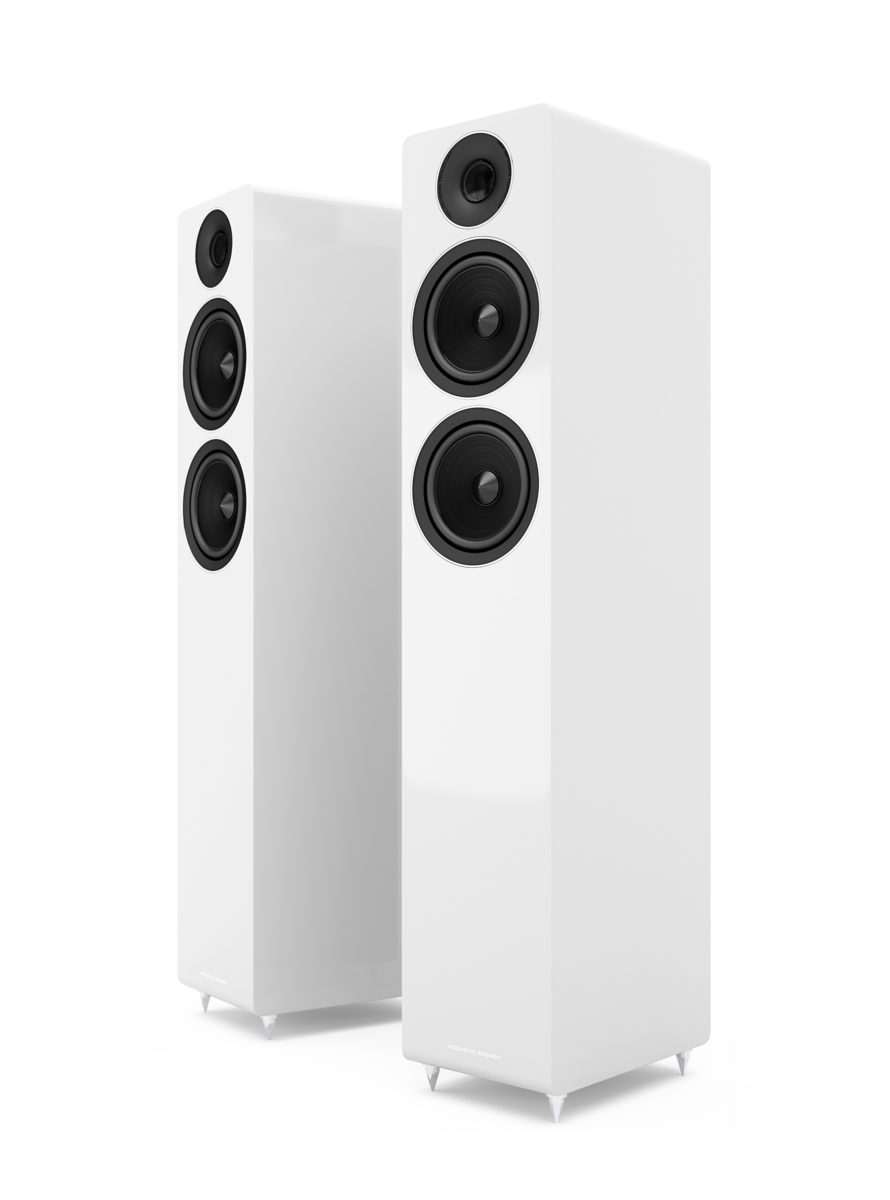

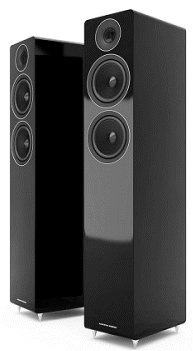

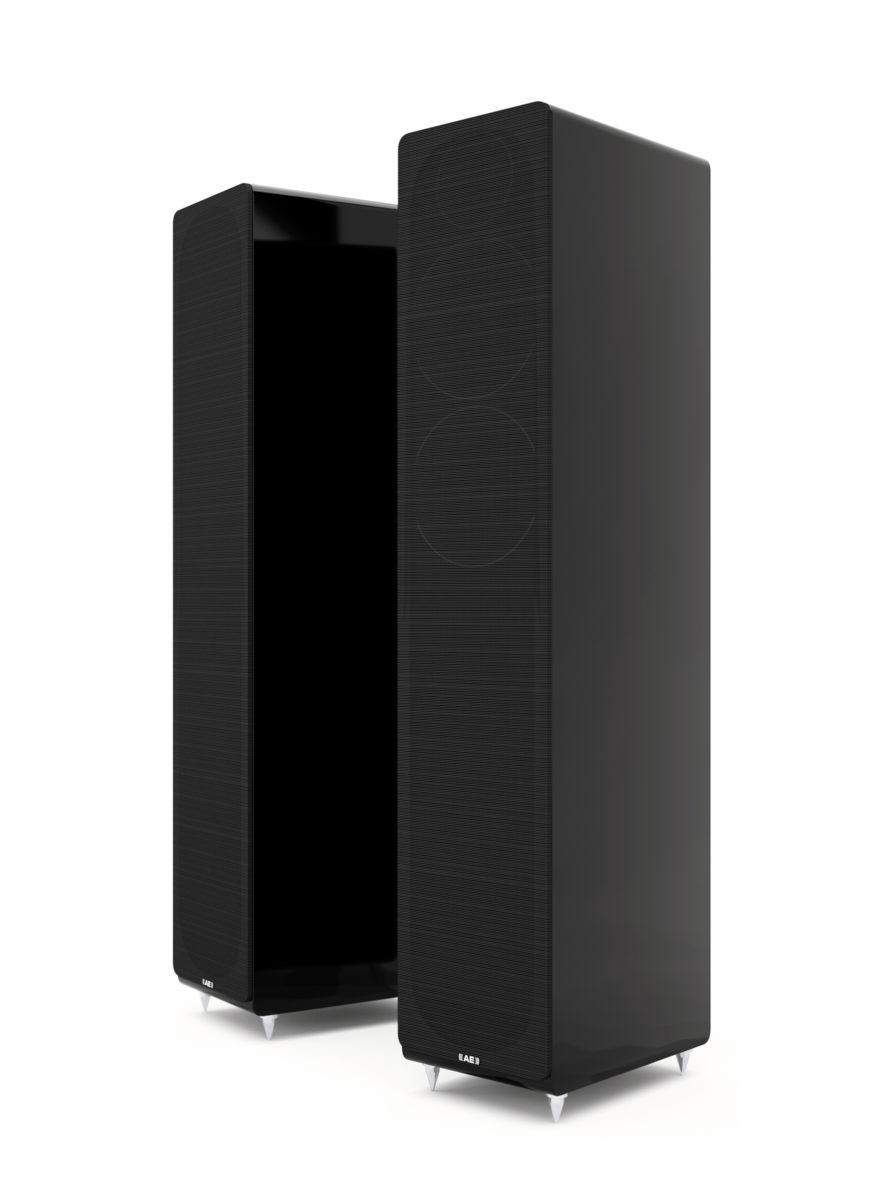

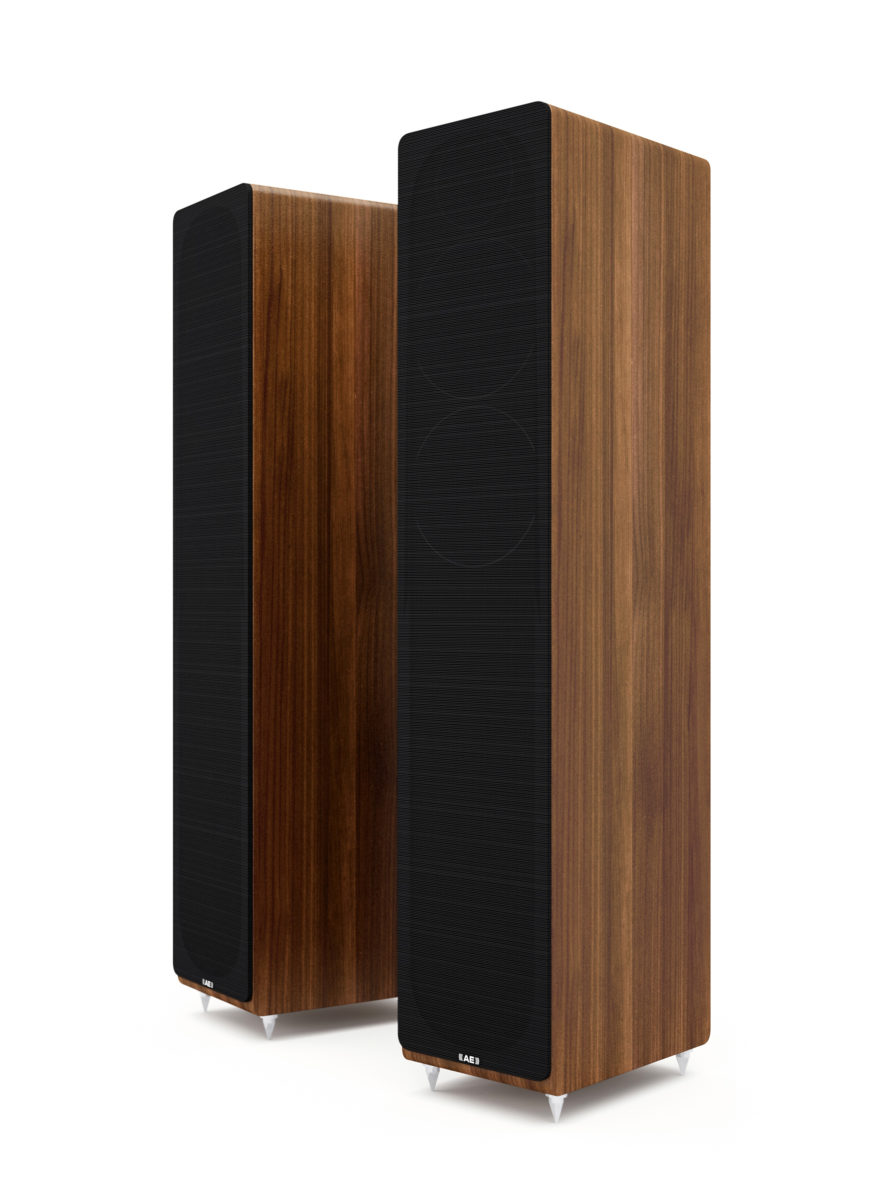

The AE309 is a new slim-line floor-standing
loudspeaker with compact dimensions, suitable for medium to large sized rooms.
Similar to the AE300 comparison, the AE309 offers higher levels of performance
and finish than its 100 Series equivalent.The AE309 uses two latest generation
130mm mid-bass drive units. Featuring a brand new ceramic aluminium sandwich
cone with an ultra-shallow profile and ultra-high force, long throw motor
system, this new driver boasts improved dispersion, extended bass slam and
overall power handling.A new 25mm aluminium tweeter has been developed for the
300 Series which offers high power handling and a low fundamental resonance to
reduce distortion. However, the main benefit to this new design is the excellent
dispersion characteristics thanks to our Wide Dispersion Technology waveguides.
The waveguides shape the acoustic output of the tweeter to match the woofer and
provide a wider sweet-spot in your listening environment.The inert, 18mm high
density MDF cabinet utilises proprietary bracing technology derived from the
award-winning Reference Series, to reduce cabinet colouration and allow the new
transducers to breath freely within the listening environment. The slot shaped
duct port on the rear of the speaker augments the bass output and has been
carefully developed to reduce the effect of air turbulence with a clean,
undistorted bass performance. The base of the cabinet is pre-loaded with an
inert mass material which adds damping and reduces cabinet colouration. The mass
loading coupled with 8mm floor spikes help stability and provide a solid
foundation for the drive units to operate without resonances from the cabinet
interacting with the floor surface.The result of this latest drive unit
technology and enclosure design is a slim-line, powerful floor-standing
loudspeaker for the discerning listener when refined audio quality coupled with
elegant aesthetics are paramount. Finished in a choice of Piano gloss black,
white or satin real walnut wood veneer finishes, the AE309 will easily integrate
within any home décor..TWEETER A new 28mm aluminium tweeter has been
developed for the 300 Series which offers high power handling and a low
fundamental resonance to reduce distortion. However, the main benefit to this
new design is the excellent dispersion characteristics thanks to our Wide
Dispersion Technology waveguides. The waveguides shape the acoustic output of
the tweeter to match the woofer and provide a wider sweet-spot in your listening
environment. DRIVERS Tracing its lineage back to the original AE1, the
AE300 uses the latest generation of our 130mm mid-bass drive unit. Featuring a
brand new shallow profile aluminium sandwich cone with an ultra-high force, long
throw motor system. This new driver boasts improved dispersion, extended bass
slam and overall power handling. CABINET The inert 18mm high density MDF
cabinet utilises proprietary bracing technology derived from the award-winning
Reference Series, to reduce cabinet colouration and allow the new transducers to
breath freely within the listening environment. The slot shaped duct port on the
rear of the speaker augments the bass output and has been carefully developed to
reduce the effect of air turbulence with a clean undistorted bass performance.Drive
Unit:125mm ceramic Tweeter:25mm
domeFrequency Range:Sensitivity:Peak SBL:Power Handling:Crossover
Frequency:Impedance:6ohmsDesign:2.5 way Grilles:Slim, cloth
magnetic fit Dimensions (mm): Weight:22kg (each) Finishes:Black
and Real Walnut wood veneer
ACUSTIC ENERGY
AE307 SU
RICHIESTA

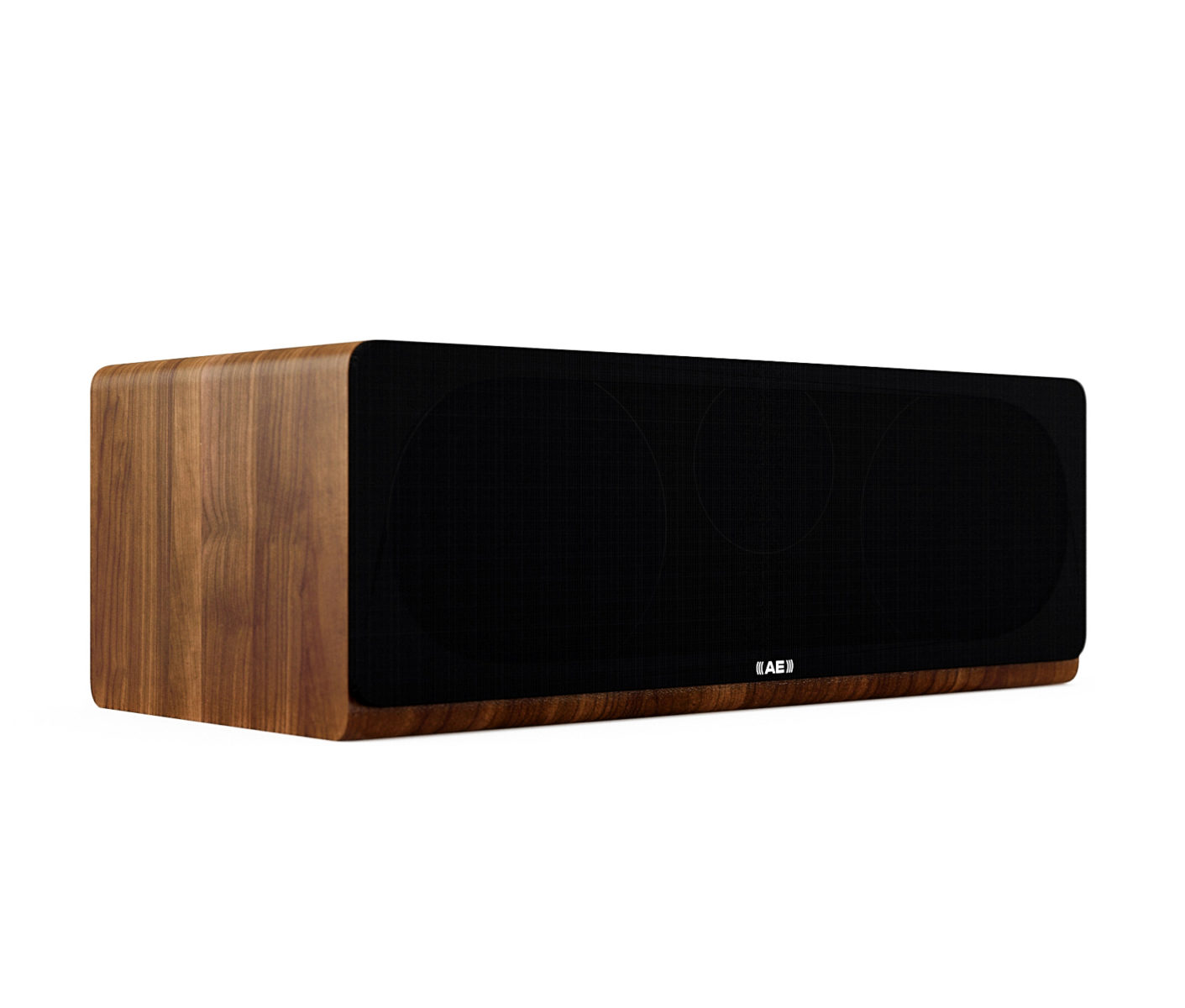

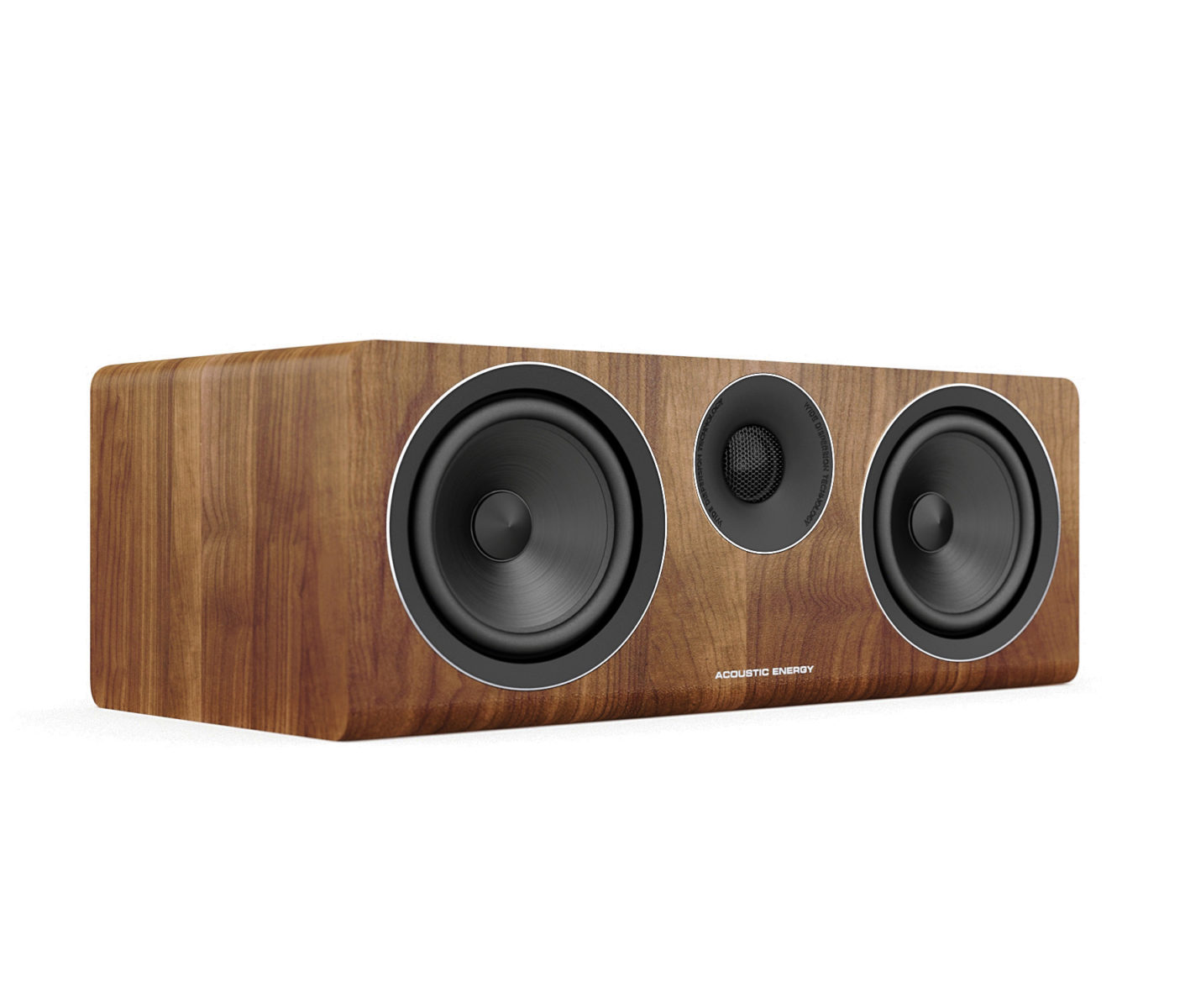

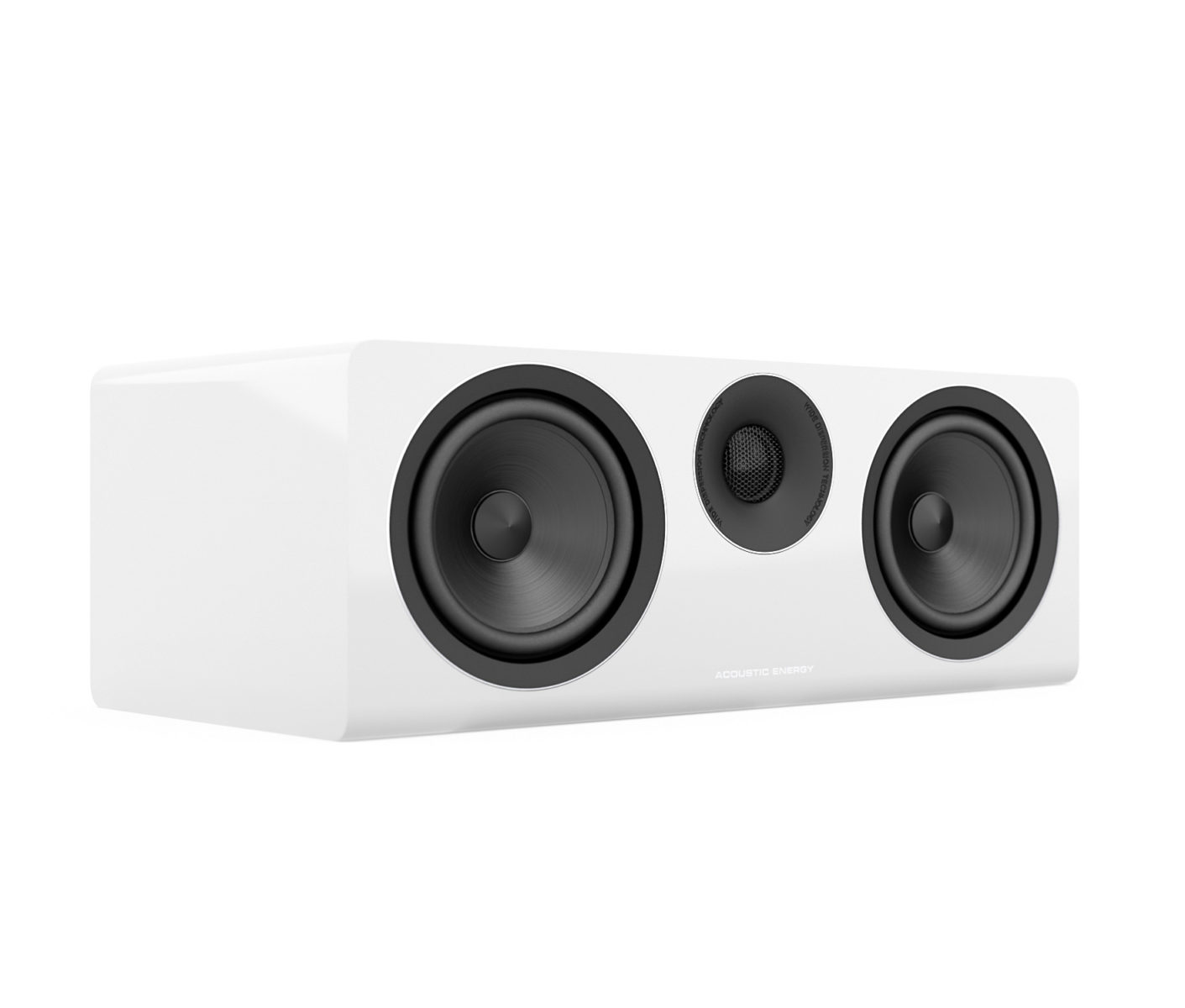

The AE307 is a new centre channel loudspeaker
suitable for home cinema and multi-channel music systems.The AE307 uses the
latest generation of our 130mm mid-bass drive unit. Featuring a brand new
ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high
force, long throw motor system, this new driver boasts improved dispersion,
extended bass slam and overall power handling.A new 28mm aluminium tweeter has
been developed for the 300 Series which offers high power handling and a low
fundamental resonance to reduce distortion. However, the main benefit to this
new design is the excellent dispersion characteristics thanks to our Wide
Dispersion Technology waveguides. The waveguides shape the acoustic output of
the tweeter to match the woofer and provide a wider sweet-spot in your listening
environment. This is particularly beneficial to ensure constant audio
performance across the front channels of your system when using the AE309 or
AE300’s for front left and right channels.The inert 18mm high density MDF
cabinet utilises proprietary bracing technology derived from the award-winning
Reference Series, to reduce cabinet colouration and allow the new transducers to
breath freely within the listening environment. The slot shaped duct port on the
rear of the speaker augments the bass output and has been carefully developed to
reduce the effect of air turbulence with a clean undistorted bass performance.
The result is a centre channel with clean, uncluttered lines delivering a
thrilling and powerful presentation discerning Acoustic Energy owners have come
to expect for over 30 years.Finished in a choice of Piano gloss black, white or
satin real walnut wood veneer finishes, the AE307 fits easily into most AV
cabinets and stands integrating within home décor. any.TWEETER A new 28mm
aluminium tweeter has been developed for the 300 Series which offers high power
handling and a low fundamental resonance to reduce distortion. However, the main
benefit to this new design is the excellent dispersion characteristics thanks to
our Wide Dispersion Technology waveguides. The waveguides shape the acoustic
output of the tweeter to match the woofer and provide a wider sweet-spot in your
listening environment. DRIVERS Tracing its lineage back to the original
AE1, the AE300 uses the latest generation of our 130mm mid-bass drive unit.
Featuring a brand new shallow profile aluminium sandwich cone with an ultra-high
force, long throw motor system. This new driver boasts improved dispersion,
extended bass slam and overall power handling. CABINET The inert 18mm
high density MDF cabinet utilises proprietary bracing technology derived from
the award-winning Reference Series, to reduce cabinet colouration and allow the
new transducers to breath freely within the listening environment. The slot
shaped duct port on the rear of the speaker augments the bass output and has
been carefully developed to reduce the effect of air turbulence with a clean
undistorted bass performance.Drive Unit:125mm ceramic Tweeter:25mm
dome Frequency Range: Sensitivity:Peak SBL: Power Handling: Crossover
Frequency: Impedance:6ohms Design:2 way Grilles:Slim, cloth
magnetic fit Dimensions (mm):175 x 460 x 260 (HxWxD) Weight:9kg (each)
Finishes:Black and Real Walnut wood veneer
ACUSTIC ENERGY
AE308
SU RICHIESTA

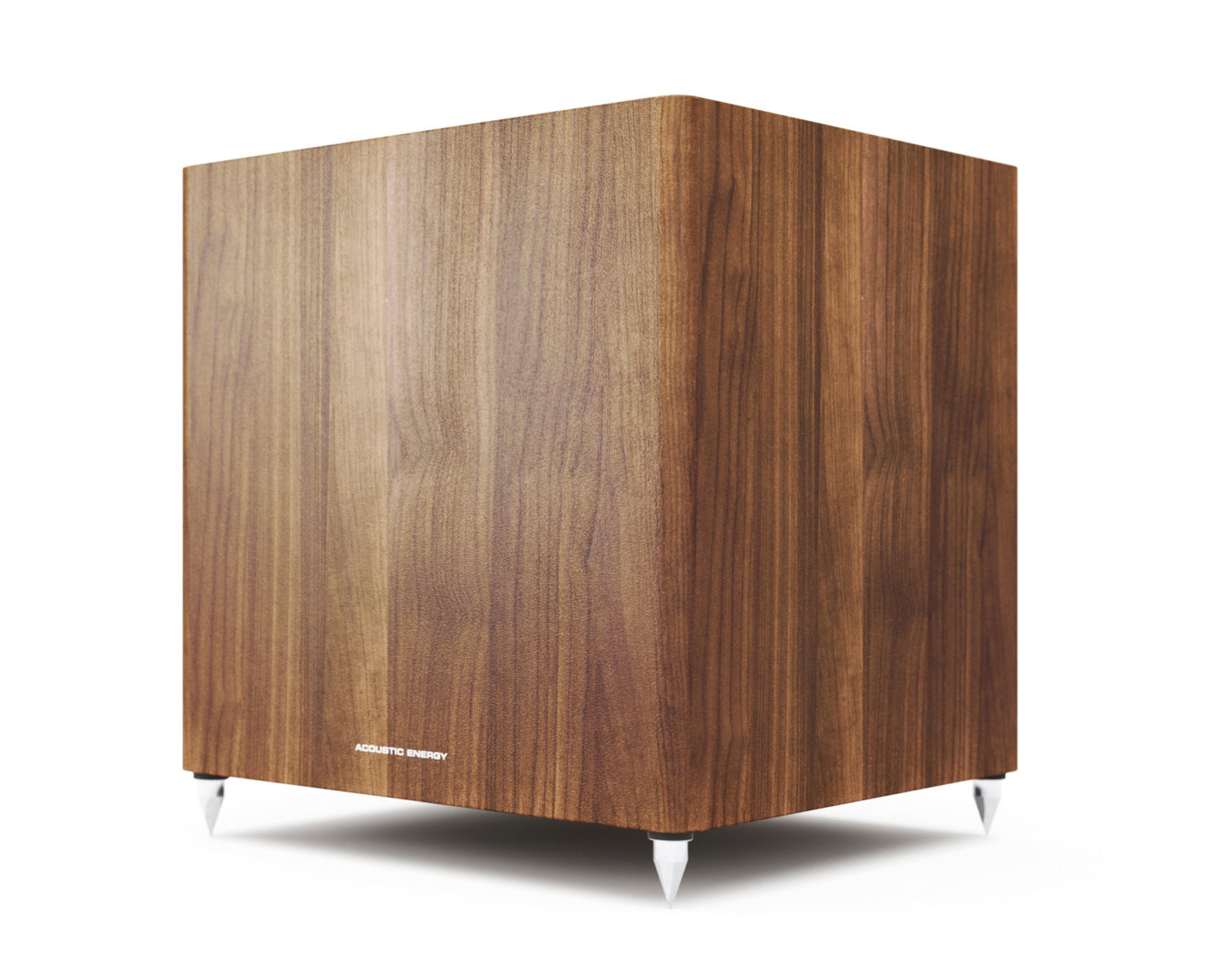

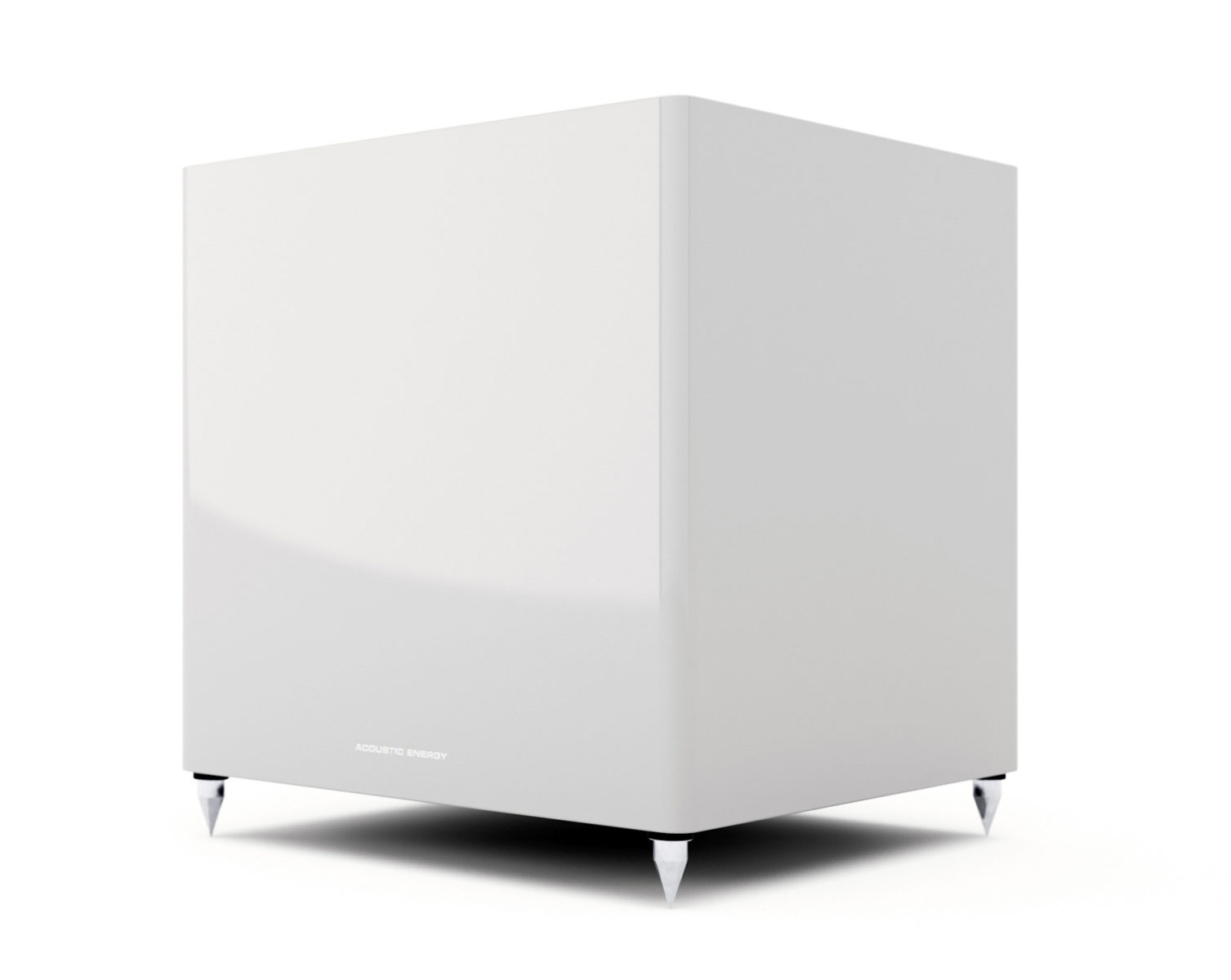

The AE308 is an all-new subwoofer from Acoustic
Energy. Designed to compliment and integrate seamlessly with the other models in
the 300 Series, the 308 offers prodigious performance in both Hi-Fi and AV
implementations; making use of a new 500 Watt (RMS) amplifier mated to a 12”
high-excursion doped and stiffened pulp-fibre driver, the 308 also features DSP
modes to tailor performance perfectly to desired usage, a first for AE. In Music
mode the 308 will perform in a balanced, accurate manner, extending low
frequencies of the main speakers naturally and seamlessly down to 26Hz (+/-6dB).
In Movie mode there will be additional “slam” on offer to aid explosive movie
soundtracks in AV systems. Finally Impact mode trades outright extension for
maximum volume and serious impact, more akin to a club set-up for when you
really want to party hard! The 308 is available in attractive real wood American
walnut veneer, piano gloss black or white lacquer to match the other 300 Series
models and has sturdy carpet-piercing spikes which come with convenient rubber
caps for use on hard flooring.Drive Unit:12″ High-excursion doped and
stiffened paper cone Frequency Range:26Hz-120Hz +/- 6dB Power Handling:500w
Crossover Frequency:40-120Hz rotary control Design:Sealed box,
downward facing driver Low level stereo RCA, high level stereo binding posts,
LFE RCA Phase:0-180 degree rotary controlAmplifier Type:Class D
Dimensions (mm):360 x 360 360mm (HxWxD) Weight:16.5kg (each)
Finishes:Black and Real Walnut wood veneer
ACUSTIC ENERGY
SOUND3
Offerta
€. 350,00
Soundbar + SUB – Alluminio,
Sub Nero
Flat screen TVs have become ever thinner and more
elegant in recent years and while this makes for an aesthetically appealing
product, it means that the space available within the chassis for speakers has
become more and more compressed. As a result, many modern TVs can’t produce the
sound to match their picture.To provide a solution to this Acoustic Energy has
taken the subwoofer unit of the Aego³ and created an all new soundbar speaker
array to partner it. Designed to effortlessly compliment modern flat screens and
equipped for wall mounting, it is capable of providing a sound that does justice
to everything from broadcast TV to the latest cinematic blockbusters. By using
the separate bass and amplifier module, we have ensured that the Aego Soundbar
is as elegant as the equipment you will be partnering it with, while delivering
the level of performance that you would expect from an Acoustic Energy product.
ACUSTIC ENERGY
BT2
Offerta
€. 350,00
Speaker porttile Bluetooth

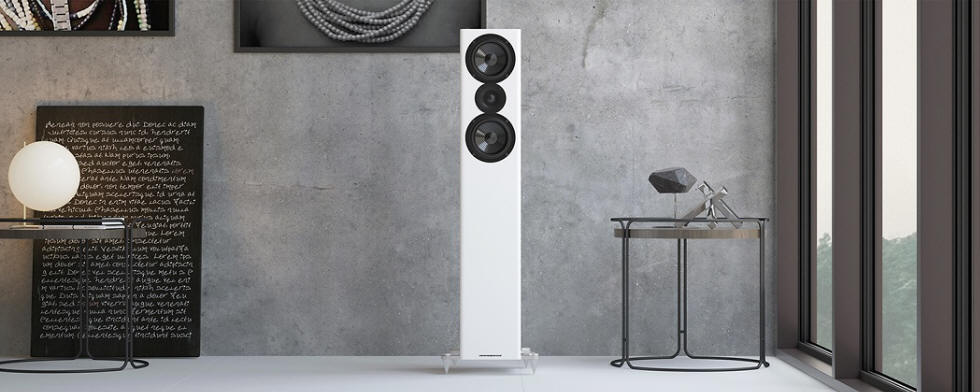

Our flagship 500
Series, comprises two models, the AE500 stand-mount and AE509 floor-stander and
boast our newly developed carbon fibre tweeters and mid/bass drivers, designed
to match the pistonic power and accuracy of our legendary ceramic aluminium
drivers but with improved self-damping for a smoother, more transparent sound.
ACUSTIC ENERGY
AE500 Offerta
€. 795,00
The AE500 is a new compact stand-mount
loudspeaker from our flagship 500 Series. Following on from the award winning
AE100 and AE300, the AE500 offers a significant step up in audio quality,
materials, and cabinet finish. The 500 Series features our newly developed
carbon fibre tweeter and mid/bass drivers, designed to match the pistonic power
and accuracy of our legendary ceramic aluminium drivers but with improved
self-damping for a smoother, more transparent sound.Offering unparalleled levels
of performance, quality and value the result is an audio product with clean,
uncluttered lines delivering a thrilling and powerful presentation discerning
Acoustic Energy owners have come to expect for over 30 years. Finished in a
choice of Piano Gloss Black, Piano Gloss White or American Walnut wood veneer
finishes, the AE500 will easily integrate within any home décor placed on
speaker stands or b
ACUSTIC ENERGY
AE509 Offerta
€. 1.345,00

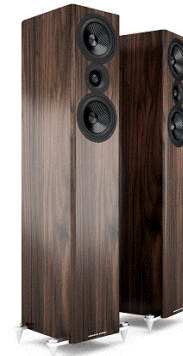

The AE509 is a new slim-line floor-standing
loudspeaker with compact dimensions, suitable for medium to large sized rooms.
Similar to the AE500 comparison, the AE309 offers higher levels of performance
and finish than its 300 Series equivalent. The 500 Series features our newly
developed carbon fibre tweeters and mid/bass drivers, designed to match the
pistonic power and accuracy of our legendary ceramic aluminium drivers but with
improved self-damping for a smoother, more transparent sound. Offering
unparalleled levels of performance, quality and value the result is an audio
product with clean, uncluttered lines delivering a thrilling and powerful
presentation discerning Acoustic Energy owners have come to expect for over 30
years. The slim-line cabinets are finished in Piano Gloss Black, Piano Gloss
White or American Walnut wood veneer finishes. Solid Aluminium bars are supplied
to ensure rigid floor-coupling and maximum stability, whilst the stiffness of
the metal structure reduces the room to speaker interaction.
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
