Established by Ed Meitner in 1998, EMM Labs
is the world's premier designer of professional digital audio converter systems.
Every day, more and more top recording engineers and organizations are buying
our equipment. The fact that EMM Labs electronics are now internationally
acclaimed and universally regarded as state of the art is a source of great
pride to us.We are equally proud of our audiophile products. The technology is
identical to that in our studio gear. So too is the sound. Which can put
audiophiles in the unique position of listening to their favorite music with the
same equipment that was used to record it. We invite all of you to enjoy the
prospect, the equipment, and most importantly, the music along with us.

EMM LABS

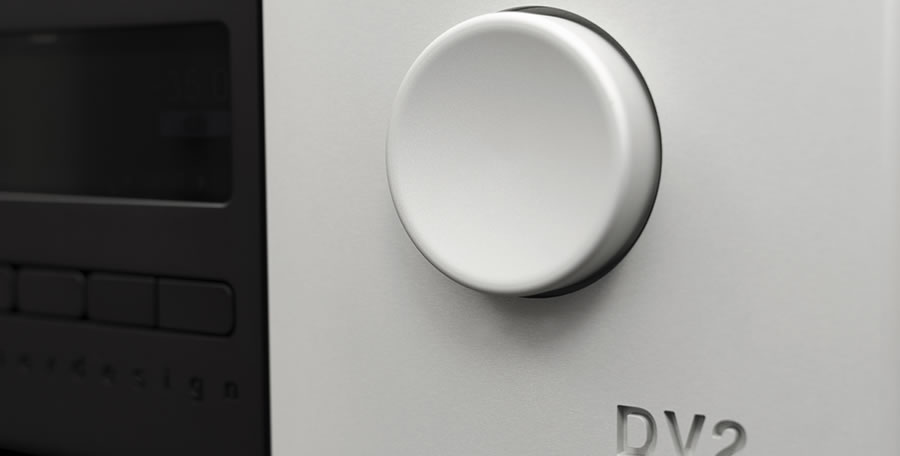

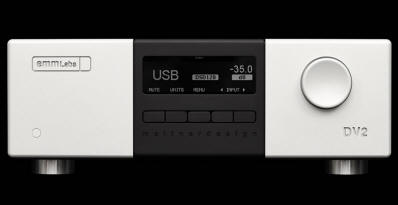

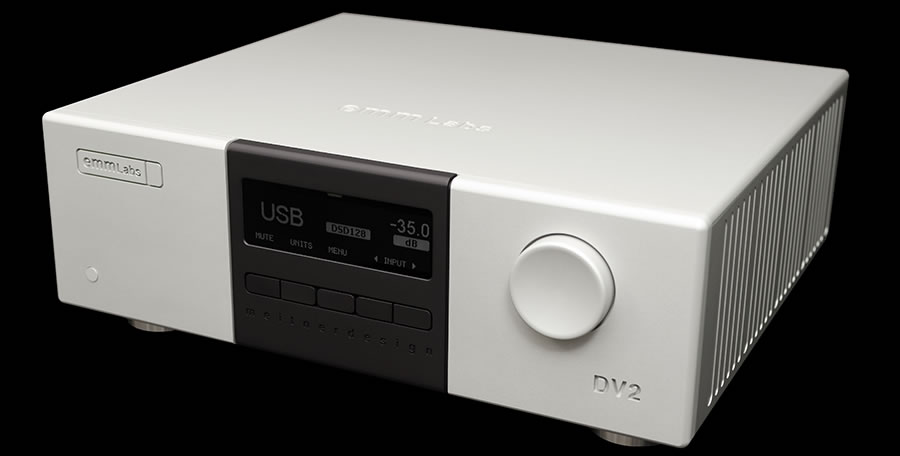

DV2 Listino
Ufficiale €. 41.100,00
Convertitore DA
integrato allo stato dell'arte, unisce le tecnologie sviluppate per il
modello di punta DA2 e le affianca al sistema di controllo del volume
proprietario VControl™ che mantiene il segnale di ingresso privo di
ri-quantizzazione, completamente trasparente a qualsiasi livello d'ascolto e
senza alcuna perdita di risoluzione; convertitore MDAC™ DSD1024/16xDSD
completamente discreto progettato e costruito in Canada, DSP MDAT2™ in grado di
rivelare transienti in tempo reale, elaborare e convertire i segnali audio PCM,
DSD e MQA® (via USB). Isolamento galvanico proprietario. Dimensioni (LxAxP):
438x161x400mm, peso 17,2kg. Versione DV2
(finitura placcata) 47.950,00
The DV2 builds on EMM Labs’ ground breaking technology used in our flagship,
multi-award winning DA2 converter by integrating EMM’s high resolution volume
control system (VControl™) into our discrete, single bit converter. VControl™
maintains the input signal without re-quantization allowing for complete
transparency at any volume setting, wide attenuation range, and no loss of audio
resolution. 16xDSD MDAC2™ and MDAT2™ DSP MDAC2™ is the worlds first fully
discrete single-bit D-to-A converter with an internal conversion rate of 1024fs
(16xDSD) and is completely free of inherent non-linearity that plagues every
mass market chip created to date. Our MDAT2™ DSP has been refined and updated to
synergistically work with the MDAC2™. The MDAT2™ DSP performs real-time
transient detection in addition to processing and up-conversion of all incoming
audio before being sent to the MDAC2™ for conversion. USB Isolation, MFAST™ and
MCLK2™ The USB interface includes EMM’s proprietary hardware galvanic isolation.
In combination with MFAST™, our high-speed asynchronous jitter removal
technology and and MCLK2™ our custom built clock, jitter is completely removed
from the conversion process. The DV2 features a multitude of inputs and support
for PCM up to 24bit/192kHz, DSD, 2xDSD, DXD, and for the first time in any EMM
Labs product, MQA® via USB. With its redesigned analog and digital systems,
integrated high resolution volume control, discrete componentry, and
user-friendly operation, the DV2 can be connected directly to the amplification
stage in any high fidelity system with ease. Designed and manufactured in Canada
for the digital audio enthusiast. Key Features Proprietary & discrete dual
differential D-to-A converters (MDAC2™) New high resolution volume control
system with High/Low output gain control (VControl™) Latest generation Meitner
Digital Audio Translator signal processing technology (MDAT2™) Enhanced
technology for instant signal acquisition and jitter-free performance (MFAST™)
Proprietary asynchronous clocking system (MCLK2™) USB interface with custom
hardware galvanic isolation Up to 24bit/192kHz & DSD support over all inputs
2xDSD, DXD (352/384kHz) & MQA® support over USB User controlled signal polarity
Custom aerospace-grade ceramic circuit boards EMM Optilink for connection to an
EMM transport Precision-machined aluminum chassis & remote control Service USB
port for future software upgrades RS-232 serial port for wired remote control
Power Supply: Proprietary high-isolation resonant mode power supply for silent &
eco-friendly operation Factory set to 100V or 115V or 230V, 50/60Hz Maximum 30W

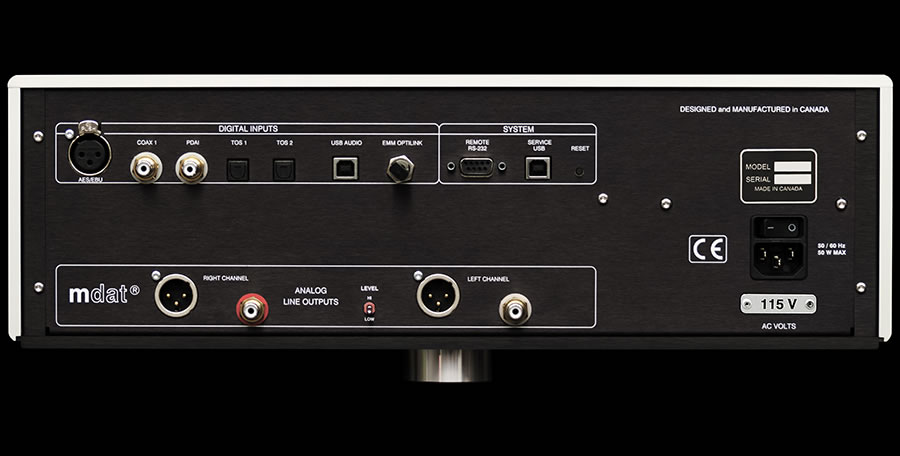

consumption Specifications Digital
inputs:EMM Optilink (CD/SACD)AES/EBU, 2x S/PDIF Coax, 2x S/PDIF, TOS & USB up to
24bit/192kHz and DSD USB also supports 2xDSD, DXD (352/384kHz) & MQA® Stereo
Analog Outputs: XLR and RCA Output Impedance:300 ohms balanced (XLR) 150 ohms
unbalanced (RCA) Output Levels (High/Low): XLR outputs: 7.0/5.0V (+19.1/16.2dBu)
RCA outputs: 3.5/2.5V (+13.1/10.2dBu) Dimensions: W x D x H: 438 x 400 x 161mm
Weight: 17.2kg

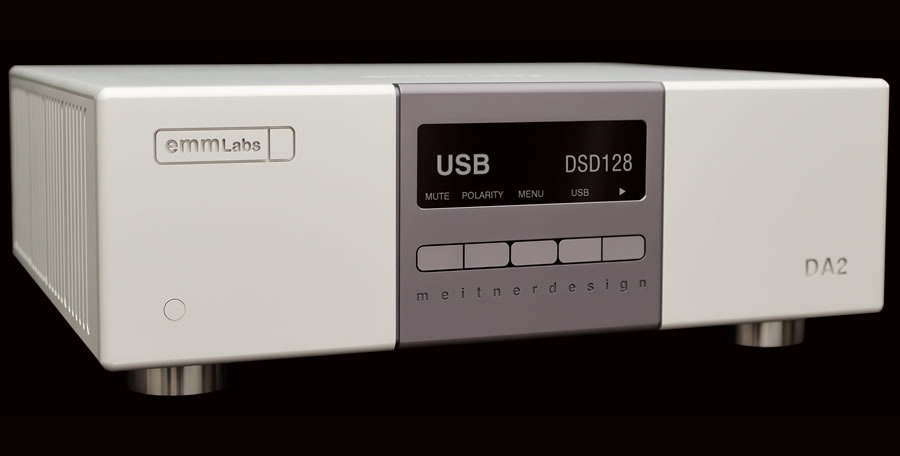

EMM LABS

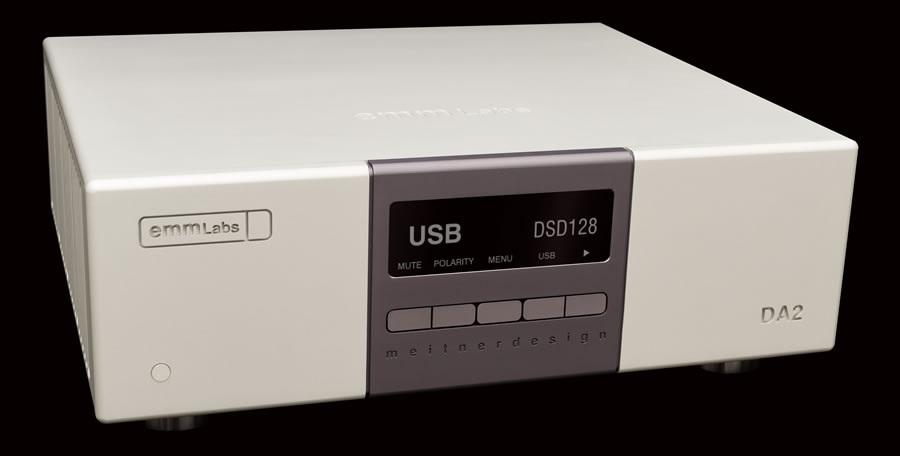

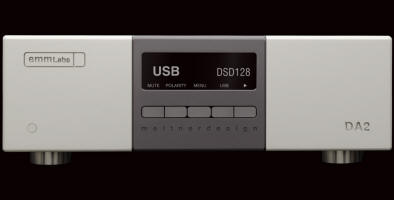

DA2
Listino
Ufficiale €. 34.250,00
Convertitore DA
allo stato dell'arte, nuovo progetto a opera di Ed Meitner che innalza
nuovamente l'asticella in termini di trasparenza, accuratezza e qualità sonora.
Nuovi stadi analogici progettati da Ed Meitner che raggiungono un nuovo livello
di trasparenza e prestazioni, nuovo convertitore MDAC™
DSD1024/16xDSDcompletamente discreto progettato e costruito in Canada, nuova
versione del DSP MDAT2™ in grado di rivelare transienti in tempo reale,
elaborare e convertire isegnali audio PCM e DSD. Isolamento galvanico
proprietario. Dimensioni (LxAxP): 438x161x400mm, peso 17kg.
Versione DA2 (finitura placcata) 41.100,00
Introducing the DA2 – redesigned from the ground
up, it features the world’s first 16xDSD DACs and Ed’s latest generation analog
stages. The combined performance of both allowing the DA2 to achieve that whole
new level of transparency and performance. The DA2 also features a multitude of
inputs allowing a host of connectivity options and support for DSD, 2xDSD and
DXD(352 and 384kHz PCM) via USB. World’s First 16xDSD Proprietary Discrete DACs
MDAC2™ is now the world’s first true fully discrete DSD1024/16xDSD D/A converter
and still built in-house at our manufacturing facility in Calgary, Canada. We’re
not willing to accept the inherent non-linearities of every mass-market chip
created to date. Neither should you. Newly Updated MDAT2™: 16xDSD Upsampling Our
multi-award winning MDAT2™ DSP has been refined and updated to synergistically
work with the new 16xDSD MDAC2™. The new MDAT2™ DSP performs real-time transient
detection, processing and up-conversion of all incoming audio, PCM and DSD,
before sending it to the new 16xDSD DACs. New USB Isolation, MFAST™ and MCLK2™
The DA2 also has Ed’s proprietary hardware galvanic isolation for its USB
interface. This allows the DA2 to further isolate its USB interface from noisy
source power systems.
Along with MDAT2™, MFAST™ our high-speed asynchronous jitter removal
technology and MCLK2™ our custom built super accurate clock, has been carefully
revised to work synergistically with the new 16xDSD DACs. All culminating in
that next level of immersive pristine sonic clarity that has been the definition
of every new EMM product. World’s first 16xDSD proprietary discrete
dual differential D-to-A converters (MDAC2™) Newly designed next generation
analog stages Latest generation 16xDSD Meitner Digital Audio Translator (MDAT2™)
signal processing technology Latest generation enhanced MFAST™ technology for
instant signal acquisition and jitter-free performance Next generation MCLK2™
proprietary custom clock Proprietary USB interface hardware galvanic isolation
24bit,192kHz support on all PCM inputs including USB DSD, 2xDSD and DXD
(352/384kHz) over USB remote control Polarity inversion performed in the digital
domainUSB port for future software upgrades Serial port for wired remote control
New optimized reference power system - Power factor corrected- Factory set to
100V or 115V or 230V, 50/60Hz - Power consumption: max. 30 W CE compliant

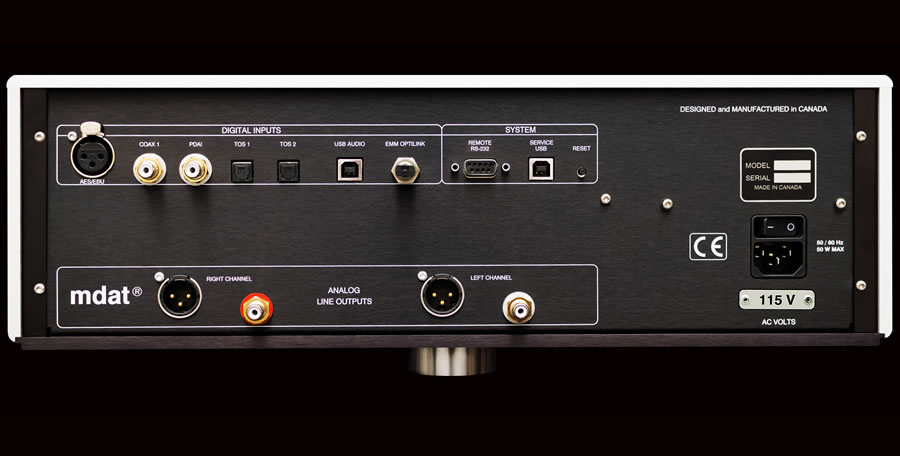

Digital inputs:EMM Optilink (CD/SACD) Supports up to 24bit, 192kHz on all PCM
inputs: AES/EBU, USB Audio, 2x SPDIF Coax, 2x S/PDIF Toslink USB also supports
streaming DSD, 2xDSD, DXD (352 and 384kHz) Stereo Analog Outputs:XLR and RCA
Output Impedance: 300 ohms balanced (XLR) 150 ohms unbalanced (RCA) Output
Levels: XLR outputs: 4.6V (+15.45dBu)RCA outputs: 2.3V (+9.45dBu) Finish: Silver
and Black Ultrafine CNC Precision Finish Standard black or premium 24K Gold/Silver/Custom
plated insert and buttons Dimensions: W x D x H: 438 x 400 x 161mm Weight:
17.2kg
EMM LABS
DAC2X
V2 Listino
Ufficiale €. 18.645,00
Convertitore Digitale / Analogico stereo 24 bit,
44,1-192 kHz, DSD su USB (DoP 1.0), nuovo convertitore MDAC™ DSD512/8xDSD
completamente discreto progettato e costruito in Canada, tecnologia MFAST™,
nuova versione DSP MDAT2™, ingressi audio digitale EMM Optilink, AES EBU, USB,
SPDIF coassiale, 2X SPDIF Toslink, porta d'espansione EMM. MDimensioni (LxAxP):
435x92x400mm, peso 12kg.

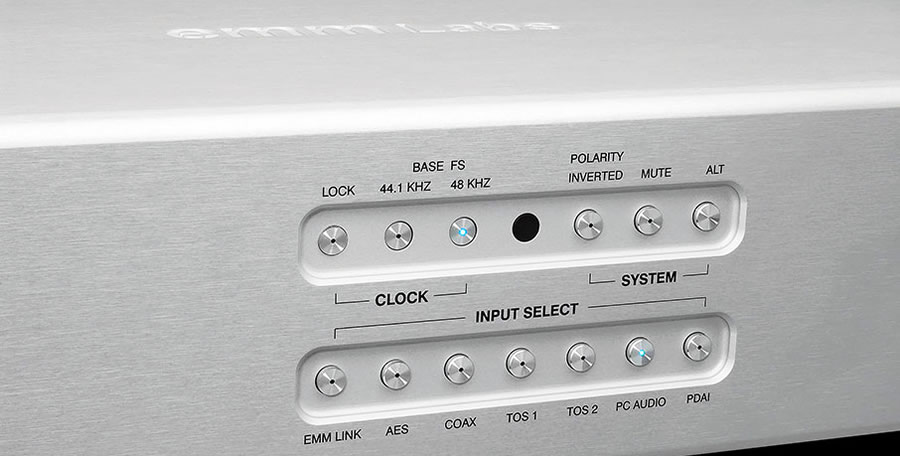

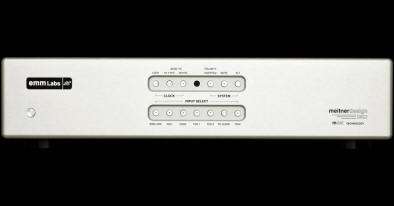

DAC2X
V2 D/A Converter You know how it is. Digital audio data isn’t the sole domain of
digital transports any longer. Today it streams from sources as diverse as your
PC, music server, satellite receiver, mixing board and portable player. Which is
why EMM Labs has created one very simple, very convenient way to get
state-of-the-art sound from all of them. Re-introducing the multi-award winning
DAC2X V2 – updated using the technology in our reference DA2. The DAC2X V2
features the latest generation MDAT2™ up-converting DSP, MFAST™ jitter removal
system, MCLK™ master clock and Ed Meitner’s revised hand built DSD512/8xDSD
proprietary discrete dual differential D-to-A converters. The DAC2X V2 also
features a multitude of inputs allowing a host of connectivity options and
support for up to 24bit,192kHz and DSD (via DoP) on all PCM inputs including
USB. The DAC2X V2 also supports up to DSD128/2xDSD and DXD (352 and 384kHz)
streaming over USB Audio. Proprietary hardware galvanic isolation for the USB
Audio interface. MFAST™ vs. conventional PLLs Most converters utilize PLL (Phase
Lock Loop) circuits. MFAST™ has two distinct advantages. It’s a high-speed
asynchronous system that acquires any data stream almost instantaneously.
Moreover, unlike PLLs which merely attenuate jitter, MFAST™ strips jitter out of
the audio stream completely. Enabling you to enjoy pristine sonic clarity
whether the incoming data stream is pure or anything but. New Updated MDAT2™:
DSD512/8xDSD Upsampling The Updated Meitner Digital Audio Translator (MDAT2™)
upsamples digital audio to DSD512/8xDSD. Eight times that of standard SACD
sampling rate. Proprietary DSD512/8xDSD Discrete Dual Differential D-to-A
Converters We were not willing to accept the inherent non-linearities of every
mass-market chip created to date. Neither should you. Key Features Latest
generation MFAST™ technology for instant signal acquisition, jitter-free
performance Latest generation DSD512/8xDSD Meitner Digital Audio Translator
(MDAT2™) signal processing technology Latest generation DSD512/8xDSD proprietary
discrete dual differential D-to-A converters Exclusive aerospace-grade composite
laminate circuit boards EMM Optilink proprietary interface for connection to
matching TSDX CD/SACD Transport Precision-machined aluminum chassis
Precision-machined aluminum infrared remote control Polarity inversion performed
in the digital domain 24bit,192kHz and DSD support on all PCM inputs including
USB DSD, DSD128/2xDSD and DXD (352 and 384kHz) streaming over USB (DoP
specification)Galvanically isolated USB audio interface USB port for future
software upgrades Serial port for wired remote control New optimized reference
power system - Power factor corrected - Factory set to 100V or 115V or 230V,
50/60Hz - Power consumption: max. 25 W CE compliant Specifications Digital

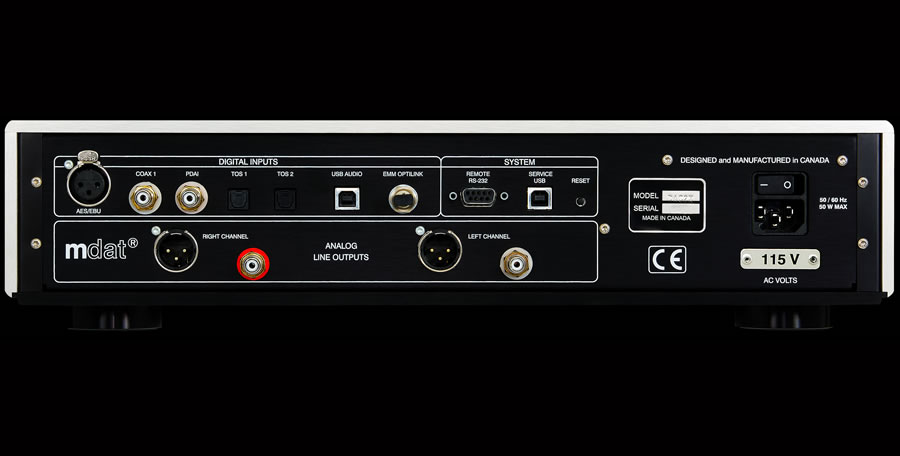

inputs: EMM Optilink (CD/SACD) Supports up to 24bit, 192kHz and DSD (via DoP) on
all PCM inputs: AES/EBU, USB Audio, 2x SPDIF Coax, 2x S/PDIF Toslink USB Audio
also supports streaming DSD, 2xDSD, DXD (352 and 384kHz) Stereo Analog Outputs:
XLR and RCA Output Impedance: 300 ohms balanced (XLR) 150 ohms unbalanced (RCA)
Output Levels: XLR outputs: 4.6V (+15.45dBu) RCA outputs: 2.3V (+9.45dBu)
Dimensions: W x D x H: 435 x 400 x 92mm Weight: 12kg

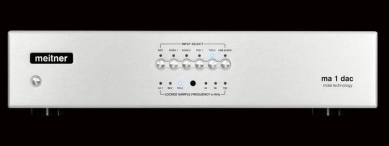

EMM LABS/MEITNER
MA-1
V2
Listino Ufficiale €. 10.175,00
Convertitore stereo Digitale
/ Analogico 24 bit, da 44,1 a 192kHz, nuovo convertitore MDAC™ DSD512/8xDSD
completamente discreto progettato e costruito in Canada, tecnologia MFAST™,
nuova versione DSP MDAT2™, sei ingressi digitali (1 x USB, 1 x AES/EBU, 2 x
TOSLINK S/PDIF, 2 x COAX S/PDIF). Dimensioni (LxAxP): 435x92x400mm, peso: 7,43kg
Meitner Stereo D/A Converter With the introduction of Meitner Audio's very first
product—the Meitner MA-1 Stereo D/A Converter—cost-no-object performance has
suddenly become a whole lot less costly. How did we do it? By utilizing
the award-winning technologies Ed Meitner developed for our EMM Labs line of
products. The result is a converter that turns the "you-have-to-spend-a-lot-to-get-a-lot"
paradigm on its proverbial ear? It also happens to turn your computer or
media server into a high-end, high-resolution music-making machine. The
Meitner MA-1: • Supports sampling rates of 44.1, 48, 88.2, 96, 176.4 and
192kHz at word lengths up to 24 bits through all 6 digital inputs •
Complies with the USB Class 2 audio interface standard • Is simple to use.
There's nothing to configure. Just plug and play. MFAST™ asynchronous
technology Feed the MA-1 through any of its six inputs and the Meitner
Frequency Acquisition System (MFAST™) instantly acquires the signal, buffers it,
then strips jitter out completely. A high-speed asynchronous system, it
decouples input from output. MFAST™ ensures that you'll enjoy pristine sonic
clarity whether the incoming data stream is pure or anything but. MDAT™:
2x DSD upsampling From there, the signal goes straight into the Meitner
Digital Audio Translator (MDAT™) which upsamples digital audio to 5.6MHz, double
the SACD standard sampling rate. The world's best dac/clock combination
Our MA-1 features the standard-setting MDAC™ dual differential discrete D-to-A
and MCLK™ high-purity master clock modules. Together, they're music to our ears.
Yours too, as an audition will quickly prove. The Meitner MA-1 Stereo D/A
Converter. It may be the first audio product that's equally appealing to those
on a budget, and those with no budget limitations at all.
Key Features & Specifications: •
Supported sampling rates of 44.1, 48, 88.2, 96, 176.4 and 192kHz at word
lengths up to 24 bits through all 6 digital inputs: • 1 x USB • 1 x AES/EBU• 2 x
TOSLINK S/PDIF• 2 x COAX S/PDIF • MFAST™ asynchronous technology for instant
signal acquisition, jitter-free performance • MDAT™ signal processing
technology:• Provides 2x DSD upsampling for PCM playback• Preserves phase,
frequency and dynamic integrity of the waveform• MDAC™ discrete dual
differential D-to-A conversion circuit• MCLK™ high-purity master clock that
establishes new benchmarks in jitterperformance • Sleek credit-card style remote
control included for input switching• USB service port for future software
upgrades• Serial port for wired remote control• Power supply:• Power factor
corrected• Universal 90V-260V, 50/60Hz• Power consumption: max. 50W• CE Approved
Stereo analog outputs: Balanced (XLR) and Unbalanced (RCA)Output voltage (with
0dBfs input):• XLR outputs: 4.6Vrms (+15.4dBu)• RCA outputs: 2.3Vrms
(+9.4dBu)Output impedance:• 300 ohms balanced (XLR) • 150 ohms unbalanced (RCA
Dimensions W x D x H: 435 x 400 x 92mm Weight: 7.43 kg/16.39 lbs net with remote
control

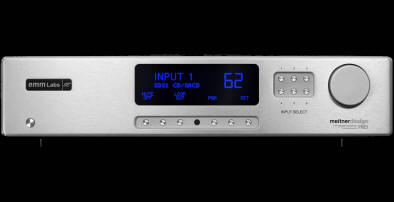

EMM LABS/MEITNER
PRE 2
Listino Ufficiale €. 25.625,00
Preamplificatore stereo, funzionamento ad
alto isolamento (consumi e rumore ridotti), 2 coppie di ingressi XLR, 4 coppie
di ingressi RCA, 1 RCA loop, 1 coppia di uscite XLR, 1 RCA, porta seriale RS232
per controllo remoto cablato e controllo multisistema. Dimensioni (LxAxP):
435x92x400mm, peso 12kg
The
PRE2-SE embodies our recognition that the analog preamp at the heart of every
music system deserves the very best treatment because it handles every sound
your system makes. Built on the heritage of the famous PA6i Meitner preamp, the
PRE2-SE updates Ed Meitner's classic to take a place at the forefront of 21st
century preamp performance.Eminent recording and mastering engineer Tom Jung
explains: "Ed Meitner is the only guy on the planet who has an equally good
understanding of both digital and analog circuitry."The PRE2-SE features six
analog inputs, a recording loop, infrared remote control, multichannel ganging
and, most importantly, stunning transparency. Due, in no small part, to the
extraordinarily sophisticated contactless switching system, discrete circuitry,
and the (proprietary) volume control. Several PRE2-SE's can be daisy-chained via
serial control port to provide the purest multichannel preamplifier operations.
The PRE2-SE also features our aerospace-grade composite laminate circuit boards.
These provide several performance advantages over conventional boards: Copper
traces are microscopically smooth on top and bottom, significantly reducing skin
effect issues Naturally damped sandwich construction offers superior
strength and vibration resistance Lower dielectric losses and superior
heat conduction ensure a more uniform temperature gradient across the circuitry,
increasing stability and longevity All of this makes the PRE2-SE the most
sophisticated solid-state analog preamp ever created. Use it in your audio
system and you'll be able to control everything. Except, of course, your
enthusiasm.

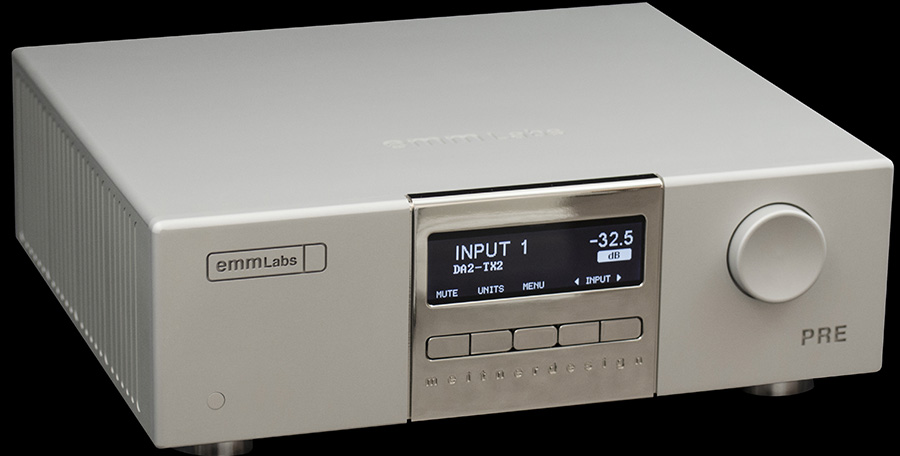

EMM LABS
PRE
Listino
Ufficiale €. 42.605,00
Preamplificatore stereo di riferimento, 3
ingressi bilanciati XLR, 3 ingressi single ended RCA, 2 uscite bilanciate XLR, 1
uscita single ended RCA, Classe A, percorsi di segnale bilanciati discreti,
circuiti stampati di grado aerospaziale, porta seriale RS232 per controllo
remoto cablato e controllo multisistema. Dimensioni (LxAxP): 438x161x400mm, peso
17,2kg

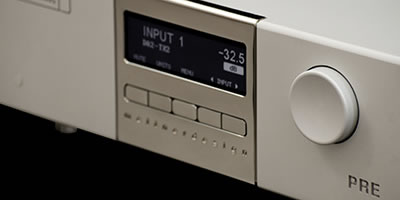

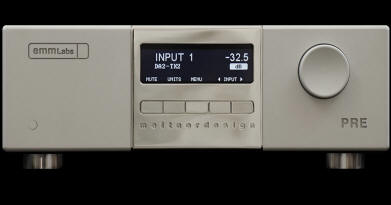

Ed Meitner recognizes that the analog preamplifier is at the heart of every
music system and warrants the utmost care and precision. This recognition
motivates him to consistently push the boundaries of performance in his designs.
Starting with the Meitner PA6i and progressing to the multi-award winning EMM
Labs PRE2, he has never failed to push the state-of-the-art in the industry. Ed
Meitner’s latest design, the reference PRE, embodies this drive for perfection
and culminates in his most significant statement in the preamplifier category to
date. Stunning transparency is achieved via fully discrete dual-balanced signal
paths, sophisticated contactless switching solutions and precision
software-driven analog volume control. Using custom, aerospace-grade, composite
laminate circuit boards in the PRE provides several advantages over conventional
boards: Microscopically smooth copper traces resulting in a reduction in skin
effect issues Superior strength and vibration resistance Lower dielectric losses
and superior heat conduction ensuring uniform temperature distribution,
increasing stability and longevity With six sets of stereo analog inputs and
three sets of stereo analog outputs, the PRE allows the option of
bi-amplification and tri-amplification setups. Three sets of user programmable
volume presets per input allows the user to easily recall their favourite volume
settings for different types of music. Result… the most sophisticated and
musically accurate preamplifier from EMM Labs. Capable of controlling everything,

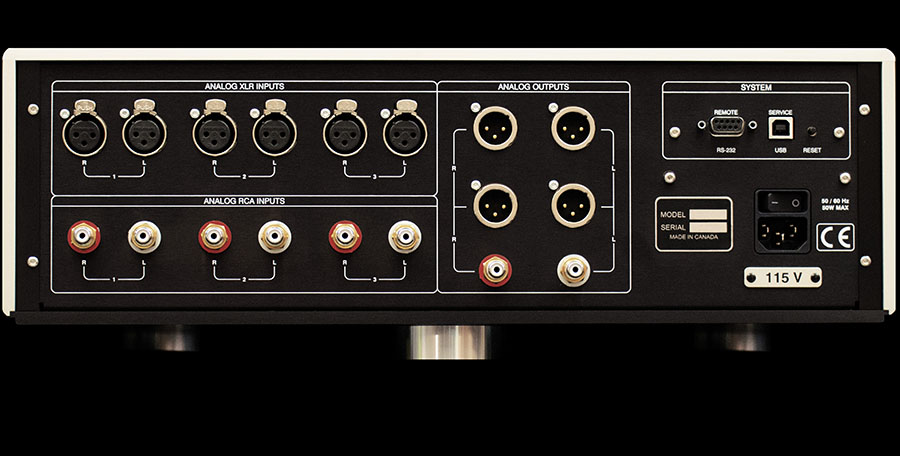

except your enthusiasm. Key Feature Six Stereo Analog Inputs: Three
Balanced (XLR), Three Single-ended (RCA) Three Stereo Analog Outputs: Two
Balanced (XLR), One Single-ended (RCA) Fully
discrete dual-balanced signal paths Class A circuitry to drive loads without
degradation Precision software-based analog volume control Aerospace-grade
composite laminate circuit boards Machined aluminum infrared remote control

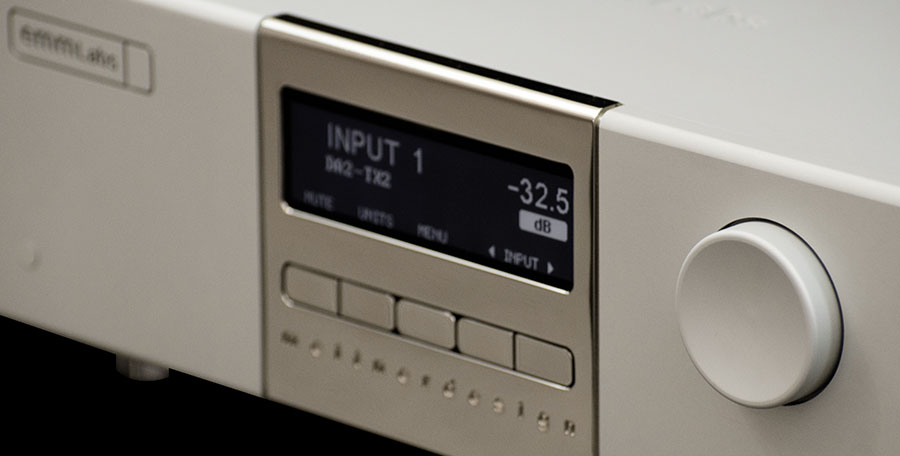

Large display with customizable brightness & contrast New intuitive control
system featuring programmable input settings & three sets of volume preset per
input System USB port for future software updates RS232 port for wired remote &
multi-system control CE compliant Power Supply: Proprietary High-isolation
resonant mode power supply for silent, & eco-friendly operation Factory set to
100V or 115V or 230V, 50/60Hz Power consumption: max. 40W Specifications S/N
ratio: Better than 100 dB at 4V RMS output (unweighted, 80kHz bandwidth) THD:
less than 0.004% Frequency range: 0Hz-200kHz Gain control range: Better than
74dB Maximum input level: +18 dBu (6.2V RMS) Input impedance: Balanced XLR –
40kΩ, Single-Ended RCA – 20kΩ Output impedance: Balanced XLR – 150Ω,
Single-Ended RCA – 75Ω System gain: +6dB Finish: Silver or Black with Black
insert and buttons. Premium custom plated options available. Dimensions W x D x
H: 438 x 400 x 161mm Weight: 17.2kg
EMM LABS
MTRX2 Listino
Ufficiale €. 104.640,00
Amplificatori monofonici basati sul modello MTRX,
1.000 W su 4 Ohm. Circuitazione proprietaria di Meitner con zero retroazione
negativa, apparecchitotalmente discreti che offrono distorsione ultra bassa,
banda elevatissima e lacapacità di erogare istantaneamente enormi quantità di
corrente, percorsi di segnale brevi e totalmente bilanciati, protezioni
impeccabili per l'amplificatore e i diffusori collegati. Dimensioni (LxAxP):
544x584x297mm, peso 82kg cadauno

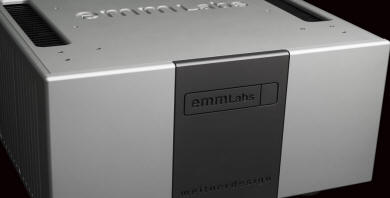

MTRX2 1KW Mono Amplifiers Hot on the heels of Ed Meitner’s ground breaking
reference MTRX amplifier, comes the eagerly anticipated debut of its smaller
sibling monoblocks, the MTRX2. The MTRX2s are 1KW Class A/B solid-state
powerhouses built using MTRX technology. Capable of driving the most fiendish
and complex speaker loads effortlessly, while sounding as sweet, musical and
detailed as a classic single-ended triode tube amps. "It is truly a gentle giant,"
as Ed would say. The MTRX2 monoblocks achieve their superlative performance and
transparency using 21st century technology, along with proprietary Meitner
circuit topologies and zero overall negative feedback developed in Ed’s
reference MTRX monoblocks. These monoblocks have been meticulously designed,
from its short and fully balanced audio paths throughout, to its proprietary
power systems and beautifully finished chassis and custom plated panels. MTRX2

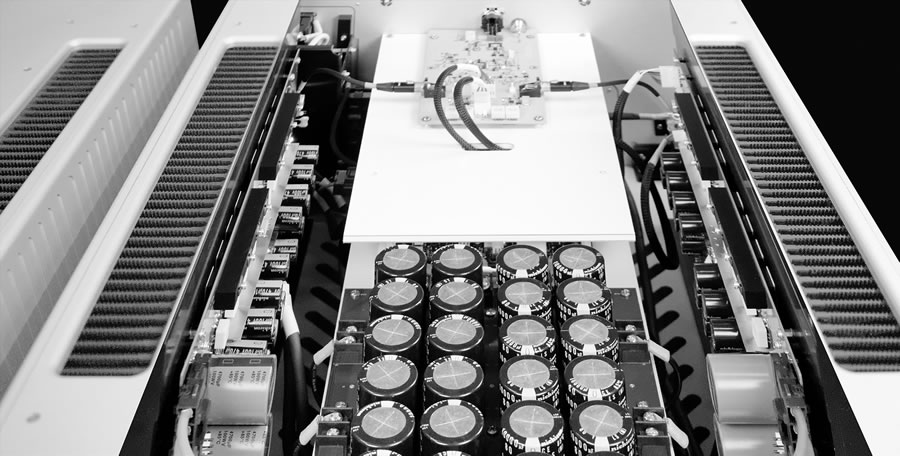

systems are fully discrete, offering ultra low distortion, very high bandwidth
and the ability to deliver massive transient currents instantaneously. It also
employs our custom made ceramic PCB boards plus a host of proprietary systems
for speaker protection and self-protection. Conservatively rated at 1000W into
4Ω. The MTRX2 is also completely stable driving difficult, complex loads, and
has the uncanny ability to drive low impedance speakers down to an Ohm! All
while keeping distortion at miniscule levels. The MTRX2 monoblock amplifiers
just like our reference MTRX amplifiers are designed, manufactured, and built in
Canada with no compromise. Specifications Frequency Response: DC - 500Khz
(Full Rated Power)Signal to Noise: > 120dB (A Weighted)THD+N : < 0.005%
(20-20Khz, Full Rated Power)IMD: < 0.005%Slew Rate: > 100V/μS Damping Factor: >

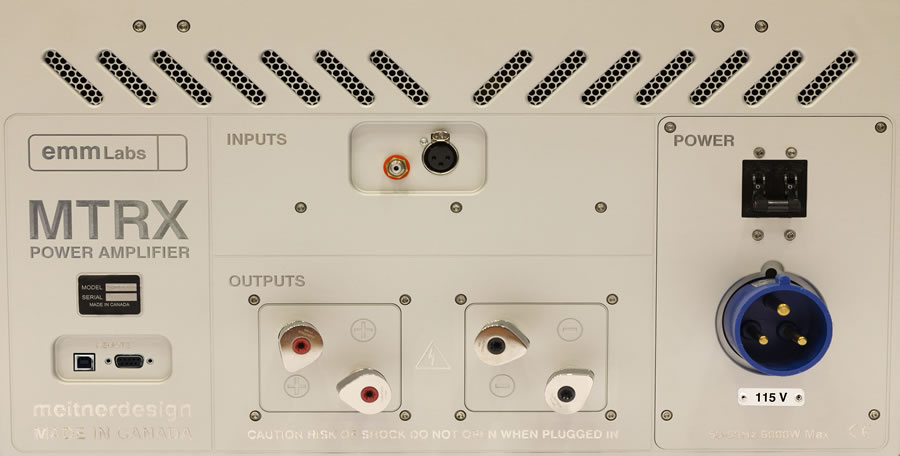

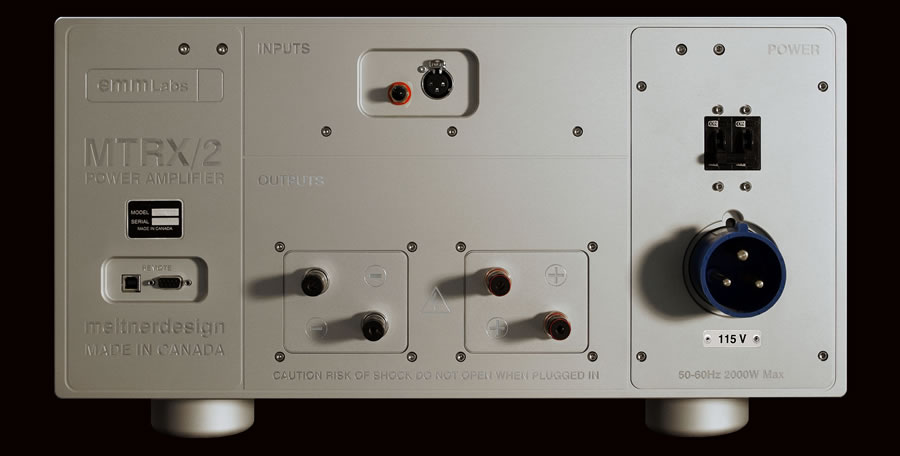

1000 Inputs: 1 Balanced (XLR) 1 Un-balanced (RCA) 1 RS-232 Communication Port 1
USB Communication Port 1 250V/30A IP44 Industrial Power Inlet Input impedance:
100KΩ Balanced (XLR) 100KΩ Un-balanced (RCA) Outputs: 2 Sets Furutech Binding
Posts Output Power: M1000W into 4Ω Power: 100/115/240V, 50/60Hz (Factory Built)
Finish: Silver and Black Ultrafine CNC Precision Finish Standard black or
premium 24K Gold/Silver/Custom plated insert and power button Custom Kimber
Kable 30A Power Cable Custom EMM Labs Flight Case Amplifier Dimensions (W x D x
H): 544 x 584 x 297 mm, 21.4 x 23 x 11.7 inches Weight: 82kg, 180lbs
EMM LABS
MTRX Listino
Ufficiale €. 160.000,00
Amplificatori monofonici, 750 W su 8 Ohm, 1.500 W
su 4 Ohm e capacità dipilotare carichi inferiori ai 2 Ohm. Circuitazione
proprietaria di Meitner con zeroretroazione negativa, apparecchi totalmente
discreti che offrono distorsione ultrabassa, banda elevatissima e la capacità di
erogare istantaneamente enormiquantità di corrente, percorsi di segnale brevi e
totalmente bilanciati, protezioniimpeccabili per l'amplificatore e i diffusori
collegati.Dimensioni (LxAxP): 544x765x351, peso 100kg cadauno.

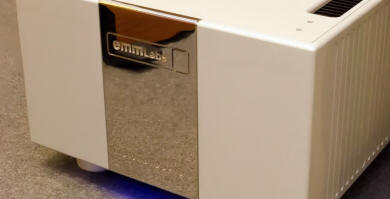

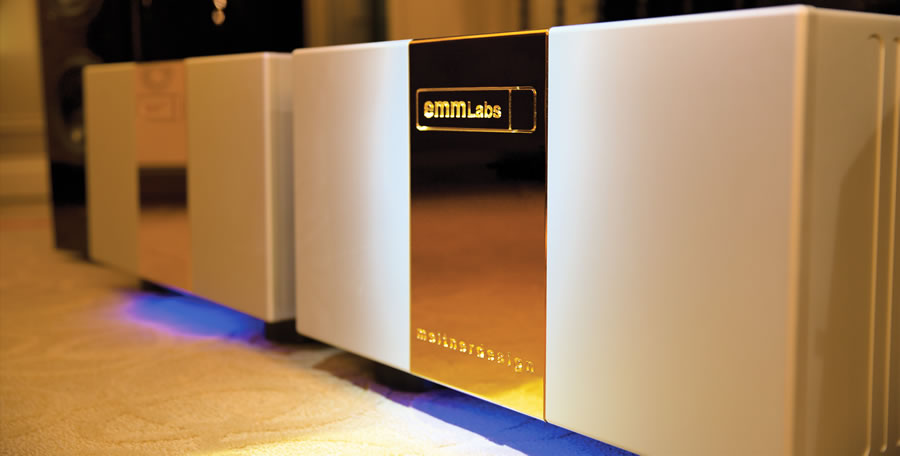

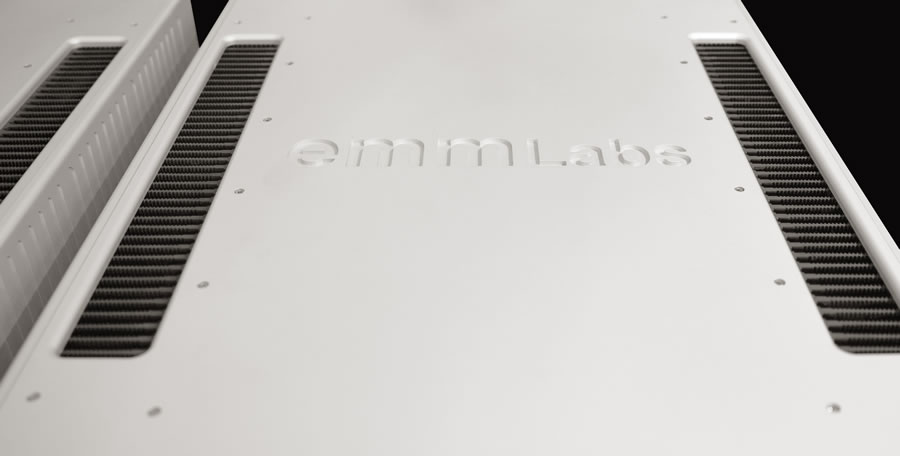

MTRX
Reference Mono Amplifiers EMM Labs celebrates the eagerly anticipated return of
designer Ed Meitner to the world of power amplifiers with the debut of his MTRX
reference monoblocks. It has been 20 years since the last Meitner amplifier and
we believe the MTRX is well worth the wait. More than a decade in the making,
these 1500W Class A/B solid-state powerhouses are able to drive the most
fiendish and complex speaker loads effortlessly, while sounding as sweet,
musical and detailed as a classic single-ended triode tube amps. "It is truly a
gentle giant," as Ed would say. The MTRX monoblocks achieve their superlative
performance and transparency using 21st century technology with proprietary
Meitner circuit topologies and zero overall negative feedback. Its systems are
fully discrete, offering ultra low distortion, very high bandwidth and the
ability to deliver massive transient currents instantaneously. It also employs
our custom made ceramic PCB boards plus a host of proprietary systems for
speaker protection and self-protection. These monoblocks have been meticulously
designed, from its short and fully balanced audio paths throughout, to its
proprietary power systems and beautifully finished chassis and custom plated
panels. Conservatively rated at 750W into 8Ω and 1500W into 4Ω. The MTRX is also
completely stable driving difficult, complex loads, and has uncanny ability to
drive low impedance speakers down to an Ohm! All while keeping distortion at
miniscule levels. Simply put, the MTRX monoblocks are the finest, most
innovative, state-of-the-art amplifiers Ed has ever produced. Designed,
manufactured, and built in Canada with no compromise. The MTRX amplifiers are
truly worthy of the moniker “Reference”. Specifications Frequency Response:
DC - 500Khz (Full Rated Power) Signal to Noise: > 120dB (A Weighted) THD+N : <
0.005% (20-20Khz, Full Rated Power)IMD: < 0.005% Slew Rate: > 100V/μS Damping
Factor: > 1000 Inputs: 1 Balanced (XLR) 1 Un-balanced (RCA)1 RS-232
Communication Port 1 USB Communication Port 1 250V/30A IP44 Industrial Power
Inlet Input impedance: 100KΩ Balanced (XLR) 100KΩ Un-balanced (RCA) Outputs: 2
Sets of Furutech Binding Posts Output Power: 750W into 8Ω 1500W into 4Ω Power:
100/115/240V, 50/60Hz (Factory Built) Finish: Silver and Black Ultrafine CNC
Precision Finish Standard black or premium 24K Gold/Silver/Custom plated insert
and power button Custom Kimber Kable 30A Power CableCustom EMM Labs Flight Case
Amplifier Dimensions (W x D x H): 544 x 765 x 351 mm, 21.4 x 30.1 x 13.8 inches
Weight: 100kg, 220lbs

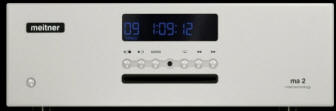

EMM LABS/MEITNER
MA-2
Listino Ufficiale €.
12.215,00
Lettore CD con convertitore D/A integrato, 24 bit, da 44,1 a 192 kHz, 4
ingressidigitali (USB, AES/EBU, TOSLINK S/PDIF, COAX S/PDIF), streaming DSD su
USB(specifiche DoP 1.0), tecnologie MFAST™ (acquisizione asincrona del
segnale,prestazioni prive di jitter), MDAT™ (elaborazione segnale,
sovracampionamentocon mantenimento di fase, frequenza e integrità dinamica della
forma d'onda),MDAC™ (circuito discreto doppio differenziale di conversione D/A),
MCLK™ (clock master di elevata purezza che stabilisce nuovi riferimenti nelle
prestazioni del jitter).Dimensioni (LxAxP): 435x140x400mm, peso: 9kg.
Meitner Integrated Playback SystemThese days, audiophiles want more from their
digital devices than mere CD playback. "More" is just what the Meitner Audio
MA-2 Integrated Playback System delivers. So much more, in fact, we invite you
to think of it as the digital equivalent of a yes man—an obedient servant that
does everything you ask of it and more without question. Like what, you ask?
"Will it get the most from my Red Book discs?" Yes, absolutely. The MA-2's
advanced new slot-loading transport utilizes technology we developed for the
state-of-the-art EMM Labs XDS1 player to isolate the transport electrically and
mechanically from the converter. Your Red Book discs are read quickly, quietly
and then played back flawlessly. "Can it play my 24/192 computer files over
USB?" Yes, asynchronously. And that's just the beginning. After all, the MA-2 is
based on the critically acclaimed MA-1 converter. So there's full asynchronous
support from 44.1kHz to 192kHz through all four digital inputs, not just USB.
"Can it stream DSD over USB?" Yes, natively. It's a function, and benefit, of
our proprietary technology: MFAST™ asynchronous technology. The Meitner
Frequency Acquisition System instantly acquires the signal, then buffers and
decouples it from the sending source, thus stripping out jitter completely.
MDAT™: 2x DSD upsampling. The Meitner Digital Audio Translator upsamples digital
audio to 5.6 MHz, double the SACD standard sampling rate. MDAC™ and MCLK™
Our standard-setting dual differential discrete D-to-A and high-purity master
clock modules ensure end-to-end signal integrity. All of which leads to
the obvious question: Should you make it a point to audition the MA-2? We're
confident you can answer that one yourself.
Key Features & Specifications: • Advanced
slot-loading transport for Red Book CD playback • Supported sampling rates
of 44.1, 48, 88.2, 96, 176.4 and 192kHz at word lengths up to 24 bits through
all 4 digital inputs:• 1 x USB• 1 x AES/EBU• 1 x TOSLINK S/PDIF• 1 x COAX S/PDIF•
DSD streaming over USB (DoP 1.0 specification) • MFAST™ asynchronous
technology for instant signal acquisition, jitter-free performance • MDAT™
signal processing technology: • Provides 2x DSD upsampling for PCM playback •
Preserves phase, frequency and dynamic integrity of the waveform • MDAC™
discrete dual differential D-to-A conversion circuit • MCLK™ high-purity master
clock that establishes new benchmarks in jitter performance • Multifunction
infrared remote control• USB service port for future software upgrades• RS232
serial port for wired remote control• Power supply:• Power factor corrected•
Universal 90V-260V, 50/60Hz• Power consumption: max. 50W • CE Approved Stereo
analog outputs: Balanced (XLR) and Unbalanced (RCA) Output voltage (with 0dBfs
input): • XLR outputs: 4.6Vrms (+15.4dBu) • RCA outputs: 2.3Vrms (+9.4dBu)
Output impedance: • 300 ohms balanced (XLR) • 150 ohms unbalanced (RCA)
Dimensions W x D x H: 435 x 400 x 140mm Weight: 9.0 kg/19.8 lbs net with remote
control
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
