The ultimate in audio quality, from a brand that lives  up to the meaning of its name: "reliability"

Today's high-resolution audio files deliver quality that approaches that of master recordings by incorporating an enormous amount of data.  With the debut of network audio, consumers quickly have become familiar with the immersive experience made possible by that level of quality.  Introducing fidata, a family of network audio components that lives up to the meaning of its name: "reliability."

Welcome to the world of ultimate sound

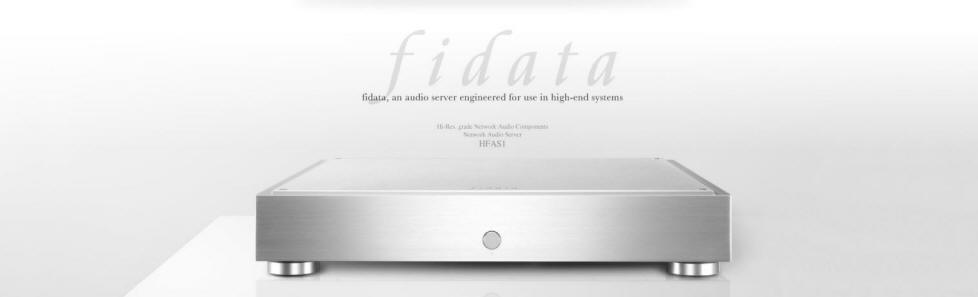

An audio server engineered for use in high-end systems

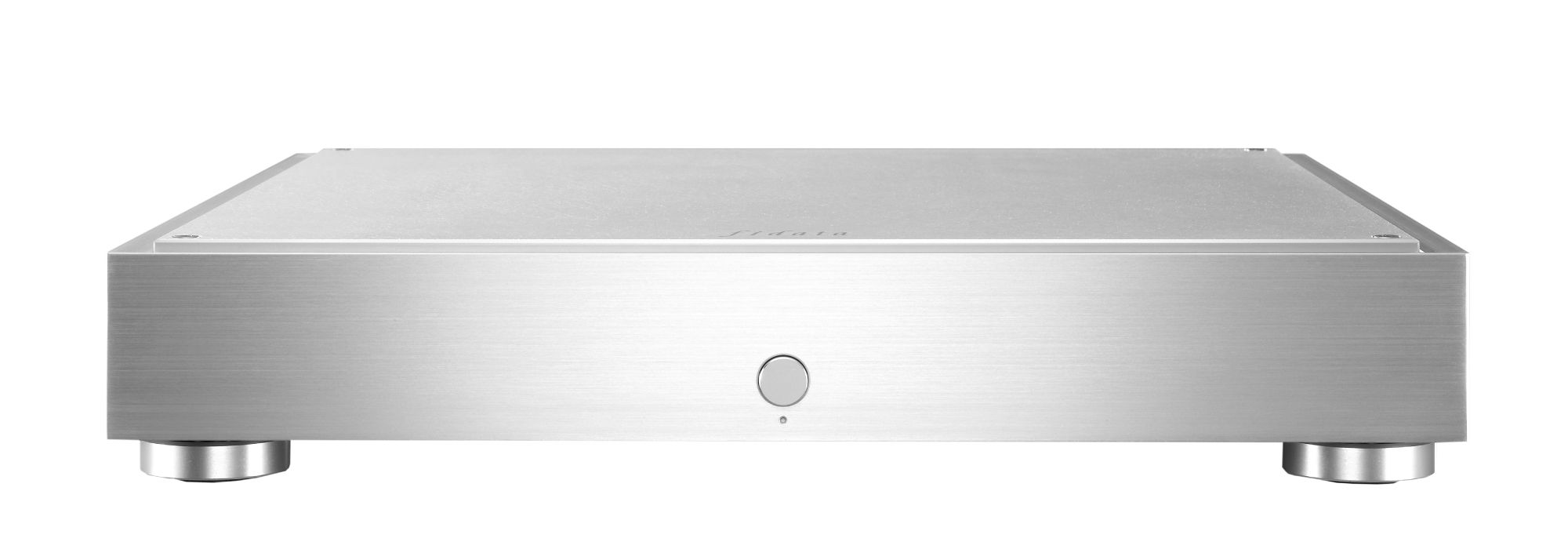

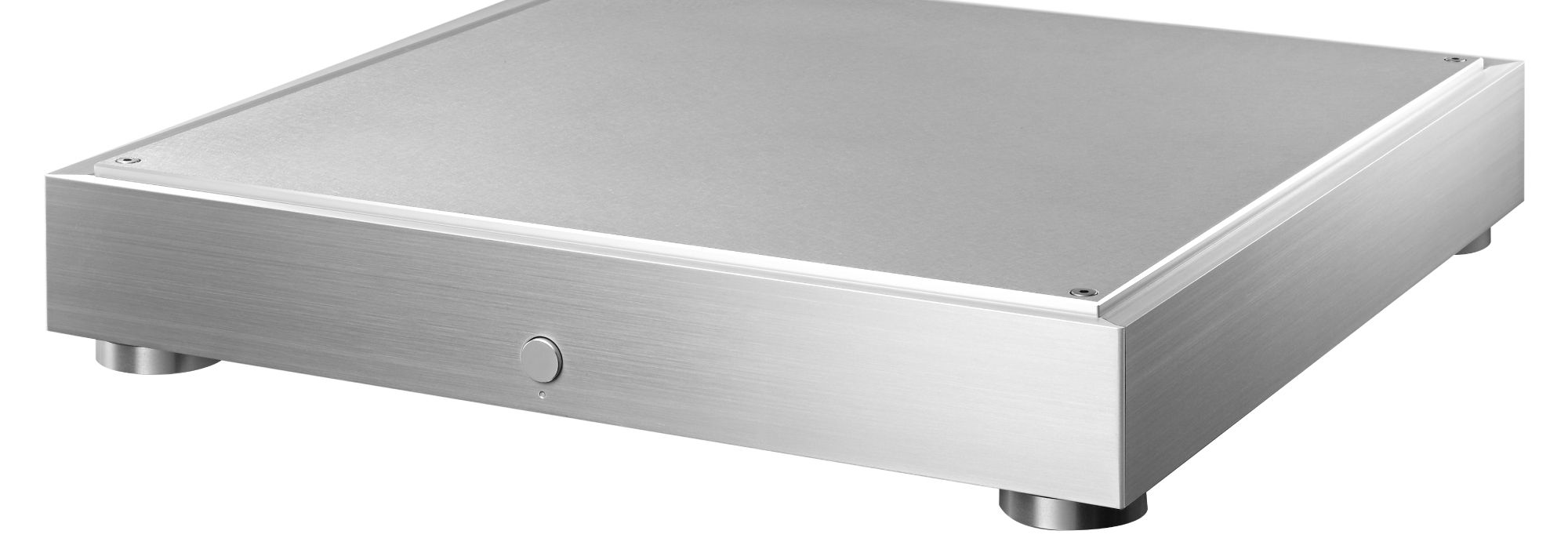

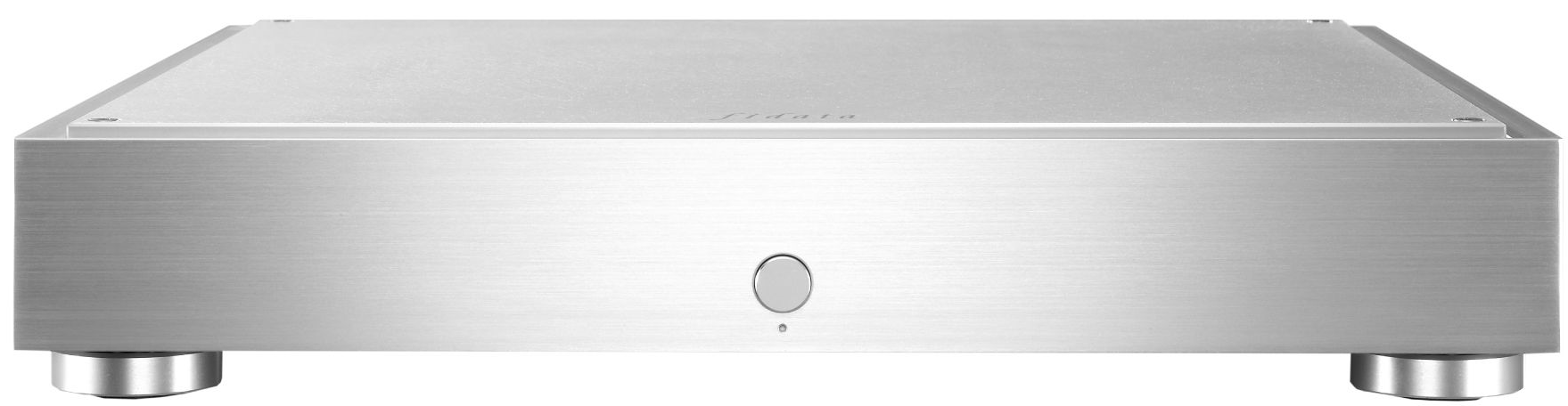

The fidata HFAS1 is a network audio server that was engineered so that you can enjoy high-end audio.  You can see evidence of our meticulous, iterative approach from the materials chosen for the chassis to the design of the unit's circuit board and its individual components. This product is the cumulative result of numerous prototypes and countless trial listening sessions.  The result is an exceptional level of audio quality that befits the unit's high-end name, packaged in an impressive chassis from which every hint of waste has been pared.



FIDATA HFAS1-XS10U                                             Listino  ufficiale  €.   7.999,00

STAMPA INTERNAZIONALE  *CLICCA  PER LEGGERE  SOPRA LOGO

the cumulative result of numerous prototypes and countless trial listening sessions. The result is an exceptional level of audio quality that befits the unit's high-end name, packaged in an impressive chassis from which every hint of waste has been pared. HFAS1-S10U Take the chassis, for example. The austere exterior, from which all traces of ornamentation—even a display—have been excised, represents an inevitable form that has reached the limits that come from a single-minded drive to recreate ideal sound. In each capacitor, in the circuit board layout: everywhere you look, you'll find thoughtful dedication to details.This is a network audio server that's not afraid to call itself high-end. Operating environment(for configuration of Twonky Server operation and HFAS1 settings, etc.) Computers Supported operating systems  Windows 10 (32- / 64-bit) Windows 8.1 (32- / 64-bit) Windows 8 (32- / 64-bit) Windows 7 (32- / 64-bit) OS X 10.7 to 10.11 Supported browsers Internet Explorer 9 / 10 / 11 Microsoft Edge 25 Safari 6 / 7 / 8 / 9 Smartphones Supported operating systems  iOS 7.0.4 ~ 9.3.1 Android 4.1 ~ 6.0.1 Supported file formats (extensions) wav, mp3 , wma , m4a , m4b , ogg , flac , aac , mp2 , ac3 , mpa , aif , aiff , dff , dsf Hardware specifications LAN interface  Transmission standards Connectors 1000BASE-T / 100BASE-TX / 10BASE-T RJ-45 ☓ 2 (Auto MDI / MDI-X compatible) USB ports Connectors USB2.0 ☓ 1 Networking Standard compliance UPnP AV, DLNA 1.5 Supply voltage AC100V-240V 50 / 60Hz Power connector 3-pin inlet Power consumption Rated for 25 W External dimensions (excluding protruding parts) Approx. 350 (W) ☓ 350 (D) ☓ 64 (H) mm Weight Approx. 6 kg Operating temperature range 5℃ to 35℃ Operating humidity range 20% to 85% (non-condensing) Accessories Power cords (3 types), user manual Product warranty 2 years from date of purchase

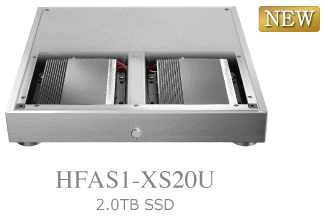

FIDATA HFAS1-XS20U                                              Listino  ufficiale  €.   8.999,00

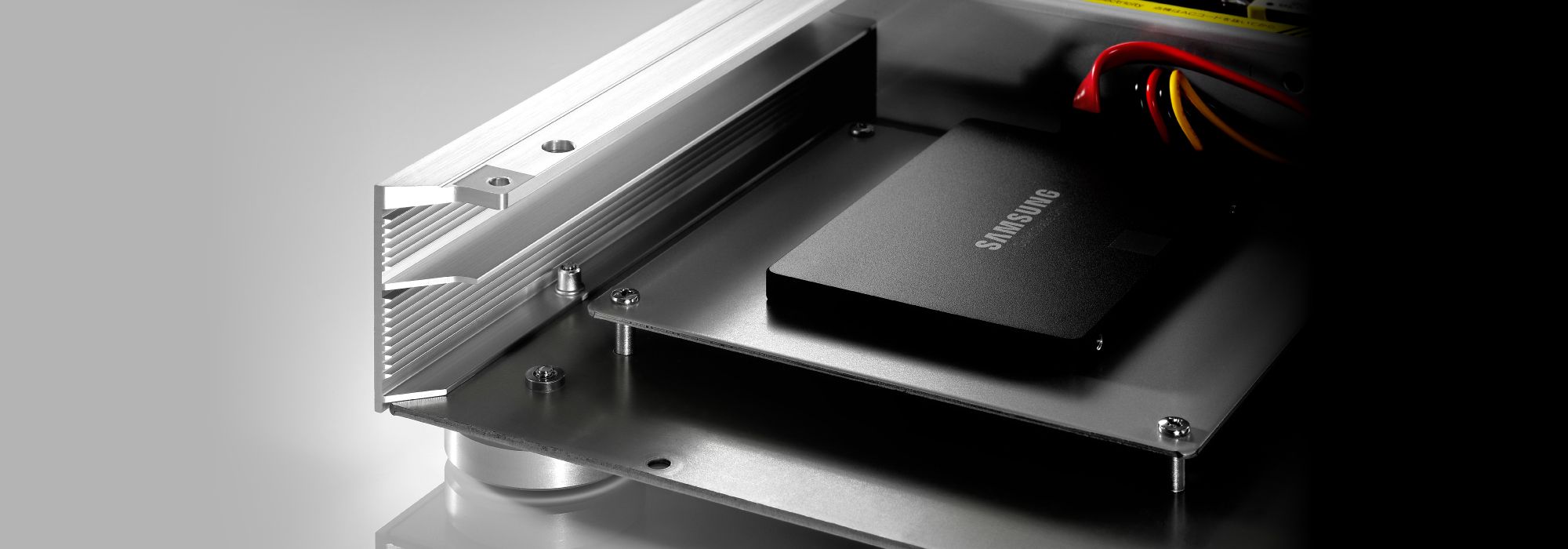

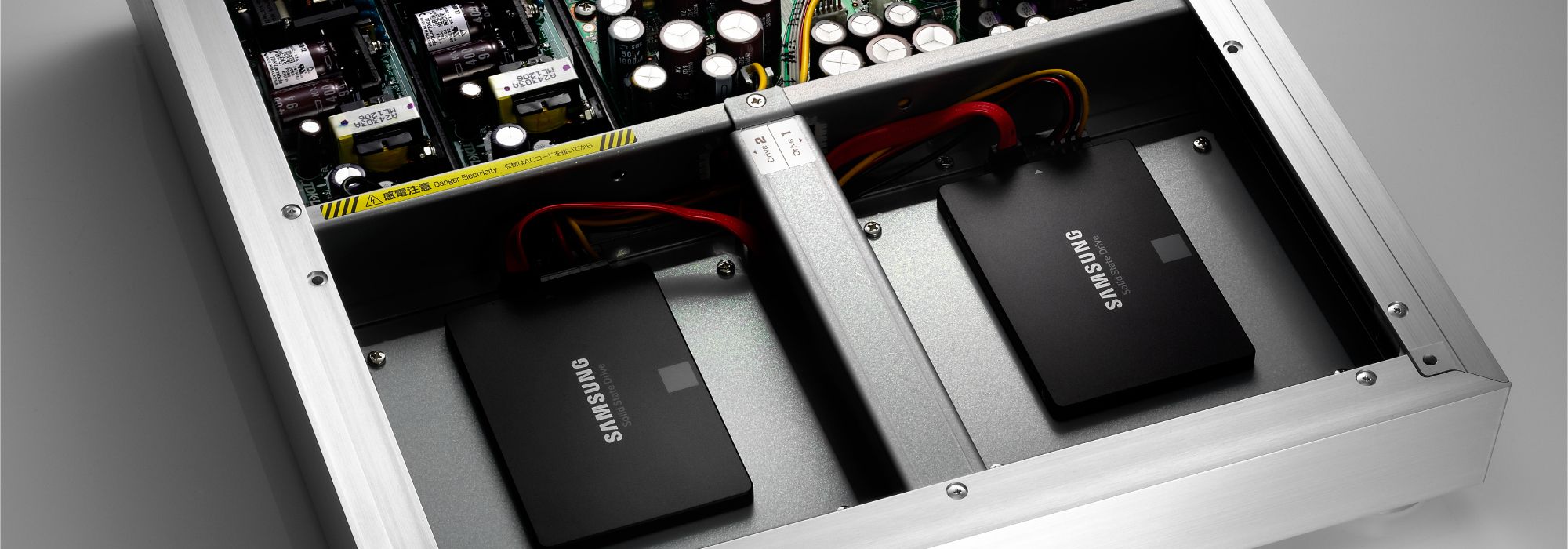

The HFAS1-XS20U builds on the basic design of the popular HFAS1-S10U by adding an X-Cluster SSD unit designed specifically to deliver high 2 TB storage capacity and the high level of quality required by audio applications. This high-end fidata network audio server also utilizes a steel chassis that’s 3.2 mm thick for significantly higher rigidity so that it can deliver an even higher level of performance. *Apart from the X-Cluster SSD, the HFAS1-XS20U shares its circuit design and software with the HFAS1-S10U. X-Cluster SSD unit designed specifically for audio applications Instead of simply utilizing a single, large SSD, fidata incorporates a new technology known as X-Cluster Storage Technology to deliver high storage capacity along with the high quality required of audio components. Dedicated X-Cluster SSD unit for audio The X-Cluster SSD was developed specifically for the HFAS1-XS20U. This cluster stripes data uniformly across two SSDs. The resulting ability to access data uniformly across all SSDs in the cluster smooths the load on the power supply load by limitingdeviations in power consumption. In addition, the HFAS1-XS20U features a pair of dedicated linear power conditioners that provide clean power. X-Cluster Storage Technology Designers of audio devices must exercise maximum care with regard to power supplies. Featured in the HFAS1-XS20U, X-Cluster Storage Technology is a new, proprietary fidata technology developed from an audio storage perspective to deliver high SSD storage capacity, a more stable power supply, and reduced noise.The HFAS1-XS20U uses a steel plate that is 3.2 mm thick to increase its chassis rigidity. We revisited both the material and the surface finish of the base steel plate, which is 1.4 times thicker than the previous design. The new model’s hot-rolled steel features a black chromate finish, preserving the fidata’s well-received appearance while maximizing its chassis rigidity. HFAS1-XS20U Hardware specifications LAN interface  Transmission standards Connectors 1000BASE-T / 100BASE-TX / 10BASE-T RJ-45 × 2 (Auto MDI / MDI-X compatible) USB ports Connectors USB2.0 × 1 Networking Standard compliance UPnP AV, DLNA 1.5 Supply voltage AC100V-240V 50 / 60Hz Power connector 3-pin inlet Power consumption Rated for 32 W External dimensions (excluding protruding parts) Approx. 350 (W) × 350 (D) × 65 (H) mm Weight Approx. 7.3 kg Operating temperature range 5℃ to 35℃ Operating humidity range 20% to 85% (non-condensing) Accessories Power cords (3 types), user manual Product warranty 2 years from date of purchase


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it




FIDATA HFAS1-S10U                                              Listino  ufficiale  €.   8.999,00

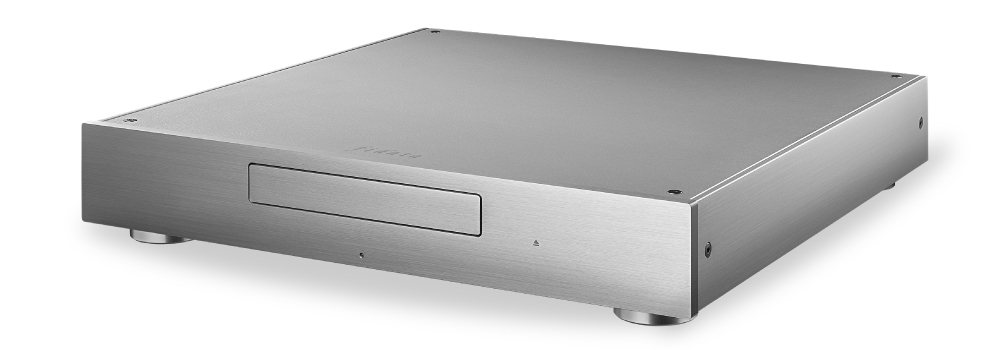

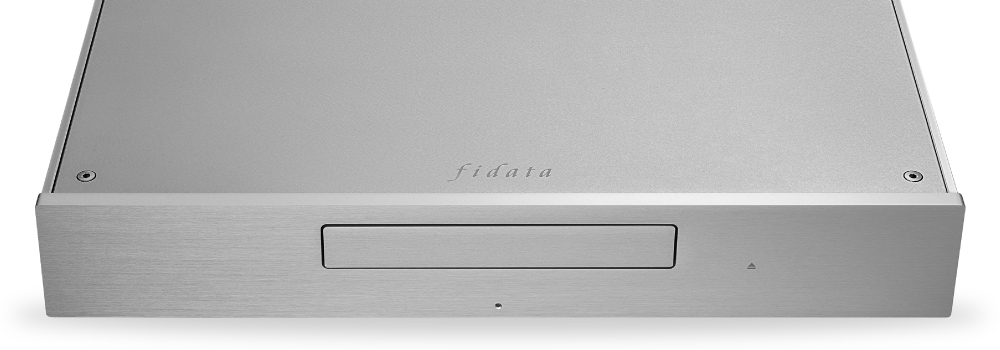

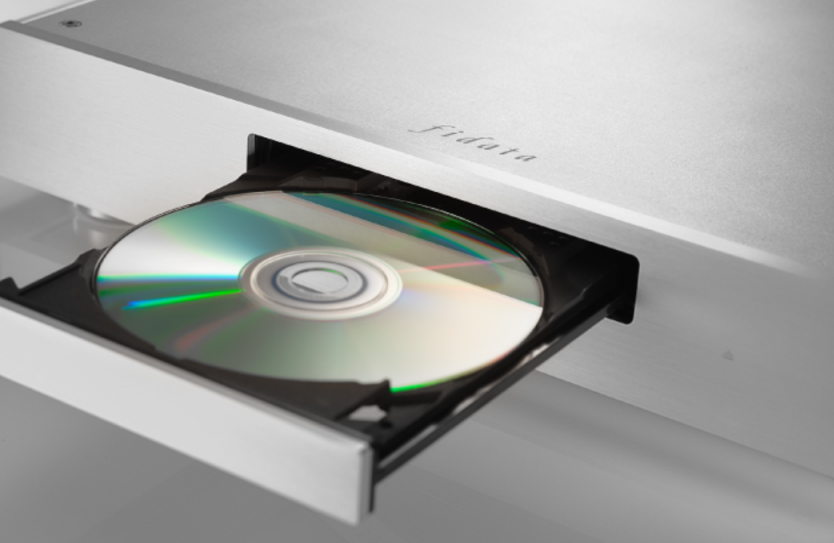

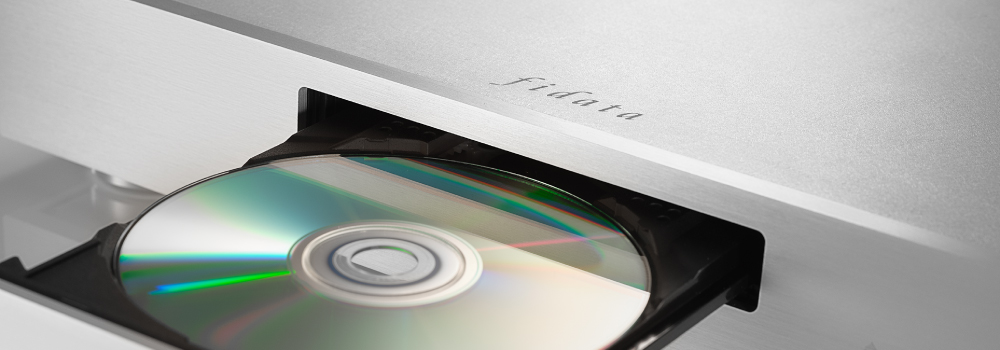

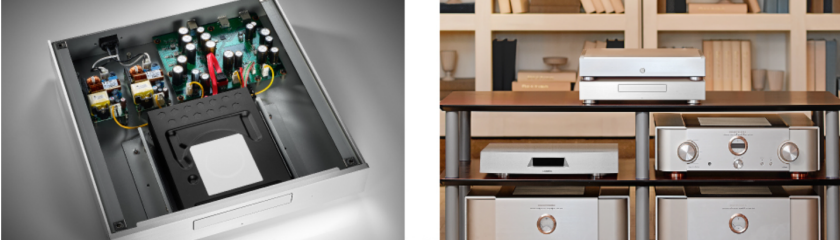

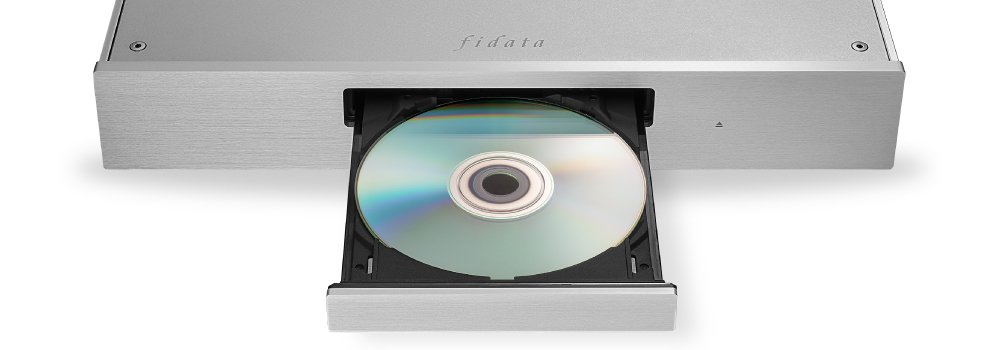

fidata AD10 audio disc drive achieves high-definition CD ripping and playback AD10 (HFAD10-UBXU) is an audio disc drive ideal for combining with fidata CD ripping and fidata CD transport functionalities. It realizes high-quality CD playback and ripping not only when combined with an audio server but even when combined with PC or Mac for audio use. *Internet connection is required for using Gracenote MusicID® and AccurateRip™. *AccurateRip™ used in this product is a CD ripping data verification service by Illustrate Limited in the United Kingdom, and the service is subject to termination without notice. Except for the verification function, the ripping function will continue to work even after the service is discontinued. • Easy to operate via the fidata Music App. • Save data either as a PCM format (44.1kHz/16 bit) WAV or FLAC. • Choose the FLAC format from three compression levels, including "uncompressed." • Works with music data comparison database AccurateRip™ to determine bit perfection. • Automatically changes the ripping condition for a retry if bit perfection is assessed to be sub-standard. • The drive tray is automatically ejected once ripping is complete. PureRead4+ If the system cannot read the CD audio data due to scratches or fingerprints on the disc or deformation, PureRead4+ installed reduces error data interpolation by adjusting the method of reading to re-read the disc. High-precision CD ripping is achieved as several reading algorithms operate according to the disc condition to reduce reading errors. Newly designed high-rigidity metal chassis High rigidity is achieved by bending the 2.3 mm steel plate. The top and sides are made of extra-thick aluminum panels. The front is covered with high-rigidity machined aluminum. It is the same size as HFAS1; 350 mm x 350 mm. HFAS1 can be placed on top of this unit.

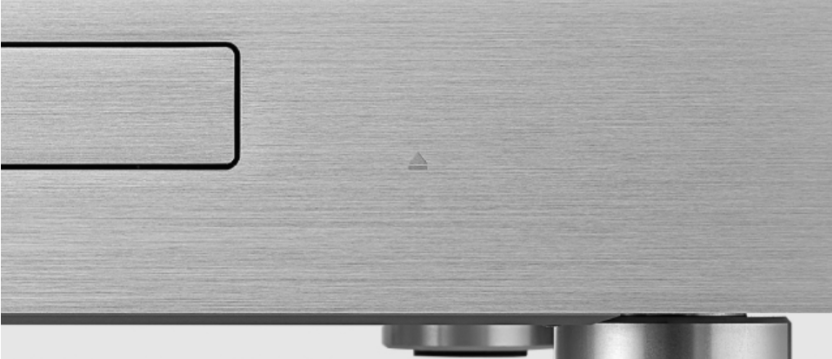

Metal sensing switches A simple design is achieved by the use of a pressure-sensitive metallic sensor while maintaining the chassis' rigidity.

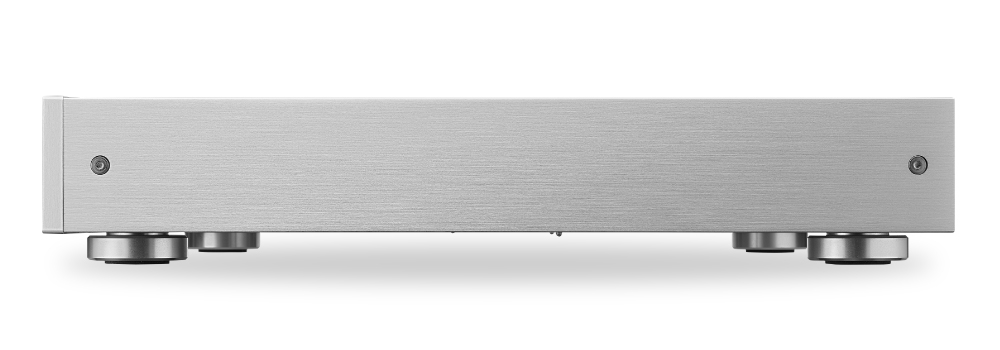

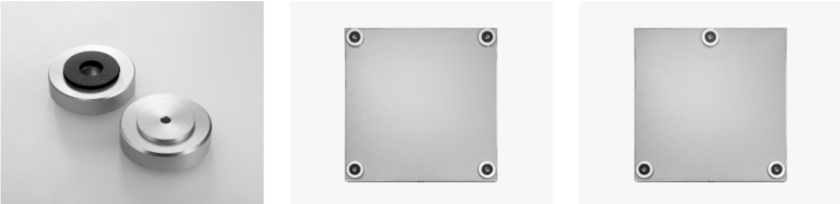

Machined aluminum insulators Uniquely designed insulators are used to support the heavy chassis firmly. It is also possible to switch from four-point support to three-point.


Equipped with Pioneer’s premium disc drive The system is equipped with Pioneer’s premium disc drive. • The chassis coated entirely in black reduces vibration, improves thermal dissipation, and controls laser diffusion. • Low-resistance flat cable improves conduction performance and reduces the noise of read and write signals. • Vibration-proof cushion and rubber suppress the vibration during disc rotation. m• Copper-plated screws improve conduction performance and reduce noise. Floating rigid mount High-precision disc reading is enabled as the mechanism that does not stress the drive, and vibration-absorbing washers are positioned optimally to elicit Pioneer's premium disc drive's performance. LED off function mThe LED display that flashes when the disc drive is accessed can be switched off. If the lamp is disturbing, it can be disabled by changing the settings when fidata is connected.

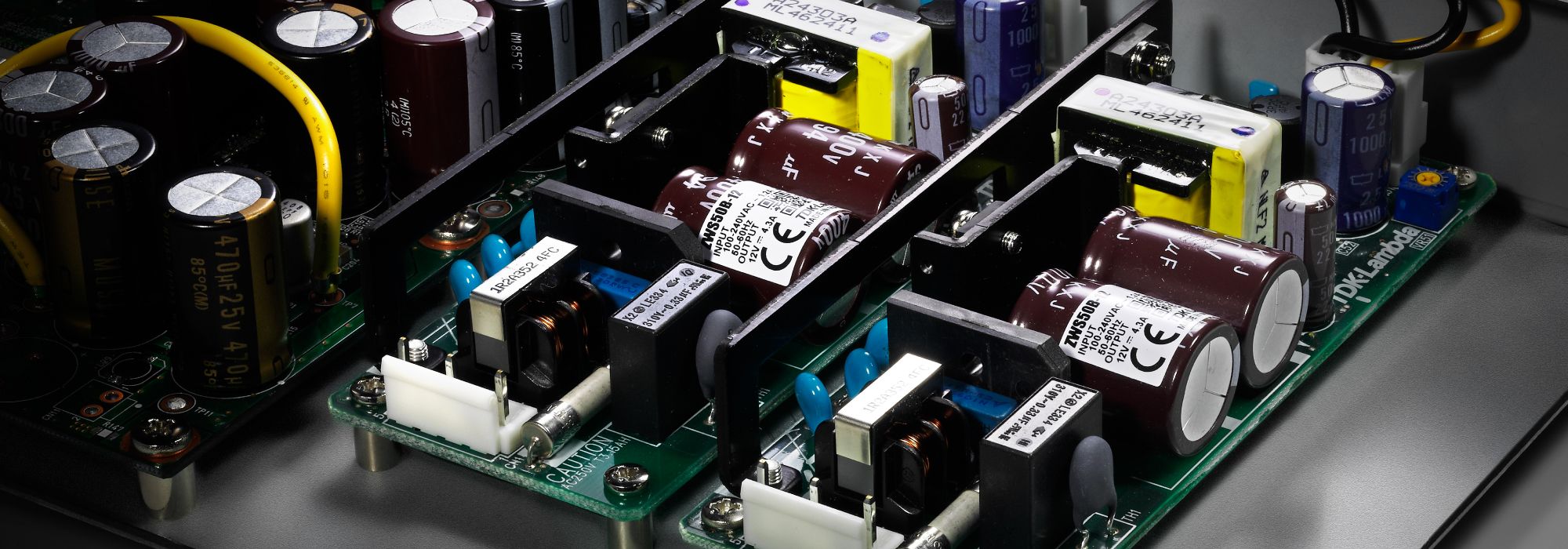

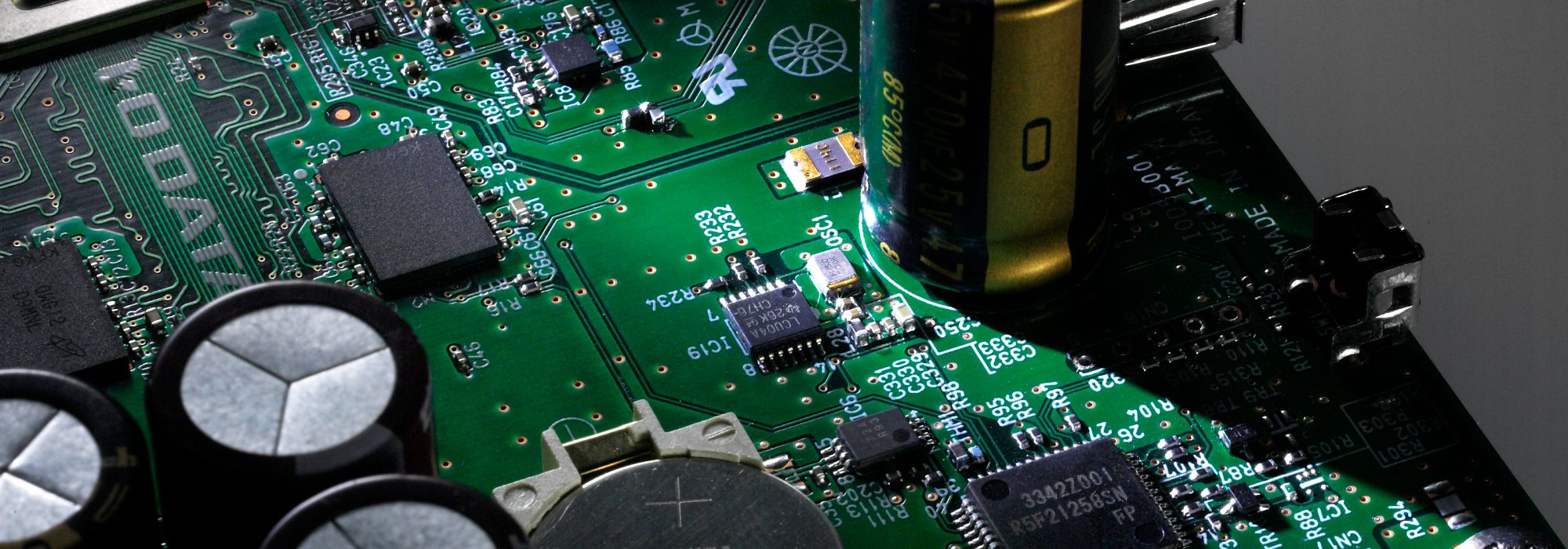

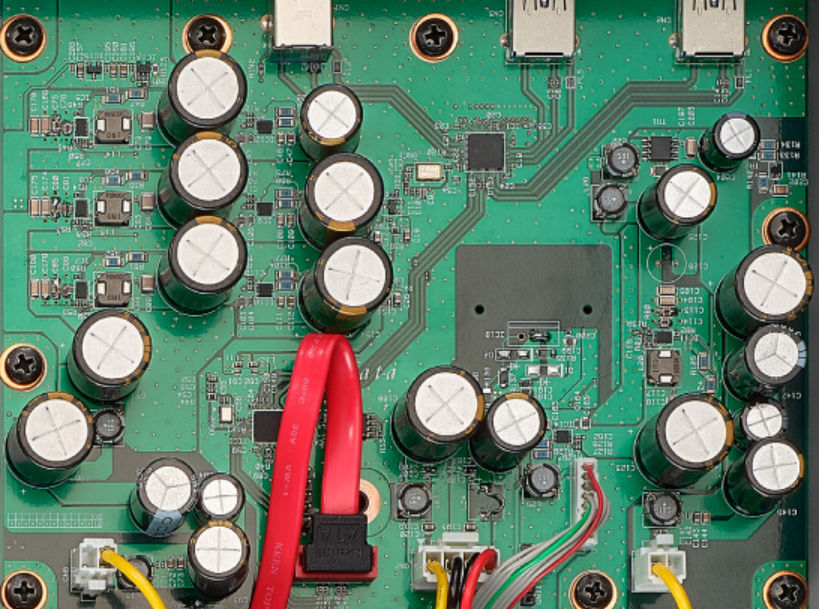

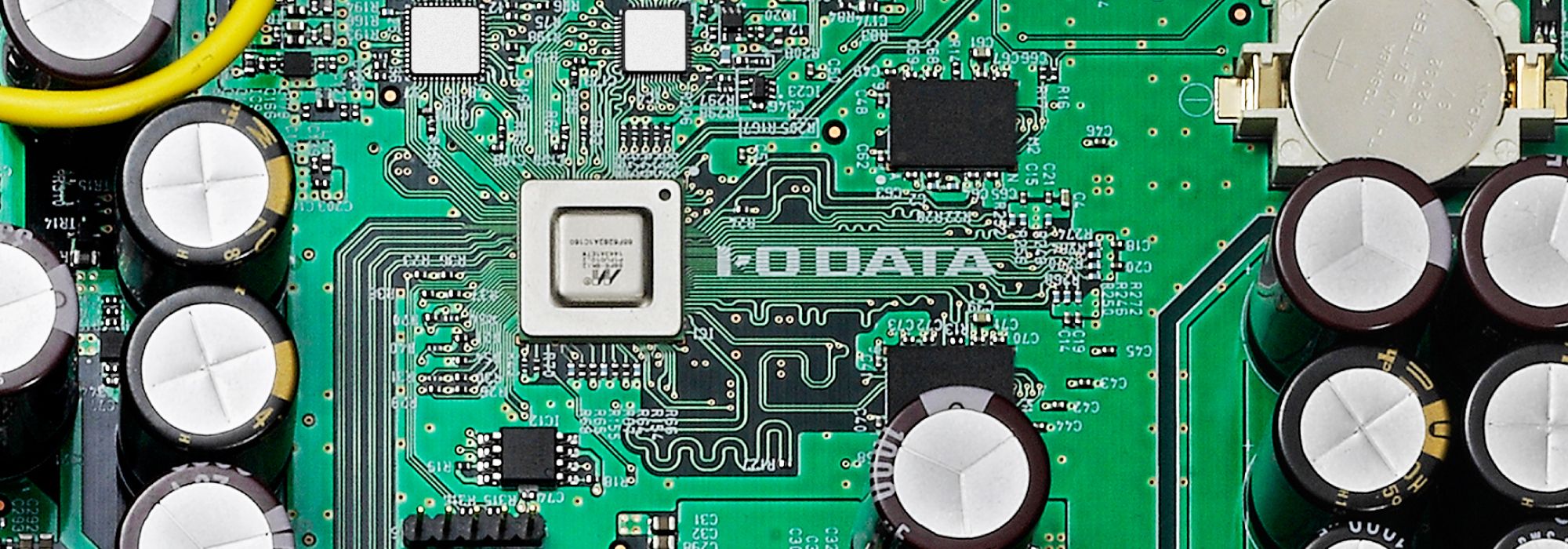

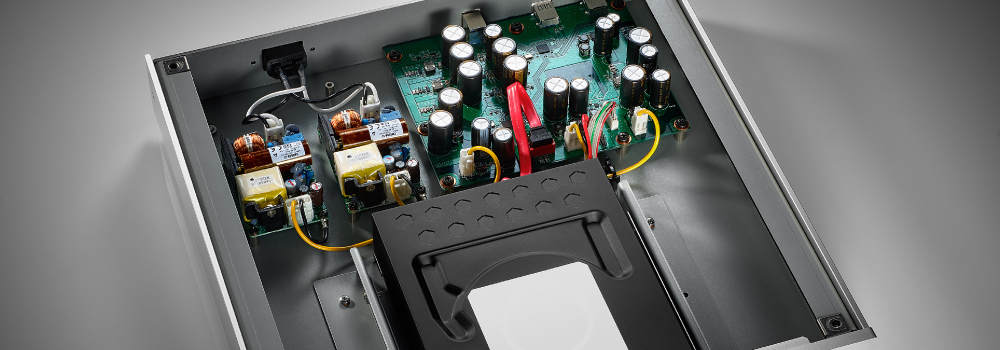

Circuitry/power supply The system substrate is thoroughly noise controlled Linear power conditioner The switching noise is eliminated by stepping down the power from the switched-mode power supply to a power circuit combined with a linear regulator for a stable power supply. Noise-reducing ground processing The ground on the substrate is divided into several parts to suppress the switching noise. The circulation of the switching noise produced by the ground has been reduced.

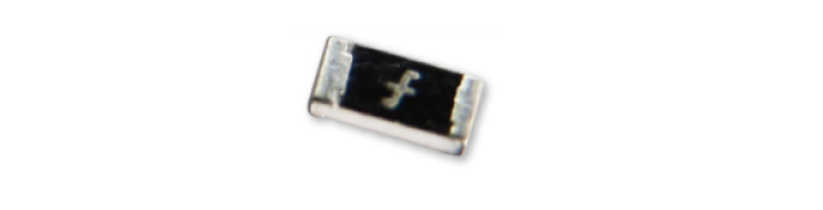

Thick film resistor promotes acoustic quality A non-magnetic thick film resistor has been adopted to promote high-performance acoustics. The reduced electromotive force means less noise.

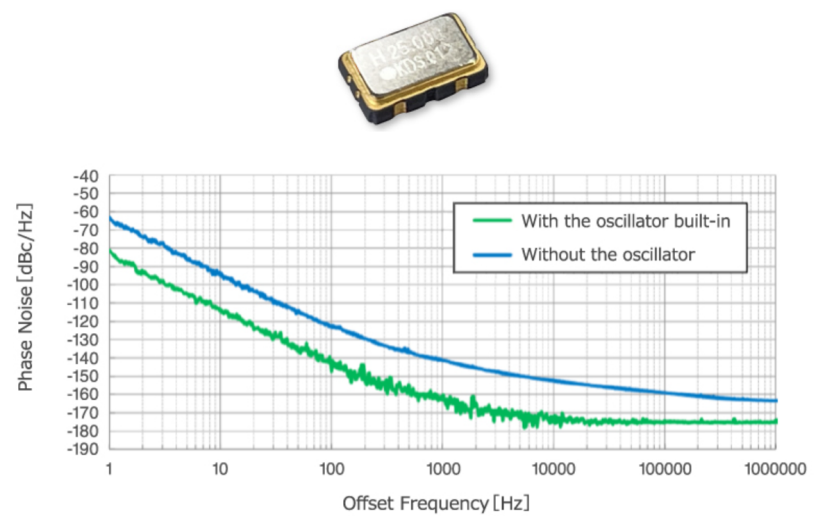

Ultra-low phrase noise crystal oscillator The combination of low-noise power supply and meticulous pattern design generates a more precise clock signal.

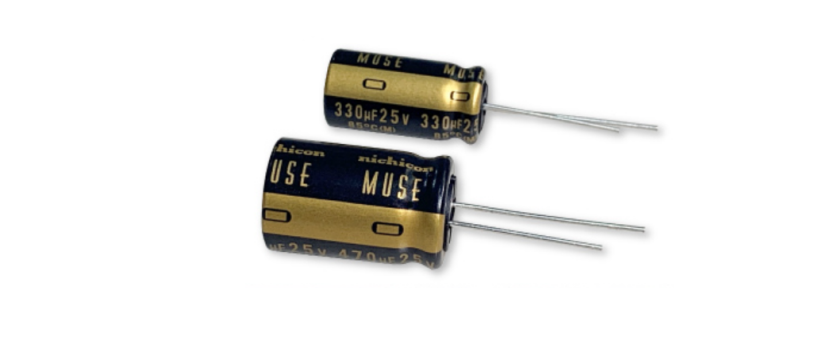

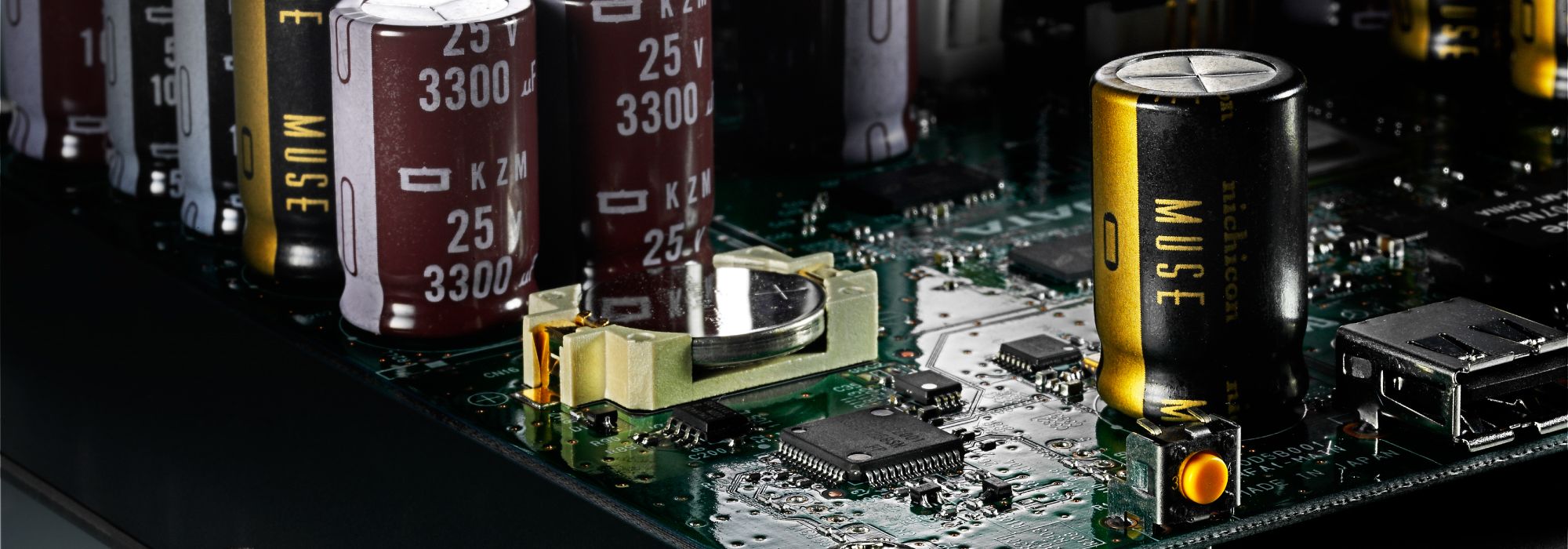

Highest grade audio electrolytic capacitor Noise is suppressed, and the power supply is stabilized by using the nichicon MUSE series, which has a proven track record with fidata servers.

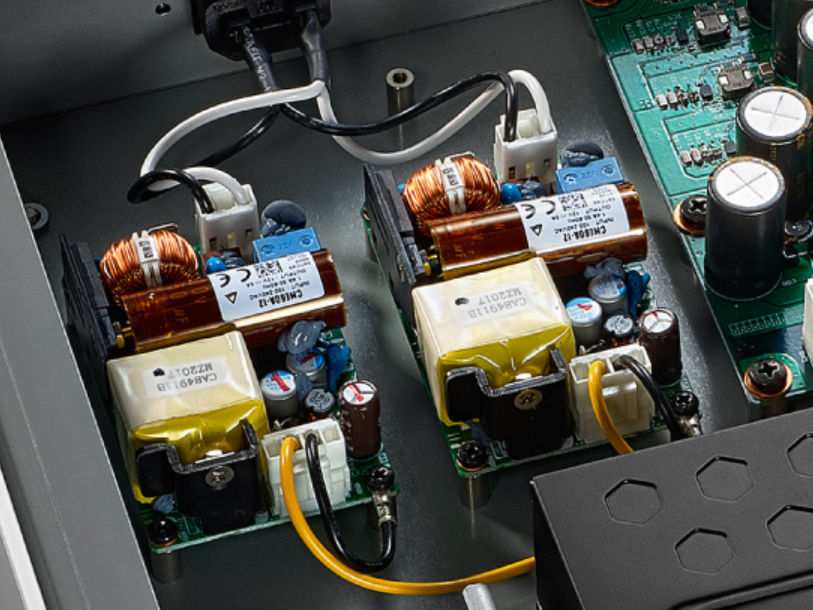

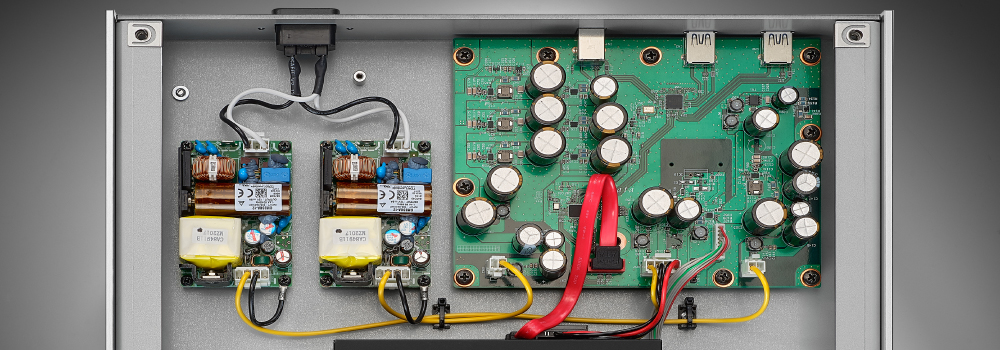

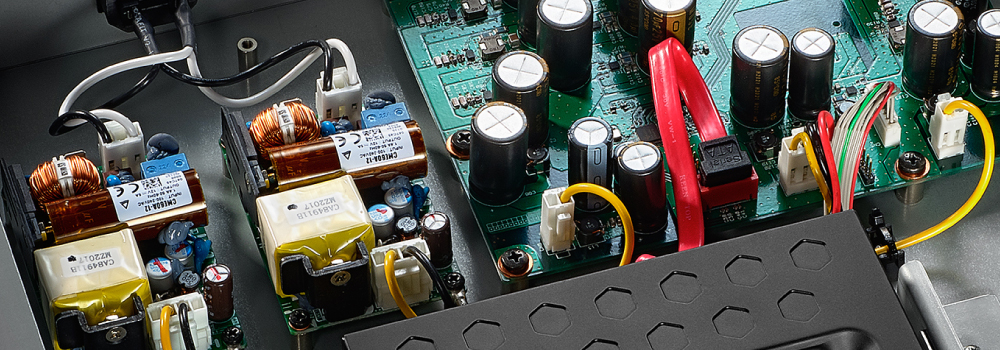

Equipped with two highly reliable 60W switching supplies TDK-Lambda’s hospital-grade 60W power units are used for the power section. mSeparating the power units for the system and drive prevents the interfusion of noise.

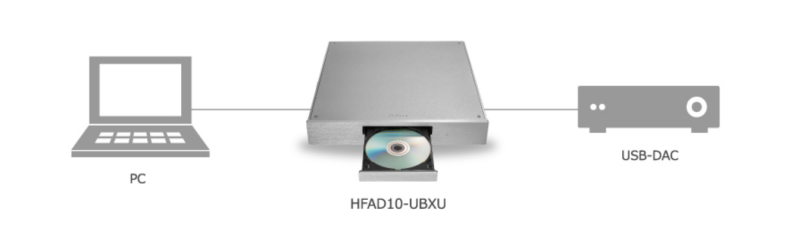

Using on PC/Mac

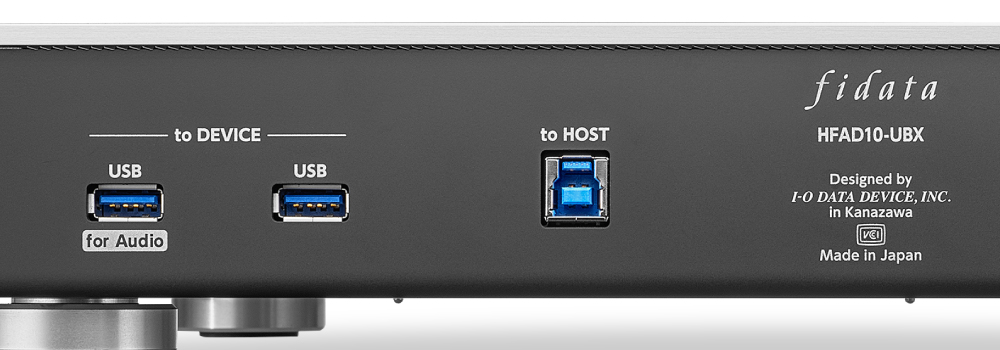

It can be used as an optical drive for a PC or Mac  • Use it as an Ultra HD Blu-ray drive for ordinary PCs. • Combine it with various music playback devices and CD ripping software. • Use Pioneer's setup tool to set Pure Read. • The built-in audio-grade USB port is ideal for a USB-DAC connection. *Please refer to the specifications for details.

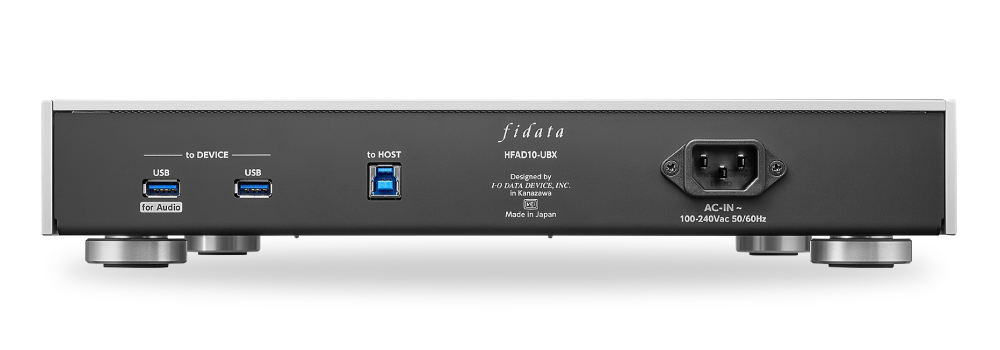

Hardware specifications USB interface  Transfer standard USB Host port USB Device port USB3.2Gen1 USB3.2 Gen1 Standard-A x 2 USB3.2 Gen1 Standard-B x 1 Supported playback discs (supported formats) *1  BD Ultra HD Blu-ray(BD-ROM DL, BD-ROM TL), BD-ROM, BD-ROM DL, BD-R, BD-R DL, BD-R TL, BD-R QL, BD-RE, BD-RE DL, BD-RE TL, BD-R LTH DVD DVD-ROM, DVD-ROM DL, DVD-Video, DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-RAM *3 CD CD-ROM,CD-ROM XA,Photo CD,Video CD,CD-DA *4, CD-Extra,CD-Text,CD-R,CD-RW Supported playback discs *2  BD BD-R, BD-R DL, BD-R TL, BD-R QL, BD-RE, BD-RE DL, BD-RE TL, BD-RE LTH DVD DVD-R *5, DVD-R DL, DVD-RW, DVD+R, DVD+R DL, DVD+RW, HighSpeed DVD+RW, DVD-RAM *3 CD CD-R, UltraSpeed+CD-RW, UltraSpeed CD-RW, HighSpeed CD-RW, CD-RW Disc loading style Tray loading Installation condition Tabletop Voltage 100 - 240V 50 / 60Hz Inlet 3P inlet Power consumption 31 Watts Dimensions 350 (W) × 350 (D) × 53 (H) mm (excluding feet pads and protrusions) Weight Approx. 6.8 kg Operating temperature range 5 to 35 degrees Celsius Operating humidity range 20 to 85% (without condensation) Box contents AC adaptor, warranty, manual. Product warranty Two years from the date of purchase Country of origin Japan Notes *1 Where used in combination with fidata or Soundgenic, the functions are limited as follows. Importing (ripping) music from music CDs. Reading music data from data CDs/data DVDs/data BDs. *2 When used with fidata or Soundgenic, the writing function is not supported. *3 Only compatible with cartridge-free DVD-RAM Version 2.0/2.1/2.2. DVD-RAM may not be readable depending on the specifications of the bundled disc. *4 New Maxi cannot be played. *5 Writable on DVD-R Version 2.0 for General. Not possible to record on DVD-R For Authoring 3.95 GB and 4.7 GB. Hardware requirements When connecting to fidata or Soundgenic Compatible devices fidata HFAS1 series Soundgenic HDL-RA series, RAHF series Devices using the fidata Music App iPhones and iPads supporting compatible OS versions, Android devices fidata Music App compatible OS versions iOS 10-15 iPadOS 10-15 Android 6-12 Notes Where used with fidata or Soundgenic, it supports media readout only. * Importing (ripping) music from music CDs. * Reading music data from data CDs/data DVDs/data BDs. *It does not support the importing (ripping) of SACD, DVD Audio and BD Audio tracks. The USB-HUB port on this product cannot be used when connecting this product to Soundgenic's USB 3.0 port using a USB 3.0 cable. When using this product's USB-HUB port with Soundgenic, connect to Soundgenic's USB2.0 port, or use a USB2.0 cable to connect to Soundgenic's USB3.0 port. When connecting to PCs or Macs Compatible devices Windows PCs and Macs with a USB 3.2 Gen 1 (USB 3.0) or USB 2.0 port and a standard A connector. Supported OS  Windows Mac Windows11 Windows10 Windows8.1 macOS Monterey 12 macOS Big Sur 11.1 macOS 10.14-10.15 Notes Software for using the product is required separately. *We do not provide support for software.






FIDATA SOUNDGENIC HDD 2T                                                                                      Listino  ufficiale      €.    679,00

FIDATA SOUNDGENIC HDD 4T                                                                                      Listino  ufficiale      €.    729,00

FIDATA SOUNDGENIC SSD 2T                                                                                       Listino  ufficiale      €. 1.390,00

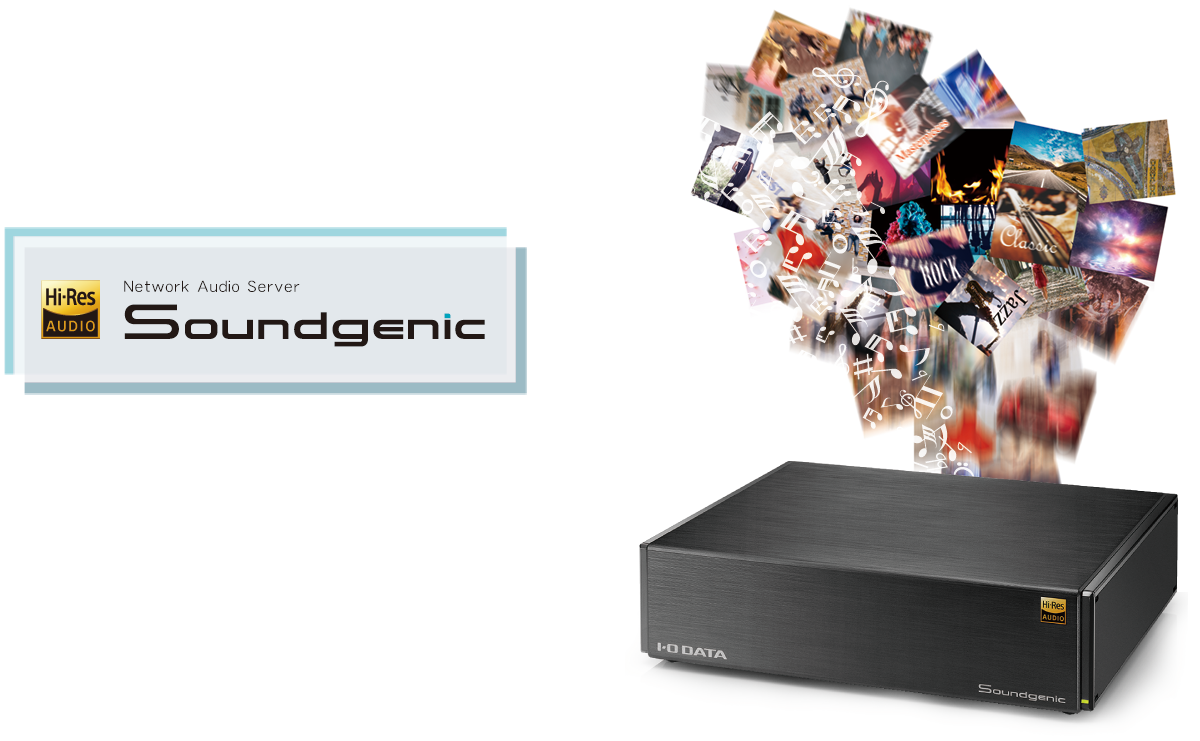

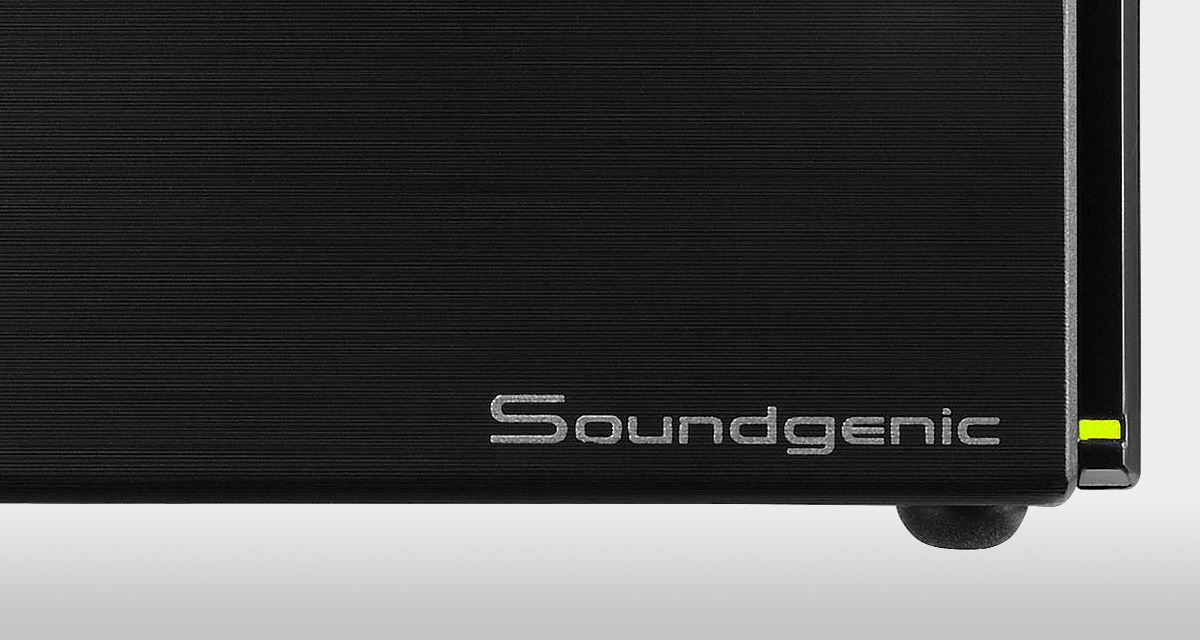

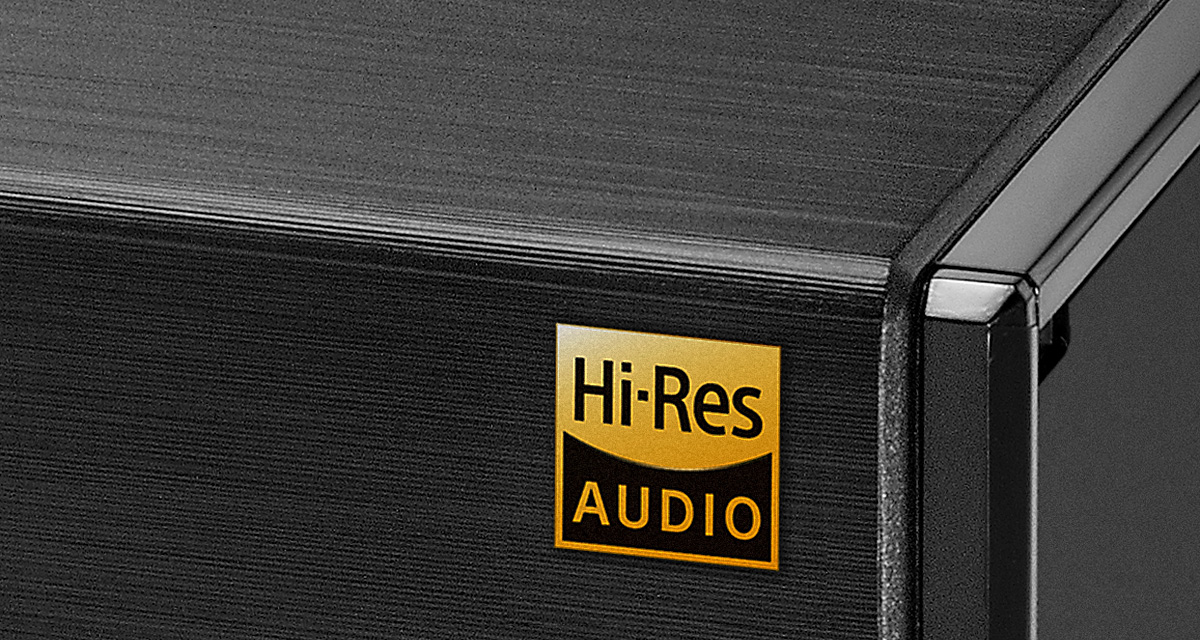

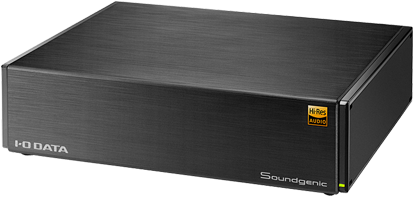

"Soundgenic" è un server audio  di rete con funzionalità di server multimediale e lettore USB-DAC. Soundgenic è generosamente dotato di tecnologia software coltivata sotto il marchio audio “fidata”, chiamato per affidabilità. Realizza il tuo ambiente musicale ideale, da CD e importazione ad alta risoluzione a playbac.Con il supporto exFAT e il supporto di dispositivi di archiviazione multipla (massimo 3 dispositivi), i dati possono essere trasferiti alla memoria incorporata di un lettore audio portatile (DAP) con specifica multi-storage e schede SD (comprese le schede SDXC). Impeccabile nella  realizzazione specificatamente pe il mondo HIFI. L'interno dello chassis utilizza lamiere spesse 1,2 mm che sono 1,5 volte quello dello spessore convenzionale di 0,8 mm. Ha un telaio ad alta resistenza, sopprime le vibrazioni e distribuisce in modo efficiente il calore in tutto il telaio senza una ventola. Il risultato è una  relizzazione  hi-end. Piedini in gomma che sopprimono le vibrazioni Il fondo essendo  dotato di piedini in gomma semisferic riduce  la quantità di contatto diretto con la superficie del piano , riducendo  la quantità di vibrazioni esterne trasmesse all'interno. LED con soppressione della luminosità Oltre a un'area di illuminazione ridotta, il LED che è visibile durante la riproduzione di musica è stato progettato con luminosità soppressa Presenta una finitura sottile che crea un profilo che non richiede troppa attenzione quando viene posizionato in un luogo in cui verrà visto, ad esempio su un rack audio. Sistemi operativi supportati Browser supportati Browser supportati Sistemi operativi supportati (fidata Music App) Sistemi operativi supportati Windows 10 / Windows 8.1 / Windows 8 / Windows 7 macOS X 10.7 ~ 10.11, macOS 10.12 ~ 10.15 Internet Explorer 9/10/11 Microsoft Edge 40 Safari 6/7/8/9/10/11 iOS 8.0.2 ~ 13 Android 4.1 ~ 10.0 Browser costruito per ogni sistema operativo iOS 10 ~ 13 Android 6.0 ~ 10.0 wav, mp3, wma, m4a, m4b, ogg, flac, aac, mp2, ac3, mpa, aif, aiff, dff, dsf Formato PCM (44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz, 192 kHz, 352,8 kHz, 384 kHz, 705,6 kHz, 768 kHz) Formato MDSD (DoP) (2,8 MHz, 5,6 MHz, 11,2 MHz) Formato MDSD (DirectDSD) (2,8 MHz, 5,6 MHz, 11,2 MHz, 22,5 MHz) Formato MPCM (16 bit, 24 bit, 32 bit) Formato MDSD (DoP, DirectDSD) (1 bit) Specifica: interfaccia LAN Porta MUSB Rete Tensione di alimentazione Dimensioni esterne Peso Intervallo temperatura di funzionamento Intervallo umidità di funzionamento MAccessori 1000BASE-T / 100BASE-TX / 10BASE-T RJ-45 x 1 (Auto MDI / MDI-X compatibile) MUSB 3.1 Gen 1 (USB 3.0) x 1, USB 2.0 x 1 MU PnP AV, DLNA 1.5 MAC 100 V ~ 240 V 50/60 Hz M168 (L) x 134 (P) x 43 (A) mm MHDL-RA4TB: ca. 1,3 kg, HDL-RAS2T: circa. 650 g da M5 ℃ a 35 ℃ M dal 20% all'85% (senza condensa) Adattatore MAC, cavo CA di tipo 3, cavo LAN, manuale utente

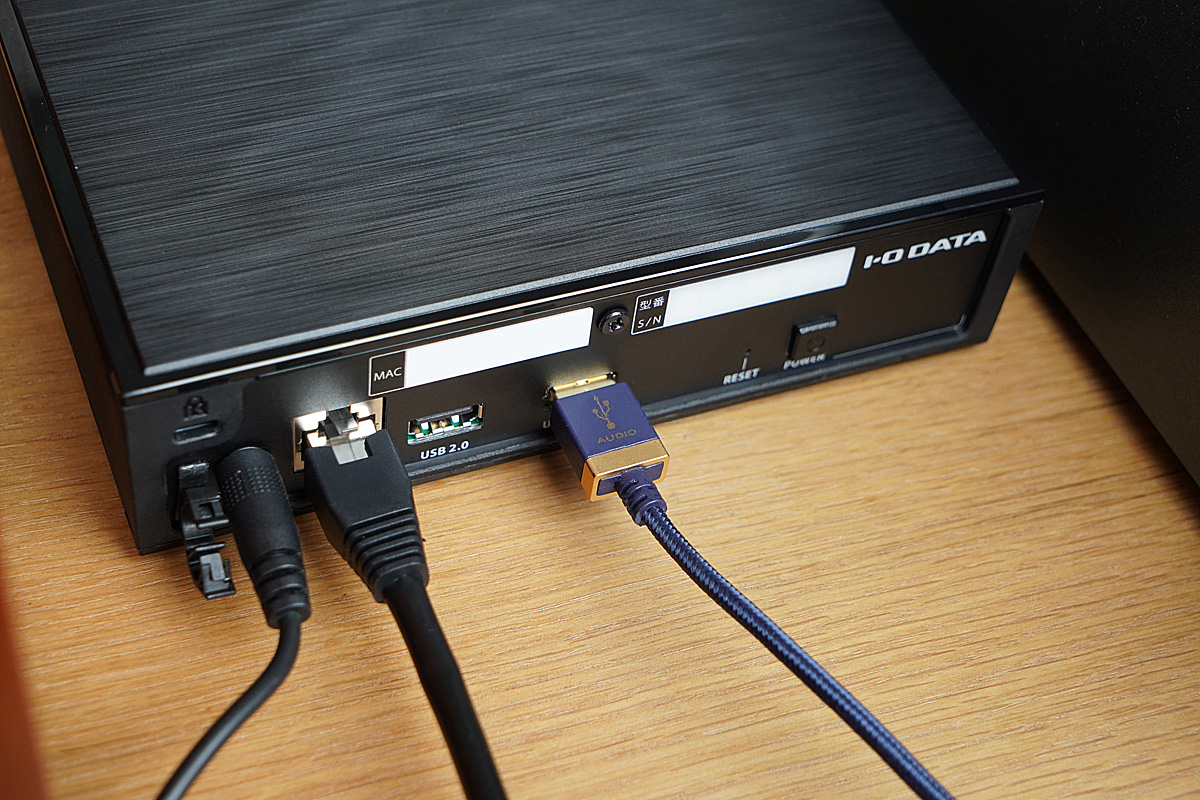

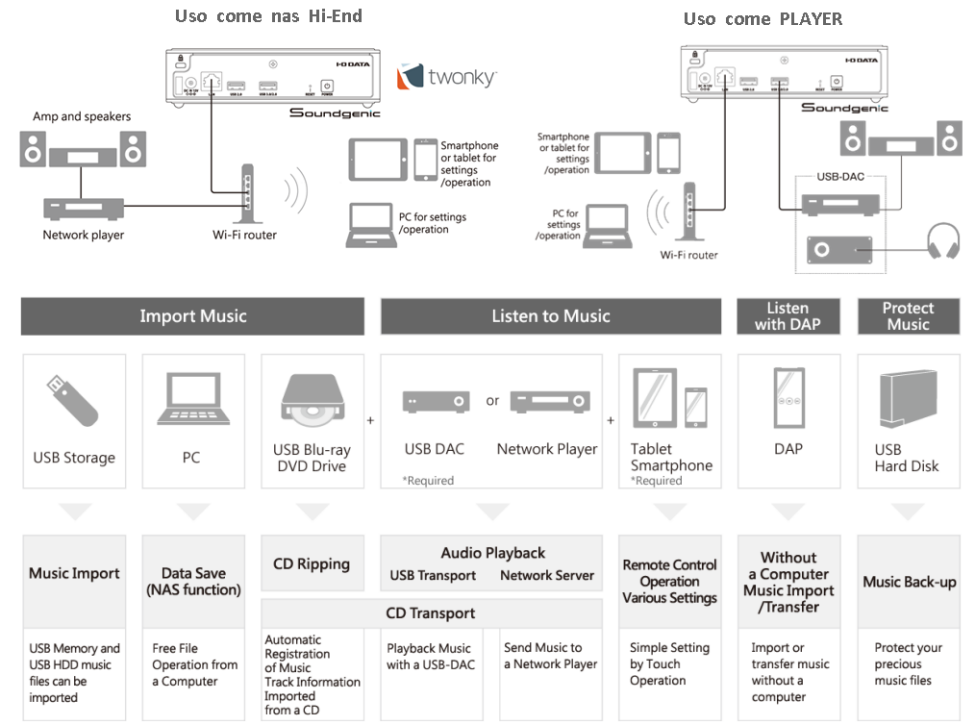

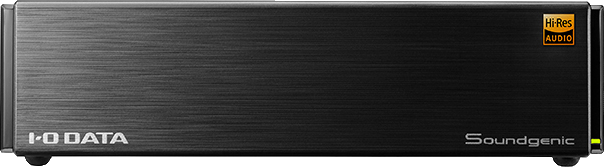

"Soundgenic" is a network audio server with media server and USB-DAC player functionality. Soundgenic is generously equipped with software technology cultivated under the “fidata” audio brand, named for reliability. Realize your ideal music environment, from CD and high resolution importing to playbac.With exFAT support and multi-storage device support (maximum of 3 devices), data can be transferred to the built-in memory of a portable audio player (DAP) with multi-storage specification, and SD cards (including SDXC cards).Fanless Realize a peaceful audio environment The chassis interior utilizes 1.2 mm thick sheet metal that is 1.5 times that of the conventional thickness of 0.8 mm. It has a high-strength chassis, suppresses vibrations, and efficiently distributes heat throughout the entire chassis without a fan. The result is a peaceful audio environment.Vibration suppressing rubber feet The bottom is fitted with hemispherical rubber feet. By reducing the amount of direct contact with the ground surface, they reduce the amount of outside vibration transmitted to the interior.Brightness suppressed LED As well has having a reduced illumination area, the LED that is visible while playing music has been designed with suppressed brightness.Features a hairline finish that creates a profile that won’t demand too much attention when placed in a location where it will be seen, such as on an audio rack. Supported operating systems Supported browsers Supported browsers Supported operating systems (fidata Music App) Supported operating systems Windows 10/Windows 8.1/Windows 8/Windows 7 macOS X 10.7~10.11, macOS 10.12~10.15 Internet Explorer 9/10/11 Microsoft Edge 40 Safari 6/7/8/9/10/11 iOS 8.0.2~13 Android 4.1~10.0 Built browser of each OS iOS 10~13 Android 6.0~10.0 wav, mp3 , wma , m4a , m4b , ogg , flac , aac , mp2 , ac3 , mpa , aif , aiff , dff , dsf PCM format (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz) MDSD format (DoP) (2.8MHz, 5.6MHz, 11.2MHz) MDSD format (DirectDSD) (2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz) MPCM format (16bit, 24bit, 32bit) MDSD format (DoP, DirectDSD) (1bit) Specification: LAN interface MUSB port Networking Supply voltage External dimensions Weight Operating temperature range Operating humidity range MAccessories 1000BASE-T/100BASE-TX/10BASE-T RJ-45 x 1 (Auto MDI/MDI-X compatible) MUSB 3.1 Gen 1 (USB 3.0) x 1, USB 2.0 x 1 MUPnP AV, DLNA 1.5 MAC100V~240V 50/60Hz M168 (W) x 134 (D) x 43 (H) mm MHDL-RA4TB: Approx. 1.3 kg, HDL-RAS2T: Approx. 650 g M5℃ to 35℃ M20% to 85% (Non condensing) MAC adapter, 3 type AC cord, LAN cable, Users manual

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it



Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

FIDATA HFLC-1.5M                                                                                       Listino  ufficiale  €.    860,00

FIDATA HFLC-3M                                                                                         Listino  ufficiale  €. 1.100,00

FIDATA HFLC-10M                                                                                       Listino  ufficiale  €. 2.590,00

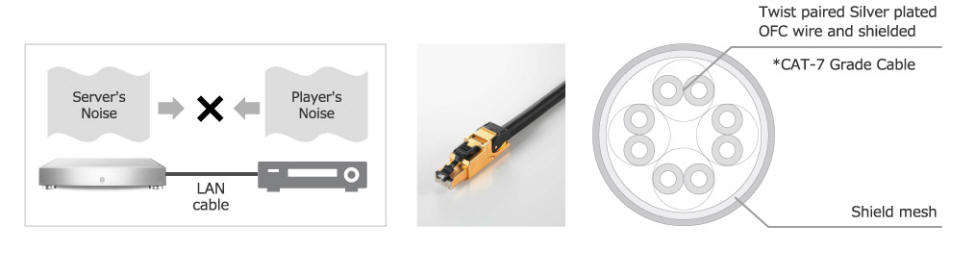

Questi cavi LAN Cat 6A, progettati appositamente per l'uso in applicazioni audio, sono dotati di un MFP8 schermato RJ45, spina placcata in oro di Telegärtner Japan Limited. I cavi a sezione concentrica con un diametro di 7 mm con n. 26 conduttori AWG di grado realizzati in rame argentato privo di ossigeno (OFC) fanno parte di una serie di peer intrecciati e un design reversibile assicura che i cavi siano facili da installare. Sottoposti a un rigoroso controllo al 100% in un impianto certificato in Giappone per garantire che soddisfino il nostro standard di qualità, questi cavi offrono una qualità di trasmissione eccezionale.

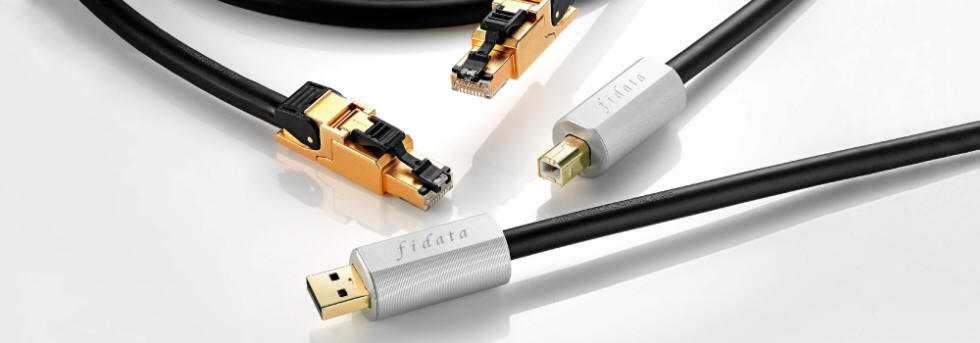

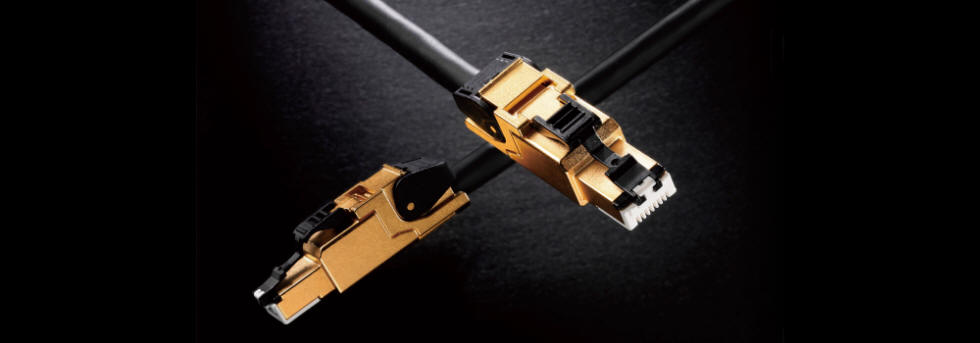

These Cat 6A LAN cables, which are designed specifically for use in audio applications, feature an MFP8 RJ45 shielded, gold-plated plug by Telegärtner Japan Limited. Concentric-cross-section cabling with a diameter of 7 mm holding No. 26 AWG grade conductors made of Silver-plated oxygen-free copper (OFC) are separated into a series oftwisted pairs, and a reversible design ensures the cables are easy toinstall. Subjected to a rigorous, 100% inspection at a certified plant in Japan to ensure that they meet our quality standard, these cables deliver exceptional transmission quality.


Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it


FIDATA HFU2-1M                                                                                       Listino  ufficiale    €.  590,00

FIDATA HFU2-2M                                                                                       Listino  ufficiale        €. 790,00

FIDATA HFU2-3M                                                                                       Listino  ufficiale      €.  990,00

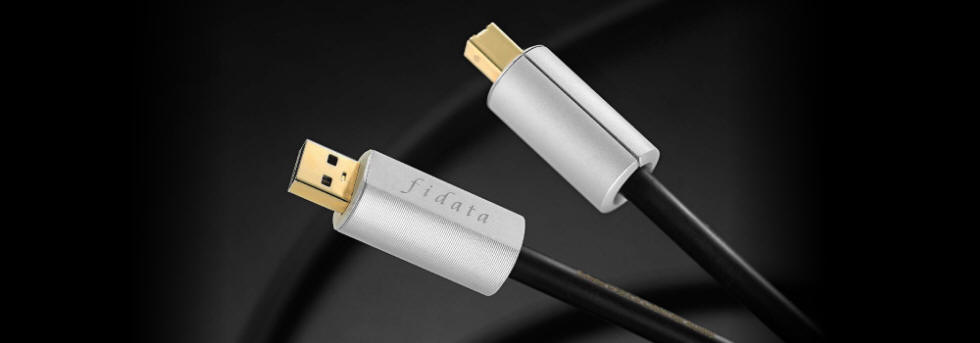

Questi cavi USB 2.0 per applicazioni audio dispongono di connettori USB placcati in oro e implementano la specifica USB 2.0 ad alta velocità. Ogni connettore USB presenta un involucro in alluminio lavorato che fornisce peso per limitare le minuscole vibrazioni che potrebbero influire sulla connessione. Cavi indipendenti a sezione concentrica con un diametro di 7 mm che tengono conduttori dedicati di grado 24 AWG realizzati in rame argentato privo di ossigeno (OFC) sono utilizzati per linee di alimentazione e di segnale e un design reversibile assicura che i cavi siano facili installare. Sottoposti a un'ispezione rigorosa al 100% in un impianto certificato in Giappone per garantire che soddisfino il nostro standard di qualità, questi cavi offrono una qualità di trasmissione eccezionale

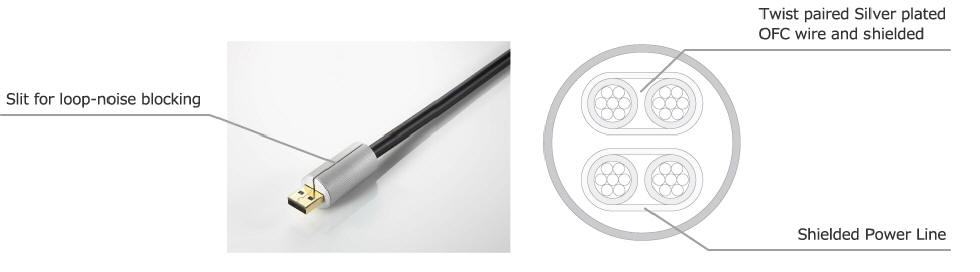

These USB 2.0 cables for audio applications feature gold-plated USB connectors and implement the USB 2.0 High Speed specification. Each USB connector features a machined aluminum enclosure that provides weight to limit minuscule vibrations that could affect the connection. Independent concentric-cross-section cables with a diameter of 7 mm holding dedicated No. 24 AWG grade conductors made of Silver-plated oxygen-free copper (OFC) are used for power and signal lines, and a reversible design ensures the cables are easy to install. Subjected to a rigorous, 100% inspection at a certified plant in Japan to ensure that they meet our quality standard, these cables deliver exceptional transmission quality.

Telefona o invia un  e-mail per avere l'ultima offerta   0174 670100   Telefona o invia un  e-mail per avere l'ultima offerta  0174 670100  info@newaudio.it

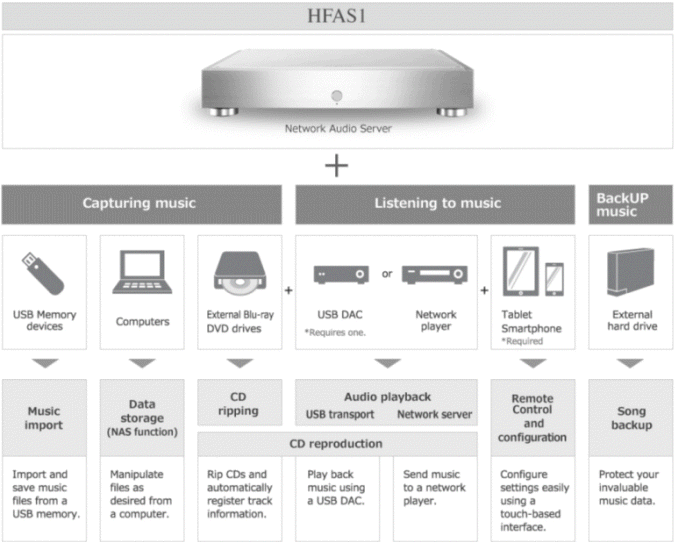

HFAS1 delivers a total solution for  experiencing music digitally


The HFAS1 is a one-stop digital audio solution that delivers an audio-quality media server, USB DAC compatibility (network transport), CD ripping, and CD transport functionality in addition to capabilities ranging from music import and playback to data protection. By giving you the freedom to combine components as desired, HFAS1 makes it possible to create an audio system that reflects your own individuality.

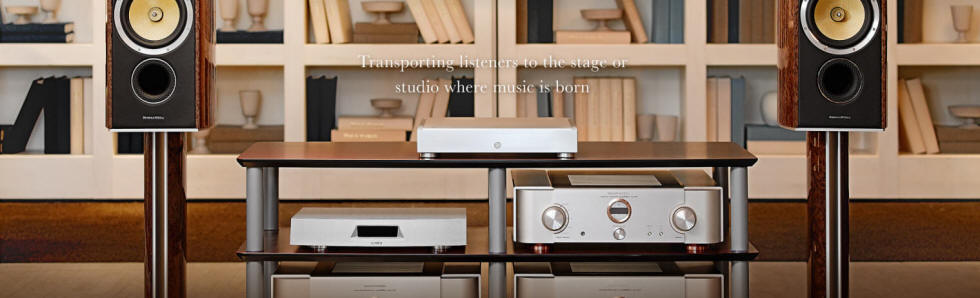

Transporting listeners to the stage or studio where music is born


In the world of high-resolution audio, components must realistically recreate every detail, right down to the performer’s breaths, and the atmosphere of the studio or concert hall. Today, a revolution in audio is making it possible to enjoy the overwhelming presence of original recordings in the comfort of your own home for a reasonable price.

Closing in on the ultimate in sound quality with high-resolution audio

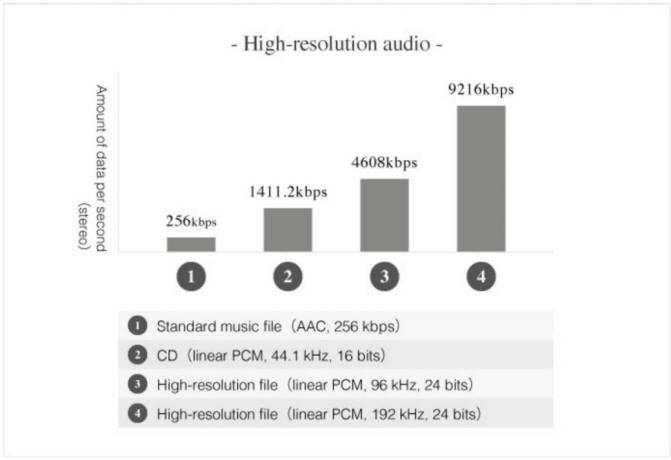

The debut of high-resolution audio files that contain more than four times the data of CDs sparked great excitement and joy among all those who love music.  The sound quality made possible by that immense amount of data goes far beyond the limits of CD media to deliver a difference that is clear and surprising by every measure, including sound image localization, transparency, and resolution

Network audio: A new listening style

Anyone can now download high-resolution audio files with the ultimate level of quality from the Internet. With the debut of such files, we have moved into an era of “media-less” playback in which it is possible to download high-data rate music that has been freed from the recording capacity constraints of physical media such as CDs, store it on computer hard disks, and listen to it using dedicated players

Network audio: The new mainstream

The shortcoming of this playback method is its interposition of a computer into the audio system.
Computers pose a variety of issues for audio purists, ranging from difficult connections and settings to complex operation and intractable noise issues.

These problems were resolved with the advent of network audio components that play audio directly from hard disks that are connected to networks (network-attached storage, or NAS).
Under this paradigm, audio files are stored in a library on an NAS device, and mobile handsets such as smartphones are used as controllers to intuitively download, manage, and play the files.
In this way, network audio has exceeded the CD in terms of ease of use.

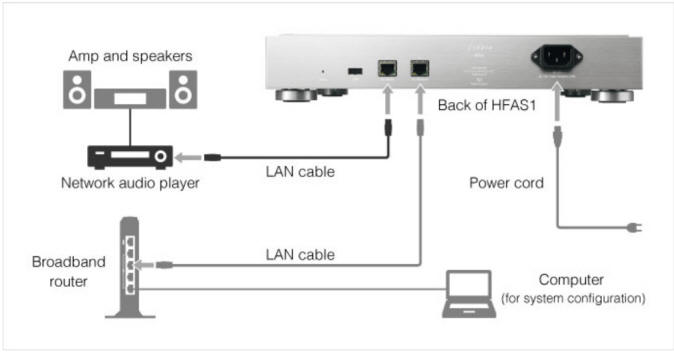

The fidata HFAS1 is a network-attached storage (NAS) appliance designed specifically for network audio. This type of device, which is an essential part of any network audio setup, is known as a network audio server.

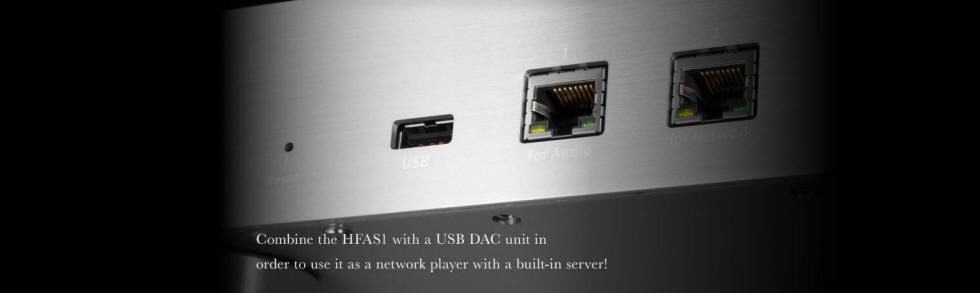

Combine the HFAS1 with a USB DAC  unit in order to use it as a network player with a built-in server

You can use the HFAS1 as a PCM/DSD-compatible network audio player with a built-in server by connecting it to an audio device with a USB DAC (for example, a standalone unit, CD player amp, or headphone amp).
In this configuration, you can choose tracks and control playback from a DLNA- or OpenHome Media-compliant controller app on a smartphone or tablet.
Build the system that's right for you by picking a DAC to handle the sound and a controller to handle the user interface... now there are even more possibilities for enjoying your music.

Get the sound you're after by choosing the USB DAC you want!

The HFAS1 can be combined with any of a number of USB Audio Class 2.0-compliant USB DACs whose compatibility has been confirmed.
Since you can choose a DAC that has the sound characteristics you like, you can build a unique network audio system that suits your own usage environment.


Using existing devices to deliver network audio

By adding the HFAS1 to their setups, listeners who have been wavering over whether to buy a high-grade network audio player can enjoy network audio while using the USB DAC they already have.
With robust server and playback functionality at a reasonable price, the HFAS1 is the ideal choice for listeners who are looking into the world of high-resolution audio for the first time.

High-quality audio data output, even over a USB connection
USB DACs are typically used with ordinary computers, which aren't generally designed from an audio perspective, so listeners may not be able to enjoy the full benefit of the DAC's capabilities.
Since it's designed as an audio device, the HFAS1 delivers high-quality data output, including from its USB port.
The unit taps the latent capability of USB DACs, without difficult settings.

USB Audio Class 2.0 support
Simply connect a standard USB Audio Class 2.0-compliant USB DAC to the HFAS1's USB port. The unit will automatically recognize the DAC, allowing the HFAS1 to function as a network audio player.
List of devices and apps whose USB DAC compatibility has been confirmed
Network renderer function
The HFAS1 provides two playback modes (OpenHome and DMR) from which the user can select on the setup screen.
OpenHome mode
This mode allows use of OpenHome Media-compliant controller apps.
DMR mode
This mode allows use of DLNA-compatible digital media controller (DMC) apps.
PCM output
The HFAS1 can output 16-bit/24-bit and 32-bit float/integer PCM data at a maximum sampling rate of 384 kHz, enabling it to output WAV, AIFF, FLAC, and M4A (Apple Lossless) audio data without degradation.
*Playback performance depends on the USB DAC used.
DSD output
The HFAS1 supports native DSD output using DoP (DSD Audio over PCM Frames), allowing it to generate 2.8 MHz, 5.6 MHz, and 11.2 MHz DSD output.
This capability allows the unit to output DSD audio data (in both DSF and DFF formats) without degradation.
*Playback performance depends on the USB DAC used.
On-device playlists
In OpenHome mode, on-device playlist support allows playlists to be saved on the HFAS1.
Even if the controller app is exited during playback, the HFAS1 will continue playback based on the playlist.
Gapless playback
When used with a compatible application, the HFAS1 supports gapless playback, allowing natural playback of live recordings and other audio recorded without gaps between tracks.
*Supported file formats: WAV, AIFF, M4A (ALAC), FLAC, DSF, and DFF.
*Gapless playback is limited to tracks of the same file format, bit depth, and sampling rate.
*Gapless playback is not supported for 11.2 MHz DSD files (as of March 2016).
Supported file formats (extensions)

Support for DSD files as well as WAV and FLAC
Twonky Server 7 adds support for DSD (DFF and DSF) files at bitrates of up to 11.2 MHz to existing support for PCM (WAV) and FLAC files at bitrates of up to 384 kHz (32-bit resolution).

DLNA certified
The Digital Living Network Alliance (DLNA) has formulated a series of guidelines to simplify audio and video playback using audiovisual components as well as computers, smartphones, tablets, and other network-connected devices from various manufacturers.

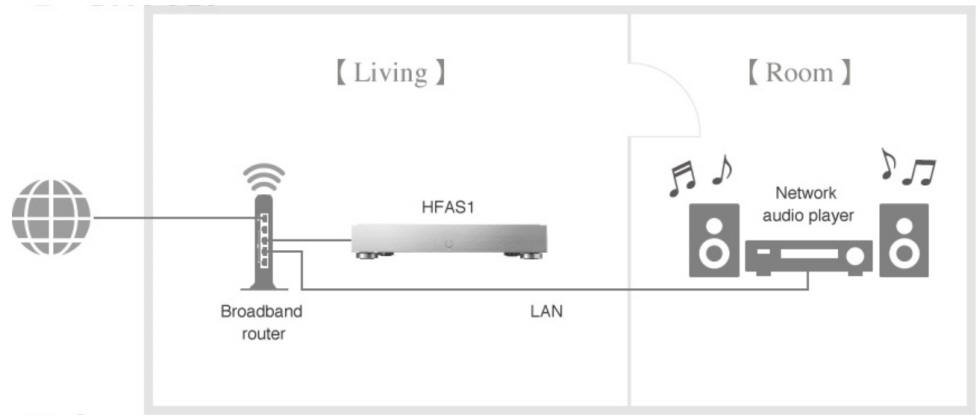

Music files stored on the HFAS1 can be played back on multiple DLNA-compliant devices connected to users' wireless and wired networks.
For example, a user could enjoy music stored on an HFAS1 in the living room on a network audio player in another room.
dlna

Customized Twonky Server 7 for enhanced ease of use
The HFAS1 uses Twonky Server 7, the de facto standard for music management, transmission, and distribution.
The software is highly compatible with various manufacturers' network players and known for its ease of use.
Twonky Server 7's extensive functionality includes a navigation tree function that facilitates fine-grained sorting of large numbers of music files as well as the ability to display high-resolution album art. The HFAS1's version of the server has been customized to properly display song and artist names and to display songs and album tracks in the proper order. The software delivers a level of ease of use and scalability that were unthinkable during the age of disc media such as CDs.

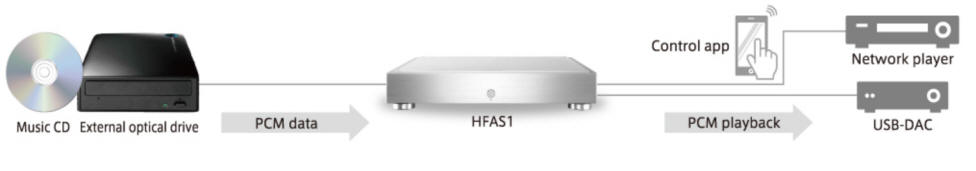

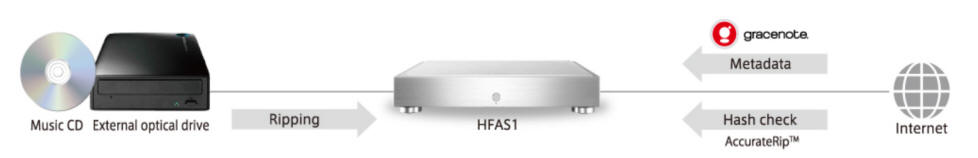

The kind of high-precision CD ripping you expect from a high-end system and CD transport function as only network audio can provide

The fidata’s CD ripping function allows you to rip music CDs to the HFAS1 without a computer. Simply connect an external USB DVD/Blu-ray drive to the fidata. The fidata’s meticulously designed CD ripping function combines the convenience of being able to automatically acquire track information and album art with the press of a single button with bit-perfect ripping performance. •Start ripping quickly and easily by simply pressing the button on the fidata (automatic configuration of the ripping process is also supported). •Save data as either WAV or FLAC files in the PCM format (44.1 kHz/16 bits). •When using the FLAC format, choose from three compression levels, including an uncompressed option. •Track information and album art are automatically acquired from the Gracenote® Music ID® service. •The fidata works with the AccurateRip™ track data comparison database to ensure every copy is bit-perfect. •If verification fails, the fidata will try again automatically after changing the ripping settings. •Once ripping completes, the disc is automatically ejected from the DVD/Blu-ray drive. *An Internet connection is required in order to use Gracenote® Music ID® and AccurateRip™. *The AccurateRip™ service utilized by this product accesses CD ripping data provided by the UK company Illustrate Limited. This service is subject to termination in the future without notice. In the event the service is terminated, all aspects of the CD ripping function other than access to AccurateRip™ will continue to function as before


fidata CD transport

The fidata CD transport function lets you share music CDs over the network so that they can be played directly by other connected devices. By combining track information and album art acquired from the Gracenote® Music ID® service with a music CD that has been loaded into a USB-connected DVD/Blu-ray drive and sending the data over the network, the fidata lets you enjoy listening to the CD on a supported USB DAC or network audio player. •The CD will show up as “#CD: Album title” under “Folders” in the media tree. Music CDs can be played via either a USB DAC connection*1 or a network player connection. *A USB hub is required in order to play a music CD via a USB DAC connection. •You can choose tracks on the music CD by name rather than number. •You can control music CD playback using the control app or other means, just as with network audio. *1 An Internet connection is required in order to use Gracenote® Music ID® and AccurateRip™. *An Internet connection is required in order to display track titles (via the Gracenote® Music ID® service).

Display of high-resolution album art in the standard configuration

The HFAS1's implementation of Twonky Server is designed for use in audio applications and comes configured to distribute high-resolution album art in its standard configuration. Users can enjoy beautiful album art on supported devices whose compatibility has been confirmed without needing to make any difficult settings.
