In the summer of 2010, Sandy Gross, co-founder of two of the most successful speaker lines in the history of the audio industry, announced the launch of a new loudspeaker company, GoldenEar Technology.“Speaker design is what we’ve done all our lives; we love it and are really good at it. In almost every case, the creative entrepreneurial founders of the industry’s major loudspeaker companies have left, and their companies are now owned by private equity firms or are part of large conglomerates. We wanted to bring back the combination of entrepreneurial spirit and passion for incredible sound which has always driven this business and helped to create the great speaker companies of the past.”The GoldenEar Technology line embodies revolutionary engineering breakthroughs, while adhering to the standards of superb sonic performance, elegant styling and exceptional value that Sandy and his design partners have always used as their personal design benchmarks. GoldenEar's recipe for success is simple: the best products offered only by the best specialty dealers and custom installers -those who share our enthusiasm for great sound and great value. GoldenEar’s products are extremely focused and highly targeted to appeal to discerning buyers who are looking for something more exciting and clearly more desirable than homogenized, mass-market products that have overtaken the speaker market.. Initial response confirms that GoldenEar, Gross’s third company, is clearly destined for greatness. Preliminary press was extremely enthusiastic. From Darryl Wilkinson of Home Theater Magazine: ”What we saw was elegant, affordable and had all the makings of another blockbuster line.” In Sound & Vision Magazine, whose reviewers have often praised the fruits of Sandy’s “golden ears” , Al Griffin wrote, “Something big is in the works." He was clearly correct - as is evident from GoldenEar quickly becoming the most award winning new speaker company in decades. Click Here to see what the industry and press have been sayin
GOLDENEAR AEON2
GOLDENEAR AEON3

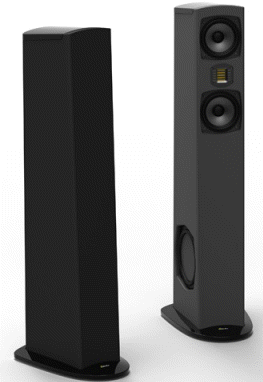

GOLDENEAR TRITON
SEVEN
The Triton Series Towers are high-performance loudspeakers, with the top four models including a built-in powered subwoofer. All the Triton Towers are engineered for superb performance in both high quality two channel stereo systems as well as in multi-channel home theater and music systems. Their sleek, elegantly curved and tapered design is not only gorgeous but is important from a performance perspective as well. Performance-wise, the Triton Towers all deliver boxless three-dimensional imaging, which reviewers have hailed as "mystical", "magical" - and, best summed up by the dramatic, "had us believing that the entire surface of the front wall was covered with speakers.". Likewise, the powerful, deep subwoofer bass blends perfectly with the silky smooth, utterly transparent midrange and high frequencies, putting many dramatically more expensive speakers to shame.The powered subwoofer sections in each Triton Reference, Triton One, Two+ and Three+ incorporate a high power GoldenEar ForceField digital amplifier. The amplifier’s DSP design not only yields extremely linear and low distortion response, but also dynamically controls operating parameters for optimum performance. The amp drives up to three front-mounted quadratic subwoofer bass drivers which are coupled to multiple side-mounted quadratic planar infrasonic bass radiators. The result is awe-inspiring bass, which delivers both musical subtlety as well as room-shaking authority. The advantages of building the subwoofers into the Tritons are many. First, of course, this eliminates the need for additional subwoofer boxes in the room. But more important are the performance advantages. By engineering the subwoofer as an integral part to the speaker, we get far superior integration and blending than can be achieved with separate subwoofers, even when using two. The two subwoofers in a pair of Tritons couple better to the air in the room, helping to better deal with the room's eigenmodes and smooth out response. Of course, the dual subwoofers are also intrinsically more powerful and couple together synergistically for more truly exceptional bass.The hallmark of all GoldenEar speakers, the Triton Towers all utilize our High-Velocity Folded Ribbon (HVFR™) tweeter design. The HVFR tweeter propagates sound waves and moves the air by squeezing it with its accordion-like pleated diaphragm, rather than pushing it as conventional drivers do. Greater efficiency, lower distortion, improved dynamics and superbly detailed sound are the result of this amazing technology. And every Triton Tower utilizes our amazing spider-leg, cast-basket mid/bass drivers with proprietary computer optimized cone design that assures smooth, extended response. The Triton Tower’s striking, but harmoniously minimalist design, can fit nicely into a great variety of decors while going almost unnoticed. Their sleek, narrow baffle, sophisticated look also helps the speakers create truly magnificent 3D imaging with tremendous depth, height and width that extends well beyond the loudspeakers themselves. As with all GoldenEar speakers, development work is conducted at our Arnprior, Canada engineering facility utilizing our full-size anechoic chamber, which is an exact duplicate of the chamber at the NRC in Ottawa Canada, in combination with intense critical listening. Visually, the flagship Triton Reference offers a strikingly beautiful upgrade to the classic Triton styling, with a gorgeous hand-rubbed piano gloss-black lacquer finished one-piece monocoque cabinet. Sleek, statuesque and refined, the Reference is simply a gorgeous statement piece that will excite listeners with its dynamic visual presence, as well as its extraordinary sonic performance. Click here, or the Reference tab above, for information on the Triton Reference. All the other Triton Towers are beautifully finished with an elegant black designer cloth, piano-black base and top cap.Triton Seven Tower The Triton Seven brings Speaker-of-the-Year Award winning Triton Series performance into a more compact size and even more affordable price range. Although it is the first Triton Tower without a built-in powered subwoofer, it still achieves superbly deep, subwoofer-like impactful bass performance by combining advanced drivers with our highly evolved and sophisticated bass-loading technologies. Mike Mettler of Sound&Vision called the Triton Seven a “real reference speaker for $1400 a pair...they’ll likely become your next reference speakers, just as they've become mine”. Like the Five, the Seven’s strikingly attractive and acoustically purposeful cabinet provides the same performance benefits, as well as looking great. The Seven’s precise and totally boxless imaging characteristics are further enhanced by the narrow front baffle. A complex Linkwitz/Riley crossover perfectly blends the D'Appolito Arrayed twin 5-1/4" cast basket bass/midrange drivers specifically designed for exceptionally long-throw, for tremendous dynamic range and extraordinarily deep bass response. These surround the same signature High Velocity Folded Ribbon (HVFR™) tweeter for high-resolution reproduction of both music and cinema. And dual side-mounted inertially-balanced, planar sub-bass radiators deliver impactful, superbly detailed, subwoofer-quality bass performance. The Triton Seven’s high-resolution sonic performance makes it perfect for the highest quality two channel systems as well as the best multi-channel music and home theater systems. Triton SEVEN Specifications* Dimensions: Speaker: 5-3/4˝ W (front) x 7-1/4˝ W (rear) x 11˝ D x 40-1/4˝ H. Base: 10-1/2˝ W x 14-1/2˝ D. Frequency Response: 29 Hz – 35 kHz. Efficiency: 89 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement: Two 5-1/4˝ cast-spiderleg-basket bass/midrange drivers, Two 8˝ planar sub-bass radiators, One High-Velocity Folded Ribbon (HVFR™) Tweeter. Rec. Amp: 10 – 300 Watt/channel.Price for one speaker .

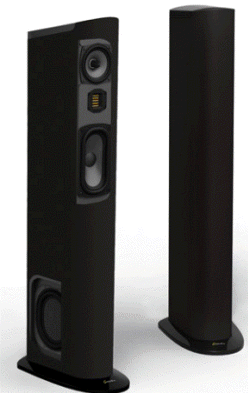

GOLDENEAR TRITON
THREE +
The Triton Series Towers are high-performance loudspeakers, with the top four models including a built-in powered subwoofer. All the Triton Towers are engineered for superb performance in both high quality two channel stereo systems as well as in multi-channel home theater and music systems. Their sleek, elegantly curved and tapered design is not only gorgeous but is important from a performance perspective as well. Performance-wise, the Triton Towers all deliver boxless three-dimensional imaging, which reviewers have hailed as "mystical", "magical" - and, best summed up by the dramatic, "had us believing that the entire surface of the front wall was covered with speakers.". Likewise, the powerful, deep subwoofer bass blends perfectly with the silky smooth, utterly transparent midrange and high frequencies, putting many dramatically more expensive speakers to shame.The powered subwoofer sections in each Triton Reference, Triton One, Two+ and Three+ incorporate a high power GoldenEar ForceField digital amplifier. The amplifier’s DSP design not only yields extremely linear and low distortion response, but also dynamically controls operating parameters for optimum performance. The amp drives up to three front-mounted quadratic subwoofer bass drivers which are coupled to multiple side-mounted quadratic planar infrasonic bass radiators. The result is awe-inspiring bass, which delivers both musical subtlety as well as room-shaking authority. The advantages of building the subwoofers into the Tritons are many. First, of course, this eliminates the need for additional subwoofer boxes in the room. But more important are the performance advantages. By engineering the subwoofer as an integral part to the speaker, we get far superior integration and blending than can be achieved with separate subwoofers, even when using two. The two subwoofers in a pair of Tritons couple better to the air in the room, helping to better deal with the room's eigenmodes and smooth out response. Of course, the dual subwoofers are also intrinsically more powerful and couple together synergistically for more truly exceptional bass.The hallmark of all GoldenEar speakers, the Triton Towers all utilize our High-Velocity Folded Ribbon (HVFR™) tweeter design. The HVFR tweeter propagates sound waves and moves the air by squeezing it with its accordion-like pleated diaphragm, rather than pushing it as conventional drivers do. Greater efficiency, lower distortion, improved dynamics and superbly detailed sound are the result of this amazing technology. And every Triton Tower utilizes our amazing spider-leg, cast-basket mid/bass drivers with proprietary computer optimized cone design that assures smooth, extended response. The Triton Tower’s striking, but harmoniously minimalist design, can fit nicely into a great variety of decors while going almost unnoticed. Their sleek, narrow baffle, sophisticated look also helps the speakers create truly magnificent 3D imaging with tremendous depth, height and width that extends well beyond the loudspeakers themselves. As with all GoldenEar speakers, development work is conducted at our Arnprior, Canada engineering facility utilizing our full-size anechoic chamber, which is an exact duplicate of the chamber at the NRC in Ottawa Canada, in combination with intense critical listening. Visually, the flagship Triton Reference offers a strikingly beautiful upgrade to the classic Triton styling, with a gorgeous hand-rubbed piano gloss-black lacquer finished one-piece monocoque cabinet. Sleek, statuesque and refined, the Reference is simply a gorgeous statement piece that will excite listeners with its dynamic visual presence, as well as its extraordinary sonic performance. Click here, or the Reference tab above, for information on the Triton Reference. All the other Triton Towers are beautifully finished with an elegant black designer cloth, piano-black base and top cap.Triton Three+ Tower The Triton Three+ incorporates the same advanced technologies and delivers state-of-the-art performance remarkably similar to its bigger brothers. The Triton Three+ is literally a smaller version of the award-winning Triton One and Triton Two+. It is the perfect solution for listeners looking for a more compact loudspeaker that offers equally superb performance for both high-quality two-channel systems as well as in multi-channel home theater and music systems. Like the Triton Two+, the newly updated Triton Three+ incorporates technologies developed for the Triton One. Its built-in powered subwoofer (a technology first pioneered by GoldenEar principals Sandy Gross and Don Givogue) includes an integral 800 watt GoldenEar ForceField digital/DSP controlled power amp driving an active front-mounted long-throw 5" x 9" quadratic subwoofer driver. This is coupled to two opposing, inertially balanced 6-3/4" x 8" quadratic planar infrasonic passive radiators which are located on the sides, near the floor, in order to take full advantage of boundary coupling. There is one of the same 4.5" high-definition spider-leg, cast-basket MVPP™ drivers as used in the Triton Two+, along with the same GoldenEar signature High-Velocity Folded Ribbon (HVFR™) tweeter. Performance-wise, the Triton Three+ delivers the same boxless three-dimensional imaging as the bigger Tritons. Likewise, the powerful, deep subwoofer bass blends perfectly with the silky smooth, utterly transparent midrange and high frequencies, putting many dramatically more expensive speakers to shame. Triton THREE+ Specifications* Dimensions: Speaker: 5-1/4˝ W (front) x 7˝ W (rear) x 13˝ D x 44˝ H (height with base installed, no spikes). Base: 11-1/2˝ W x 16-1/4˝ D. Frequency Response: 21 Hz – 35 kHz.Efficiency: 90 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement:One 5˝ x 9˝ long-throw quadratic subwoofer bass driver, coupled to Two 6-3/4˝ x 8˝ quadratic planar infrasonic radiators, One 4-1/2˝ high-definition cast-basket MVPP™ upper-bass/middriver, One High-Velocity Folded Ribbon (HVFR™) Tweeter. Rec. Amp: 20 – 400 watt/channel.Built-In Subwoofer Power Amplification: 800 watt ForceField Amplifier.Price for one speaker .

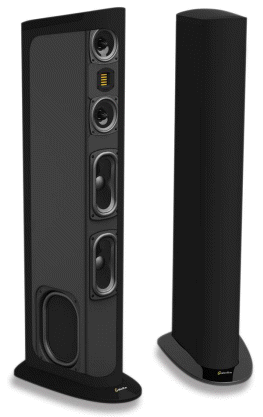

GOLDENEAR TRITON
TWO+
The Triton Series Towers are high-performance loudspeakers, with the top four models including a built-in powered subwoofer. All the Triton Towers are engineered for superb performance in both high quality two channel stereo systems as well as in multi-channel home theater and music systems. Their sleek, elegantly curved and tapered design is not only gorgeous but is important from a performance perspective as well. Performance-wise, the Triton Towers all deliver boxless three-dimensional imaging, which reviewers have hailed as "mystical", "magical" - and, best summed up by the dramatic, "had us believing that the entire surface of the front wall was covered with speakers.". Likewise, the powerful, deep subwoofer bass blends perfectly with the silky smooth, utterly transparent midrange and high frequencies, putting many dramatically more expensive speakers to shame.The powered subwoofer sections in each Triton Reference, Triton One, Two+ and Three+ incorporate a high power GoldenEar ForceField digital amplifier. The amplifier’s DSP design not only yields extremely linear and low distortion response, but also dynamically controls operating parameters for optimum performance. The amp drives up to three front-mounted quadratic subwoofer bass drivers which are coupled to multiple side-mounted quadratic planar infrasonic bass radiators. The result is awe-inspiring bass, which delivers both musical subtlety as well as room-shaking authority. The advantages of building the subwoofers into the Tritons are many. First, of course, this eliminates the need for additional subwoofer boxes in the room. But more important are the performance advantages. By engineering the subwoofer as an integral part to the speaker, we get far superior integration and blending than can be achieved with separate subwoofers, even when using two. The two subwoofers in a pair of Tritons couple better to the air in the room, helping to better deal with the room's eigenmodes and smooth out response. Of course, the dual subwoofers are also intrinsically more powerful and couple together synergistically for more truly exceptional bass.The hallmark of all GoldenEar speakers, the Triton Towers all utilize our High-Velocity Folded Ribbon (HVFR™) tweeter design. The HVFR tweeter propagates sound waves and moves the air by squeezing it with its accordion-like pleated diaphragm, rather than pushing it as conventional drivers do. Greater efficiency, lower distortion, improved dynamics and superbly detailed sound are the result of this amazing technology. And every Triton Tower utilizes our amazing spider-leg, cast-basket mid/bass drivers with proprietary computer optimized cone design that assures smooth, extended response. The Triton Tower’s striking, but harmoniously minimalist design, can fit nicely into a great variety of decors while going almost unnoticed. Their sleek, narrow baffle, sophisticated look also helps the speakers create truly magnificent 3D imaging with tremendous depth, height and width that extends well beyond the loudspeakers themselves. As with all GoldenEar speakers, development work is conducted at our Arnprior, Canada engineering facility utilizing our full-size anechoic chamber, which is an exact duplicate of the chamber at the NRC in Ottawa Canada, in combination with intense critical listening. Visually, the flagship Triton Reference offers a strikingly beautiful upgrade to the classic Triton styling, with a gorgeous hand-rubbed piano gloss-black lacquer finished one-piece monocoque cabinet. Sleek, statuesque and refined, the Reference is simply a gorgeous statement piece that will excite listeners with its dynamic visual presence, as well as its extraordinary sonic performance. Click here, or the Reference tab above, for information on the Triton Reference. All the other Triton Towers are beautifully finished with an elegant black designer cloth, piano-black base and top cap.Triton Two+ Tower GoldenEar’s Triton Two Tower clearly set the audio world on its proverbial ear with extraordinary sound quality, elegant styling and previously unimaginable value. It has earned an incredible series of rave reviews and industry accolades from around the world — including more than a few Speaker of the Year and Audio Product of the Year honors and awards. "Listening with them paralleled previous encounters with no-holds-barred speakers - ones priced upwards of $50,000.", raved Al Griffin of Sound & Vision. The sleek, 48" tall Triton Two+ is newly updated to now incorporate many of the new technologies and refinements developed for the Triton One, including: a fully balanced crossover design, high-end film capacitors, redesigned midrange/upper-bass drivers, and a reprogrammed DSP. Its built-in subwoofer section is powered by a 1200 watt GoldenEar ForceField digital amplifier driving two 5" x 9" front-mounted quadratic subwoofer bass drivers coupled to dual opposing side-mounted, inertially-balanced, 7" x 10" quadratic planar infrasonic bass radiators. The two 4-1/2" spider-leg cast-basket midrange/upper bass drivers, which incorporate GoldenEar’s proprietary Multi-Vaned Phase Plug (MVPP™) design, are housed in dual discreet chambers arranged in a D’Appolito array surrounding GoldenEar’s extraordinary High-Velocity Folded Ribbon (HVFR™) tweeter design. The Triton Two's dynamic, effortless, you-are-there clarity will almost literally put the live performance or action right into your home, or conversely, put you into the concert hall or the live action on the screen. Triton TWO+ Specifications* Dimensions: Speaker: 5-1/4˝ W (front) x 7-1/2˝ W (rear) x 15˝ D x 48˝ H (height with baseinstalled, no spikes). Base: 11-1/2˝ W x 18˝ D. Frequency Response: 16 Hz – 35 kHz.Efficiency: 91 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement:Two 5˝ x 9˝ long-throw quadratic subwoofer bass drivers, coupled to Two 7˝ x 10˝ quadraticplanar infrasonic radiators, Two 4-1/2˝ high-definition cast-basket MVPP™ upper-bass/ mid drivers, One High-Velocity Folded Ribbon (HVFR™) Tweeter. Rec. Amp: 20 – 500 watt/channel. Built-In Subwoofer Power Amplification: 1200 watt ForceField Amplifier.Price for one speaker .

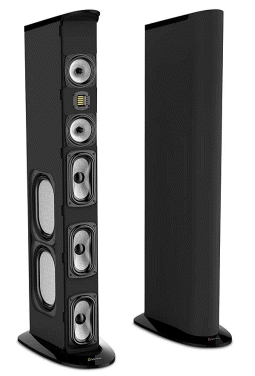

GOLDENEAR TRITON
ONE
The Triton Series Towers are high-performance loudspeakers, with the top four models including a built-in powered subwoofer. All the Triton Towers are engineered for superb performance in both high quality two channel stereo systems as well as in multi-channel home theater and music systems. Their sleek, elegantly curved and tapered design is not only gorgeous but is important from a performance perspective as well. Performance-wise, the Triton Towers all deliver boxless three-dimensional imaging, which reviewers have hailed as "mystical", "magical" - and, best summed up by the dramatic, "had us believing that the entire surface of the front wall was covered with speakers.". Likewise, the powerful, deep subwoofer bass blends perfectly with the silky smooth, utterly transparent midrange and high frequencies, putting many dramatically more expensive speakers to shame.The powered subwoofer sections in each Triton Reference, Triton One, Two+ and Three+ incorporate a high power GoldenEar ForceField digital amplifier. The amplifier’s DSP design not only yields extremely linear and low distortion response, but also dynamically controls operating parameters for optimum performance. The amp drives up to three front-mounted quadratic subwoofer bass drivers which are coupled to multiple side-mounted quadratic planar infrasonic bass radiators. The result is awe-inspiring bass, which delivers both musical subtlety as well as room-shaking authority. The advantages of building the subwoofers into the Tritons are many. First, of course, this eliminates the need for additional subwoofer boxes in the room. But more important are the performance advantages. By engineering the subwoofer as an integral part to the speaker, we get far superior integration and blending than can be achieved with separate subwoofers, even when using two. The two subwoofers in a pair of Tritons couple better to the air in the room, helping to better deal with the room's eigenmodes and smooth out response. Of course, the dual subwoofers are also intrinsically more powerful and couple together synergistically for more truly exceptional bass.The hallmark of all GoldenEar speakers, the Triton Towers all utilize our High-Velocity Folded Ribbon (HVFR™) tweeter design. The HVFR tweeter propagates sound waves and moves the air by squeezing it with its accordion-like pleated diaphragm, rather than pushing it as conventional drivers do. Greater efficiency, lower distortion, improved dynamics and superbly detailed sound are the result of this amazing technology. And every Triton Tower utilizes our amazing spider-leg, cast-basket mid/bass drivers with proprietary computer optimized cone design that assures smooth, extended response. The Triton Tower’s striking, but harmoniously minimalist design, can fit nicely into a great variety of decors while going almost unnoticed. Their sleek, narrow baffle, sophisticated look also helps the speakers create truly magnificent 3D imaging with tremendous depth, height and width that extends well beyond the loudspeakers themselves. As with all GoldenEar speakers, development work is conducted at our Arnprior, Canada engineering facility utilizing our full-size anechoic chamber, which is an exact duplicate of the chamber at the NRC in Ottawa Canada, in combination with intense critical listening. Visually, the flagship Triton Reference offers a strikingly beautiful upgrade to the classic Triton styling, with a gorgeous hand-rubbed piano gloss-black lacquer finished one-piece monocoque cabinet. Sleek, statuesque and refined, the Reference is simply a gorgeous statement piece that will excite listeners with its dynamic visual presence, as well as its extraordinary sonic performance. Click here, or the Reference tab above, for information on the Triton Reference. All the other Triton Towers are beautifully finished with an elegant black designer cloth, piano-black base and top cap.Triton One Tower The Triton One is an evolutionary speaker that builds upon all the advanced technologies that have made the Tritons famous. (In response to questions, there is no Triton One+ coming. The "+" in the new Triton Three+ and Two+ is technology already in the One.) The sleek 54" tall Triton One's upgraded technology includes a 56 bit DSP engine for the sub section, a fully balanced crossover design, high-end film capacitors, advanced cabinet design, and much more. The Triton One includes a built-in subwoofer section powered by a 1600 watt GoldenEar ForceField digital amplifier. The amp drives three 5" x 9" front-mounted quadratic subwoofer bass drivers which are coupled to dual (per side) side-mounted 7" x 10" quadratic planar infrasonic bass radiators. Our newly developed Frequency Dependent Bass Loading Technology, utilizing open-cell polyurethane foam damping pads, as well as special hollow-fiberfill, further optimizes low-frequency performance. There are two newly designed 5-1/4" cast-basket midrange/upper bass drivers, which incorporate GoldenEar’s proprietary Multi-Vaned Phase Plug (MVPP™) design, housed in dual discreet midrange chambers, arranged in a D’Appolito array surrounding the extraordinary GoldenEar High-Velocity Folded Ribbon (HVFR™) tweeter. The result is a superb, Loudspeaker-of-the-Year award winning reference home audio and home theater loudspeaker that has performance equal to, and in many cases surpassing, speakers selling for ten times its cost.Specifications* Dimensions: Speaker: 5-3/4˝ W (front) x 8˝ W (rear) x 16-5/8˝ D x 54˝ H (w/ base) Base: 12-1/4˝ W x 19-3/4˝ D. Frequency Response: 14 Hz – 35 kHz. Efficiency: 92 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement: Three 5˝ x 9˝Long-throw quadratic sub-bass drivers coupled to Four 7˝ x 10˝ planar infrasonicradiators, Two 5-1/4˝ high-definition cast-basket MVPP mid/bass drivers, One High-Velocity Folded Ribbon (HVFR™) Tweeter. Rec. Amp: 20 – 650 Watt/channel. Built-In Subwoofer Power Amplifier: 1600-Watt ForceField digital/DSP amplifier.Price for one speaker .

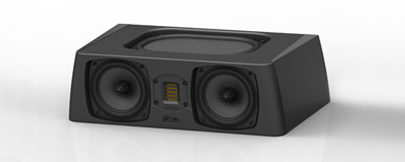

GOLDENEAR SUPERCENTER
X
The SuperCenters are high performance center channel speakers appropriate for the highest quality home theater systems. They are designed to perfectly complement and match our Triton Towers and Aon Bookshelf loudspeakers, both sonically and cosmetically. Their sophisticated industrial design is both attractive and functional, both minimizing their apparent size as well as enhancing their acoustic performance.These center channel models incorporate a D’Appolito Array of two newly developed long-throw 5-1/4˝ bass/midrange drivers (four on the XXL) surrounding one of our signature High Velocity Folded Ribbon (HVFR) tweeters. The 5-1/4˝ drivers incorporate spiderleg cast baskets for rigidity and minimal internal reflection, as well as our unique multi-vaned phase plugs (MVPP), to minimize cross-apex wave propagation interference. They also utilize top-mounted pressure-coupled quadratic planar low frequency radiators that both extend the bass response as well as provide the bass/midrange drivers with ideal acoustic loading and damping. Since the top-mounted passive radiators put out a very low frequency pressure wave, they only require an inch or two of clearance above them so they can be placed in cabinets/wall units if desired (always position the speaker at the front of the opening for best performance). Sonically, the SuperCenters offer the same lifelike, highly detailed, high-resolution, smooth, open, boxless sound quality that our SuperSat centers are famous for, but with additional low frequency extension and greater power handling capacity for greater dynamic range and impact. SuperCenter X The smallest SuperCenter model is amazingly compact. The SuperCenter X incorporates one 7˝ x 10˝ quadratic planar low frequency radiator for surprisingly full-range performance from a modest sized enclosure. The SuperCenter X is just the perfect size and performance for the typical size living room or family room home theater system SUPERCENTER X Specifications* Dimensions: 20˝ W x 5-3/4˝ H x 11˝ D. Frequency Response: 45 Hz – 35 kHz. Efficiency: 90 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement: Two 5-1/4˝ cast-basket mid/bass drivers, One 7˝ x 10˝ quadratic planar low-frequency radiator, One high-velocity folded ribbon (HVFR™) tweeter. Rec. Amp: 20 – 200 watt/channel.

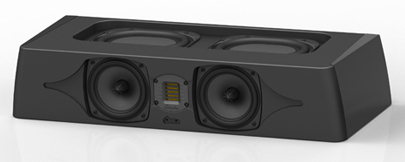

GOLDENEAR SUPERCENTER
XL
The SuperCenters are high performance center channel speakers appropriate for the highest quality home theater systems. They are designed to perfectly complement and match our Triton Towers and Aon Bookshelf loudspeakers, both sonically and cosmetically. Their sophisticated industrial design is both attractive and functional, both minimizing their apparent size as well as enhancing their acoustic performance.These center channel models incorporate a D’Appolito Array of two newly developed long-throw 5-1/4˝ bass/midrange drivers (four on the XXL) surrounding one of our signature High Velocity Folded Ribbon (HVFR) tweeters. The 5-1/4˝ drivers incorporate spiderleg cast baskets for rigidity and minimal internal reflection, as well as our unique multi-vaned phase plugs (MVPP), to minimize cross-apex wave propagation interference. They also utilize top-mounted pressure-coupled quadratic planar low frequency radiators that both extend the bass response as well as provide the bass/midrange drivers with ideal acoustic loading and damping. Since the top-mounted passive radiators put out a very low frequency pressure wave, they only require an inch or two of clearance above them so they can be placed in cabinets/wall units if desired (always position the speaker at the front of the opening for best performance). Sonically, the SuperCenters offer the same lifelike, highly detailed, high-resolution, smooth, open, boxless sound quality that our SuperSat centers are famous for, but with additional low frequency extension and greater power handling capacity for greater dynamic range and impact.SuperCenter XL The larger SuperCenter XL benefits from dual 6-3/4˝ x 8˝ quadratic planar low frequency radiators, giving it significant low frequency extension and exceptional dynamic range. The SuperCenter XL is perfect for larger home theater systems SUPERCENTER XL Specifications* Dimensions: 29˝ W x 5-3/4˝ H x 11˝ D. Frequency Response: 36 Hz – 35 kHz. Efficiency: 91 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement: Two 5-1/4˝ cast-basket mid/bass drivers, Two 6-3/4˝ x 8˝ quadratic planar low-frequency radiators, One high-velocity folded ribbon (HVFR™) tweeter. Rec. Amp: 20 – 250 watt/channel
GOLDENEAR SUPERCENTER
XXL
The SuperCenters are high performance center
channel speakers appropriate for the highest quality home theater systems. They
are designed to perfectly complement and match our Triton Towers and Aon
Bookshelf loudspeakers, both sonically and cosmetically. Their sophisticated
industrial design is both attractive and functional, both minimizing their
apparent size as well as enhancing their acoustic performance.These center
channel models incorporate a D’Appolito Array of two newly developed long-throw
5-1/4˝ bass/midrange drivers (four on the XXL) surrounding one of our signature
High Velocity Folded Ribbon (HVFR) tweeters. The 5-1/4˝ drivers incorporate
spiderleg cast baskets for rigidity and minimal internal reflection, as well as
our unique multi-vaned phase plugs (MVPP), to minimize cross-apex wave
propagation interference. They also utilize top-mounted pressure-coupled
quadratic planar low frequency radiators that both extend the bass response as
well as provide the bass/midrange drivers with ideal acoustic loading and
damping. Since the top-mounted passive radiators put out a very low frequency
pressure wave, they only require an inch or two of clearance above them so they
can be placed in cabinets/wall units if desired (always position the speaker at
the front of the opening for best performance). Sonically, the SuperCenters
offer the same lifelike, highly detailed, high-resolution, smooth, open, boxless
sound quality that our SuperSat centers are famous for, but with additional low
frequency extension and greater power handling capacity for greater dynamic

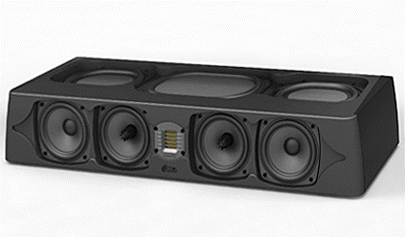

range and impact. SuperCenter XXL The mega-high-performance SuperCenter XXL is
only 35” wide and includes four 5-1/4" drivers, the GoldenEar High Velocity
Folded Ribbon tweeter, three planar passive radiators, and our unique
linear-phase crossover, employing fully balanced technology and precision film
capacitors. The unique balanced topology reduces stray capacitance in the
magnetic circuit, among other things, with the result of dramatically improved
clarity. There are three separate internal chambers: a larger one in the center
which contains two 5-1/4˝ drivers which run up to meet the tweeter and are
coupled to the larger, 7˝ x 10˝ passive radiator in the center, and two smaller
ones which each contain a special 5-1/4˝ driver engineered for low frequency
response, which runs up to 500 Hz, and is coupled to one of the smaller, 6-3/4˝
x 8˝ passives.SUPERCENTER XXL Specifications*
GOLDENEAR FORCEFIELD
3
The ForceField Subwoofers’ unique and attractive cabinet shape, with its non-parallel cabinet walls (the top is narrower than the bottom when viewed from the front), helps the ForceField subs achieve extraordinarily deep and tuneful bass that is ideal for music and movies. Their cutting-edge amplifier design employs state-of-the-art DSP control for frequency shaping so the subs produce accurate, consistent and musical bass performance. Let's take a look at the ForceField subwoofers to see what makes them special. We'll start with two very common sub design concepts and then we'll delve into GoldenEar's unique and better solutions. Many of today's subs fall into either the ultra-compact high-output category, or the (larger) high performance, extended response, high-output category. These two design types tend to offer different performance benefits, the ultra compact having the ability to play extremely loud, but over a narrower bandwidth and the large subs having this high output plus more extended response. GoldenEar's engineering team set out to accomplish the best of both worlds with the new ForceField subwoofers: small size, yet with the smooth & wide response of a larger sub. There's no sleight of hand, just great engineering - all ForceField subs share the same technologies, here is a list of their features. Read through these and then take a good demo disc into your GoldenEar dealer's sound room and listen for yourself. Custom-designed high-output drivers with very large motor assemblies. These drivers handle massive power, have very long excursions, and have ultra-low distortion. Rigid cabinets with non-parallel sides to minimize standing waves and distortion. The drivers are front firing in all of our subwoofers for optimal performance. The cabinets' possess a unique and understated shape and style that matches well with any décor. The driver's response is enhanced with a carefully tuned, down-firing, quadratic-shaped passive radiator (no noisy ports on ForceField subs). The quadratic shape allows the radiators to use maximum surface area on the bottom of the cabinets and gets even greater output from the slot-loading that results from the subwoofers' interface with the floor (see next point). The soft, energy-absorbing feet provided with every ForceField sub serve a number of functions. First, they hold the sub the correct distance off the floor so the passive radiator slot-loads with it for significantly increased output at the lowest frequencies. Second, the soft feet keep the sub from dancing around on the floor. ForceField subwoofer amplifiers are designed in-house by GoldenEar engineering, so each is the perfect amp to power its specific subwoofer model. In addition the amps all have powerful DSP sections to optimize frequency response, minimize distortion and prevent damage from overdriving. These amplifiers are all low distortion and extraordinarily powerful (up to 1500 watts on the ForceField 5) for reproducing seriously high-output AND low bass. ForceField subs all have speaker-level inputs and outputs (with a high pass crossover on the outputs) as well as a direct LFE input, too.ForceField 3 The ultra-compact ForceField 3 is the smallest and most affordable ForceField sub - but don't let its small size and price fool you, with its 1000-watt digital amp, 8” high-power long-throw active driver and 9-5/8”x 11-3/8” quadratic planar infrasonic radiator, this baby ROCKS!SPECIFICATIONS Dimensions: 11-1 /2" W x 15-3/4" D x 11" H (height is with feet installed). Frequency Response: 18 Hz – 250 Hz. Driver Complement: One 8" long-throw high-outputbass driver, One 9" x 11" quadratic planar infrasonic radiator. Amplifi er:1000-Watt ForceField digital amplifi er. Speaker Level High-Pass Filter: 6 dB per octave at 150 Hz (approx.). Speaker Level Low-Pass Filter: 12 dB per octave continuously variable from 40 – 150 Hz. Low-Level Input (Mono): Unfi ltered (no low pass), direct-coupled
GOLDENEAR FORCEFIELD
4
GOLDENEAR FORCEFIELD
5
GOLDENEAR SUPERSUB
XL

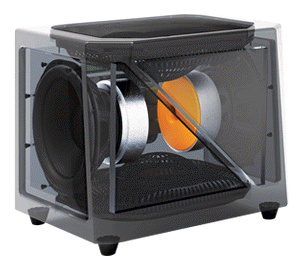

GOLDENEAR SUPERSUB
XXL
GOLDENEAR SUPERSAT
3/3C
SuperSat 3 Overview SuperSat 3The SuperSat 3 is an elegantly curved, compact satellite speaker designed for use when very high-performance yet small size is desired. (It is also the ideal matching Surround/Rear speaker and on-wall Height channel speaker for any GoldenEar-based system.) Four SuperSat 3s and one SuperSat 3C, combined with a ForceField 3 powered subwoofer, make up the superlative and award winning SuperCinema 3, a sub/sat 5.1 multichannel system.As with all SuperSat models, there is both a vertical model and a horizontal ("C") model which is optimized specifically for center-channel, or any horizontal, applications. The SuperSat 3’s svelte, 2.7” deep, 12” tall cabinet is constructed from a rigid, non-resonant marble-powder infused polymer and is finished in a gorgeous piano-gloss black. Every GoldenEar SuperSat speaker model takes advantage of the extraordinary GoldenEar High‐Velocity Folded Ribbon (HVFR™) design tweeter. The HVFR tweeter propagates sound waves and moves the air by squeezing it with its accordion‐like pleated diaphragm, rather than pushing it as conventional drivers do. The result is better impedance matching to the air in the room with greater control, smoother more extended response with lower distortion and dramatically improved dynamic range. Each SuperSat speaker model also utilizes GoldenEar’s ground‐breaking 4.5" cast-basket upper bass/midrange drivers, which incorporate our proprietary Multi-Vaned Phase Plug design (MVPP™) as well as our proprietary computer optimized cone topology, arranged in a D’Appolito array surrounding the HVFR tweeter. The SuperSat 3 includes a stand for shelf mounting (shown, left); the SuperSat 3C includes an adjustable angling foot for ideal center channel positioning. Both models incorporate a rear threaded insert as well as keyhole mount for wall mounting options. The Keyhole mount allows flat-on-the-wall mounting and the threaded insert can be used with our SuperSwivel universal bracket. Or, use the optional SuperStand 3 Floor Stand - note total height of speaker and floor stand is 46"SUPERSAT 3/3C Specifications* Dimensions: 12˝ H (W) x 4-3/4˝ W (H) x 2-3/4˝ D. Frequency Response: 80 Hz – 35 kHz. Efficiency: 92 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement: Two 4-1/2˝ high-definition cast-basket MVPP™ bass/midrange drivers, One high-velocity folded ribbon (HVFR™) tweeter. Rec. Amp: 20 – 200 watt/channel. Price for one speaker .
GOLDENEAR SUPERSAT
50/50C
SuperSat 50 LifestyleThe SuperSat 50 is a slim, 27” long, 2.5”-deep speaker which is available in both a vertical version (on-wall or on optional Table/Shelf or Floor stand) as well as a horizontal, center-channel-optimized version, the SuperSat 50C. Its powerful and dynamic output capabilities make it the ideal center channel for a Triton based theater system, as well as a perfect choice to go alongside a wall- or shelf-mounted flat screen. Of course, the 2.5” depth makes it a perfect on-wall match for the new generation of super thin flat screens. Its cabinet is constructed from piano-gloss-black-finished aerospace-grade aluminum and contains two GoldenEar 4.5” cast basket bass/midrange drivers with Multi-Vaned Phase Plug (MVPP) configured in a D’Appolito array, surrounding the High-Velocity Folded Ribbon tweeter. Two 4”x 7” quadratic planar low-frequency radiators complete the driver complement. Wall mounting is easily accomplished using the threaded inserts or keyhole mounts on the rear, or table top using the optional smoked-glass Table/Shelf Stand 50, or even floor standing using the optional SuperStand 50 Floor Stand - note total height of speaker and floor stand is 48". The horizontal SuperSat 50C center-channel version includes adjustable leveling feet allowing for multiple angles when shelf/table top mounting. SUPERSAT 50/50C Specifications* Dimensions: 27˝ H (W) x 4-3/4˝ W (H) x 2-1/2˝ D. Frequency Response: 60 Hz – 35 kHz. Efficiency: 92 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement: Two 4-1/2˝ high-definition cast-basket MVPP™ bass/midrange drivers, Two 4˝ x 7˝ quadratic planar low-frequency radiators, One high-velocity folded ribbon (HVFR™) tweeter. Rec. Amp: 20 – 200 watt/channel.Price for one speaker .
GOLDENEAR SUPERSAT
60/60C
SuperSat 60The SuperSat 60 and 60C (SuperSat 60 - left, shown on optional Table/Shelf stand) are larger, more powerful versions of our award-winning SuperSat 50 and 50C. They are designed to complement 60" and larger screens when used as left and right channels and mounted vertically next to them, as well as all screen sizes when used as a horizontal center channel or mounted on their optional stands. They provide a larger, more powerful, higher power-handling step-up from our SuperSat 50C when used as a center channel paired with any of our Triton Towers or with any of our other speakers including the SuperSat 50s. The sleek, attractively sculpted cabinet follows the same design philosophy that won the SuperSat 50 the highly respected Resi Award as the industry’s best looking on-wall loudspeaker. It is constructed from aerospace-grade aluminum and finished in gorgeous piano-gloss black. It contains four GoldenEar engineered 4.5" cast spiderleg-basket bass/midrange drivers with Multi-Vaned Phase-Plugs (MVPP) configured in a two-stage D’Appolito Array surrounding our signature High-Velocity Folded Ribbon high-frequency radiator. Two 4" x 7" quadratic planar low frequency radiators complete the driver complement, perfectly loading the bass/midrange drivers for open, boxless midrange and extended low-frequency response. The SuperSat 60 and 60C’s very thin depth makes them perfect for wall mounting next to the latest super thin TVs. This is easily accomplished using the threaded inserts or keyhole mounts on the rear. Dual adjustable feet allow multiple angles when shelf-mounting the horizontal center-channel 60C. In addition, optional floor and tabletop stands are available for vertical mountingSUPERSAT 60/60C Specifications* Dimensions: 35˝ H (W) x 4-3/4˝ W (H) x 2-3/4˝ D. Frequency Response: 50 Hz –35 kHz. Efficiency: 92 dB. Nominal Impedance: Compatible with 8 ohms. DriverComplement: Four 4-1/2˝ high-definition cast-basket MVPP™ bass/midrange drivers, Two 4˝ x 7˝ quadratic planar low-frequency radiators, One high-velocity folded ribbon (HVFR™) tweeter. Rec. Amp: 20 – 300 watt/channel.Price for one speaker .

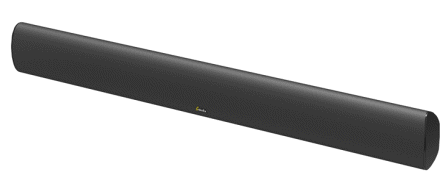

GOLDENEAR SUPERCINEMA
X
The SuperCinema® 3D Array® soundbars are remarkable new loudspeaker systems that combine the elegant form factor of a soundbar with the extraordinary sonic performance of a true discrete-speaker surround system. The aesthetically compelling visual appeal of a soundbar is undeniable. Unfortunately, both passive and active soundbars fail to achieve a truly convincing surround-sound experience when compared to a high-quality, fully discrete multi-channel surround system. GoldenEar Technology has developed a unique new technology for our soundbars that incorporates special 3D image optimization technology to achieve superbly lifelike, wide, deep 3D playback realism with virtually no acoustic coloration. 3D ArraysThis technology, pioneered by Sandy Gross, effectively addresses certain problems that have been brought up recently in a 3D audio research project being conducted by Dr. Edgar Choueiri at Princeton University. Dr. Choueiri points out that the crosstalk that exists between the left and right loudspeakers and our contralateral ears, especially when the left and right channels are minimally separated (as we normally encounter in soundbar systems), is deleterious to our brain's ability to fully experience and process the imaging cues so necessary for 3D imaging perception. These imaging cues are present in the recordings but dramatically corrupted in typical soundbar playback where the left and right channel speakers are simply too close together. The 3D Array Soundbars incorporate left-, center- and right-channel speakers, plus a second set of drivers that utilize 3D Array Technology to effectively cancel out this crosstalk distortion between the left and right channel. The result is a front soundstage that stretches from wall to wall and beyond, with amazing height, width and depth that effectively envelops the listeners in a true 180-degree soundfield, much wider than the actual physical soundbar! All this is contained within sleek, attractive 2.7" thin enclosures that perfectly complements the latest super-thin flat panel TVs. The 3D Array soundbars are designed for use with a powered subwoofer - the GoldenEar ForceField Subwoofers are engineered to be the perfect high-performance match. SURROUND SPEAKERS OPTIONAL: Our unique 3D Array Technology delivers extraordinary surround sound performance with or without rear surround speakers. Excellent and convincing surround sound performance is achieved even without surround speakers, however, when the 3D Arrays are combined with a pair of rear surrounds (like our SuperSat 3s or Invisa In-Ceiling) the result is a mind-boggling true surround-sound experience that rivals discrete six-speaker (or more) systems. In fact, it actually surpasses all but the very best in the ability to dramatically recreate the realism of a live performance or a cinematic event. The 3D Array soundbars incorporate six (3D Array X) or eight (3D Array XL) of GoldenEar Technology’s spider-leg cast basket 4.5" bass-midrange drivers with our unique Multi-Vaned Phase Plugs (MVPP™). In addition, there are three of GoldenEar’s extraordinary High-Velocity Folded Ribbon tweeters (HVFR™). Both utilize our new, patent pending, Mag-X Coupling™ Crossover Technology, which delivers improved 3D imaging as well as smoother response and greater detail. The 3D Array X is an ideal match for 48"- 60" TVs, the 3D Array XL is an ideal match for 65" and up TVs. The beautiful piano-gloss-black-finished cabinets are aerospace-grade extruded aluminum with marble-powder-infused baffle and end-caps. They can be easily wall-mounted using their keyhole mounts or threaded brass inserts, or shelf-mounted using their adjustable rear supports specifications Dimensions: Speaker: 49-1 /8˝ W x 2-7/8˝ D x 4-3 /4˝ H. Frequency Response: 80 Hz –35 kHz. Sensitivity: 91 dB. Nominal Impedance: Compatible with 8 ohms.Driver Complement: Six 4-1/2˝ cast spiderleg-basket bass/midrange drivers, Three High-Velocity Folded Ribbon (HVFR™) high-frequency radiators. Rec. Amp: 20 – 200 Watt/channe

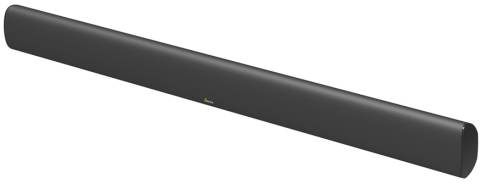

GOLDENEAR SUPERCINEMA
XL
The SuperCinema® 3D Array® soundbars are remarkable new loudspeaker systems that combine the elegant form factor of a soundbar with the extraordinary sonic performance of a true discrete-speaker surround system. The aesthetically compelling visual appeal of a soundbar is undeniable. Unfortunately, both passive and active soundbars fail to achieve a truly convincing surround-sound experience when compared to a high-quality, fully discrete multi-channel surround system. GoldenEar Technology has developed a unique new technology for our soundbars that incorporates special 3D image optimization technology to achieve superbly lifelike, wide, deep 3D playback realism with virtually no acoustic coloration. 3D ArraysThis technology, pioneered by Sandy Gross, effectively addresses certain problems that have been brought up recently in a 3D audio research project being conducted by Dr. Edgar Choueiri at Princeton University. Dr. Choueiri points out that the crosstalk that exists between the left and right loudspeakers and our contralateral ears, especially when the left and right channels are minimally separated (as we normally encounter in soundbar systems), is deleterious to our brain's ability to fully experience and process the imaging cues so necessary for 3D imaging perception. These imaging cues are present in the recordings but dramatically corrupted in typical soundbar playback where the left and right channel speakers are simply too close together. The 3D Array Soundbars incorporate left-, center- and right-channel speakers, plus a second set of drivers that utilize 3D Array Technology to effectively cancel out this crosstalk distortion between the left and right channel. The result is a front soundstage that stretches from wall to wall and beyond, with amazing height, width and depth that effectively envelops the listeners in a true 180-degree soundfield, much wider than the actual physical soundbar! All this is contained within sleek, attractive 2.7" thin enclosures that perfectly complements the latest super-thin flat panel TVs. The 3D Array soundbars are designed for use with a powered subwoofer - the GoldenEar ForceField Subwoofers are engineered to be the perfect high-performance match. SURROUND SPEAKERS OPTIONAL: Our unique 3D Array Technology delivers extraordinary surround sound performance with or without rear surround speakers. Excellent and convincing surround sound performance is achieved even without surround speakers, however, when the 3D Arrays are combined with a pair of rear surrounds (like our SuperSat 3s or Invisa In-Ceiling) the result is a mind-boggling true surround-sound experience that rivals discrete six-speaker (or more) systems. In fact, it actually surpasses all but the very best in the ability to dramatically recreate the realism of a live performance or a cinematic event. The 3D Array soundbars incorporate six (3D Array X) or eight (3D Array XL) of GoldenEar Technology’s spider-leg cast basket 4.5" bass-midrange drivers with our unique Multi-Vaned Phase Plugs (MVPP™). In addition, there are three of GoldenEar’s extraordinary High-Velocity Folded Ribbon tweeters (HVFR™). Both utilize our new, patent pending, Mag-X Coupling™ Crossover Technology, which delivers improved 3D imaging as well as smoother response and greater detail. The 3D Array X is an ideal match for 48"- 60" TVs, the 3D Array XL is an ideal match for 65" and up TVs. The beautiful piano-gloss-black-finished cabinets are aerospace-grade extruded aluminum with marble-powder-infused baffle and end-caps. They can be easily wall-mounted using their keyhole mounts or threaded brass inserts, or shelf-mounted using their adjustable rear supports specifications Dimensions: Speaker: 62-1 /8˝ W x 2-7 /8˝ D x 4-3 /4˝ H. Frequency Response: 80 Hz – 35 kHz. Sensitivity: 91 dB. Nominal Impedance: Compatible with 8 ohms. Driver Complement: Eight 4-1 /2˝ cast spiderleg-basket bass/midrange drivers, Three High-Velocity Folded Ribbon (HVFR™) high-frequency radiators. Rec. Amp: 20 – 300 Watt/channel.
GOLDENEAR INVISA
525
GoldenEar Invisa Series loudspeakers are engineered to deliver superb state-of-the-art sound quality from in-wall/in-ceiling speakers that are designed to blend perfectly with their surroundings and virtually disappear. GoldenEar’s Invisa line-up consists of the Invisa 525, Invisa 650 and SP 652 StereoPoint™ Single-point Stereo speaker, the Invisa Home Theater Reference (HTR) 7000 and the Invisa MPX. All five models incorporate a magnetically attached grill-covered/hidden flange construction that helps to make them virtually invisible.A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format. All five models incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in all of GoldenEar’s award-winning Towers, Bookshelf and Satellite speakers. The Invisa 525 and Invisa 650/652 utilize a one-piece driver/frame/flange construction in order to minimize their footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral part. The Invisa HTR 7000 incorporates our Focus-Field™ Technology with a cast-basket 7" bass/midrange driver and HVFR™ tweeter that are angled under the grille for optimum performance as Main and/or Surround, Rear, Height speakers in a high-quality in-ceiling home theater and music system. The Invisa MPX, with its advanced spaciousness and dispersion, is perfect for in-wall Main or Surround use. All four systems have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality. The 525 and 650 are designed for in-ceiling and in-wall use. Solidly constructed of a marble-infused polymer, the unitized structure actually has the extraordinary high-definition wide-dispersion driver built as an integral part of the frame/flange construction in order to minimize their footprint. The driver motor structures and cone/voice coil assemblies (5.25" in the 525 and 6.5" in the 650) are based on those utilized in GoldenEar’s Triton and Aon speakers. Of course, both also incorporate the GoldenEar High Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance.specIfIcatIons Dimensions: 7-3 /4" diameter. cut-out size: 6-3/16" diameter. Depth: 3-7/16".frequency Response: 27 Hz – 35 kHz. sensitivity: 89 dB. nominal Impedance:Compatible with 8 ohms. Driver complement: One 5-1 /4" bass/midrange driver, One High-Velocity Folded Ribbon (HVFR™) high-frequency radiator. Rec. amp: 10 – 200 Watt/channel. Price for one speaker .
GOLDENEAR INVISA
650
GoldenEar Invisa Series loudspeakers are engineered to deliver superb state-of-the-art sound quality from in-wall/in-ceiling speakers that are designed to blend perfectly with their surroundings and virtually disappear. GoldenEar’s Invisa line-up consists of the Invisa 525, Invisa 650 and SP 652 StereoPoint™ Single-point Stereo speaker, the Invisa Home Theater Reference (HTR) 7000 and the Invisa MPX. All five models incorporate a magnetically attached grill-covered/hidden flange construction that helps to make them virtually invisible.A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format. All five models incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in all of GoldenEar’s award-winning Towers, Bookshelf and Satellite speakers. The Invisa 525 and Invisa 650/652 utilize a one-piece driver/frame/flange construction in order to minimize their footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral part. The Invisa HTR 7000 incorporates our Focus-Field™ Technology with a cast-basket 7" bass/midrange driver and HVFR™ tweeter that are angled under the grille for optimum performance as Main and/or Surround, Rear, Height speakers in a high-quality in-ceiling home theater and music system. The Invisa MPX, with its advanced spaciousness and dispersion, is perfect for in-wall Main or Surround use. All four systems have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality.The 525 and 650 are designed for in-ceiling and in-wall use. Solidly constructed of a marble-infused polymer, the unitized structure actually has the extraordinary high-definition wide-dispersion driver built as an integral part of the frame/flange construction in order to minimize their footprint. The driver motor structures and cone/voice coil assemblies (5.25" in the 525 and 6.5" in the 650) are based on those utilized in GoldenEar’s Triton and Aon speakers. Of course, both also incorporate the GoldenEar High Velocity Folded Ribbon (HVFR™) tweeter and a complex crossover to perfectly blend the drivers for superb performance.specIfIcatIons Dimensions: 8-5/8" diameter. cut-out size: 7-1/8" diameter. Depth: 3-7/16".frequency Response: 25 Hz – 35 kHz. sensitivity: 90 dB. nominal Impedance: Compatible with 8 ohms. Driver complement: One 6-1 /2" bass/midrange driver, One High-Velocity Folded Ribbon (HVFR™) high-frequency radiator. Rec. amp: 10 – 250 Watt/channel. Price for one speaker .

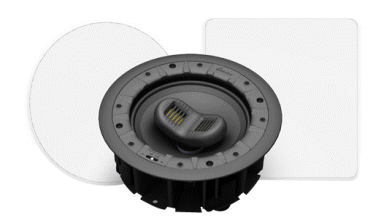

GOLDENEAR INVISA
652
GoldenEar Invisa Series loudspeakers are engineered to deliver superb state-of-the-art sound quality from in-wall/in-ceiling speakers that are designed to blend perfectly with their surroundings and virtually disappear. GoldenEar’s Invisa line-up consists of the Invisa 525, Invisa 650 and SP 652 StereoPoint™ Single-point Stereo speaker, the Invisa Home Theater Reference (HTR) 7000 and the Invisa MPX. All five models incorporate a magnetically attached grill-covered/hidden flange construction that helps to make them virtually invisible.A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format. All five models incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in all of GoldenEar’s award-winning Towers, Bookshelf and Satellite speakers. The Invisa 525 and Invisa 650/652 utilize a one-piece driver/frame/flange construction in order to minimize their footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral part. The Invisa HTR 7000 incorporates our Focus-Field™ Technology with a cast-basket 7" bass/midrange driver and HVFR™ tweeter that are angled under the grille for optimum performance as Main and/or Surround, Rear, Height speakers in a high-quality in-ceiling home theater and music system. The Invisa MPX, with its advanced spaciousness and dispersion, is perfect for in-wall Main or Surround use. All four systems have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality.Invisa SP 652 Overview Similar to the Invisa 650, the Invisa SP 652 is a very versatile all-in-one stereo speaker, which, when both channels are paralleled, also makes a great bipolar surround speaker as well as an in-ceiling Atmos height speaker. Solidly constructed of a marble-infused polymer, the unitized construction actually has the high-definition wide-dispersion dual-wound voice-coil 6-1/2” driver constructed as an integral part, with clear performance advantages. Special care has been taken to minimize deleterious diffraction effects that are common in many other stereo speakers that sink the drivers deeply into the structure. The two superb, but costly, HVFR™ tweeters are mounted in a special acoustically optimized high-frequency pod with a precisely calculated angle to maximize stereo coverage and radiation into the room. It is unique to find tweeters of this quality in single point stereo speakers. Two complex crossovers incorporating the highest quality components are utilized to precisely blend the drivers for seamless exquisite sound quality. A specially contoured santoprene anti-resonance/diffraction-control ring is incorporated around the driver and covering the surrounds to further optimize performance. There is also a high-frequency equalization switch to precisely match the SP 652 to any environme specIfIcatIons Dimensions: 8-5/8" diameter. cut-out size: 7-1/8" diameter. Depth: 3-7/16". Frequency Response: 25 Hz – 35 kHz. sensitivity: 90 dB. nominal Impedance: Compatible with 8 ohms. Driver complement: One 6-1/2" bass/midrange driver,One High-Velocity Folded Ribbon (HVFR™) high-frequency radiator. Rec. amp: 10 – 250 Watt/channel.Price for one speaker .

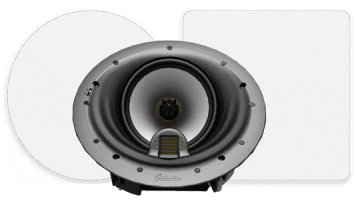

GOLDENEAR INVISAHRT
7000
GoldenEar Invisa Series loudspeakers are engineered to deliver superb state-of-the-art sound quality from in-wall/in-ceiling speakers that are designed to blend perfectly with their surroundings and virtually disappear. GoldenEar’s Invisa line-up consists of the Invisa 525, Invisa 650 and SP 652 StereoPoint™ Single-point Stereo speaker, the Invisa Home Theater Reference (HTR) 7000 and the Invisa MPX. All five models incorporate a magnetically attached grill-covered/hidden flange construction that helps to make them virtually invisible.A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format. All five models incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in all of GoldenEar’s award-winning Towers, Bookshelf and Satellite speakers. The Invisa 525 and Invisa 650/652 utilize a one-piece driver/frame/flange construction in order to minimize their footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral part. The Invisa HTR 7000 incorporates our Focus-Field™ Technology with a cast-basket 7" bass/midrange driver and HVFR™ tweeter that are angled under the grille for optimum performance as Main and/or Surround, Rear, Height speakers in a high-quality in-ceiling home theater and music system. The Invisa MPX, with its advanced spaciousness and dispersion, is perfect for in-wall Main or Surround use. All four systems have complex multi-element crossovers to precisely blend the drivers for seamless, exquisitely natural sound quality. specIfIcatIonsDimensions: 10-1/16" Diameter x 4-15/16". cut-out Dimensions: 9" Diameter. frequencyResponse: 25 Hz – 35 kHz. sensitivity: 90 dB. nominal Impedance: Compatible with8 ohms. Driver complement: One 7" High-Defi nition Cast-Basket MVPP™ Bass/MidrangeDriver, One High-Velocity Folded Ribbon (HVFR™) tweeter. Rec. amp: 10 – 250Watt/channel. Price for one speaker .

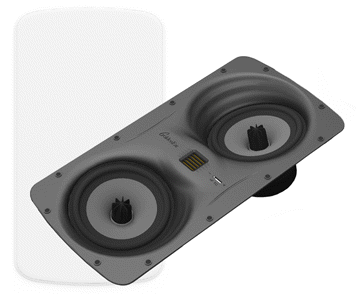

GOLDENEAR INVISA
MPX
GoldenEar Invisa Series loudspeakers are engineered to deliver superb state-of-the-art sound quality from in-wall/in-ceiling speakers that are designed to blend perfectly with their surroundings and virtually disappear. GoldenEar’s Invisa line-up consists of the Invisa 525, Invisa 650 and SP 652 StereoPoint™ Single-point Stereo speaker, the Invisa Home Theater Reference (HTR) 7000 and the Invisa MPX. All five models incorporate a magnetically attached grill-covered/hidden flange construction that helps to make them virtually invisible.A tremendous amount of work has gone into the acoustical engineering of the Invisa Series speakers in order to deliver the highest sound quality possible in an architectural format. All five models incorporate a High Velocity Folded Ribbon (HVFR™) high-frequency radiator similar to the unit used in all of GoldenEar’s award-winning Towers, Bookshelf and Satellite speakers. The Invisa 525 and Invisa 650/652 utilize a one-piece driver/frame/flange construction in order to minimize their footprint. Solidly constructed of a marble-infused polymer, the unitized structure actually has the high-definition wide-dispersion driver constructed as an integral partThe Invisa MPX MultiPolar™ In-Wall/In-Ceiling Loudspeaker combines the advantages of a direct-radiating loudspeaker with the enhanced spaciousness and dispersion of a bipolar speaker. This makes them the perfect choice for the rear or side surround channels of a multi-channel installation, as well as for front main speakers or for distributed audio multi-room installations. It can be easily mounted in walls or ceilings and is very flexible in terms of orientation. Like the other Invisa Series speakers, it has a flat magnetically attached micro-perf grille that covers the flange for an attractive, nearly invisible look. It combines two precisely angled spiderleg cast-basket 4.5" bass/midrange drivers, a High-Velocity Folded Ribbon Tweeter (HVFR™) and a complex precision crossover network with a high-frequency equalization switch. Like the Invisa HTR 7000, it features GoldenEar’s unique Non-Periodic Diffraction Control and Wave-Launch technology for enhanced clarity and source-less sound radiation into the room.™ specIfIcatIons Dimensions: 13-7/8" H x 7-1/4" W x 3-3/4" D. cut-out Dimensions: 12-3/4" H x 6-1/4" W. Frequency Response: 25 Hz – 35 kHz. sensitivity: 90 dB. nominal Impedance: Compatible with 8 ohms. Driver complement: Two 4-1/2" High-Defi nition CastBasket MVPP™ Bass/Midrange Drivers, One High-Velocity Folded Ribbon Tweeter (HVFR™). Rec. amp: 10 – 250 Watt/channel. Price for one speaker .
Legenda istruzioni
Nota bene * Per ordinare o avere gli ultimi prezzi aggiornati telefona al 0174 670100 o invia un E-mail a info@newaudio.it *I prezzi indicati sono di listino ufficiale delle case produttrici ,nel caso di diffusori si riferisce al prezzo del singolo diffusore per offerte ed eventuali promozioni telefonare o inviare e-mail. *Il presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i prezzi indicati possono variare senza preavviso telefonare o inviare un e-mail per ulteriori domande e conferme sui prezzi sopra riportati. *Tutti i marchi citati nel presente listino sono di proprietà e registrati alle rispettive Case Produttrici *Prezzi franco nostro magazzino
|

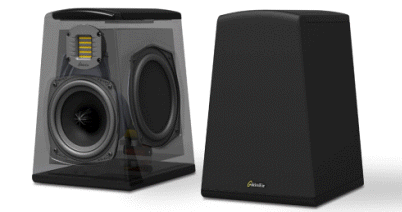

The
Aon 2 and 3 are exceptionally compact, ultra-high-performance bookshelf speakers
that were originally developed for use as nearfield monitors in professional
mixing applications. The design goal was to produce modestly-sized shelf or
stand-mountable speakers that would achieve accurate high-definition sonic
reproduction, with superb three-dimensional imaging, comparable to that achieved
by GoldenEar’s award-winning Triton Two Towers. Although they don’t have quite
the awe-inspiring bass of the floor-standing Tritons, great care has been taken,
and extensive technology has been incorporated, to ensure that the Aons can
deliver a remarkably satisfying listening experience without the need for a
separate subwoofer. Both Aon models incorporate GoldenEar-designed cast-basket
bass/midrange drivers with technology derived from the midrange units developed
for the Tritons. In addition, they both use the same extraordinary and costly
High Velocity Folded Ribbon (HVFR™) high frequency radiator used in the Tritons.
Lastly, each Aon model utilizes two side-mounted planar low-frequency radiators
in a dynamically balanced configuration in order to properly load the bass/midrange
drivers for an open, box-less midrange, while also contributing to the Aons’
remarkably extended bass for such small enclosures. The Aons are of a truncated
pyramidal construction, which results in significant performance advantages due
to the non-parallel cabinet walls and the reduced baffle area around the tweeter.
Aesthetically, the sleek, attractive pyramid-inspired shape combined with
appealing design details including piano-gloss black end-caps, results in
beautiful speakers that are both elegant and distinctive Aon 2 The
ultra-compact, 12" Tall Aon 2 Bookshelf Monitor (on right in the photo to right)
incorporates a 6", High-Definition, Multi-Vaned Phase Plug (MVPP™), cast-basket
Mid-Bass Driver, coupled to two 6-1/2" Inertially-balanced side-mounted Low
Frequency Radiators and the GoldenEar High-Velocity Folded Ribbon Tweeter (HVFR™).
Click here to read the Brochure.SPECIFICATIONS Dimensions: 8" W x 10" D
x 12" H. Frequency Response: 42 Hz – 35 kHz. Sensitivity: 89 dB. Nominal
Impedance: Compatible with 8 ohms. Driver Complement: One 6" cast-basket bass/midrange
driver, One High-Velocity Folded Ribbon (HVFR™) high-frequency radiator, Two
6-1/2" side-mounted planar low-frequency radiators. Rec. Amp: 10 – 200 Watt/channel.Price
for one speaker .
