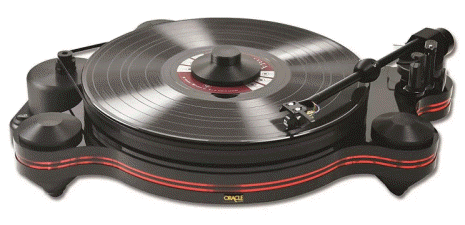

ORACLE ORIGIN
Listino ufficiale
€. 3.950,00
Il nuovo giradischi
Origine è stato creato con un obiettivo in mente; per rispondere alla domanda
storica di un giradischi economico, di qualità e di lunga durata da parte di
Oracle Audio! Proprio come per gli altri nostri prodotti, il giradischi Origine
è progettato, realizzato e assemblato al 100% presso la nostra fabbrica in
Canada. Sebbene Origine sia il punto di ingresso della nostra linea di prodotti,
mantiene gli elevati standard di eccellenza che ci si aspetta da Oracle
Audio!Con il suo profilo a forma di impronta del nostro giradischi di punta
Delphi, con il suo sistema di piedi derivato dai nostri lettori CD e con il
piatto ereditato dal giradischi di Parigi, l'Origine porta la firma del design
di Oracle. Ospita un portamandrino a due boccole che è un diretto discendente
del cuscinetto principale vintage di Delphi, che funziona ancora bene oggi dopo
oltre 30 anni! L'Origine è dotato di un motore AC sincrono fuoribordo che aziona
il piatto utilizzando una cinghia attorno al suo perimetro. La puleggia a due
fasi dell'Origine consente la riproduzione a 331/3 e 45 giri/min.Il giradischi
è dotato del nuovo braccio Origine e con o senza un Ortofon MC-1 Turbo in
dotazione; una cartuccia fono a bobina mobile ad alto rendimento. Questo braccio
unipivot è progettato in modo intelligente con il punto di contatto del perno
posizionato sullo stesso piano del punto di contatto del disco con lo stilo e
con il contrappeso della forza di tracciamento per una maggiore stabilità
durante il tracciamento dei solchi. La conformità di una testina fono, o
l'"elasticità" del gruppo sospensione cantilever/motore, gioca un ruolo
importante con i bracci unipivot. Affrontiamo questo problema utilizzando un
peso del tubo del braccio mobile che abbiamo soprannominato "l'oliva" che
consente di variare la massa effettiva del braccio. Questa regolazione consente
di ottenere una migliore corrispondenza tra conformità e massa effettiva,
consentendo così l'utilizzo di una gamma molto ampia di cartucce fono con
Origine
Versione Origine MK2, Braccio Origine,
Testina ORTOFON MC1 P 3.990,00 euro
Optional
Inserto Acrilico – Origine MK2 Prezzo: 99 Euro
Teca – Origine MK2 Prezzo: 250 Euro
Rero LED – Origine MK2 Prezzo: 170 Euro
Inserto Acrilico – Origine MK2 – 3 pack Prezzo: 290 Euro
Inserto Acrilico – Origine MK2 – 6 pack Prezzo: 590 Euro
Inserto Acrilico – Origine MK2 – 9 pack Prezzo: 890 Euro

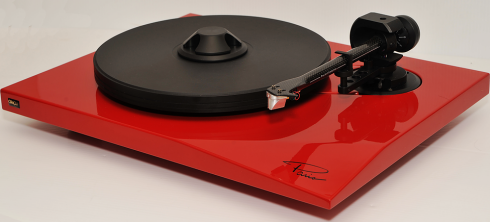

ORACLE
PARIS
MKV
Listino ufficiale
€. 3.990,00
Il Paris è un giradischi semi flottante,con trazione a cinghia e
un sistema di sospensione molto originale.La base rigida, in fibra ad alta
densità, poggia su tre piedini in Delrin,una resina acetalica simile alla
plastica ma molto resistente e leggeraIl motore è un AC sincrono a basso
voltaggio,chiuso in una capsula in lega metallicasituata sotto la superficie
inferiore del plinto rigido, smorzato per mezzo di un anello in polimero
morbido.Tipo: giradischi semiflottante Trasmissione: a cinghiaMotore: AC
sincrono Velocità: 33/45 giri regolabile Prezzo escluso
Braccio
Versione con
Alimentazione Normale e Braccio Carbon 4.990,00 euro
Versione con
alimentazione turbo mkII 4.990,00 euro
Versione con
Alimentazione turbo mkII e Braccio Carbon 5.990,00 euro
While re-thinking the new MkV we felt it was very
important to maintain the design signature of the original Paris turntable.
Everything else is a total redesign! The Oracle mechanical design concepts are
always intimately linked to the overlapping of different materials interacting
within a same assembly for an optimal control of vibrations and resonances. The
Paris MkV follows that same construction philosophy. Compared with the Delphi
MkVI which has a very sophisticated full floating spring suspension and micro
vibration stabiliser system, the Paris suspension is very efficient while being
much simpler. It has been completely redesigned taking into account the findings
that led to the development of the Delphi MkVI. The platter and tonearm are
mounted on a semi floating chassis using a suspension made of fibreglass rods
and sorbothane rings. The combination of these materials contributes to
virtually eliminate the access of unwanted vibrations to the semi floating
chassis where the platter, the tone arm and the phono cartridge are interacting.
The Paris tonearm, available as an option, features a micro vibration damping
system specially developed by Oracle to eliminate undesirable resonances and
vibrations generated within the tonearm itself due to the interaction of the
needle with the disc. The combination of the suspension efficiency coupled with
the micro vibration control system provides true isolation from the external
environment allowing the stylus to retrieve the most accurate information from
the record groove. The Paris is a belt driven turntable and has a low voltage
synchronous AC motor. The drive electronics of the Paris has a very high
precision oscillator circuit which creates a perfect sine wave signal to feed
the motor ensuring high rotational accuracy for optimal speed stability. This
system also isolates the drive electronics from line voltage impurities and
fluctuations. The above features combined to the choice of materials are the
essence of a high performance turntable and together explain the Paris
outstanding music reproduction!Specifications Drive: AC synchronous motor,
belt driven, external power adapterPlatter: Two piece platter consisting of an
aluminum hub supporting the main acrylic platter. Plinth dimension: (WxDxH) 19,5
x 15 x 5 inches. The height measured at the top of tonearm is 5"; the
height becomes 6" with the dustcover installed. Speed selection: Two buttons for
33 and 45 rpm, adjustable with potentiometer. Suspension system: Adjustable,
semi-floating sub-chassis on dual rod suspension system made of fibreglass and
sorbothane decoupling. Tonearm mounting specs: Maximum center to center tonearm
length accepted: 228 mm. * The Paris tonearm has for basic structure the Project
9CC carbon tonearm. Oracle Audio developed the micro vibration silicone damping
device for this tonearm which greatly enhances its performance. The Project 9cc
damping kit is offered as an upgrade for anyone who owns a Project 9cc tonearm!
Power requirements: 100 / 120 / 230 volts @ 50 / 60 HzTurntable weight: 7 Kg (
15 pounds )Regular power supply: 24 to 28 VDC / 500ma ( standard configuration
)*Our optional Turbo Power Supply MkII is highly recommended for a maximum
performance level!

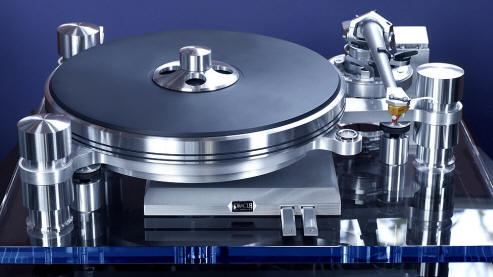

ORACLE
DELPHY
MKVI
Listino ufficiale
€. 12.500,00
DELPHI MKVI
Caratteristiche: Chassis: Alluminio spazzolato, Base in Acrilico Trasparente
Sistema di Sospensione: Brevettato con 12 componenti e 7 filtri meccanici per
torre. Trascinamento: Cinghia, Motore AC sincrono specificatamente progettato.
Clamp: Specificatamente progettato Dimensioni: 363 mm x 475 mm x 150 mm Peso: 18
Kg senza alimentazione esterna Prezzo escluso
Braccio
Versione
acrilica con alimentazione turbo mkii 13.500,00 euro
Versione in
granito con alimentazione turbo mkii 15.500,00 euro
Versione
Signature con alimentazione turbo mkii 16.500,00 euro
Optional
Teca Metacrilato e
Cerniere:+ 550 Euro
TP MK2 –
Alimentazione Turbo Prezzo: 1190 Euro
Since 1979, Oracle Audio has been producing
state-of-the-art stereo components. Oracle's first turntable, the AC model,
introduced new features and technologies to the analog world. Oracle's Delphi
MkI was introduced in 1980. The new Delphi MkVI is the sixth edition of the
Delphi's line heritage. Through the years the Delphi won numerous prestigious
awards and it has been acclaimed worldwide! The Delphi MkVI was awarded the
Analog Grand Prix 2010 Gold Award from Japan, more recently Enjoy the
Music.com's Best of 2014 Blue Note Award. To this day the Delphi is still
Oracle's flagship product and still serves as a reference in the analog
community!Using the finest components and design technologies, the Oracle Delphi
MkVI is exquisite in all aspects. Like its predecessors the Delphi MkVI is
supported by three suspension pillars to efficiently control unwanted vibrations.
It harbors a massive belt-driven platter that uses a center clamp system first
introduced by Oracle back in 1979. The Delphi's floating chassis, milled from
solid billets of aluminum, is an extremely rigid and inert structure supporting
the tonearm and the platter. While the fabrication process of the Delphi is one
of minute precision its development process is one of science and emotion; to
bring out all of the music's depth and detail. Truly the Delphi MkVI is a work
of art! The Delphi MkVI was launched in late 2009 featuring our new and
innovative Micro Vibration Stabilizer System which took its performance level to
new heights! Today, summer 2015, we are introducing the Delphi MkVI Second
Generation. This latest edition features a two-piece platter assembly which
greatly facilitates drive belt installation while also reducing platter
resonances. Our drive electronics module was also modified and now harbors a
larger power reserve which provides more torque to the motor. Although it is
offered as an option, our recently revised Turbo Power Supply MkII exceeds all
our expectations! It has a signal that is so stable it outperformed our
references! We consider the Turbo Power Supply MkII as a fundamental part of the
Delphi MkVI Second Generation. The new Delphi MkVI Second Generation provides a
higher dynamic contrast than ever largely due to its improved transient response
resulting in a remarkable ability to preserve the harmonic structure of the
music. Driven by our new Turbo Power Supply MkII the Delphi MkVI Second
Generation will transform your listening sessions into unforgettable lifelike
experiences The global concept of the new Oracle Delphi MkVI, now in its 35th
year, was developed around the control of micro vibrations and micro calibration.
The micro vibration can be introduced from the inside as well as from the
outside. We have to understand that the micro movement of the phono cartridge’s
stylus is extremely vulnerable when capturing the minute deviations from the
record groove. At the same time this stylus is extremely powerful because it
sends through the system a vibrational energy that can and will stimulate other
vulnerable components. This will also translate into resonances. How can it
happen? Resonances generated by the tonearm bearings and the tonearm tube will
go back all the way to the stylus and induce a coloration that is in no way
related to the music being reproduced. Tonearm bearings play an extremely
important role in the quality and integrity of the signal reproduction. Any
micro movement within the tonearm bearings will also translate into a mechanical
cancellation (two objects moving simultaneously in opposite directions). This
means that the stylus will not capture all the micro signals engraved on the
vinyl recording. When we think about the vibrational energy generated from the
outside of the record player it is extremely difficult to identify all the
sources that can affect the system but it is possible to regroup most of them
into 3 categories: electrical, mechanical and acoustical. I will not address the
electrical aspect here. For the other two categories the best option would be to
completely isolate the player from the sound room in order to protect it against
the sound pressure level. As for vibration, the use of an extremely massive
platform would help keeping the unwanted mechanical energy outside of the
picture. This would not be realistic and certainly not aesthetically successful!
The magnetic isolation can be a solution but at the same time it can be a
significant part of the problem. What changes have been made to the drive
modules? The Delphi MkVI is a work of technical development and design
aesthetics. As far as the aluminum drive module is concerned we made a cosmetic
change to reach the visual balance of the new MkVI. The major change on the
circuit with respect to the MkV series was to go from a circuit in fully
discrete components to a surface mount configuration. The MkVI Second Generation
version was modified to increase the current supply to the motor resulting in a
motor torque increase of about 15%. Although minor this upgrade has a
significant impact on the sonic performance of the Delphi MkVI Second
Generation. We use a low voltage, precise synchronous AC motor on the Delphi
MkVI Second Generation.What is the influence of the bigger sub-chassis on the
performance of the MkVI? The floating sub-chassis of the Delphi MkVI was made
larger than its predecessors. By using a larger sub-chassis we have improved the
weight distribution simplifying the suspension calibration. The purpose of the
counter-weight is to add more mass to the front left suspension tower to more
efficiently counter-balance the mass of the tonearm. The coupling of the
counter-weight to the floating sub-chassis also contributes in reducing internal
sub-chassis resonances. Its positioning, well in sight on the inferior part of
the sub-chassis, is a design detail meant to bring the Delphi a more massive
look. The central part of the floating sub-chassis was made larger which had for
effect to reduce the length of the three legs extending towards the suspension
towers. We also increased the rigidity of the tonearm mounting section by
widening the tonearm mounting ring support by about 35 percent. How does the
MkVI bearing system differs from the MkV? The MkVI bearing system maintained the
6 point contact configuration that was developed for the MkV. We are now using a
different material for the 6 calibration set screws. The main advantage of the
MkVI bearing lies in the fact that the 6 new precision set screws are virtually
inert to temperature change. This allows us to calibrate the main bearing system
with greater accuracy and closer tolerances. This has a huge and direct impact
on the signal reproduction quality of the Delphi MkVI. The MkVI bottom trust
plate has been replaced with a polyamide-imide (PAI) high strength plastic with
the highest strength and stiffness of any thermoplastic. It has outstanding
resistance to wear. The impact of this new trust plate is extremely significant
on the sound quality because of its ability to limit the noise generated by the
spinning platter. The sonic benefits of the new MkVI bearing system are
extremely significant and they are drastically revealed especially when in
combination with the micro-vibration stabilizer system (MVSS). How significant
is the Micro Vibration Stabilizer System? The Micro Vibration Stabilizer
System is the single most significant and most efficient improvement made to the
Oracle turntable since its creation 35 years ago! The MVSS system represents the
final barrier to the elimination of the micro vibrations. This system will
virtually eliminate the access of micro vibrations to the most critical part of
the turntable, the sub-chassis, tonearm, phono cartridge and platter assembly.
What is the purpose of the MVSS? The purpose of the MVSS is to capture and
dissipate the micro vibrations that are present within the floating sub-chassis
without short circuiting the efficiency of the Oracle suspension system. By
eliminating the micro vibrations the stylus / platter interaction becomes more
accurate, the stylus becomes more stable and better controlled. This increased
stability allows the phono cartridge to retrieve more information from the
record groove which translates into a more accurate signal reproduction which
will not only impact the lower register but the whole spectrum. This global
improvement will be very noticeable at all levels: improved musical accuracy,
harmonic integrity, transient's sharpness, dynamic contrast, tonal balance,
depth of image. The listener suddenly becomes more musically involved and this
is a very unique experience! How does the MVSS system control work? Beside each
suspension tower a small reservoir is secured to the acrylic base of the Delphi.
They are filled with an extremely low viscosity silicone fluid. Again, near the
suspension housings a threaded stem is mounted to the bottom section of the
sub-chassis, those are lining up with the silicone reservoirs, a threaded lock
nut and a tapered shape plunger will complete the mechanism. Once the tonearm
and cartridge are precisely calibrated, the suspension system perfectly adjusted
the turntable is ready to operate. The plungers on each sub-chassis leg are now
lining up with the reservoirs mounted to the acrylic base. When in the fully up
position the plungers do no come in contact with the silicone fluid in the
reservoirs.It is then possible to play your Oracle without the MVSS in operation.
Then experiment with the calibration of the plungers by turning them clockwise
when viewing them from above the turntable as reference. Each full turn will
generate a plunger displacement of 1,27mm (0,050”). The same calibration should
be done for each plunger. Since we are dealing with micro vibrations it is
extremely important to lock the plunger in position with the locking ring.
Moving the plungers by one turn increments will reveal how they influence the
performance. At the factory the best results were achieved between 1½ and 2 full
rotations of the plungers. This represents a plunger penetration from 1.90mm à
2.54mm 2,80mm into the silicone fluid. We also believe that the ambient
temperature has little influence on the depth calibration of the plungers. The
type of support furniture or the nature of the flooring may require some fine
tuning of the calibration. The MVSS calibration is done by listening to music so
it is in fact a matter of finding the sweet spot where we get the best
equilibrium. What about the new Delrin adjustable feet? In our quest to further
increase the performance level of the new MkVI we did not hesitate to challenge
each of the systems we had in place on the Oracle Delphi. Extensive testing and
listening test convinced us that the use of Delrin was extremely beneficial to
the performance of the turntable. We found the new MkVI Delrin adjustable feet
to provide a better sonic balance with all the different equipment racks it has
been tested. This new system further improves the natural tones of the
instrument and voices. In fact, it is the whole musical spectrum that is gaining
from this new system! Has the power supply been changed at all? The basic
version of the Delphi MkVI comes with a simple and efficient power supply. The
Turbo Power Supply MkII is optional but highly recommended as it brings a
substantial improvement to the performance level of the Delphi. Its DC power
cord is made out of highly performing monofilament thread. What contributes the
most to the sonic improvement we get from using the new Turbo Power Supply MkII
is the reduction of the parasitic noise (ripple) to less than one millivolt,
down from 120 millivolt ripple in the signal of the previous Turbo Power Supply
MkI version. Suspension: The Delphi
sub-chassis / platter / tonearm assembly is suspended by a tripedal mounting,
which eliminates room vibrations. Each suspension tower assembly combines 12
different components, using 7 different mechanical filters, all working as a
whole to efficiently control unwanted vibrations. Bearing assembly: The
traditional two bushing system has been replaced by a new system using six
precision surfaced nylon screws. With this, Oracle reaches the highest level of
rotational accuracy. Motor drive electronics and drive belt:Oracle selected a
specially designed AC synchronous motor. The Delphi MkVI features a dual current
drive circuitry. This provides maximum start-up torque energy and minimum
efficient operational energy, which guarantees lowest possible motor vibration.
The molded belt plays an important role in maintaining maximum speed stability.
Record / Platter: The maximum rigidity of the 4kg (8.8 pound) platter is immune
to vibration by distributing most of the mass around its outer edge. The
flywheel effect increases momentum. Record coupling system (standard): Oracle
pioneered the now well established “record clamp system” to solve specific vinyl
disc “warp” problems. Hard acrylic mat: The Oracle acrylic mat made from
specially formulated polymer shows better matching characteristics (impedance)
with the vinyl disc. Sub-chassis: Oracle demonstrates that superior engineering
can also be aesthetic. The hand brushed aluminum with a clear lacquer coated
skeletal sub-chassis will dissipate unwanted energy through efficient coupling
and clamping methods. Maximum rigidity, minimal surface area and energy control
are key design. Plinth: The standard plinth is Clear Acrylic. An optional Black
Granite plinth is available for an extra charge. Power Supply: The Delphi MkVI
comes standard with a regular power supply. The optional Turbo Power Supply MkII
is the result of an extensive development and performance comparisons between
reference elements such as special batteries and monstrous power source. The
Oracle Turbo Power supply outperformed them all! The turbo power source
transforms an outstanding performance into a wonderful musical experience. Both
power supplies ship with a removable power cord. Oracle/SME Tonearm (Optional):
The Oracle/SME tonearm provides superbly detailed and transparent sound, making
the music seem more alive and open. This tonearm offers differing pivot to
stylus distances and was designed for the needs of a broader market requiring
alternative arm length and interchangeable shell facility. The internal wiring
of the tonearm is upgraded to Van den Hul MCS 150 silver litz wire. Dimensions:
363 X 475 X 150 mm 14.5 X 19 X 6 in Weight: with acrylic base: 16 kg - 35 pounds
ORACLE
CD 1000
MKlll
Listino ufficiale
€. 10.500,00
Caratteristiche: Chassis: Alluminio Ricavato dal pieno spazzolato Meccanica: CD
PRO II Philips Uscite: BNC, SP/DIF, XLR AES/EBU, ST (AT&T) Optical Consumo: 13
Watts Alimentazione: Separata, Trasfaramtore 800 VA Dimensioni: 419 mm x 152 mm
x 355mm Peso: 22 kg Con telecomando in alluminiio

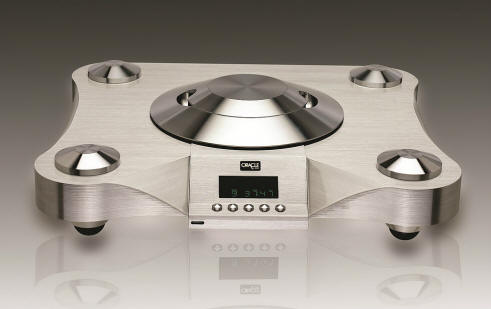

Many of the problems that affect the accurate
reproduction of recorded music derive from unwanted internal or external
vibration. To address this issue the chassis of the CD 1000 series is sculpted
in a massive aluminum block. The CD drive unit is decoupled from the main frame
through delrin pillars. Urethane feet act as a suspension/mechanical filter to
efficiently decouple the unit from its external environment. Furthermore, our
disc clamping systems originally used in our analog turntables have been adapted
for use in our "State of the Art" CD Players. The CD 1000 MkIII is a reference
digital transport that uses the Phillips CD PRO2 drive. Oracle analog and
digital products have always been designed and built as "musical instruments"
that can stand the test of time. It is our belief that achieving simplicity in
design is a combination of knowledge and common sense. A properly designed
device creates its own form; one that reflects the beauty of its function. True
artistry combines these elements by means of the whole being greater than the
sum of its parts. "Most likely designed to resemble its more expensive older
sibling, the CD 1000 is in reality a much better looking machine. As sleek as
the Stealth fighter and probably containing nearly as much digital power, the CD
1000 is low slung like an Italian sports car, its hand-brushed aluminum in clear
lacquer coating absolutely stunning to behold." Ken Micaleff, 6moons.com - 2007
Specifications Digital Audio Signal, XLR, AES/EBU, ST (AT&T), BNC SP/DIF.
Optical Audio signal format: single ended SP/DIF. Load Impedance: 75 Ohms Output
Impedance: 75 Ohms Output Level: 0.5 Volts, peak to peak @ 75 Ohms. AES/EBU
Digital signal format: XLR Load Impedance: 110 Ohms Output Impedance: 110 Ohms
Output Level: 4 Volts, peak to peak @ 110 Ohms. Optical signal nominal
wavelength: 650nm Dimensions: ( 16.5 x 6 x 14 ) inches Weight: 30 pounds (approx)
ORACLE
CD 2500
MKlll
Listino ufficiale
€. 20.500,00
CD 2500 MKIII (Riferimento Assouluto)
Caratteristiche: Chassis: Alluminio Ricavato dal pieno spazzolato Smorzamento
delle vibrazioni tramite sistema brevettato Meccanica: CD PRO II Philips
Conversione: Basato su Cirrus Logic Crystal one bit chipset (24 bit-192 Khz)
Oversampling: 128X Uscite: BNC, SP/DIF, XLR, RCA Consumo: 15 Watts
Alimentazione: Separata, Trasfaramtore 800 VA Dimensioni: 425 mm x 150 mm x
363mm Peso: 16 kg (alimentazione a parte) Con telecomando in alluminiio Prezzo:
19.300 Euro

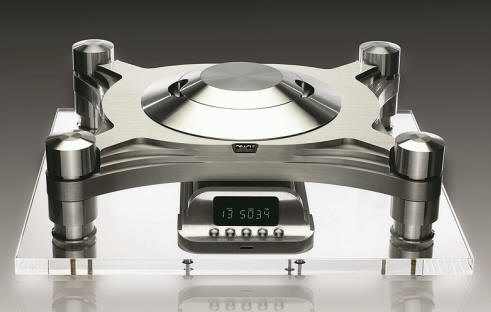

About the CD2500 MkIV CD player & the CD2000
MkIII CD transport Oracle analogue and digital products have always been
designed and built as "musical instruments" that can stand the test of time. It
is our belief that achieving simplicity in design is a combination of knowledge
and common sense. A properly designed device creates its own form; one that
reflects the beauty of its function. True artistry combines these elements by
means of the whole being greater than the sum of its parts. Many of the problems
that affect the accurate reproduction of recorded music derive from unwanted
internal or external vibration. To address this issue the CD2000 MkIII and
CD2500 MkIV use a massive aluminum floating chassis and a Delrin decoupling
system of the cd drive. Furthermore, our unique suspension and disc clamping
systems originally used in our analog turntables, have been adapted for use in
our "State of the Art" CD Players. The CD2500 MkIV harbors a new DAC board that
uses the Burr Brown PCM1792 which allows input and output of digital data of up
to 24bits/192khz. The CD player uses four independent and fully discrete analog
modules, one for each of the analog signals from the PCM1792. These analog
modules which have been further improved from previous versions are at the
center of the music reproduction quality. The CD2500 MkIV can be used as your
reference DAC for other digital sources since it features a SPDIF digital signal
input. Both the CD2000 MkIII and CD2500 Mk IV have had their power supply stage
totally redesigned. There is better realism, more dynamics and we are closer to
a true analog-like sound than ever! Design & Technology CD Turntable Interface
Because the CD vibrates slightly due to the high rotational spin speed of the CD
mechanism this vibration problem or "chatter problem" had to be addressed.
Oracle Audio created an interface system that effectively controls this unwanted
vibration through an innovative combination of materials and their interaction.
CD Coupling System Chatter is a persistent feature of the compact disc, and it
causes a major problem. The chatter or wobble of the disc causes the laser to
lack focal clarity which results in distortion or misread information. This in
turn causes the error correction circuitry to have to operate and sometimes to
excess. Oracle pioneered the now well established record clamp system to solve
problems with analogue records back in 1979. A similar system has been developed
by Oracle to combat CD chatter. Our Disc clamp acts to eliminate the chatter by
magnetism coupled with a slight vacuum created by a thick Urethane washer;
together these two effects solved the problems. Craftsmanship In order to
achieve an impeccable natural finish on most of the machined parts, diamond
cutting tools are used extensively. Each aluminium component is hand brushed and
coated with a high gloss polyester lacquer to seal and preserve the beautiful
natural appearance. At Oracle Audio Technologies, people make the difference in
manufacturing, they are craftsmen devoted to serving our customers. Their work
creates pride of ownership; their passion for detail shows at every step of the
manufacturing process. Their manufacturing techniques and skills result in a
work of art. The floating chassis The floating chassis plays an important role
within the CD 2500 and CD 2000; it must rigidly support both the mechanism and
the adjacent electronics. Its maximum rigidity, its minimal surface area and
energy control are key its design parameters. The floating chassis system as a
whole, due to its high mass, contributes in effectively controlling vibrations
with the aid of additional mechanical filters. The chassis nylon sleeve within
the Cd enclosure eliminates the high frequencies, the Delrin drive decoupling
pillars remove medium and high frequency interferences from the vicinity of the
drive mechanism. Finally, a Urethane compound acts as a mechanical energy trap
reducing any remaining vibration to an insignificant level. Suspension Because
the world around a CD player vibrates, the mechanism must be isolated from it.
Oracle’s suspension system has proved to be virtually the very best in the
industry. The Oracle CD 2500'S and CD 2000's floating chassis assembly is
suspended and isolated from room vibrations using four suspension towers. Each
suspension tower assembly combines no less than 12 different components on both
the CD Drive/Player. The suspension system is a highly sophisticated device
combining 7 different mechanical filters all working as a whole to effectively
control unwanted vibrations. The CD player's levelling feet with their convex
shape represent the first barrier to limit vibrations from reaching the CD
playing platform. The delrin suspension pillars will cut mid and higher
frequencies and the upper spring rubber bushing controls spring resonances while
the conical shape suspension spring takes care of the crucial lower frequencies.
The spring adjustment sleeve provides spring calibration while controlling
spring resonances and the sorbothane damper represents the mechanical energy
trap reducing vibrations to an insignificant level. Finally, the felt dampers
control inner spring resonances. CD2500 Mk IV Input / Output Interface:
Analog output: 1 Pair RCA, 1 pair XLR Balanced.RCA SP/DIF digital signal output:
RCA, SP/DIFLoad Impedance: 75 Ohms Output Impedance: 75 Ohms Output Level: 0.5
Volts, peak to peak @ 75 Ohms. Output Impedance: Lower than 100 Ohms. Analog
Output Level: RCA single ended 2 Volts RMS, XLR 4 Volts RMS. DAC: Burr Brown
PCM1792-AG. Resolution: 24 bits @ 192 KHz. Signal to noise ratio: 129 dB Dynamic
Range: 123 dB Total Harmonic Distortion: 0,0015%Analog frequency response: 10 –
50 KHz +/-0,3 dB RCA.
ORACLE
CD 1000
MKlll
Listino ufficiale
€. 10.500,00
Meccanica CD 1000 MKII
Caratteristiche: Chassis: Alluminio Ricavato dal pieno spazzolato Meccanica: CD
PRO II Philips Uscite: BNC, SP/DIF, XLR AES/EBU, ST (AT&T) Optical Consumo: 13
Watts Alimentazione: Separata, Trasfaramtore 800 VA Dimensioni: 419 mm x 152 mm
x 355mm Peso: 22 kg Con telecomando in alluminiio
Many of the problems that affect the accurate
reproduction of recorded music derive from unwanted internal or external
vibration. To address this issue the chassis of the CD 1000 series is sculpted
in a massive aluminum block. The CD drive unit is decoupled from the main frame
through delrin pillars. Urethane feet act as a suspension/mechanical filter to
efficiently decouple the unit from its external environment. Furthermore, our
disc clamping systems originally used in our analog turntables have been adapted
for use in our "State of the Art" CD Players. The CD 1000 MkIII is a reference
digital transport that uses the Phillips CD PRO2 drive. Oracle analog and
digital products have always been designed and built as "musical instruments"
that can stand the test of time. It is our belief that achieving simplicity in
design is a combination of knowledge and common sense. A properly designed
device creates its own form; one that reflects the beauty of its function. True
artistry combines these elements by means of the whole being greater than the
sum of its parts. "Most likely designed to resemble its more expensive older
sibling, the CD 1000 is in reality a much better looking machine. As sleek as
the Stealth fighter and probably containing nearly as much digital power, the CD
1000 is low slung like an Italian sports car, its hand-brushed aluminum in clear
lacquer coating absolutely stunning to behold." Ken Micaleff, 6moons.com - 2007
Specifications Digital Audio Signal, XLR, AES/EBU, ST (AT&T), BNC SP/DIF.
Optical Audio signal format: single ended SP/DIF. Load Impedance: 75 Ohms Output
Impedance: 75 Ohms Output Level: 0.5 Volts, peak to peak @ 75 Ohms. AES/EBU
Digital signal format: XLR Load Impedance: 110 Ohms Output Impedance: 110 Ohms
Output Level: 4 Volts, peak to peak @ 110 Ohms. Optical signal nominal
wavelength: 650nm Dimensions: ( 16.5 x 6 x 14 ) inches Weight: 30 pounds (approx)
ORACLE
CD 2000
MKlll
Listino ufficiale
€. 15.500,00
Meccanica CD 2000 MKII (Riferimento Assouluto)
Caratteristiche: Chassis: Alluminio Ricavato dal pieno spazzolato Meccanica: CD
PRO II Philips Uscite: BNC, SP/DIF, XLR AES/EBU, ST (AT&T) Optical Consumo: 13
Watts Alimentazione: Separata, Trasfaramtore 800 VA Dimensioni: 425 mm x 150 mm
x 363mm Peso: 16 kg (alimentazione a parte) Con telecomando in alluminiio
About the CD2500 MkIV CD player & the CD2000
MkIII CD transport Oracle analogue and digital products have always been
designed and built as "musical instruments" that can stand the test of time. It
is our belief that achieving simplicity in design is a combination of knowledge
and common sense. A properly designed device creates its own form; one that
reflects the beauty of its function. True artistry combines these elements by
means of the whole being greater than the sum of its parts. Many of the problems
that affect the accurate reproduction of recorded music derive from unwanted
internal or external vibration. To address this issue the CD2000 MkIII and
CD2500 MkIV use a massive aluminum floating chassis and a Delrin decoupling
system of the cd drive. Furthermore, our unique suspension and disc clamping
systems originally used in our analog turntables, have been adapted for use in
our "State of the Art" CD Players. The CD2500 MkIV harbors a new DAC board that
uses the Burr Brown PCM1792 which allows input and output of digital data of up
to 24bits/192khz. The CD player uses four independent and fully discrete analog
modules, one for each of the analog signals from the PCM1792. These analog
modules which have been further improved from previous versions are at the
center of the music reproduction quality. The CD2500 MkIV can be used as your
reference DAC for other digital sources since it features a SPDIF digital signal
input. Both the CD2000 MkIII and CD2500 Mk IV have had their power supply stage
totally redesigned. There is better realism, more dynamics and we are closer to
a true analog-like sound than ever! Design & Technology CD Turntable Interface
Because the CD vibrates slightly due to the high rotational spin speed of the CD
mechanism this vibration problem or "chatter problem" had to be addressed.
Oracle Audio created an interface system that effectively controls this unwanted
vibration through an innovative combination of materials and their interaction.
CD Coupling System Chatter is a persistent feature of the compact disc, and it
causes a major problem. The chatter or wobble of the disc causes the laser to
lack focal clarity which results in distortion or misread information. This in
turn causes the error correction circuitry to have to operate and sometimes to
excess. Oracle pioneered the now well established record clamp system to solve
problems with analogue records back in 1979. A similar system has been developed
by Oracle to combat CD chatter. Our Disc clamp acts to eliminate the chatter by
magnetism coupled with a slight vacuum created by a thick Urethane washer;
together these two effects solved the problems. Craftsmanship In order to
achieve an impeccable natural finish on most of the machined parts, diamond
cutting tools are used extensively. Each aluminium component is hand brushed and
coated with a high gloss polyester lacquer to seal and preserve the beautiful
natural appearance. At Oracle Audio Technologies, people make the difference in
manufacturing, they are craftsmen devoted to serving our customers. Their work
creates pride of ownership; their passion for detail shows at every step of the
manufacturing process. Their manufacturing techniques and skills result in a
work of art. The floating chassis The floating chassis plays an important role
within the CD 2500 and CD 2000; it must rigidly support both the mechanism and
the adjacent electronics. Its maximum rigidity, its minimal surface area and
energy control are key its design parameters. The floating chassis system as a
whole, due to its high mass, contributes in effectively controlling vibrations
with the aid of additional mechanical filters. The chassis nylon sleeve within
the Cd enclosure eliminates the high frequencies, the Delrin drive decoupling
pillars remove medium and high frequency interferences from the vicinity of the
drive mechanism. Finally, a Urethane compound acts as a mechanical energy trap
reducing any remaining vibration to an insignificant level. Suspension Because
the world around a CD player vibrates, the mechanism must be isolated from it.
Oracle’s suspension system has proved to be virtually the very best in the
industry. The Oracle CD 2500'S and CD 2000's floating chassis assembly is
suspended and isolated from room vibrations using four suspension towers. Each
suspension tower assembly combines no less than 12 different components on both
the CD Drive/Player. The suspension system is a highly sophisticated device
combining 7 different mechanical filters all working as a whole to effectively
control unwanted vibrations. The CD player's levelling feet with their convex
shape represent the first barrier to limit vibrations from reaching the CD
playing platform. The delrin suspension pillars will cut mid and higher
frequencies and the upper spring rubber bushing controls spring resonances while
the conical shape suspension spring takes care of the crucial lower frequencies.
The spring adjustment sleeve provides spring calibration while controlling
spring resonances and the sorbothane damper represents the mechanical energy
trap reducing vibrations to an insignificant level. Finally, the felt dampers
control inner spring resonances. CD2000
Mk III Output Interface: BNC SP/DIF Digital Audio Signal, XLR, AES/EBU, ST
(AT&T) Optical Audio Signal Single Ended SP/DIF, Load Impedance: 75 Ohms
Output Impedance: 75 Ohms Output Level: 0.5 Volts, peak to peak @ 75 Ohms. AES/EBU
Digital Audio Signal Format: XLR Load Impedance: 110 Ohms Output Impedance: 110
Ohms Output Level: 4 Volts, peak to peak @ 110 Ohms. Optical signal nominal
wavelength: 650 nm
Legenda istruzioni
 Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
