Founded in 1991 by legendary
audio designer Nelson Pass, Pass Laboratories, Inc. markets its unique
amplifiers, preamplifiers and speakers throughout the world. The company has
been based in Foresthill, California, since its beginning, and is widely
regarded as one of the most innovative audio brands in the world. Our critically
acclaimed Aleph, X and XA-Series products have won numerous awards, and Founder
Nelson Pass holds numerous audio patents. His achievements include developing
the first dynamically biased Class A amplifier circuit, developing a fully
cascode audio power amplifier, and developing the Stasis amplifier in 1977. He
helped popularize solid-state, single-ended Class A power amplifiers, and
developed the very successful Aleph series of products, and the Super-Symmetry™
circuit, which achieves exceptionally low distortion and noise levels. The
company is now poised to introduce a new generation of amplifiers and other
high-performance audio products.

PASS LAB
INT 25
Listino ufficiale
€. 11.085,00
Amplificatore integrato, 2X25 watt rms su 8 ohm per canaleCLASSE A

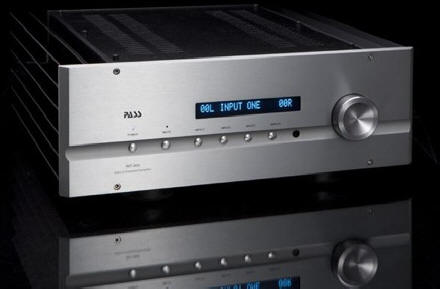

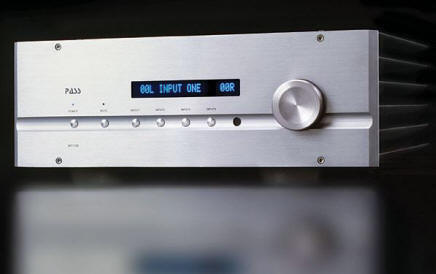

The
INT-30A is Pass Labs’ second integrated amplifier, a 30-watt Class A version of
its INT-150 Integrated Amplifier, and based on the XA30.5 Stereo Amplifier. It
combines the space-saving benefits of an integrated amplifier with the sonic
performance of Pass Labs’ superb XA.5 Series of Class A amps, which includes
Pass’ patented Super-Symmetry™ circuit
Technical specifications Class AB Type Stereo Gain (dB) 30/36 Volume
control (1dB steps)63 dB Remote Yes Inputs 4 Outputs 2 Frequency Response -6 dB
@ 80 KHz Power Output /ch (8 ohm) 250 Distortion, (1 KHz, full power) 1% Input
Impedance (Kohms) ea Leg 45 Damping Factor 150 Output Noise (uV) <250 Input CMRR
(dB) -60 DC Offset (V) 0.05 Leaves Class A pk 15 Power Consumption (Watts) 450
Dimensions (W x H x D) 19 x 21.25 x 9.1 Weight (LBS) 105
PASS LAB

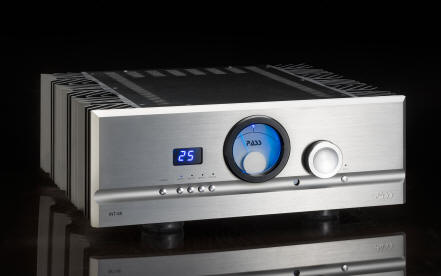

INT 60
Listino ufficiale
€. 13.780,00
Amplificatore
integrato high bias classe AB, guadagno 29 / 35 dB, potenza 60 watt su 8 ohm,
120 watt su 4 ohm, quattro ingressi (tre single ended, uno bilanciato), consumo
375 watt
This
integrated amplifier sets a new benchmark in significantly narrowing any
perceived performance gap between separate components and integrated amplifiers.
Advanced technologies and real-world testing combine to create the INT-60 which
presents 60 glorious watts per channel into 8 ohms, and doesn't leave class A
until 30 watts thanks to its high-bias operation. This larger class A operating
envelope brings lower distortion and greater loudspeaker control, delivering
higher quality musical fidelity for your enjoyment.Technical specifications
Class AB Type Stereo Gain (dB)29/35Volume control (1dB steps)63 dB RemoteYes
Inputs4 Outputs 2Frequency Response-6 dB @ 80 KHzPower Output/ch (8 ohm) 60
Distortion (1 KHz, full power)1% Input Impedance (Kohms) ea Leg 45Damping
Factor150 Output Noise (uV) <250Power Consumption (Watts)375 Temperature (deg
C.) 53 Dimensions (W x H x D) 19 x 21.2 x 7.6Weight (LBS) 93

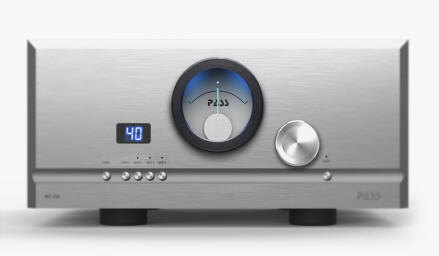

PASS LAB
INT
250
Listino ufficiale
€. 18.820,00
Amplificatore
integrato high bias classe AB, potenza 250 watt su 8 ohm, 500 watt su 4 ohm,
ulteriori specifiche a breve
Like the INT-60, the INT-250 utilizes the
synergies developed in the .8 series power amplifiers. Unlike the INT-60,
however, it brings 250 watts per channel of listening pleasure. With higher
power MOSFETs and more of them, the INT-250 drives large, demanding and
relatively inefficient loudspeakers at higher volumes without batting an eyelash,
singing beautifully. Just incredible music from one component.
PASS LAB
FIRST
WATT SIT4
Listino ufficiale
€. 8.405,00
Le
caratteristiche soniche lo pongono in assoluta evidenza nel segmento di mercato
in cui si colloca, regalando quella naturalezza del suono caratteristica delle
produzioni Pass Amplificatore
stereofonico, MOSFET, Classe A,guadagno 14 dB, ingressi single ended,
sensibilitàingresso: 500 mV=1 watt (3V), potenza 25 watt su 8 ohm, consumo 160
watt.
PASS LAB
FIRST
WATT F7
Listino ufficiale
€. 5.045,00
Le
caratteristiche di progettazione garantiscono un suono potente e cristallino,
definito e spazioso capace di ben amalgamarsi a componenti audiofili high end,
anche grazie alla possibilità di interfaccia in ingresso sia bilanciata sia
single end Amplificatore stereofonico,
JFET, Classe A, guadagno 20 dB, ingressi single ended e bilanciati, sensibilità
ingresso: 280 mV=1 watt (1,4V), potenza 25 watt su 8 ohm, consumo 200 watt
PASS LAB

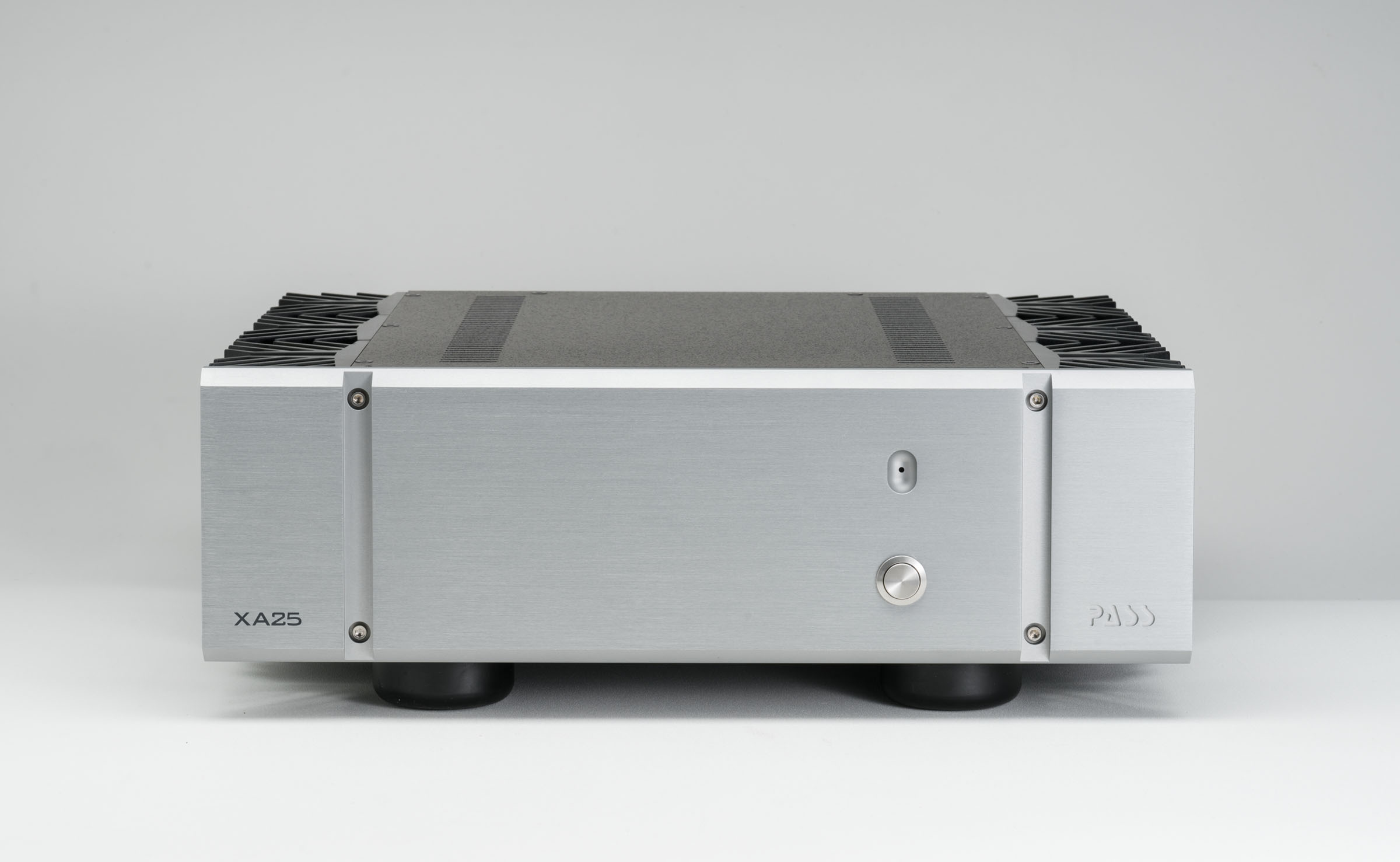

XA
25
Listino ufficiale
€. 7.510,00
Amplificatore
stereofonico in Classe A/AB, guadagno 20 dB, potenza 25 watt su 8 ohm (Classe
A), 50 watt su 4 ohm (Classe A), 100 watt su 2 ohm (Classe A/AB), consumo 240
watt.
Entering their 22nd year of production, the X and
XA power amplifiers have remained at the cutting edge of audio through
continuous innovation and refinement. At Pass we build amplifiers with excessive
output stages, huge heat sinks and massive power supplies. We use the highest
quality components in simple linear topologies, assembled and tested with great
care in Auburn, California. They measure well and sound great. They are heavy,
reliable and expensive. Technical
specifications Gain 20 dB gain Output Power 25 Watts rms @ 8 ohms 50 Watts
rms @ 4 ohms Distortion 0.1% @ 25 Watts, 8 ohms, 1 KHz Class A envelope 50 Watt
peak for 2, 4 or 8 ohm load Bandwidth DC to -2 dB @ 100 KHz Noise Less than 50
uV output, unweighted 20 to 20 KHz Damping Factor 500 Slew rate 100 V/uS Input
Impedance 47 Kohm Peak Current 10 Amp output (200 Watt peak into 2 ohms)
Protection Shutdown at 10 amps output Idle Power draw 2.0 Amps @ 120 VAC (240
Watts)
PASS LAB

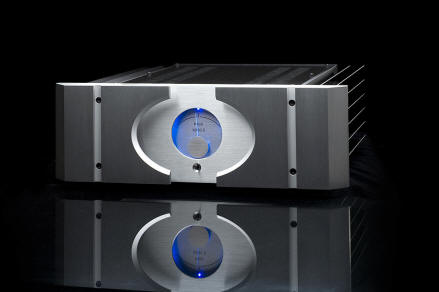

XA
30.8
Listino ufficiale
€. 10.425,00
Finale stereofonico in pura classe A, 30+30 watt / 8 ohm, 60+60 watt / 4 ohm
Since
the X1000, Pass Labs products have continuously evolved toward higher
performance. The Class AB "X" series was joined by the Class A "XA" amplifiers.
Subsequent improvements to the Class AB "X" amplifiers resulted in the "X.5"
products, and their phenomenal success has led to the Class A "XA.5" series.As
always the goal has been the best musical and objective performance possible
with minimal parts in the signal path and minimal feedback. This process is not
completely understood, and many of the improvements are the result of trial and
error and extensive listening.Measurement of performance is important to us, and
we feel that well-designed product sounds good and measures good. Apparently it
is possible to make an amplifier which measures well but which does not please
the ears, and so we let our ears be the final judge.Gain 26dB Freq. Response -3
dB at 1.5 Hz, -2 dB at 100 kHz Power Output 30 watts @ 8 ohms - 60 watts @ 4
ohms Distortion 0.01% @ 10 W, .11% @ 100 W @ 1 KHz approx. Output Voltage +/- 30
volts Output Current +/- 20 amps Input Impedance 30 kohm balanced, 15 kohm
unbalanced Damping factor 150 ref 8 ohms nominal Slew rate +/- 50 V/uS Output
Noise 150 uV unweighted 20-20 kHz Random noise floor approximately 1 uV Dynamic
range 150 dB (random noise floor to peak output) Balanced CMRR -60 dB @ 1 kHz DC
offset < 50 mv Power Consumption approx. 200 watts Dimensions 19"W x 7.5"H x
20"D Weight 68 LBS
PASS LAB
X
150.8
Listino ufficiale
€. 10.425,00
Amplificatore
stereofonico in Classe AB, guadagno 26 dB, potenza 150 watt su 8 ohm, 300 watt
su 4 ohm, consumo 375 watt.
PASS LAB
X
250.8
Listino ufficiale
€. 15.310,00
Amplificatore
stereofonico in Classe AB, guadagno 26 dB, potenza 250 watt su 8 ohm, 500 watt
su 4 ohm, consumo 450 wat
PASS LAB
X
350.8
Listino ufficiale
€. 21.725,00
Amplificatore
stereofonico in Classe AB, guadagno 26 dB, potenza 350 watt su 8 ohm, 700 watt
su 4 ohm, consumo 550 watt.
PASS LAB
X
260.8
Listino ufficiale
€. 10.390,00
Amplificatore
monofonico in Classe AB, guadagno 26 dB, potenza 260 watt su 8 ohm, 520 watt su
4 ohm, consumo 375 watt
PASS LAB
X
600.8
Listino ufficiale
€. 20.850,00
Amplificatore
monofonico in Classe AB, guadagno 26 dB, potenza 600 watt su 8 ohm, 1.200 watt
su 4 ohm, consumo 550 watt.
PASS LAB
XA
60.8
Listino ufficiale
€. 10.390,00
Finale monofonico in pura classe A, 60 watt
/ 8 ohm, 120 watt / 4 ohm
The
XA 60 monoblock power amplifier embodies the design technology and refinements
of the larger "XA" series amplifiers, including extensions of the patented
SuperSymmetry circuit. The XA 60 has a massive torroidal transformer coupled to
a high current DC reservoir. Recognizing that the XA 60's ability to resolve
microdynamics is best experienced with clean power, the extreme low-level
resolution of the XA series benefits from a specially designed power supply that
significantly reduces and rejects power line borne noise.The XA 60 will deliver
60 watts rms into 8 ohms of impedance. This is the amplifier's class A limit,
and driving the XA 60 harder or reducing the impedance of the load will not
convey any additional power. The XA 60 monoblock is packaged in an artistically
refined variant of the massive chassis previously reserved for the X150.5 stereo
amplifier.

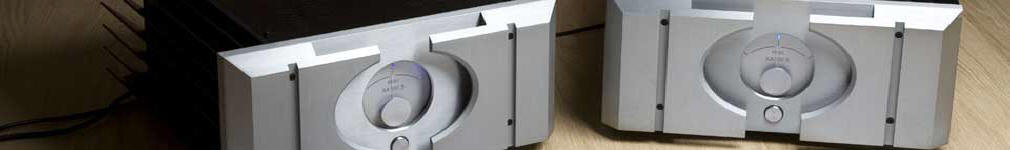

PASS LAB
XA
100.8
Listino ufficiale
€. 15.310,00
Finale monofonico in pura classe A, 100
watt / 8 ohm, 200 watt / 4 ohm
The
XA 100 monoblock power amplifier embodies the design technology and refinements
of the larger 'XA' series amplifiers, including extensions of the patented
Supersymmetry circuit. Recognizing that the XA 100's ability to resolve
microdynamics is best experienced with clean power, the extreme low-level
resolution of the XA series benefits from a specially designed power supply that
significantly reduces and rejects power line borne noise.The XA 100 has a
massive torroidal transformer coupled to a high current DC reservoir. The XA 100
will deliver 100 watts rms into 8 ohms of impedance. This is the amplifier's
class A limit, and driving the XA 100 harder or reducing the impedance of the
load will not convey any additional power. The XA 100 monoblock is packaged in
an artistically refined variant of the massive chassis previously reserved for
the X250 stereo amplifier
PASS LAB
XA
160.8
Listino ufficiale
€. 20.850,00
Finale monofonico in pura classe A, 160
watt / 8 ohm, 320 watt / 4 ohm
Characteristics
of this series include the warm midrange and sweet top end of the Aleph product,
combined with the extreme dynamic range and definitive bass control of the X
series amplifiers. Supersymmetry, the patented circuit topology that is the
cornerstone of the X-series, appears again in this new series of amplification,
adding dynamic range, bass authority and control, and accurate detailing in
support of the lush Class A output stage electronics. The XA 160 is built in the
same chassis as the Pass X600 and X350, and presents form and function in a
striking balance.The XA 160 mono block amplifier is a smaller and more
physically manageable implementation of the XA 200. It delivers 160 watts into
an 8-ohm load, and like the XA 200, cannot be induced to provide additional
power under any operating circumstances. The emphasis of all the amplifiers in
this new series is to accentuate performance over power. Characteristics of this
series include the warm midrange and sweet top end of the Aleph product,
combined with the extreme dynamic range and definitive bass control of the X
series amplifiers. Supersymmetry, the patented circuit topology that is the
cornerstone of the X-series, appears again in this new series of amplification,
adding dynamic range, bass authority and control, and accurate detailing in
support of the lush Class A output stage electronics. The XA 160 is built in the
same chassis as the Pass X600 and X350, and presents form and function in a
striking balance.Gain: 26dB
Freq. Response: -3 dB at 1.5 Hz, -3 dB at 100 kHz Power Output: 160 watts
maximum @ 1% THD, 1 kHz, 8 ohms Distortion: @ 1 KHz approx. 0.01% @ 10 W, 0.1%
@100 W, 1% @ 160 W Output Voltage: Maximum plus, minus approx. 50 volts Output
Current: Maximum plus, minus approx. 7 amps Input Impedance: 22 kohm balanced,
11 kohm unbalanced Damping factor: 30 ref 8 ohms nominal Slew rate: approx.
plus, minus 50 V/uS Output Noise: approx. 300 uV unweighted 20-20 kHz Random
noise floor: approximately 2 uV Dynamic range: 154 dB (random noise floor to
peak output) Balanced CMRR approx. -60 dB @ 1 kHz (input common mode rejection
ratio) DC offset: < 100 mv Power Consumption: approx. 550 watts Dimensions: 19"W
x 11"H x 22"D Weight: 150lbs
PASS LAB
XA
200.8
Listino ufficiale
€. 32.080,00
Finale monofonico in pura classe A, 200
watt / 8 ohm, 400 watt / 4 ohm
The
XA 200 mono block power amplifier is the first in an entirely new series of
power amplifiers that significantly raises the standard of excellence in audio
amplification. The "XA" series features a refined and elegantly simple, very
highly biased, pure Class A mode of operation. This new topology, descriptively
characterized as being single-ended Class A, combines the very best of the
original Pass Labs "Aleph" series with the present "X" series characteristics.The
XA 200 will deliver 200 watts into 8 ohms of impedance, and driving this
amplifier harder will not produce any additional power. Speaker matching is
therefore a consideration with the XA series amplifiers, as it was with the
original Aleph series. However, for the listener with efficient speakers who
truly appreciate the most musical presentation possible, few if any amplifiers
can approach the level of detail, intimacy, frequency response and dynamic range
that the XA 200 will provide. Lush, detailed midrange, combined with a sweet and
silky mooth top end, and the authority and bass control offered by Supersymmetry,
works together in an intimate and transparent fashion.Gain: 26dB Freq. Response:
-3 dB at 1.5 Hz, -3 dB at 100 kHz Power Output: 200 watts maximum @ 1% THD, 1
kHz, 8 ohms Distortion: @ 1 KHz approx. 0.01% @ 10 W, 0.1% @100 W, 1% @ 200 W
Output Voltage: Maximum plus, minus approx. 60 volts Output Current: Maximum
plus, minus approx. 9 amps Input Impedance: 22 kohm balanced, 11 kohm unbalanced
Damping factor: 30 ref 8 ohms nominal Slew rate: approx. plus, minus 50 V/uS
Power Consumption approx.: 650 watts Dimensions: 19"W x 11"H x 28"D Weight:
175lbs

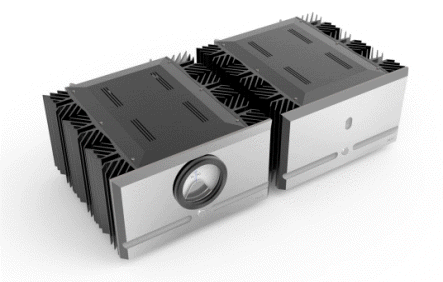

PASS LAB
XS
150
Listino ufficiale
€. 46.230,00
Amplificatore
monofonico in pura Classe A, guadagno 26 dB, due telai, potenza 150 watt su 8
ohm, 300 watt su 4 ohm, consumo 500 watt.
Like
the Xs 300, this amplifier was developed through constant and thorough
innovation. After years of SIT device experimentation, followed by deployment in
Nelson's First Watt designs, circuit modification captured the unique tube-like
sonic footprint of SITs from much higher-output MOSFET devices used in the Xs
series. The result is unparalleled, fatigue-free listening enjoyment.
PASS LAB
XS
300
Listino ufficiale
€. 60.455,00
Amplificatore
monofonico in pura Classe A, guadagno 26 dB, due telai, potenza 300 watt su 8
ohm, 600 watt su 4 ohm, consumo 1.000 watt

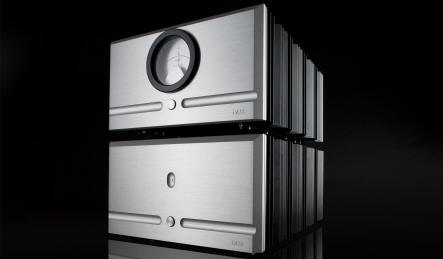

Xs 300 The Xs series monoblock power amplifiers
represent the reference-quality, state-of-art amplifiers from Pass Laboratories.
Through years of "spare no effort" endeavor, they represent the true pinnacle of
music reproduction. The Xs 300 delivers 300 watts, employs separate power supply
and amplifier chassis' for lower noise and utilizes higher-power
constant-current source. Single-ended bias current not only lowers distortion,
but facilitates better control of its harmonic structure, tweaked and optimized
through endless listening tests for your musical pleasure.

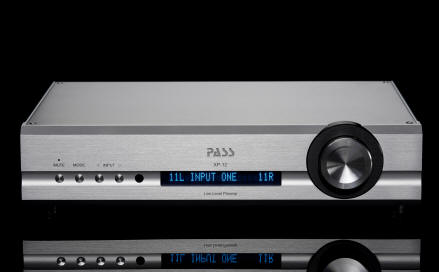

PASS LAB
XP 12
Listino ufficiale
€. 8.895,00
Preamplificatore
single ended e bilanciato, comando a distanza.
The new XP-12 starts with a new power supply. It
uses an efficient toroidal design with both an electrostatic and Mu metal shield
along with vacuum impregnating and epoxy fill. This gives us a very quiet
transformer both electrically and mechanically. The power supply circuitry
itself is also lower noise and has additional filtering, a little more
complicated but worth it. The XP-12 uses the single stage volume control
borrowed from the XS line preamp. This gives us one hundred 1 dB steps with
lower noise and distortion while removing some signal path parts. The gain
circuitry continues to use our favorite transistors from Toshiba but has a
larger higher biased output stage similar to the XS preamplifier auto bias. This
makes longer and multiple cable runs easier to drive and gives us the advantage
of simplifying our single ended output circuitry while increasing performance.
Overall this makes for a quieter more neutral, musical and versatile control
center for your system.Technical specifications Power Consumption30
Watts Gain 9.3 dB Balanced Frequency Response +/-0.05 dB @ 10Hz to 20KHz; -1 dB
@ 100KHz Crosstalk>100 dBResidual Noise15 uV @ 10 - 30 KHz THD <0.001 @ 1V 1KHz;
Double shielded low noise toroid Dimensions 17”w x 12.5”d x 4”h @ 20lbs
PASS LAB
XP 22
Listino ufficiale
€. 14.545,00
Preamplificatore
single ended e bilanciato, due telai, alimentazione separata, comando a distanza
PASS LAB
XP 32
Listino ufficiale
€. 26.795,00
Preamplificatore
single ended e bilanciato, tre telai, alimentazione separata, comando a
distanza. OPTIONAL Singolo canale
analogico. 6.590,00 EURO

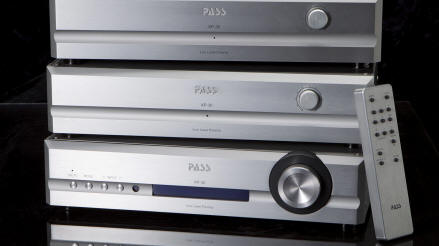

The
XP-30 is a three-piece modular preamplifier consisting of one control/power
supply chassis and two additional gain chassis each containing analog signals of
a single channel. The XP-30 generates less noise, crosstalk and distortion while
delivering greater dynamic range, gain, output voltage and output current. But
it is the sound, not the technical excellence, that truly makes this a
breakthrough instrument.

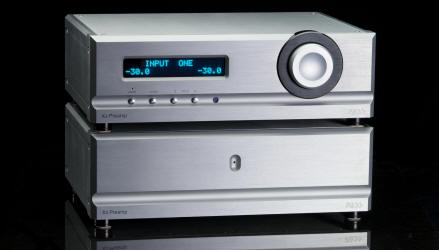

PASS LAB
XS PREAMP
Listino ufficiale
€. 54.055,00
Preamplificatore di
riferimento a doppio telaio, vero dual mono.
This
large, dual-chassis preamplifier is built in true dual-mono arrangement. Each
channel has its own power supply board with over 100,000uf of capacitance for
unfettered transient response. Noise levels have been dropped from the already
low-noise XP30. Refined circuit design and layout, new gain-stages with
auto-bias and DC compensation all combine for optimal performance. But it all
comes down to sound; once you listen to the Xs preamplifier, there is no going
back.
PASS LAB
XP
17
Listino ufficiale
€. 6..565,00
Pre fono, classe
A, MM/MC, guadagno/interfaccia regolabili, uscite RCA e XLR.

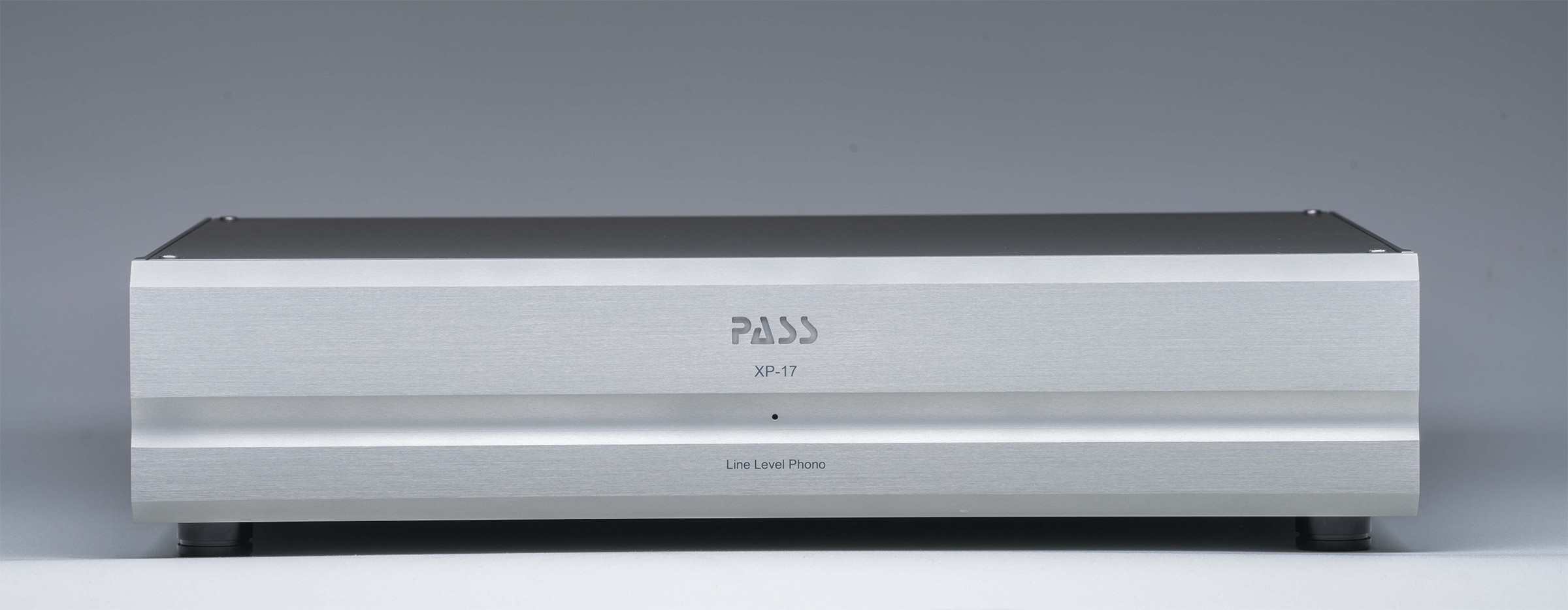

XP17 uses the new-shielded low noise
toroid and input filter module, like the XP-12. The power supply has an extra
stage of RC filtering. We have lower radiated and mechanical noise. The XP17 has
an all-new input circuit that is symmetrical and lower in noise and distortion
with greater drive capability. Noise is the most prominent part of THD+N in the
first section of a phono stage. By lowering noise we get better resolution and
dynamics. Designed with a split EQ network like the XP 25 and XS Phono that is
more accurate and can handle greater signal levels. The secondary stage runs a
higher bias output stage with auto bias. The numerous loading options from the
XP-15 are all still available and three gain settings to accommodate low output
MC to MM cartridges.
PASS LAB
XP
27
Listino ufficiale
€. 17.610,00
Pre fono, classe A,
MM/MC, guadagno/interfaccia regolabili, uscite RCA e XLR, due telai.

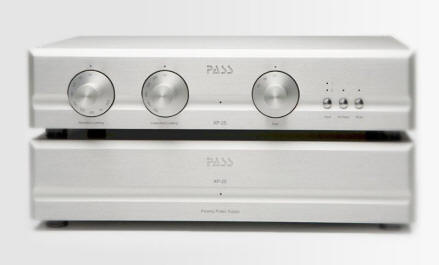

The
twin chassis XP-25 phonostage preamplifier greatly improves upon the already
exceptional performance of the XP-15. In addition to a separate and isolated
power supply chassis, the XP-25 boasts adjustable gain, two separate inputs, a
low cut filter, mute feature, resistive and capacitive loading all on the front
panel for easy access. With the XP-25 you will discover a whole new dimension of
dynamics, inner detail and spectral richness.
PASS LAB
XS PHONO
Listino ufficiale
€. 59.305,00
Preamplificatore di
riferimento a doppio telaio, vero dual mono.

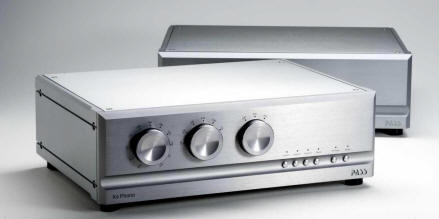

The Xs Phono preamplifier represents an all-out
assault on the state-of-art in Vinyl and the most intensive and difficult design
effort made at Pass Laboratories. The final product of this massive effort
extracts the utmost performance from a simple topology and operates with the
extremely small and delicate signals coming from today's wide variety of phono
cartridges. The result is music that emerges from a quieter background and
blooms into a richer, more precise soundstage.
PASS LAB
HPA-1
Listino ufficiale
€. 5.230,00
Amplificatore
per cuffie, specifiche a breve

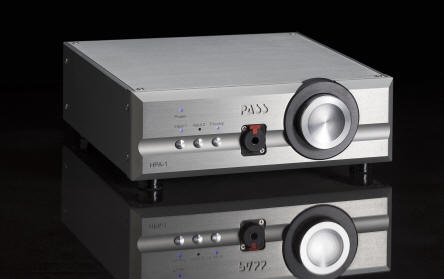

The
HPA-1 headphone amplifier was designed ground-up to become what we believe is
one of the very best sounding headphone amplifiers available today. With low
feedback, wide bandwidth and a direct coupled MOSFET output stage, this musical
instrument drives even the most difficult headphone loads with ease, power and
grace. The HPA-1 also functions as a line-level preamplifier that sonically
rivals much higher-priced competition. The measured performance is superb and
the sound even better.Technical specifications Gain (dB) 8 dB Power
Consumption (W)23Output Power into 20 ohms 3500 mWOutput Power into 300 ohms200
mW Frequency Response 10hz -100k -1 dB THD + Noise< 0.005 at 1V out Input
Impedance 50K Ohm Output Impedance < 2 ohms
Legenda istruzioni
 Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
