REL Acoustics Ltd of Great Britain designs and manufactures high quality, award-winning sub-bass systems for use in two-channel and multi-channel music and multi-channel home theatre systems.What is a sub-bass system?Many so-called ‘full-range’ loudspeakers cannot reproduce the low bass frequencies found on most music and movie discs, which are necessary for the accurate reproduction of the original recording and help to impart a natural ambience that is immediately recognisable by listeners as being closer to ‘the real thing’. Of course, movie DVDs incorporate a dedicated bass channel for the deeper bass special effects, but a properly designed sub-bass system will not only reproduce these with accuracy, it will also augment the output of conventional stereo and surround loudspeakers with very low frequency bass that is felt rather than heard. The result is greater fidelity. The system with a wider bandwidth will always sound more realistic and ultimately more entertaining and stimulating. In many cases, the best way, the only way, to add these critical bass frequencies is to introduce a correctly designed sub-bass system, one which not only has the technical ability to reveal the deepest sounds, but will also integrate seamlessly with the loudspeakers so that your system speaks with one deeper, more natural voice. REL Acoustics designs and builds specialised sub-bass systems that do just this. It doesn’t build loudspeakers, it only builds sub-bass systems. For over ten years, the evolving range of REL products has delighted audiophiles and cinephiles around the world, and received universal critical acclaim. Its superiority remains unchallenged, proving that genuine sub-bass is a rare commodity, and only available from a specialist. Read more about sub-bass and discover how REL build’s the world’s finest sub-bass systems…REL Acoustics, Ltd. of Bridgend, Wales was founded in 1990 by Richard Edmund Lord. Dissatisfied by the commercially available subwoofers of the day, Lord set out to build Himself something better. Almost immediately, word spread of a Welshman who had built this incredible sounding sub bass system and soon enough audiophiles began searching out these legendary subs that were built like no other.Lord began referring to them as sub bass systems, because the performance he had been able to achieve was the result of system engineering. Where common subwoofers rely on amplifying a line level signal, Lord had intuitively realized that the signature of the entire system had to be built forward into a pre-conditioning signal that allowed the sub to disappear into the music. Thus, from almost the very beginning RELs used a special high-level circuit. Many of the basic elements present in modern day RELs began finding their way into production RELs in the later 1990’s.The modern era of REL began in 2005 when John Hunter and Donald Brody acquired REL. Almost immediately, they identified several key paths to take the strengths of the core REL philosophy and build upon them. First, the designs had to be updated and made to look as wonderful as they sounded. Second, for all their robust qualities, there was room for improvement in the area of electronics and driver technology. Accordingly, they set about on a comprehensive plan to upgrade and improve every aspect of the products; focusing on reliability, clean styling and robust mechanical construction–a path that continues to this day. Today, REL is one of the fastest growing product ranges in the entire high end with strong international partnerships all over the world and acclaim coming from virtually every high end audio and home theater magazine. At its cornerstone, fundamental reliability remains its core strength, blended with a unique approach to design that results in what many consider the most musical and powerful sounding subwoofers available.

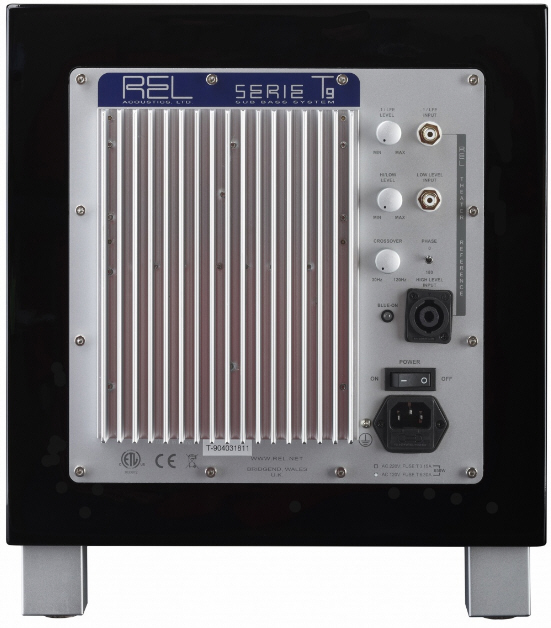

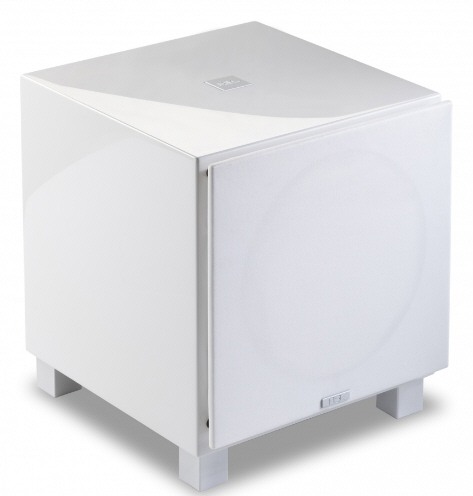

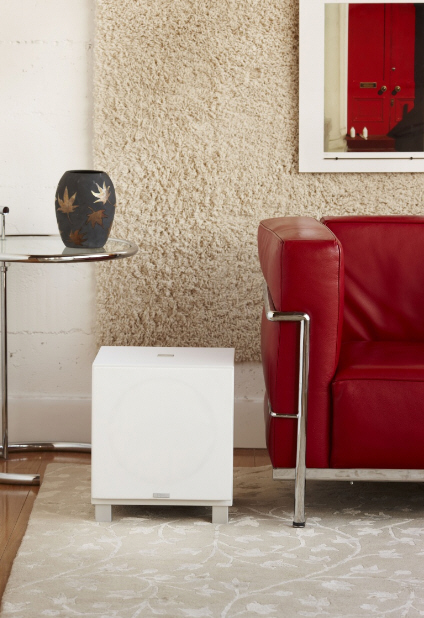

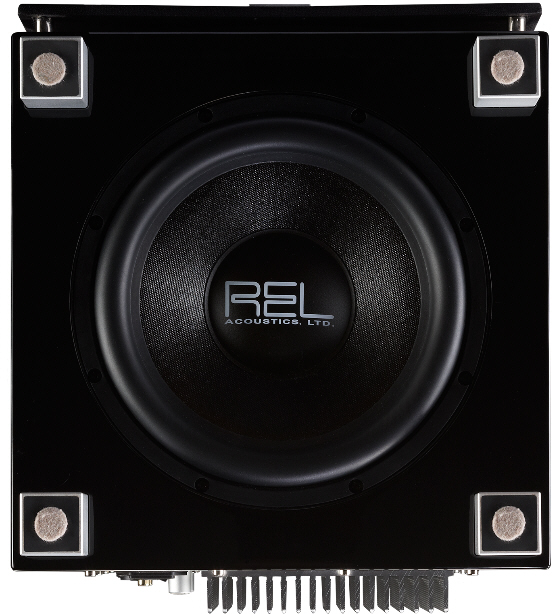

At REL, we refuse to build entry-level products. Serie T may be our most cost effective product but it is every inch a high-end offering. From its full connectivity suite, to glass fibre circuit boards and complex input schemes, to high-current amplifiers and large toroidal transformers, Serie T abounds with quality. 5-layers of carefully applied lacquer, paired with solid aluminium accents combine with deceptively simply forms yielding a taut, timelessness to its design REL ZEROMKIII Listino ufficiale €. 549,00 Subwoofer amplificato in sospensione pneumatica in classe D. Woofer a lunga escursione da 16cm con cono in alluminio. Potenza di amplificazione 100W in classe D con moduli NextGen. Frequenza di crossover variabile da 30 a 120HZ. Ingressi sia ad alto che basso livello con regolazione del volume e del taglio di frequenza indipendenti. Ingresso LFE. Fase 0/180°. Dimensioni del cabinet molto compatte: 24x21x26cm. Finitura: Nero laccato o Bianco laccato. Cad.
T-Zero: Miracle in miniature. This modern life we inhabit, where less space
means more enjoyment in more rooms than ever before. Movies in the bedroom
growls, rumbles and springs to life, the gaming console in a spare room takes on
a whole new meaning when the effects are suddenly rendered with lifelike bass,
and your favorite digital music files appear and float in front of the listener
with lifelike clarity and power. T-Zero makes each experience better, enriching
even modest systems with power and natural bass.This is the premise of T-Zero;
bringing the quality and indeed the full REL connectivity suite, long throw
drivers and powerful, reliable amplifiers to a new lower price point and
dimension. T-Zero is, in many ways, the most difficult design we have ever
executed because never before have we delivered so much for so little with so
much quality. 5 coats of lacquer, as in all Serie T, next generation Class D
amplifiers, High level inputs, .1 separate input stages, rugged 6.5” main driver
with exceptional output and low bass extension for its size means T-Zero gives

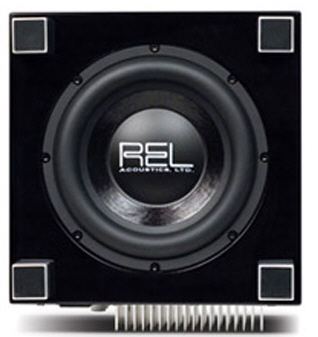

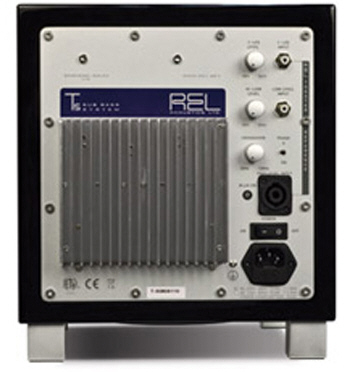

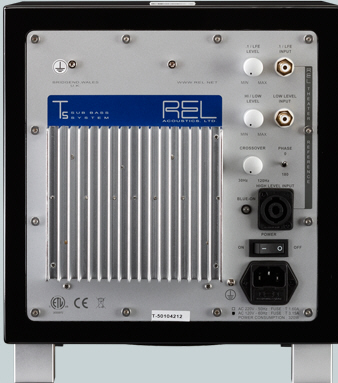

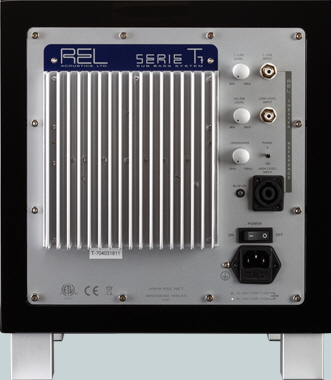

up little to much larger units from the competitors. REL T5X Listino ufficiale €. 899,00 Subwoofer amplificato in sospensione pneumatica in classe A/B predisposto wireless. Woofer a lunga escursione da 20cm con cupola rovesciata e cono in lega di metallo e fibre minerali. Irradiazione a pavimento. Potenza di amplificazione 125W in classe A/B. Frequenza di crossover variabile da 30 a 120HZ. Ingressi sia ad alto che basso livello con regolazione del volume e del taglio di frequenza indipendenti. Ingresso LFE. Fase 0/180°. Predisposto wireless tramite Arrow Transmitter opzionale. Dimensioni del cabinet molto compatte: 30x30,7x31,3cm. Finiture disponibili: Nero laccato o bianco laccato. Cad. REL T7X Listino ufficiale €. 1.299,00 SSubwoofer amplificato in sospensione pneumatica con radiatore passivo in classe A/B predisposto wireless. Woofer a lunga escursione da 20cm con cupola rovesciata e cono in lega di metallo e fibre minerali sul frontale e radiatore passivo da 25cm verso il pavimento. Potenza di amplificazione 200W in classe A/B. Frequenza di crossover variabile da 30 a 120HZ. Ingressi sia ad alto che basso livello con regolazione del volume e del taglio di frequenza indipendenti. Ingresso LFE. Fase 0/180°. Predisposto wireless tramite Arrow Transmitter opzionale. Dimensioni del cabinet: 35,6x32x36,3cm. Finiture disponibili: Nero laccato o bianco laccato. Cad REL T9X Listino ufficiale €. 1.699,00 Subwoofer amplificato in sospensione pneumatica con radiatore passivo in classe A/B predisposto wireless. Woofer a lunga escursione da 25cm con cupola rovesciata e cono in lega di metallo e fibre minerali sul frontale e radiatore passivo da 25cm verso il pavimento. Potenza di amplificazione 300W in classe A/B. Frequenza di crossover variabile da 30 a 120HZ. Ingressi sia ad alto che basso livello con regolazione del volume e del taglio di frequenza indipendenti. Ingresso LFE. Fase 0/180°. Predisposto wireless tramite Arrow Transmitter opzionale. Dimensioni del cabinet: 37x34x39,3cm. Finiture disponibili: Nero laccato o bianco laccato. Cad.
REL HT 1003 Listino ufficiale €. 949,00 Subwoofer amplificato serie Home Theater in sospensione pneumatica. Woofer frontale da 25cm in fibra di carbonio a lunga escursione. Potenza 300W con amplificazione NextGen5 in classe D. Regolazione del volume e della frequenza di taglio del xover. Fase 0-180°. Possibilità di renderlo wireless attraverso l'adattatore esterno opzionale HT Air Wireless. Ingressi stereo RCA e LFE RCA separato. Dimensioni del cabinet (lxaxp): 31,8x34,7x35,1cm. Finitura: Nero spazzolato. Cad
REL HT 1205 Listino ufficiale €.1.149,00 Subwoofer amplificato serie Home Theater in sospensione pneumatica. Woofer frontale da 30cm in fibra di carbonio a lunga escursione. Potenza 500W con amplificazione NextGen5 in classe D. Regolazione del volume e della frequenza di taglio del xover. Fase 0-180°. Possibilità di renderlo wireless attraverso l'adattatore esterno opzionale HT Air Wireless. Ingressi stereo RCA e LFE RCA separato. Dimensioni del cabinet (lxaxp): 37,6x40,5x39,9cm. Finitura: Nero spazzolato. Cad. REL HT 1508 PREDATOR Listino ufficiale €.2.200,00
Subwoofer amplificato serie Home Theater in sospensione pneumatica. Woofer frontale da 38cm in fibra di carbonio a lunga escursione. Potenza 800W con amplificazione NextGen5 in classe D. Regolazione del volume e della frequenza di taglio del xover. Fase 0-180°. Possibilità di renderlo wireless attraverso l'adattatore esterno opzionale HT Air Wireless. Ingressi e uscite sia RCA che XLR e LFE RCA separato. Possibilità di posizionamento in stack. Dimensioni del cabinet (lxaxp): 50x45,7x49,2cm. Finitura: Nero spazzolato. Cad
REL HT 1510 Listino ufficiale €.2.200,00
REL CARBON LIMITED Listino ufficiale €. 2.300,00 Subwoofer amplificato in sospensione pneumatica in classe D predisposto wireless con Super High Output. Woofer a lunga escursione in fibra di carbonio da 30cm con parapolvere centrale invertito, polo centrale ventilato e emissione frontale. Radiatore passivo in lega leggera di alluminio da 30cm con emissione verso il pavimento. Potenza di amplificazione 550W in classe D NextGen2 Class D. Frequenza di crossover variabile. Frequenza minima 21Hz. Fase 0/180°. Connettore SMA per antenna wireless, per rendere il subwoofer libero dal cavo di segnale tramite il prodotto proprietario Longbow Transmitter opzionale. Logo del badge e piedini con tripla cromatura. Edizione limitata a poche unità. Dimensioni del cabinet (lxaxp): 44.4 x 45.5 x 50.7 cm. Finitura laccata nera ad 8 mani. Cad

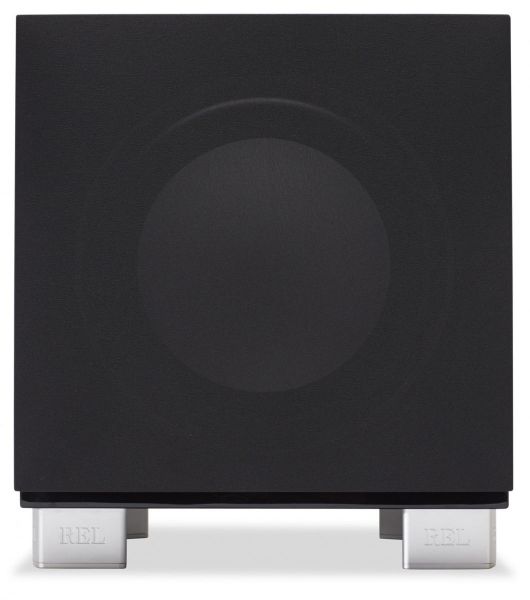

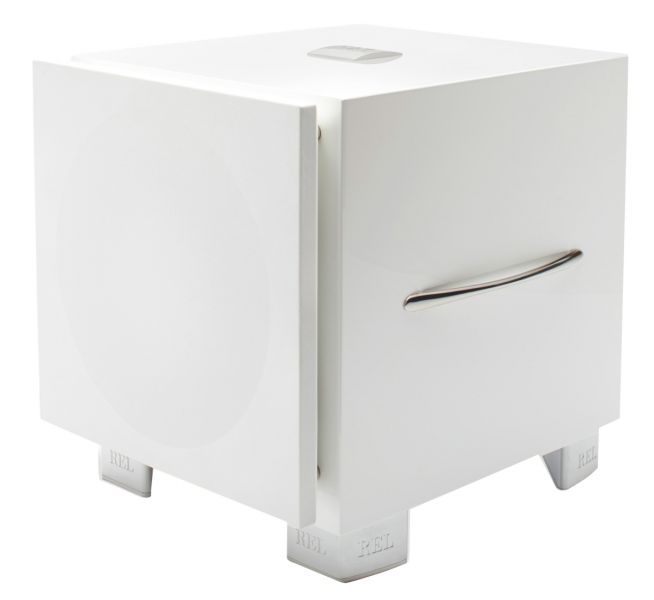

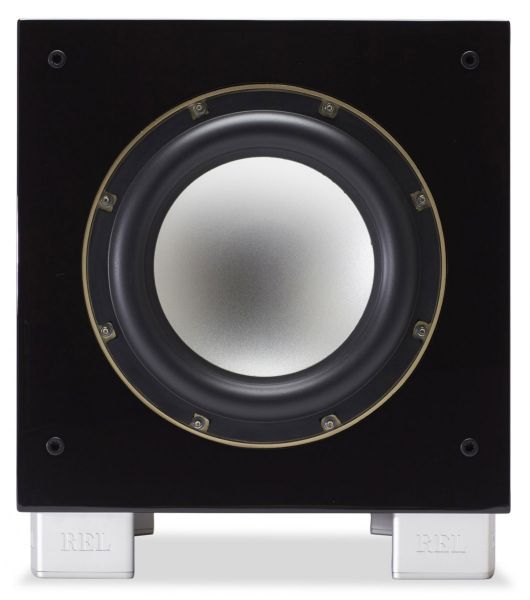

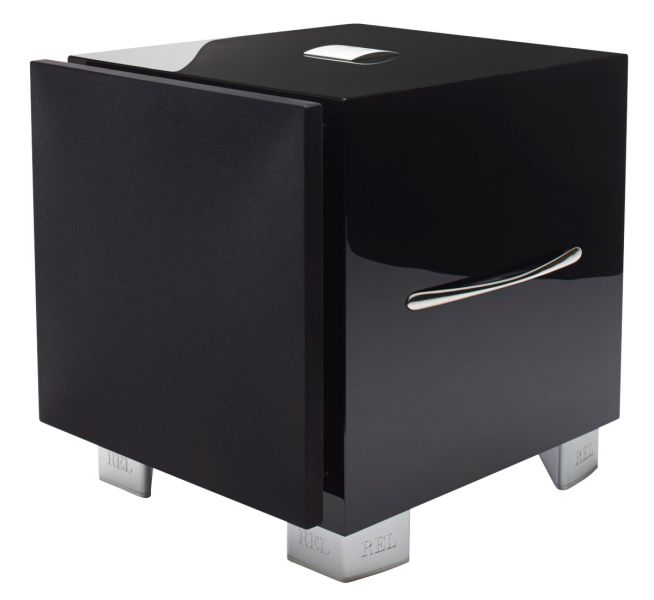

REL S/510 Listino ufficiale €. 3.150,00 Subwoofer amplificato in sospensione pneumatica in classe D predisposto wireless. Woofer a lunga escursione da 25cm con emissione frontale e radiatore passivo da 30cm con emissione verso il pavimento. Potenza di amplificazione 500W NextGen2 Class D. Frequenza di crossover variabile. Frequenza minima 20Hz. Fase 0/180°. Ingressi sia ad alto che basso livello. Ingresso LFE. Cabinet rinforzato e stabile su nuovi appoggi a rotaia. Possibilità di utilizzo di più subwoofer in stack sovrapposti. Dimensioni del cabinet (lxaxp): 40 x 41 x 46.4cm. Finitura: Nero o bianco laccato. Cad Power and Performance The Beautifully Balanced S/3 S/3 derives from the flagship S/5 and offers a more compact footprint and much of S/5 performance for use with either slightly more modest systems or rooms that cannot handle the power and output of S/5. Qualitatively, it is the equal of S/5, sans the grand scale, power and majesty of its larger sibling. Beautifully balanced, S/3 offers powerful, incisive and beautifully balanced performance.Specifications S/3 Type: Front-firing active woofer, down-firing passive radiator Active Drive Unit: 10 in., 250mm long-throw, pressed Aluminium chassis Passive Radiator: 12 in., 300mm Lower Frequency Response in Room: 22Hz at -6 dB Input Connectors: Hi Level Neutrik Speakon, Left and Right Lo Level phono, LFE phono, SMA for wireless antenna Gain Control Range: 80 dB Power Output: 400 watts (RMS) Phase Switch: Yes, 0 or 180 degrees Amplifier Type: Next Gen II Class D REL Longbow Wireless capability: Yes – REL Longbow™ transmitter [required], Sold separately Protection System Fully Electronic with SET-SAFE: Yes D.C. Fault: Yes Output Short: Yes Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets Fuses (semi delay): 5 Amp 220 volts operation 9 Amp 120 volts operation Dimensions (W x H x D)*: 16 x 16.7 x 18.25 in., (406 x 424 x 463.5 mm) Net Weight: 61.4 lbs. (27.85 kg) Shipping Weight: 71 lbs. (32.2 kg) Finish (Gloss): Piano Black White

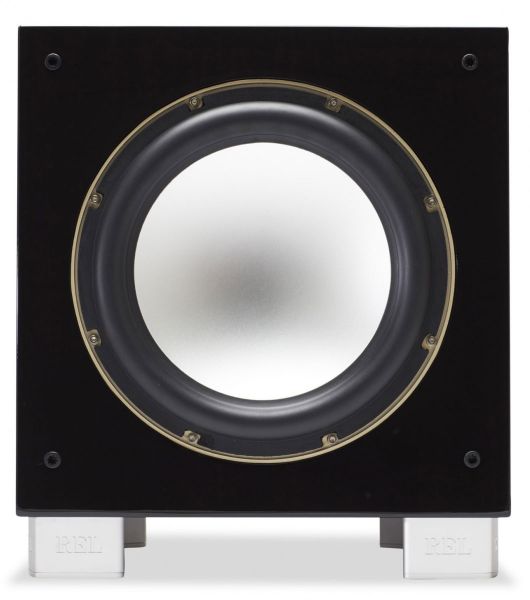

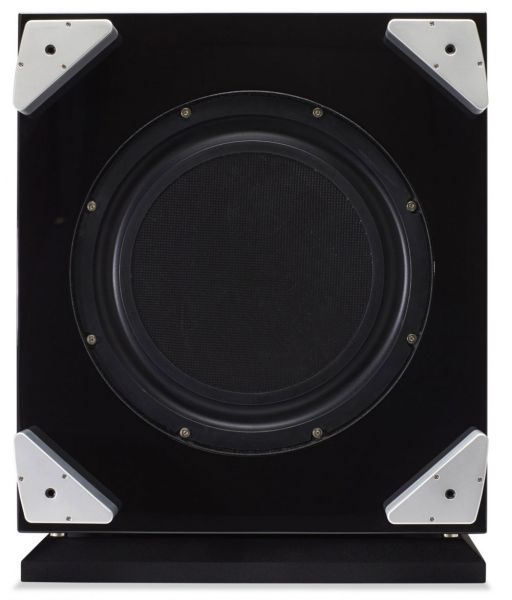

REL S/812 Listino ufficiale €. 3.850,00 Subwoofer amplificato in sospensione pneumatica in classe D. Woofer a lunga escursione da 30cm con emissione frontale e radiatore passivo da 30cm con emissione verso il pavimento. Polo centrale ventilato. Potenza di amplificazione 550W in classe D. Frequenza di crossover variabile. Frequenza minima 21Hz. Fase 0/180°. Ingressi sia ad alto che basso livello. Connettore SMA per antenna wireless, per rendere il subwoofer libero dal cavo di segnale tramite il prodotto proprietario Longbow Transmitter opzionale. Robusti piedini in alluminio satinato. Dimensioni del cabinet (lxaxp): 44,4x45,5x50,7cm. Finitura: Nero o bianco laccato. Cad OPTIONAL Trasmettitore wireless per subwoofer della serie S. + 400,00 euro The Serie S Flagship The Majestic S/5 S/5 exceeds the mandate for mid-level models and crosses this model into true reference quality. S/5 produces exceptionally low bass with tremendous impact and speed. Even difficult-to-render instruments such as pipe organs are dealt with effortlessly.Large scale, high end 2-channel systems make a perfect pairing for S/5 and grand theaters are ideal. Medium to grand rooms are appropriate. Scale is Very Large, Speed is Exceptional, Attack and Slam is Visceral. Specifications S/5 Type: Front-firing active woofer, down-firing passive radiator Active Drive Unit: 12 in., 300mm long-throw, pressed Aluminium chassisPassive Radiator: 12 in., 300mmLower Frequency Response in Room: 20Hz at -6 dBInput Connectors: Hi Level Neutrik Speakon,Left and Right Lo Level phono, LFE phono, SMA for wireless antenna Gain Control Range: 80 dB Power Output: 550 watts (RMS) Phase Switch: Yes, 0 or 180 degrees Amplifier Type: Next Gen II Class DREL Longbow Wireless capability: Yes – REL Longbow™ transmitter [required],Sold separatelyProtection SystemFully Electronic with SET-SAFE: YesD.C. Fault: YesOutput Short: YesMains Input Voltage: 220-240 volts, 110-120 volts for certain markets Fuses (semi delay): 5 Amp 220 volts operation 9 Amp 120 volts operation Dimensions (W x H x D)*: 17.5 x 18 x 20 in., (444.5 x 455.5 x 507 mm) Net Weight: 69.7 lbs. (31.6 kg) Shipping Weight: 79.5 lbs. (36 kg) Finish (Gloss): Piano Black White Lacquer Supplied Accessories Mains Lead: Yes Neutrik Speakon Interconnect 10 Metres Nominal: Yes

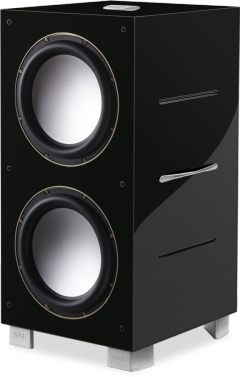

REL 212 SX Listino ufficiale €. 6.200,00 Subwoofer amplificato in sospensione pneumatica con radiatore passivo in classe D predisposto wireless. 2 Woofer frontali sovrapposti da 30cm con cono in lega di alluminio CAST, a lunga escursione e con polo centrale ventilato. 2 Radiatori passivi, uno verso il basso e l'altro posteriormente, da 30cm. Potenza di amplificazione 1000W in classe D con NexGen3 e pressione di 110dB. Frequenza di crossover variabile. Fase 0/180°. Ingressi sia ad alto che basso livello (Hi level e .1/LFE) con regolazione del volume e del taglio di frequenza indipendenti. Robusti piedini in alluminio satinato. Finitura: Nero laccato. Cad Introducing 212/SE, our most powerful and agile subwoofer, designed exclusively for larger system and rooms to allow superior state of the art speakers to spring to full voice. We believe in quality first, not simply power and boom. Specifications TYPE (2) Front-firing active drivers, (1) rear passive, (1) down-firing passive ACTIVE DRIVER SIZE & MATERIAL (2) 12 in., 300mm long-throw, Continuous CastAlloy™ cone structure, cast chassis PASSIVE RADIATOR SIZE & MATERIAL (2) 12 in., 300mm Continuous CastAlloy™ cone structure, cast chassis LOW FREQUENCY EXTENTION -6dB at 19 Hz INPUT CONNECTORS High Level Neutrik Speakon, Low Level stero RCA, LFE RCA, SMA for wireless antenna OUTPUT CONNECTORS N/A POWER OUTPUT 1,000 watts (RMS) AMPLIFIER TYPE NextGen3 Class D WIRELESS CAPABILITY Longbow (Optional), Zero Compression, Individual discrete D/A and A/D Encoders Protection System FULLY ELECTRONIC SET SAFE Yes D.C. FAULT Yes OUTPUT SHORT Yes MAINS INPUT VOLTAGE 220-240 volts, 1120-120 volts for certain markets FUSES 7 Amp semi delay 220 volts operation, 15 Amp semi delay 120 volts operationDimensions W X H X D 17.5 x 32 x 20 in. (444.5 x 815.5 x 507 mm) NET WEIGHT 122 lbs. (55.3 kg) FINISH Piano Black Lacquer, 8 coats Supplied Accessories MAINS LEA Yes NEUTRIK SPEAKON Yes (10 Meters Nominal) REL CARBON SPECIAL Listino ufficiale €. 5.200,00 REL G1 mKII Listino ufficiale €. 5.500,00 G-1 Subwoofer amplificato in sospensione pneumatica in classe A/B. Woofer a lunga escursione in fibra di carbonio da 30cm con polo centrale ventilato. Potenza di amplificazione 700W in classe A/B. Frequenza di crossover variabile. Fase 0/180°. Ingressi sia ad alto che basso livello (Hi level e .1/LFE) con regolazione del volume e del taglio di frequenza indipendenti. Telecomando in dotazione per le regolazioni principali. Robusti piedini in alluminio satinato. Possibilità di utilizzo di più subwoofer in stack sovrapposti. Finitura: Nero laccato. Gibraltar G-1 transforms the definition of deep bass for the home. Whether used singly in multiples, we know of no finer ambient space and deep bass reproducer. G-1 combines shocking speed and clarity with formidable power handling and depth. G-1 combines a cabinet of remarkable complexity, with a power amplifier capable of sufficient current production to develop even the lowest, sustained passages—whether in ultra high-end home theater or the finest audiophile music system. And it all starts with the fastest filter circuits ever fitted to a home subwoofer. The bass note is then shaped and toned through truly environmentally friendly recycled blue jean material used as damping, and explodes outward through an ultra light, stiff carbon fibre 12” bass engine unique to G-1.The massively beautiful, finned, alloy heatsink is necessary when dissipating the sorts of power necessary for prodigious deep bass for hours on end. Capable of outputting a conservative 600W (120V) on occasion, the dedicated REL Class A/B amplifier used in G-1 is a true dreadnaught. Powerful, fast and capable of tremendous current delivery, it is the finest amplifier ever designed by our engineersPower is of little use unless properly directed. The filter circuit used in G-1 is the fastest we know of in existence. Measured at just 4 milliseconds of group delay, this design features a 2nd order Bessel function crossover that begins as low as 20 Hz, necessary because G-1 can extend lower than that in many rooms. Additionally, we employ a secondary filter set at approximately 220Hz to roll off any remnants of midrange that might otherwise be audible.

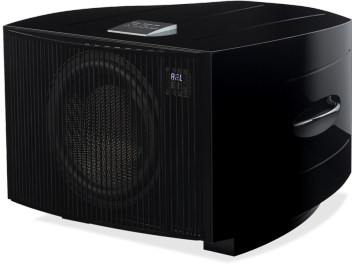

REL N°25 Listino ufficiale €. 9.500,00 Subwoofer amplificato in sospensione pneumatica in classe D predisposto wireless. Woofer a lunga escursione in fibra di carbonio da 38cm, parapolvere centrale invertito e polo centrale ventilato. Potenza di amplificazione 1000W in classe D con NexGen3. Frequenza di crossover variabile. Fase 0/180°. Ingressi sia ad alto che basso livello (Hi level e .1/LFE) con regolazione del volume e del taglio di frequenza indipendenti. Uscite XLR. Connettore Daisy chain per mettere più sub in cascato a stack. Connettore SMA per antenna wireless, per rendere il subwoofer libero dal cavo di segnale tramite il prodotto proprietario Longbow Transmitter opzionale. Telecomando in dotazione per le regolazioni principali. Robusti piedini in alluminio satinato. Possibilità di utilizzo di più subwoofer in stack sovrapposti. Dimensioni (lxaxp): 73.6 x 54 x 76.2 cm. Finitura: Nero laccato con 12 mani di verniciatura. Cad. No. 25 combines the power of an ultra-reliable 1,000 watt amplifier, with a lightweight and perfectly balanced carbon fibre 15” driver. All this is controlled by our legendary filter sets and proprietary crossovers with 2 separate parametric equalizers permitting remarkably flat in-room response, while maintaining the speed and resolution for which modern RELs have become known. We want our customers to enjoy all this performance without being limited to only a few room locations, so we built-in our legendary LongBow™ wireless receivers into every No. 25. This design utilizes zero compression, resulting in stunning dynamics and bass extension without being tethered to a cable, while delivering sound quality comparable to our competitor’s hardwired designs. It’s just another example of how we strive to offer complete and thoughtful solutions.Specifications TYPE Closed box, front-firing driver ACTIVE DRIVER SIZE & MATERIAL 15 in., 380mm long-throw, carbon fibre cone with inverted carbon fibre dust cap PASSIVE RADIATOR SIZE & MATERIAL N/A LOW FREQUENCY EXTENTION -6dB at 14 Hz INPUT CONNECTORS High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR, SMA for wireless antenna OUTPUT CONNECTORS High Level, LFE RCA, LFE XLR Daisy Chain Outputs POWER OUTPUT 1,000 watts (RMS) Ultra High-Current Power Supply AMPLIFIER TYPE NextGen3 Class D WIRELESS CAPABILITY Longbow (Optional), Zero Compression, Individual discrete D/A and A/D Encoders Protection System FULLY ELECTRONIC SET SAFE Yes D.C. FAULT Yes OUTPUT SHORT Yes MAINS INPUT VOLTAGE 220-240 volts, 110-120 volts for certain markets FUSES 7 Amp semi delay 230 volts operation, 15 Amp semi delay 115 volts operation Dimensions W X H X D 29 x 21.3 x 30 in. (736.5 x 540 x 762 mm) NET WEIGHT 168 lbs. (76 kg) FINISH Piano Black Lacquer, 12 coats Supplied Accessories MAINS LEAD Yes NEUTRIK SPEAKON Yes (10 Meters Nominal) SERIE HABITAT

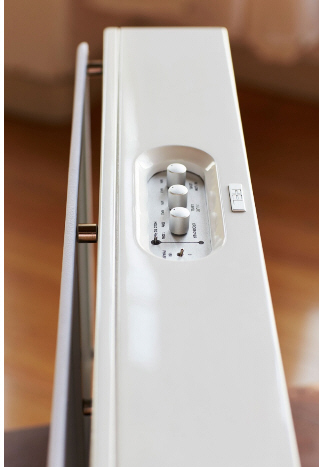

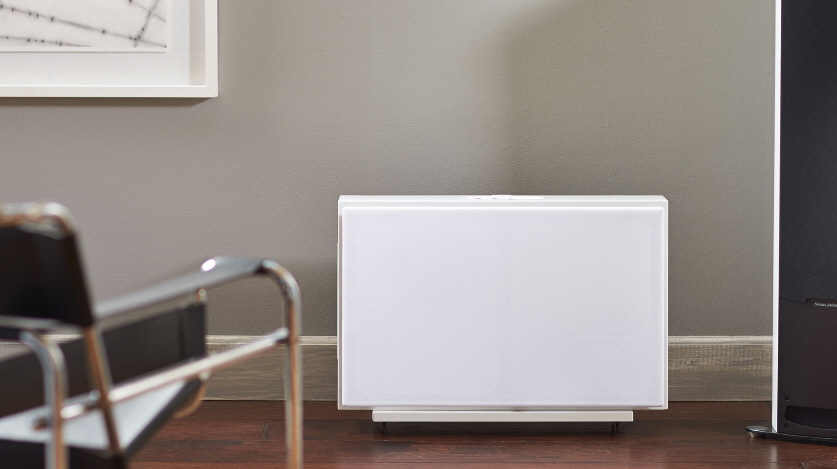

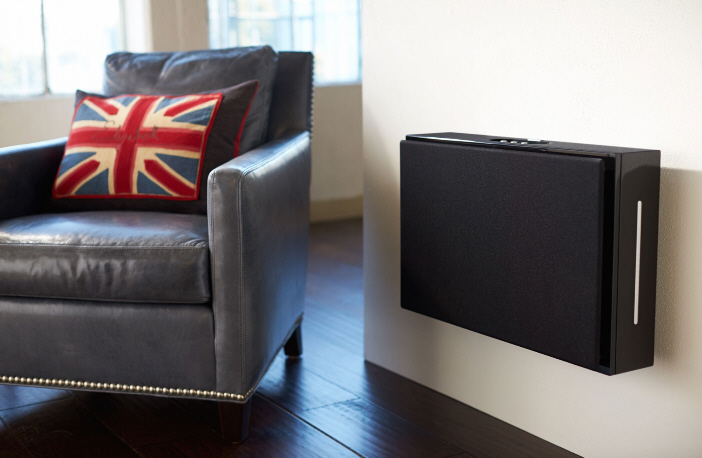

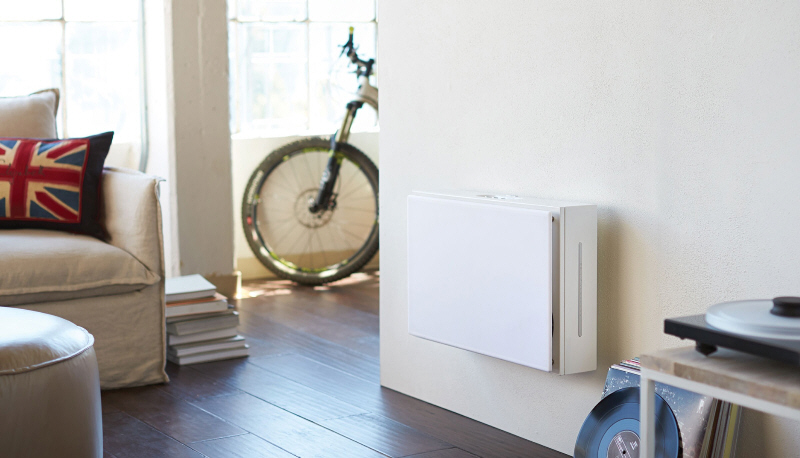

REL HABITAT 1 Listino ufficiale €. 2.150,00 Subwoofer amplificato wireless. Slim design
per il suo posizionamento appeso al muro. Tecnologia proprietaria wireless non
compressa Longbow. 2 woofer frontali a Lunga escursione da 170mm e radiatore
passivo posteriore da 250mm. Potenza di amplificazione 200W in classe D.
Ingressi sia ad alto che basso livello con regolazione del volume. Ingresso LFE.
Fase 0/180°. Dimensioni del cabinet: 63,5x40,6x11,5cm. Finitura: Nero laccato o
Bianco laccato OPTIONAL Supporto in
acciaio da pavimento per subwoofer Habitat 1 + 200,00 euro
