Hand Crafted Audio
Equipment Tsakiridis Devices produces "affordable high-end" audio
equipment for music lovers all over the world since it was established in 1987.
We spent many years creating audio devices for ourselves and for enthusiast
friends wanting to experience true "high-end" audio reproduction but without
investing their life savings in the process! We enjoyed this so much that we
decided to turn our passion into a business. The mission, right from the start,
was to make high quality audio equipment at a price/performance ratio that would
set ours apart from the rest - equipment that really does sound good, is easy to
live with and looks rather attractive too. That's why all our products are hand
crafted by us in Greece, using the highest quality components available.
TSAKIRIDIS DEVICES
THESEUS
ULTIMA   Listino
€. 4.545,00

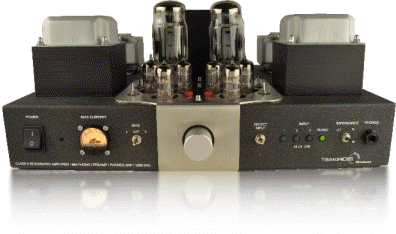

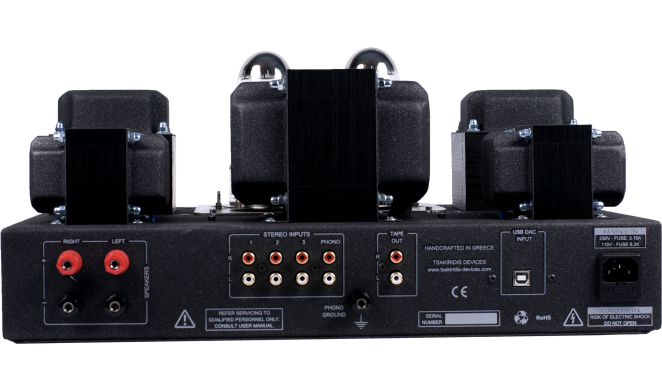

As Theseus unified
Athens under one king, Theseus Integrated amplifier unifies all devices in one.
But first of all it gives you the possibility to use any pentode power tube you
like from EL84 to KT150 in class A operation.So you can choose the tube, the
sound of which you prefer.Triode or pentode (ultralinear) operation is
selectable via a switch as is and the amount of feedback.Theseus provides three
line inputs, one MM phono input with tube RIAA preamplification, and one USB
input.It has a transformer phones output, with high/low impendance selection and
a switch to silence the speakers when you are listening with your headphones.
Also Theseus utilizes blue Alps motorized volume control.Above all these, the
sound performance of this amplifier will astonish you. The design of the output
transformers gives Theseus superior sound volume through all the acoustic range.
Everything you need with supreme sound quality and beautiful design.
Theseus Ultima Mundorf evo silver gold oil signal
capacitors. 16 layer output transformers. Silver soldered. High quality cathode
and grid resistors. WBT-0703 Nextgen speaker connectors
Technische Daten Tsakiridis TheseusSinusleistung:
2 x 19W Class A mit KT120 Röhren: 2 x KT120, 2 x 12AX7, 4 x 12AT7 Eingänge: 3 x
Line, 1 X Phono MM, 1x USB Ausgänge: LS 4 Ohm u. 8 Ohm, Line-Out, Pre-Out,
Kopfhörer Eingangsempfindlichkeit: Line: 350mV, Phono MM: 3mV/47kOhm Bandbreite:
7 Hz – 58 kHz (10W, -3 dB) Stromversorgung: 230V AC Leistungsaufnahme: 320 VA (mit
KT120) Abmessungen: 44 x 36 x 23 cmGewicht: 18 kg
TSAKIRIDIS DEVICES AEOLOS
EL34 Listino
€. 2.128,00
TSAKIRIDIS DEVICES AEOLOS
6550
Listino
€. 2.415,00
TSAKIRIDIS DEVICES AEOLOS
ULTRA KT150
Listino
€. 2.898,00

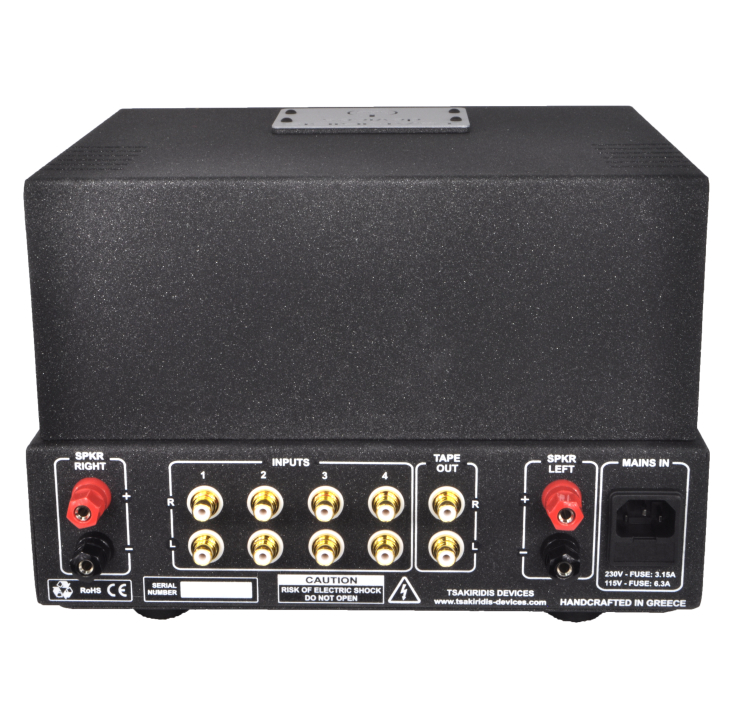

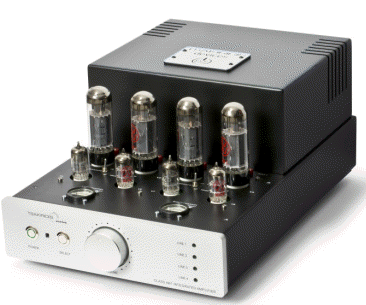

Aeolos is our
best selling amplifier. It’s a basic integrated amplifier but with superior
sound. No need for preamplifiers when using Aeolos. It provides 4 line inputs,
motorized blue Alps volume control, all remotely controlled.
With push - pull configuration in class AB1, it provides enough power to drive
low sensitivity speakers. Features Aeolos, Tube Integrated Amplifier, 2 x 35
Watt, (4 x EL34, 4 x 12AT7). Aeolos Plus, Tube Integrated Amplifier, 2 x 45
Watt, (4 x 6550, 4 x 12AT7). Remote Control. Four (4) Inputs Rele's Line
Selector with Tape Out. High Grade Selection Rele's. Alps Volume Control.
Matched Input & Output Tubes. Power Supply Capacitors United Chemicon. Porcelain
Tube Bases. Double Face Printing Circuit with Separate Signal & Power Path. Hand
Made Ultralinear Multi Layer Output Transformers. High Grade Polypropylene
Signal Capacitors. Metal Film Resistors with Low Tolerance 1%. Gold Plated Input
Connectors Ultimax. Nickel Plated Output Connectors Ultimax. Five Years
Guarantee. Aeolos Ultra, Integrated
Amplifier, 2 x 70 Watt, (4 x KT150, 4 x 12AT7). Mundorf evo signal capacitors.
High quality cathode and grid resistors. WBT-0703 Nextgen speaker connectors.
Aeolos Ultima, Integrated Amplifier, 2 x 70 Watt, (4 x KT150, 4 x 12AT7).
Mundorf supreme silver gold oil signal capacitors. 16 layer output transformers.
Silver soldered. High quality cathode and grid resistors. WBT-0710 Nextgen
speaker connectors.
TSAKIRIDIS DEVICES
HERMES
EL84
Listino
€. 2.245,00
TSAKIRIDIS DEVICES
HERMES
ULTIMA
Listino
€. 5.175,00

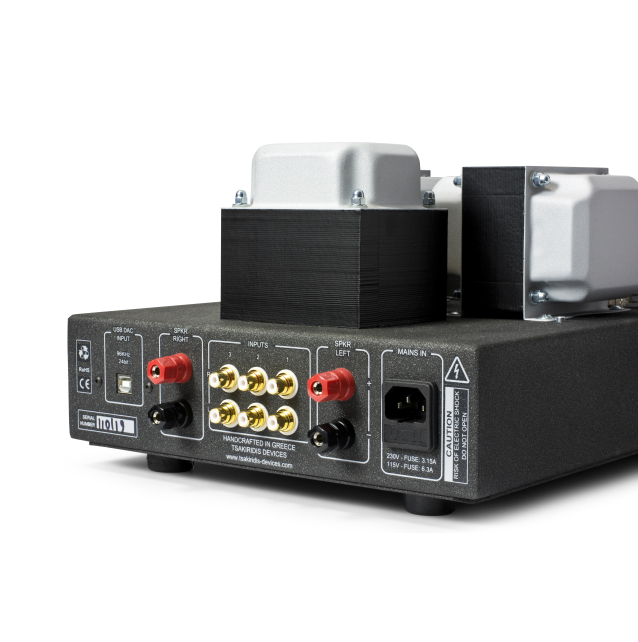

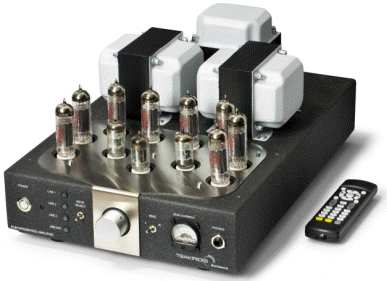

Hermes
Integrated amplifier Incorporates four ELB4 per channel in dual push pull
configuration. Features Hermes Integrated Amplifier 2x25W 8X EL84, 2X 12AT7, 1X
12AX7. Remote Control.Three line inputs.24bit/96kHz USB input.High quality
relays for input selection. Headphones output. Motorized blue Alps volume
control. Handmade multilayer output transformers. Lifetime guarantee for
transformers. Five Years Guarantee. Hermes
Ultima Mundorf evo silver gold oil signal capacitors. 16 layer output
transformers. Silver soldered. High quality cathode and grid resistors. WBT-0703
Nextgen speaker connectors.
TSAKIRIDIS DEVICES
ALEXANDER
Listino
€. 3.048,00
TSAKIRIDIS DEVICES
ALEXANDER
ULTIMA
Listino
€. 5.175,00

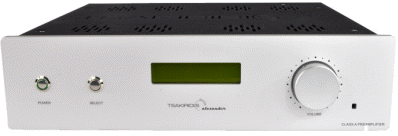

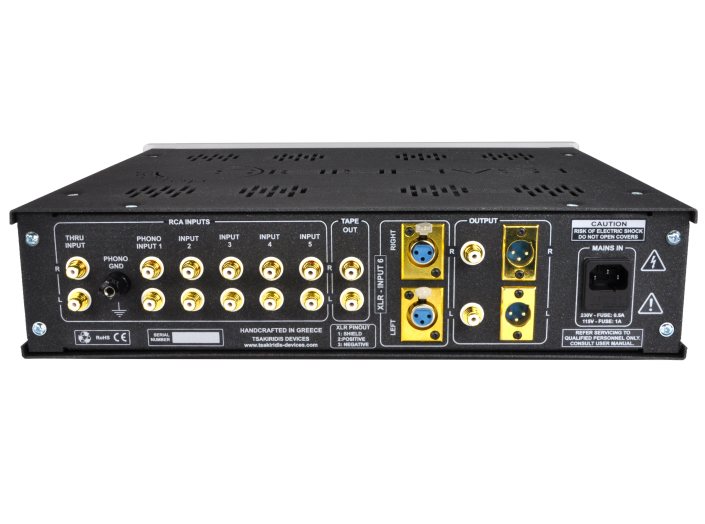

 Alexander
is the top model of the preamplifier series of Tsakiridis - devices Very
carefully designed and manufactured with high quality components, aims to
meliorate your sound system. Alexander incorporates different (hand made)
transformers for each voltage in the power supply and also a choke with the
regulating capacitors. Care has been taken to eliminate magnetic interference
with the electronic circuitry. The tubes (2x12AT7) operate in class A to give
supreme sonic result. Alexander provides five line inputs and one tape output.
Also there are optional one balanced input and one output. The volume control is
made with a motorized blue Alps. The input selection utilizes high grade relays.
Of course Alexander is remotely controlled. An LCD display in the front provides
information about the input selected. Class A (2 x 12AT7), Six (6) Line
Inputs with Tape Out., Remote Controlled Volume & Inputs, High Grade Selection
Rele's, Alps Volume Control, Matched Input Tubes, Four Independent DC Power
Supplies, Two Independent DC Power Transformers & One Choke, Optional One (1)
Ballance Input & Output Connenction, Power Supply Capacitors United Chemicon, No
Feedback Design, Porcelain Tube Bases, Double Face Printing Circuit with
Separate Signal & Power Path, Hand Made Power Transformer, High Grade
Polypropylene Signal Capacitors, Metal Film Resistors with Low Tolerance 1%,
Gold Plated Input Connectors Ultimax, Gold Plated Output Connectors Ultimax,
Five Years Guarante
Alexander Ultima
Mundorf evo silver gold oil signal capacitors. Silver soldered. Genalex tubes.
TSAKIRIDIS DEVICES
ZEUS
OFFERTA
€. 2.081,00
TSAKIRIDIS DEVICES
ZEUS ULTIMA
OFFERTA
€. 2.530,00
Zeus is a Moving Coil - Moving Magnet hybrid Phono preamplifier. Hybrid because
it utilizes ultra low noise op-amp ICs in the input stage and a tube (6DJ8)
output stage in cathode follower arrangement. Equipped with sophisticated power
supply which provides four independent DC power supplies. Zeus provides five
input resistor selections, four input capacitance selections and four gain
selections to match perfectly your phono cartridge. Meliculous to the last
detail this phono preamplifier is said to be a world class device.ZEUS:
(Preamplificatore 3hono) Moving Coil / Moving Magnet Preamplifier, (1 x 6DJ8).
Four (4) Independent DC Power Supplies, Five (5) Selections of Input Resistance,
Four (4) Selections of Input Capacitances, Four (4) Selections of Gain. Ultra
Low Noise Input Stage, Double Face Printing Circuit with Separete Signal & Power
Path, Power Supply Capacitors United Chemicon, Porcelain Tube Base, Hand Made
Power Transformer, High Grade Polypropylene Signal Capacitors, Metal Film
Resistors with Low Tolerance 1%, Gold Plated Input Connectors Ultimax, Gold
Plated Output Connectors Ultimax, Five Years Guarantee
TSAKIRIDIS DEVICES ARTEMIS
OFFERTA
€. 1.679,00
TSAKIRIDIS DEVICES ARTEMIS
PLUS
OFFERTA
€. 1.932,00
TSAKIRIDIS DEVICES ARTEMIS
ULTRA
OFFERTA
€. 3.995,00
TSAKIRIDIS DEVICES ARTEMIS
ULTIMA
OFFERTA
€. 4.485,00
Dual Mono /
Class AB / EL 34 / 35 VERSIONE
ARTEMIS+
Dual Mono / Class AB / 6550
/ 45
1.990,00 EURO
When musicality is all that matters Artemis is
what you need. An amplifier with high sound performance that will give you hours
of pleasant listening to your favorite music.Artemis is the only amplifier of
this series that is not in monoblock construction. It is all in one chassis
dual-mono construction. It is in class AB1 push pull configuration. Features
Artemis, Power Amplifier, 2 x 35 Watt, (4 x EL 34, 4 x 12AT7). Artemis Plus,
Power Amplifier, 2 x 45 Watt, (4 x 6550, 4 x 12AT7). Dual Mono
Construction.Triode - Pendode Switchable Operation. Switchable Amount of
Feedback (6dB / 9dB).Matched Input & Output Tubes. Power Supply Capacitors
United Chemicon.Porcelain Tube Bases. Double Face Printing Circuit with Separate
Signal & Power Path. Hand Made Ultralinear Multi Layer Output Transformers. High
Grade Polypropylene Signal Capacitors. Metal Film Resistors with Low Tolerance
1%. Custom Gold Plated Input Connectors.WBT Next Gen Output Connectors. Five
Years Guarantee.
Artemis Ultra, Power Amplifier, 2 x 70 Watt, (4 x KT120, 4 x 12AT7). NMundorf
evo signal capacitors. High quality cathode and grid resistors. NWBT-0703
nextgen speaker connectors.
Artemis Ultima, Power Amplifier, 2 x 70 Watt, (4 x KT120, 4 x 12AT7). Mundorf
supreme silver gold oil signal capacitors. High quality cathode and grid
resistors. Silver soldered. 16 layer output transformers. WBT-0710 nextgen
speaker connectors.
TSAKIRIDISDEVICES
ACHILLES
OFFERTA
€. 2.415,00
TSAKIRIDIS DEVICES
ACHILLES
ULTIMA
OFFERTA
€. 4.485,00
Achilles is a small monoblock class A triode
amplifier with superior sound performance. It needs a sensitive speaker as a
load but it will amaze you with its performance. A beautiful small size
amplifier for many relaxing music hours. Features Achilleas, Power Amplifier,
2 x 8 Watt, (2 x 300B / 2 x 2A3, 2 x 6SL7, 2 x 6L6). Monoblock Construction.
Triode Class A Operation. Zero Feedback. Matched Input & Output Tubes Between
Channels. Switchable Operation 300B / 2A3. Hand Wired Construction.Power Supply
Capacitors United Chemicon. Porcelain Tube Bases. Hand Made Ultralinear Multi
Layer Output Transformers. Toroidal Power Transformers. High Grade Polypropylene
Signal Capacitors. Metal Film Resistors with Low Tolerance 1%. Custom Gold
Plated Input Connectors. WBT Next Gen Output Connectors WBT. Five Years
Guarantee.
Achilles Ultima
Mundorf supreme silver gold oil signal capacitors. MHigh quality cathode and
grid resistors. MSilver soldered. M16 layer output transformers. MNWBT-0710
nextgen speaker connectors.
TSAKIRIDIS DEVICES APOLLON
OFFERTA
€. 2.817,00
TSAKIRIDIS DEVICES APOLLON
PLUS OFFERTA
€. 3.395,00
TSAKIRIDIS DEVICES APOLLON
ULTRA OFFERTA
€. 3.995,00
TSAKIRIDIS DEVICES APOLLON
ULTIMA
OFFERTA
€. 7.130,00
Finali Mono /
Class AB / EL 34 / 70W /100W

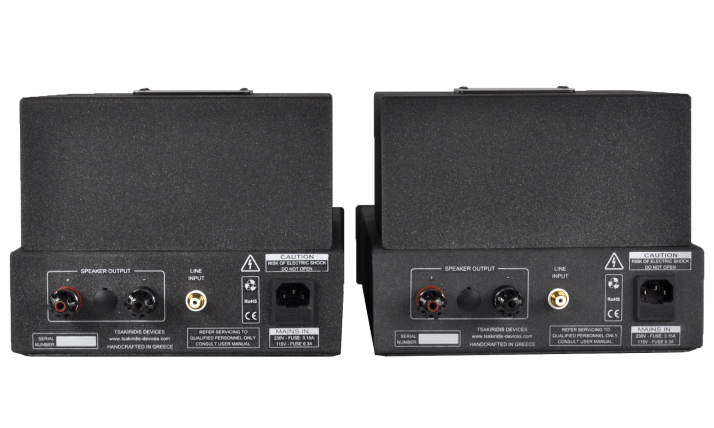

Apollon
in Greek Mythology was the God of music. A fitting name for this amplifier as it
has excellent sound. It carries almost 20 years of development, as it is the
descendant of the very first amplifier our company put to trade. Then it was
named Powerhouse but now it is Apollon, the God of music. It incorporates 4
power tubes per channel which form a dual push pull. They are biased in class
AB1 class of operation. Powerful enough to drive difficult loads and give you a
unique sonic experience. Features Appollon, Power Amplifier, 2 x 70 Watt, (8
x EL 34, 4 x 12AT7). Appolon Plus, Power Amplifier, 2 x 90 Watt, (8 x 6550, 4 x
12AT7). Monoblock Construction. Triode - Pendode Switchable Operation.
Switchable Amount of Feedback (6dB / 9dB). Matched Input & Output Tubes. Power
Supply Capacitors United Chemicon. Porcelain Tube Bases. Double Face Printing
Circuit with Separate Signal & Power Path. Hand Made Ultralinear Multi Layer
Output Transformers. High Grade Polypropylene Signal Capacitors. Metal Film
Resistors with Low Tolerance 1%. Custom Gold Plated Input Connectors. WBT Next
Gen Output Connectors. Five Years Guarantee.
TSAKIRIDIS DEVICES
ORPHEUS
OFFERTA
€. 3.864,00
TSAKIRIDIS DEVICES
ORPHEUS ULTIMA
OFFERTA
€. 5.980,00
Finali Mono /
Class A / 845 o 211 / 20W
Orpheus
in Greek Mythology could charm all living things with his music. This amplifier
with its incomparable sound will charm you, no doubt about this. Class A triode
operation with zero feedback design in conjunction with the high quality hand
made multi layer output transformers give it’s excellent sound performance. This
amplifier will nail down in your armchair for endless hours of listening.
Features Orpheus , Power Amplifier, 2 x 20 Watt, (2 x 845 / 2 x 211, 2 x 6SL7, 2
x 6L6). Monoblock Construction. Triode Class A Operation. Zero Feedback. Matched
Input & Output Tubes Between Channels. Switchable Operation 845 / 211. P.C.B. &
Hand Wired Construction. Power Supply Capacitors United Chemicon. Porcelain Tube
Bases. Hand Made Ultralinear Multi Layer Output Transformers. Toroidal Power
Transformers. High Grade Polypropylene Signal Capacitors. Metal Film Resistors
with Low Tolerance 1%. Custom Gold Plated Input Connectors. WBT Next Gen Output
Connectors WBT. Five Years Guarantee.
TSAKIRIDIS DEVICES ATHINA
OFFERTA
€. 1.449,00
condizionatore
di rete / Filtro di rete

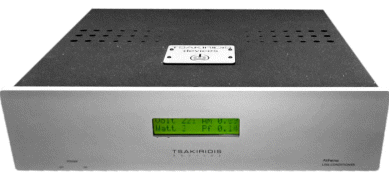

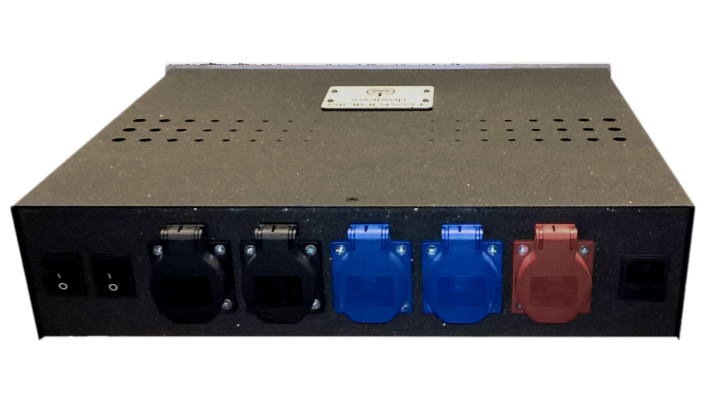

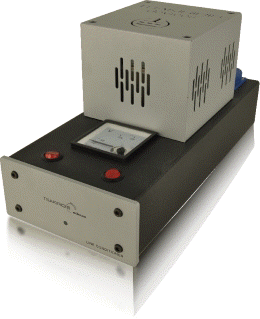

Athena is a small line conditioner that features
a 2500W line filter and an isolation transformer. The line filter protects from
over voltage and voltage surges and “clears” all parasitic currents. The
isolation transformer is for further protection and isolation of the music
sources of the sound system. Features Athina, Line Filter - Isolator,
Filter Power Output 2500 Watt, Isolator Power Output 300 Watt. Athina Plus, Line
Filter - Isolator, Filter Power Output 2500 Watt, Isolator Power Output 800
Watt. Symmetric Line Filter & Over Voltage Protection. Voltage Meter. Hand Made
Power Isolator. High Grade Polypropylane Filter Capacitors. Metal Film Resistors.
Five Years Guarantee.
TSAKIRIDISDEVICES ATHINA
SUPER
OFFERTA
€. 2.245,00

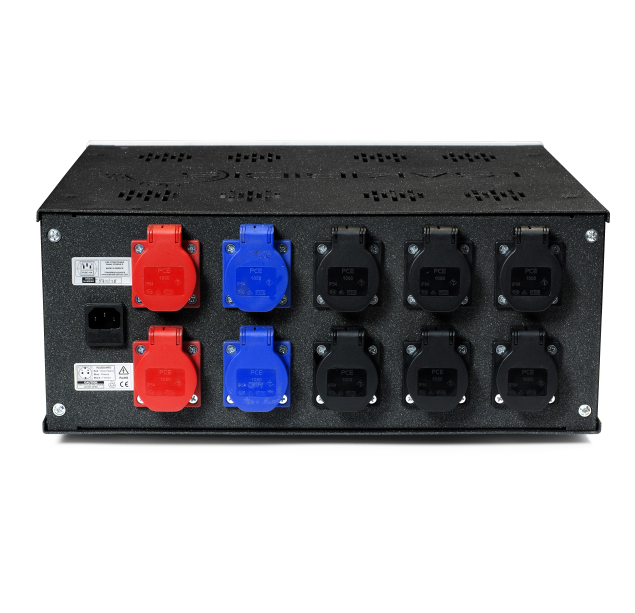

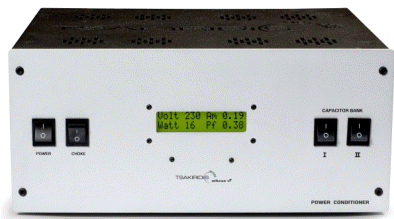

Super
Athena is a line conditioner that includes everything needed to provide the best
power supply to sound systems. Athena S. provides two direct line outlets, four
line balance filter outlets, and four balance isolated outlets. The filter
included protects from surge voltages (lightnings etc) and eliminates all
parasitic currents superimposed on the power network. The filter power
capability is 2500W. Athena S. includes an isolation transformer to provide
clean and isolated power to the sound sources. Also a power choke of 2000W
ensures that your power amplifiers will have a surplus of power when they need
it. One more feature of Athena S. is the power factor correction. At the front
panel there is an informative LCD display to monitor all power parameters.
Athena S. has a bluetooth data sender to communicate with smartphones. An
application is provided by Tsakiridis Devices. As with all our products we
provide a 5 year guaranty for our line conditioners. Features MSuper Athina,
Line Filter - Isolator, Filter Power Output 2500 Watt, Isolator Power Output 800
Watt. Four (4) Line Balance Filtering Outlets. Two (2) Direct Line Outlets. Four
(4) Balance Isolated Outlets.Power Factor Correction. Power Choke. Over Voltage
Protection. Informative Display (Watt / Volt / Ampere / Power Factor). Bluetooth
Data Sender. Hand Made Power Choke & Transformer. Powerfull Android Application.
High Grade Polypropelene Filtering Capacitors. Five Years Guarantee.
TSAKIRIDIS DEVICES HERCULES
OFFERTA
€. 586,00
TSAKIRIDIS DEVICES HERCULES
OFFERTA
€. 679,00
Ciabatta 12
posti
Hercules
Plus is a multiplug device that includes a line filter pf 2500W. The line filter
offers protection to the devices of your sound system and cleans the mains power
supply. Features Hercules, Multiplug, Maximum Power 2500Watt. Hercules Plus,
Multiplug - Line Filter, Maximum Power 2500Watt. Ten (10) Power Sockets. Two
Separate Chain Wire Connenctions. Symmetric Line Filter & Over Voltage
Protection. High Grade Polypropylane Filter Capacitors. Metal Film Resistors.
Five Years Guarantee.
TSAKIRIDIS DEVICES DEDALUS
OFFERTA
€. 1.840,00
– TEST VALVOLE

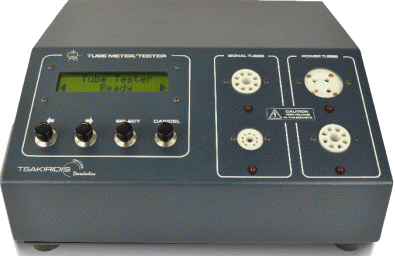

Daedalos
is a tube meter/tester. With this device you can test line and power tubes.
It tests the tube filaments, anode and cathode over current, current leakage and
measures gm in five different operating points of the tube. Daedalos helps
you to find out if a tube is worn out, or can cause damage to the device you
intended to use it. With Daedalos you can easily match your tubes. The
whole process is fully automated and it is very easy to use. At the end of each
test there is a full report for the results. Daedalos has a large library of
tubes which is continuously updated. The software updates are easily loaded
through the USB port located on the side of Daedalos. Tube adaptors are provided
by Tsakiridis Devices for tubes that don’t match directly the tube bases on
Daedalos.Daedalos is a very useful and powerful tool for all tube enthusiasts.
NThe supporting Daedalos application gives you the ability to draw the
characteristics of each tube on your PC.
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
